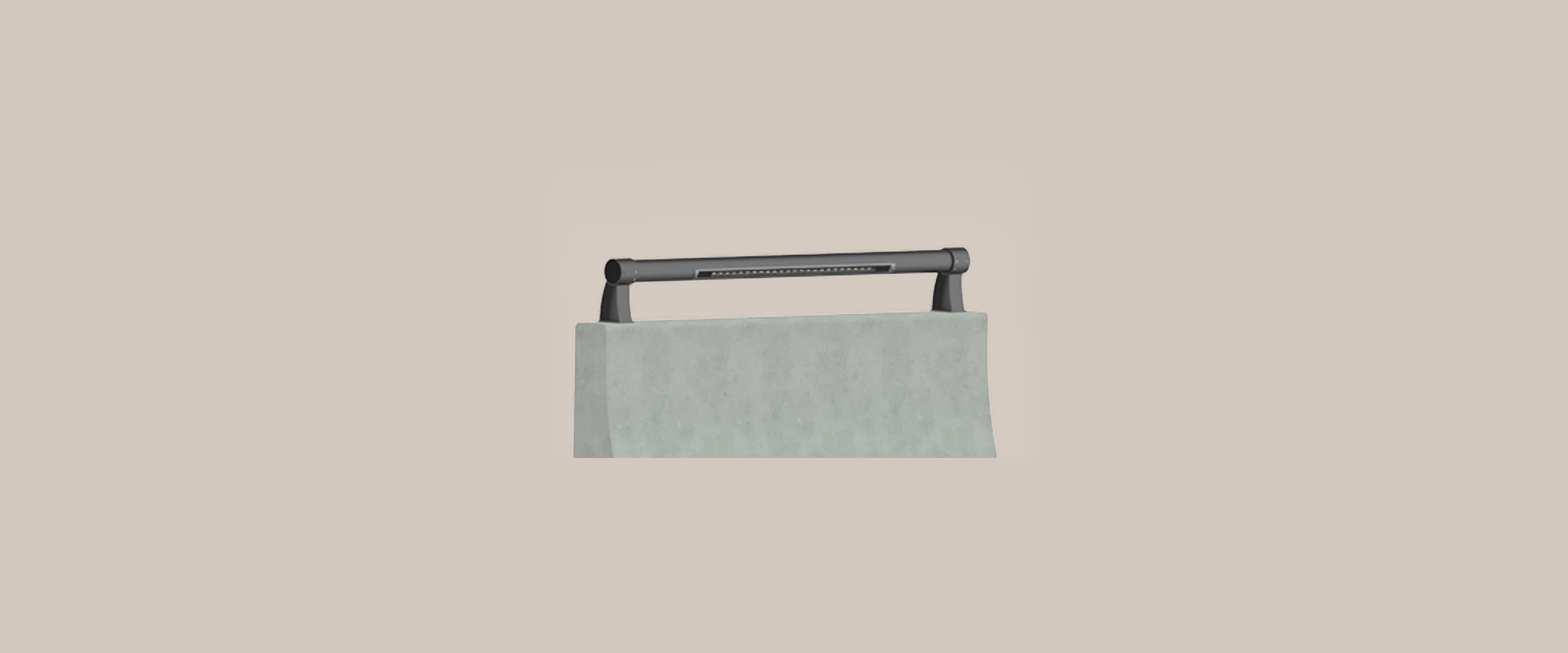

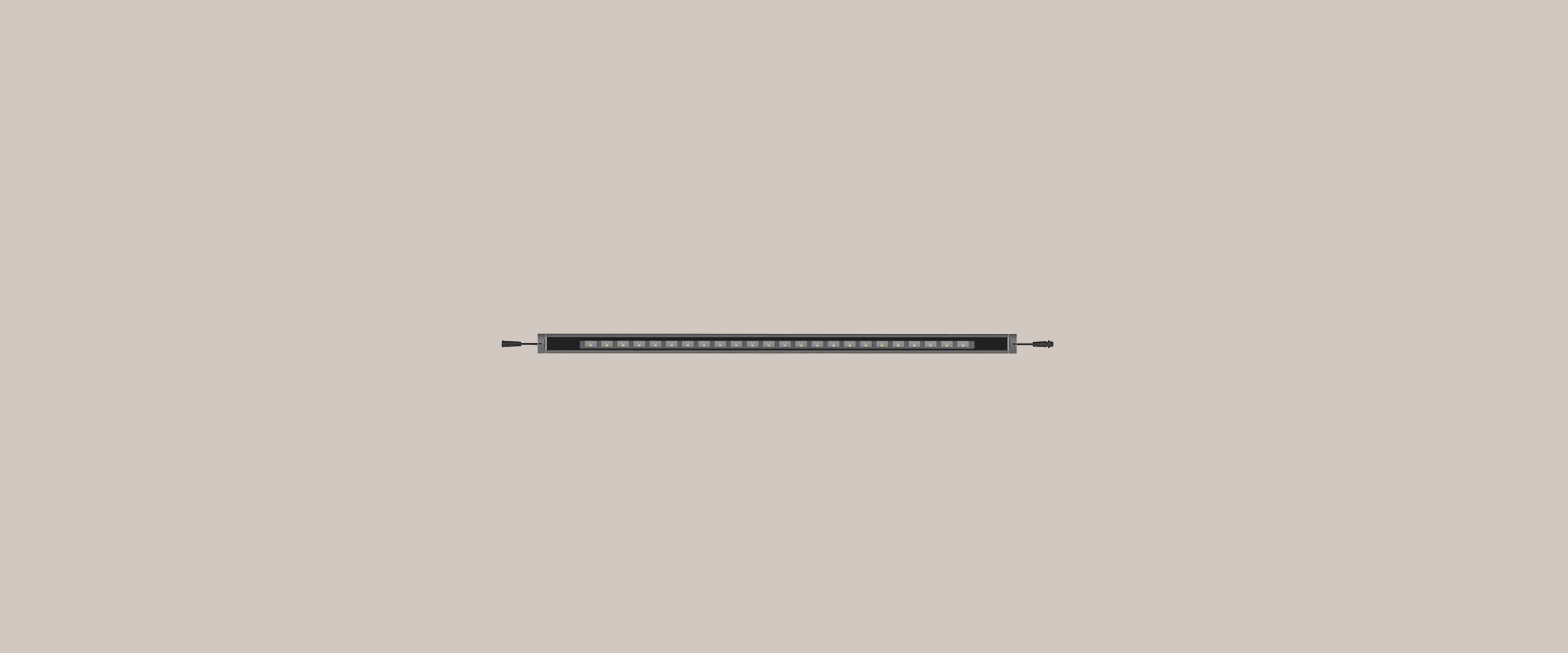

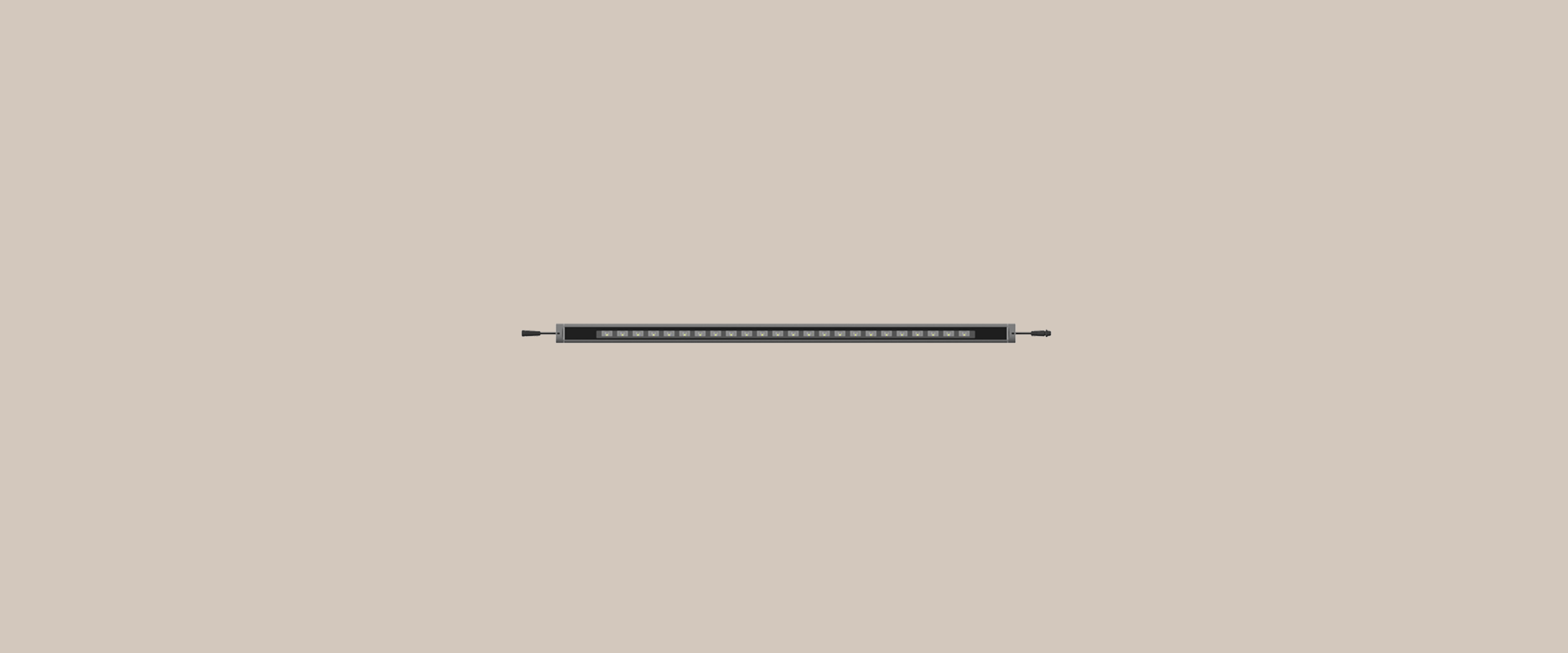

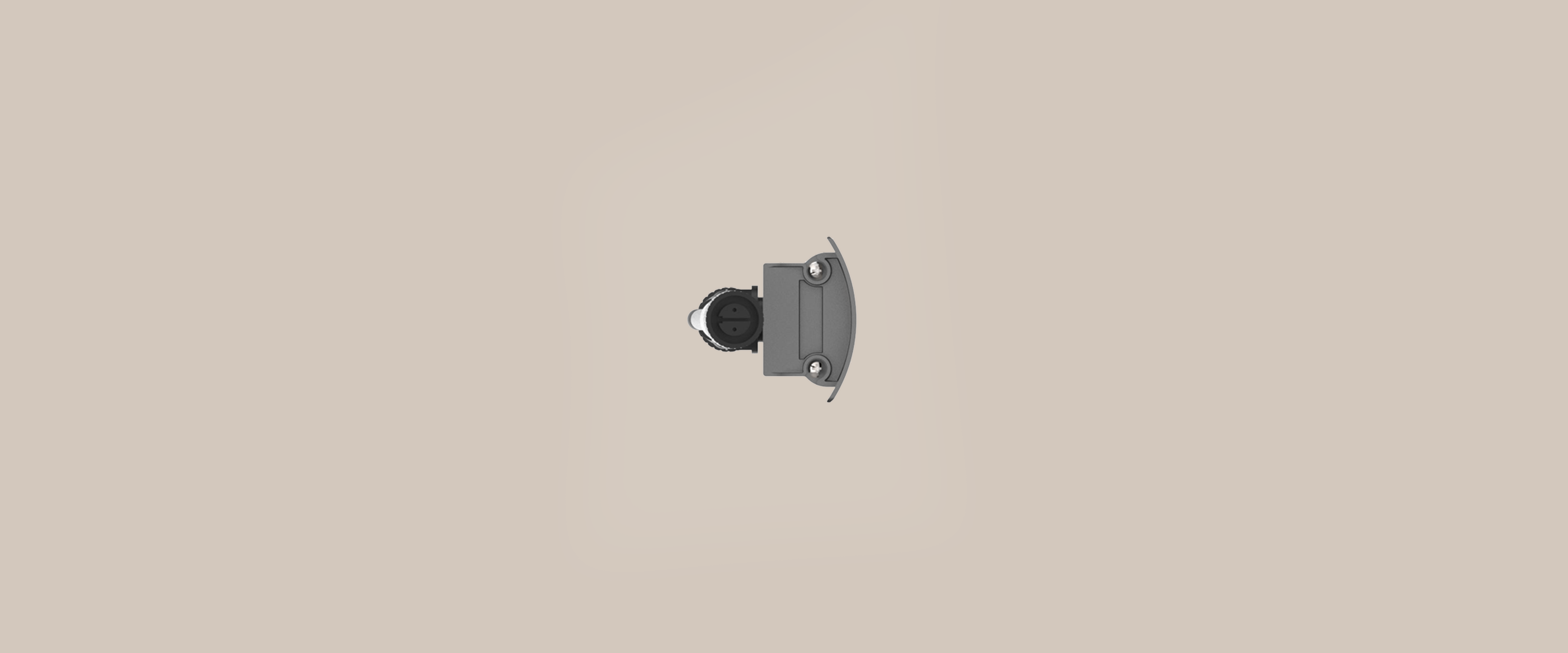

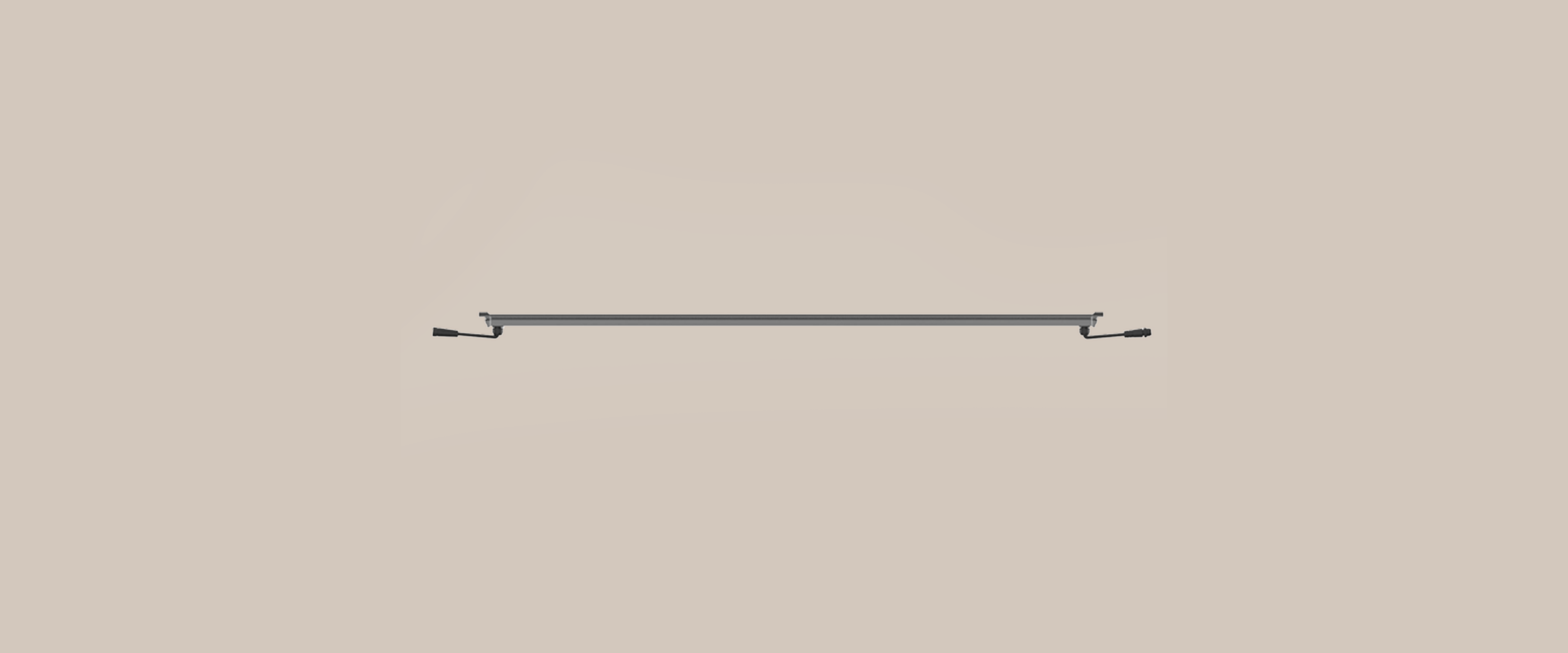

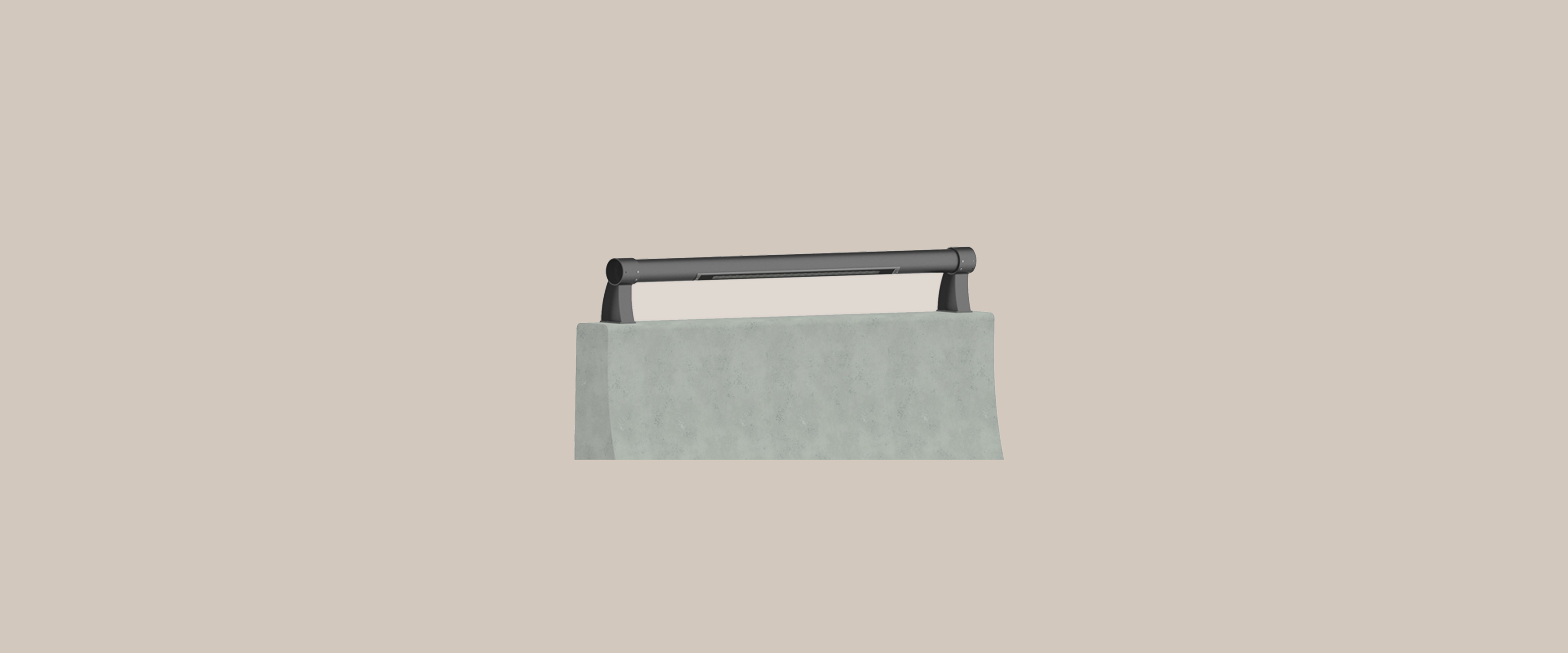

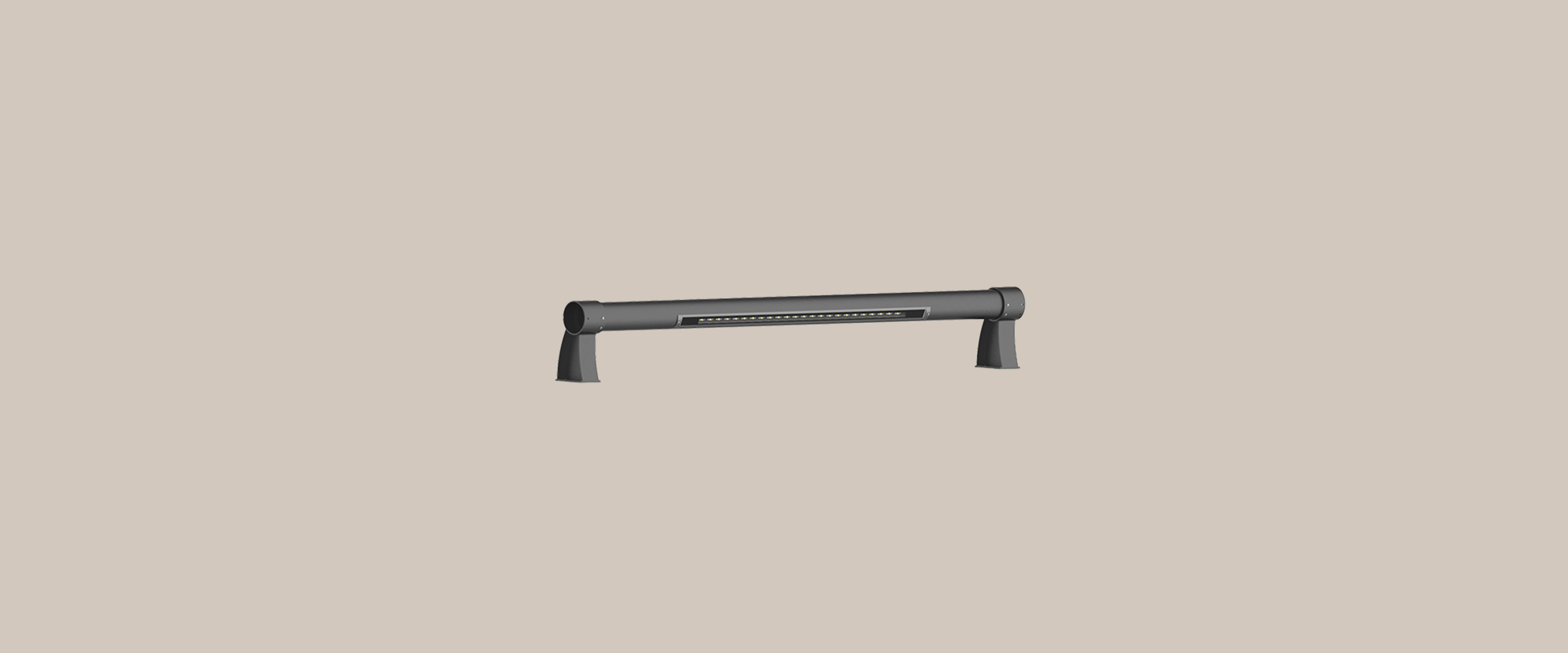

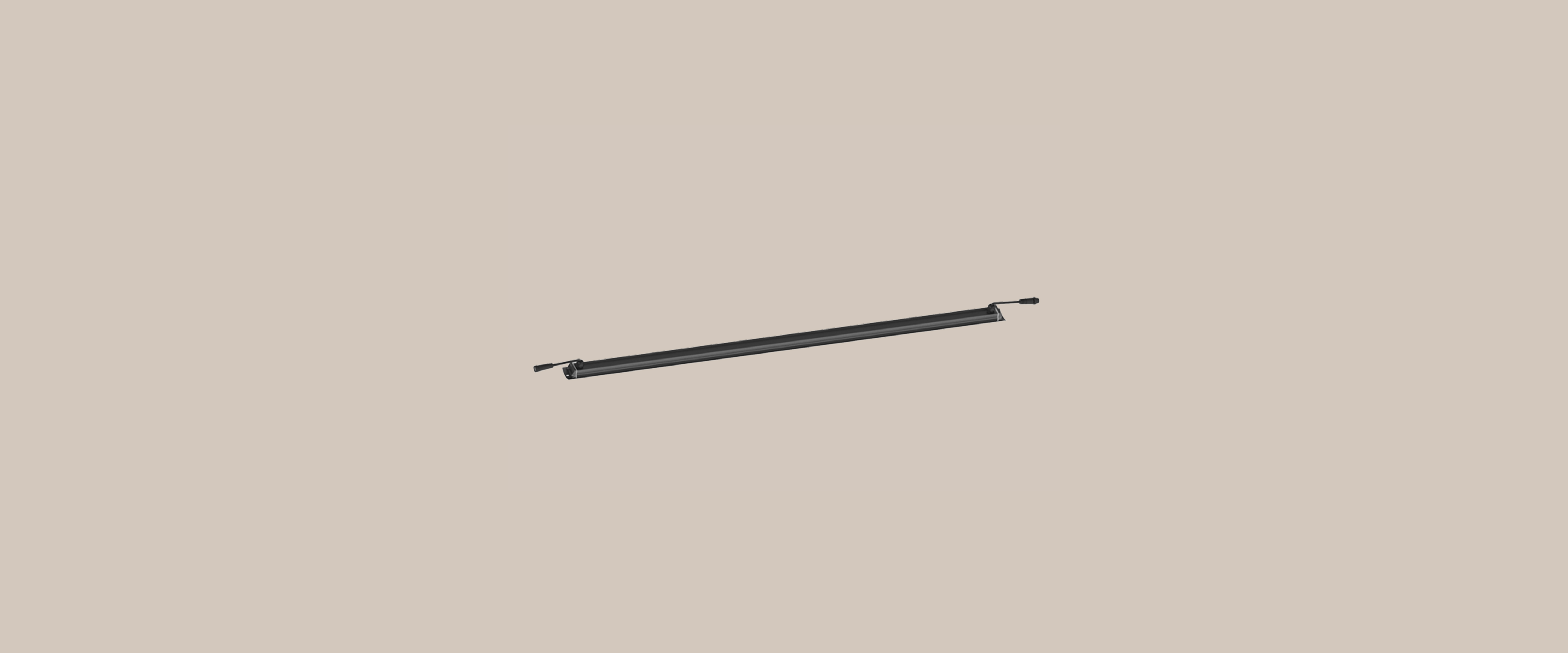

GUARDLITE SE
Guardrail Lighting
GUARDLITE SE
Waterproof & Durable, Toughened Glass Shield
GUARDLITE SE
Waterproof & Durable, Toughened Glass Shield
GUARDLITE SE
Waterproof & Durable, Toughened Glass Shield
GUARDLITE SE
Waterproof & Durable, Toughened Glass Shield
GUARDLITE SE
Waterproof & Durable, Toughened Glass Shield
GUARDLITE SE
Waterproof & Durable, Toughened Glass Shield
GUARDLITE SE
Waterproof & Durable, Toughened Glass Shield
GUARDLITE SE
Waterproof & Durable, Toughened Glass Shield
Lighting Effects
- Products Specification:
- Type:Guardrail Lighting
- Power:4W 6W 8W 12W 16W 24W
- CCT:3000K/4000K/5000K
- Weight:1kg
- Heat-Sink:Aluminum
- Product Dimension:1202×51×28mm
- Max Projected Area :0.09㎡
- Luminaire Efficiency:70lm/W@4000K tq=25℃ Ra70

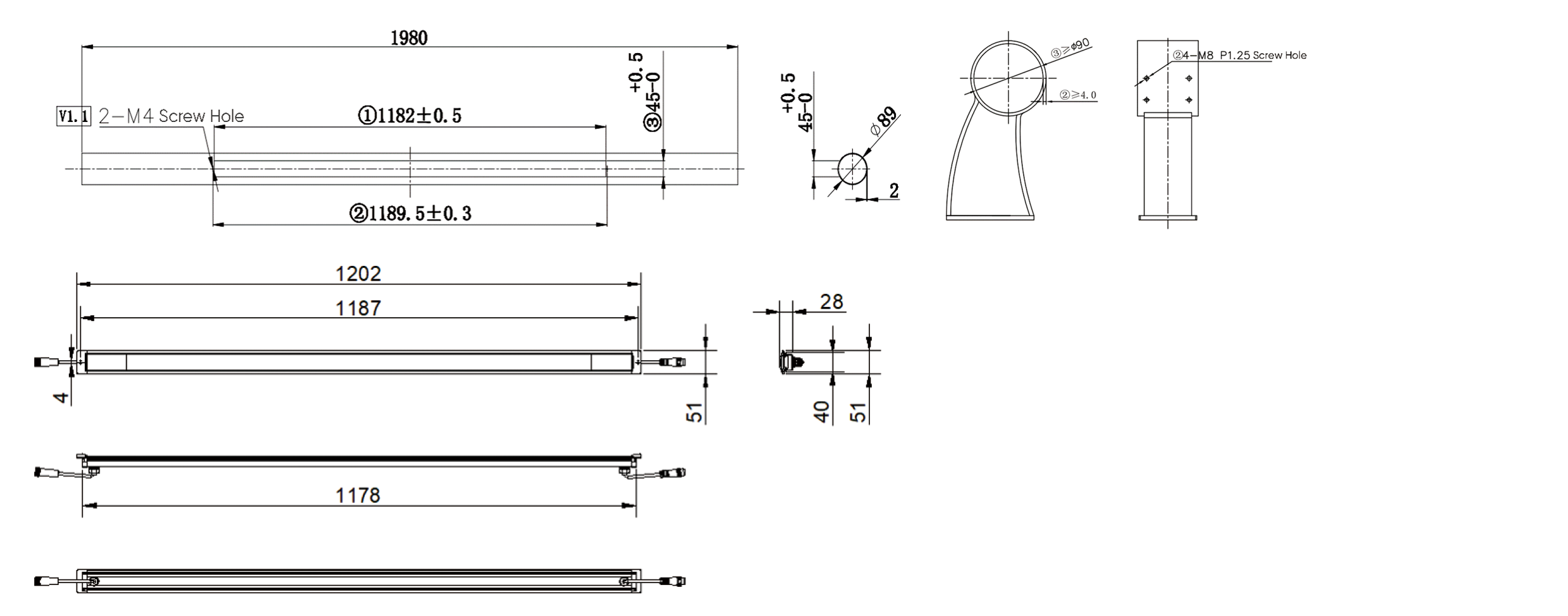

- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 4W
- 6W
- 8W
- 12W
- 16W
- 24W
Beam Angle- Beam Angle
- 70°
CRI- CRI
- Ra>70
Color- Color
- 3000K/4000K/5000K
Control- Control
Dimming type- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
Finish- Finish
- N/A
Reflector- Reflector
- N/A
IP Rating- IP Rating
- 66-IP66
Accessory- Accessory
- N/A
- Power(W)
- 4W
- 6W
- 8W
- 12W
- 16W
- 24W
- Beam Angle
- 70°
- CRI
- Ra>70
- Color
- 3000K/4000K/5000K
- Control
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
- Finish
- N/A
- Reflector
- N/A
- IP Rating
- 66-IP66
- Accessory
- N/A
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
UNI-STC7-2-004
UNI-STC7-2-006
UNI-STC7-2-008
UNI-STC7-2-012
UNI-STC7-2-016
UNI-STC7-2-024
- Luminous Flux (LM)
280LM
420LM
560LM
840LM
1120LM
1680LM
- Power (W)
4W
6W
8W
12W
16W
24W
- Beam Angle
70°
70°
70°
70°
70°
70°
- CRI
Ra>70
Ra>70
Ra>70
Ra>70
Ra>70
Ra>70
- Color
3000K/4000K/5000K
3000K/4000K/5000K
3000K/4000K/5000K
3000K/4000K/5000K
3000K/4000K/5000K
3000K/4000K/5000K
- Control
