ZETA
Garden Lighting
ZETA
Flexible Setup, Intelligent Connection
ZETA
Flexible Setup, Intelligent Connection
ZETA
Flexible Setup, Intelligent Connection
ZETA
Flexible Setup, Intelligent Connection
ZETA
Flexible Setup, Intelligent Connection
Lighting Effects
- Products Specification:
- Type:Garden Lighting
- Power:20W 40W 60W 80W
- CCT:3000K /4000K/5000K
- Weight:①6kg ②5.8kg
- Heat-Sink:Aluminum
- Product Dimension:①430x430x532mm ②635x430x111mm
- Luminaire Efficiency:140lm/W @4000K@Tq=25℃
- Max Projected Area:①0.15㎡ ②0.16㎡
- Suggested Mounting Height:4-6m

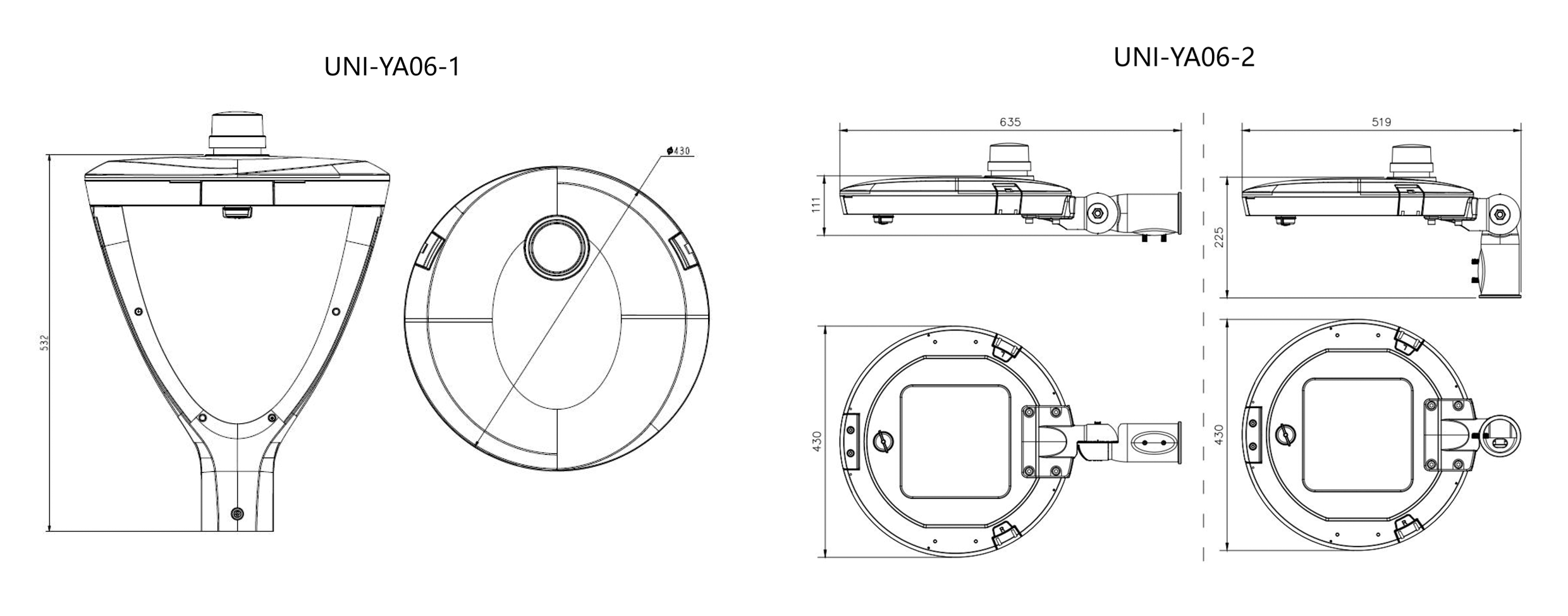

- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 20W
- 40W
- 60W
- 80W
Beam Angle- Beam Angle
- 125°
CRI- CRI
- Ra>70
Color- Color
- 3000K/4000K/5000K
Control- Control
Dimming type- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
Finish- Finish
- N/A
Reflector- Reflector
- N/A
IP Rating- IP Rating
- 66-IP66
Accessory- Accessory
- N/A
Power(W)
- Power(W)
- 20W
- 40W
- 60W
- 80W
Beam Angle
- Beam Angle
- 125°
CRI
- CRI
- Ra>70
Color
- Color
- 3000K/4000K/5000K
Control
- Control
Dimming type
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
Finish
- Finish
- N/A
Reflector
- Reflector
- N/A
IP Rating
- IP Rating
- 66-IP66
Accessory
- Accessory
- N/A
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
UNI-YA06-1-020
UNI-YA06-1-040
UNI-YA06-1-060
UNI-YA06-1-080
UNI-YA06-2-020
UNI-YA06-2-040
UNI-YA06-2-060
UNI-YA06-2-080
- Luminous Flux (LM)
2900LM
5800LM
8700LM
11600LM
3200LM
6400LM
9600LM
12800LM
- Power (W)
20W
40W
60W
80W
20W
40W
60W
80W
- Beam Angle
125°
125°
125°
125°
125°
125°
125°
125°
- CRI
Ra>70
Ra>70
Ra>70
Ra>70
Ra>70
Ra>70
Ra>70
Ra>70
- Color
3000K/4000K/5000K
3000K/4000K/5000K
3000K/4000K/5000K
3000K/4000K/5000K
3000K/4000K/5000K
3000K/4000K/5000K
3000K/4000K/5000K
3000K/4000K/5000K
