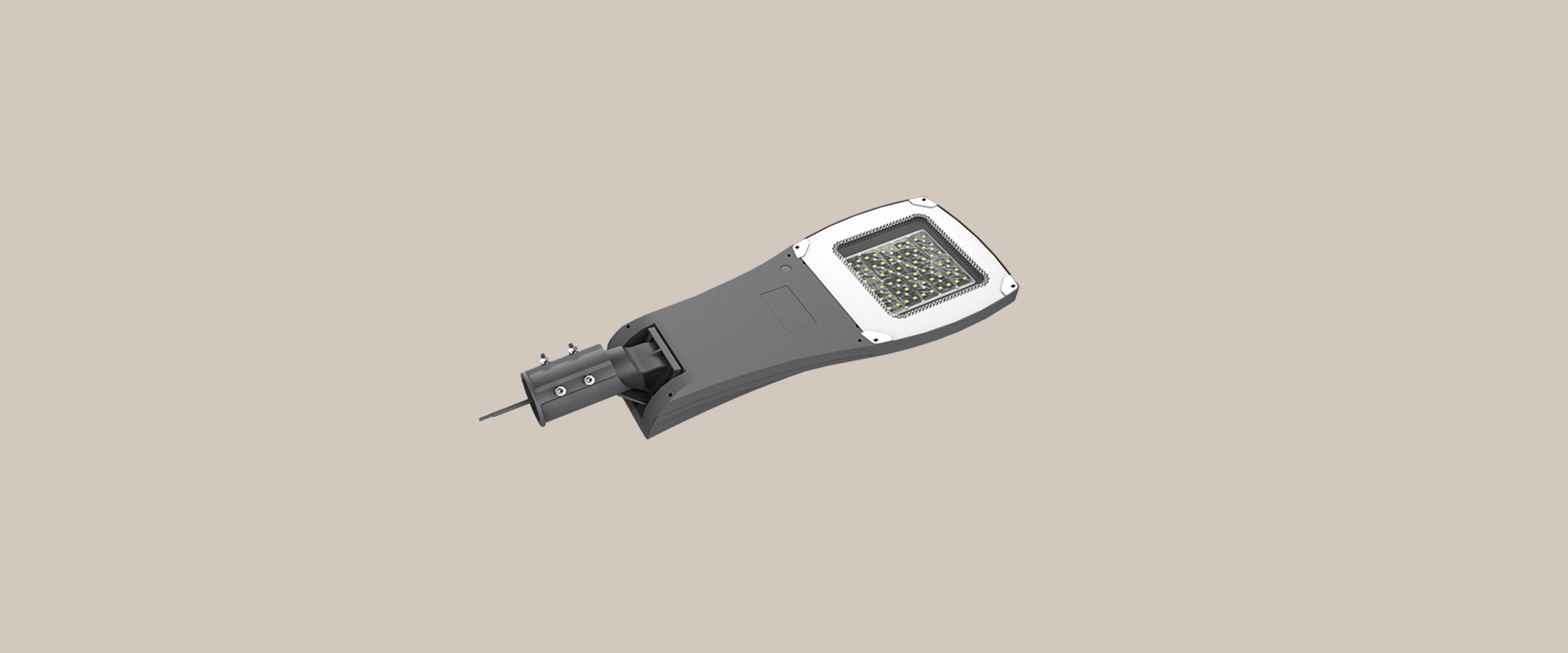

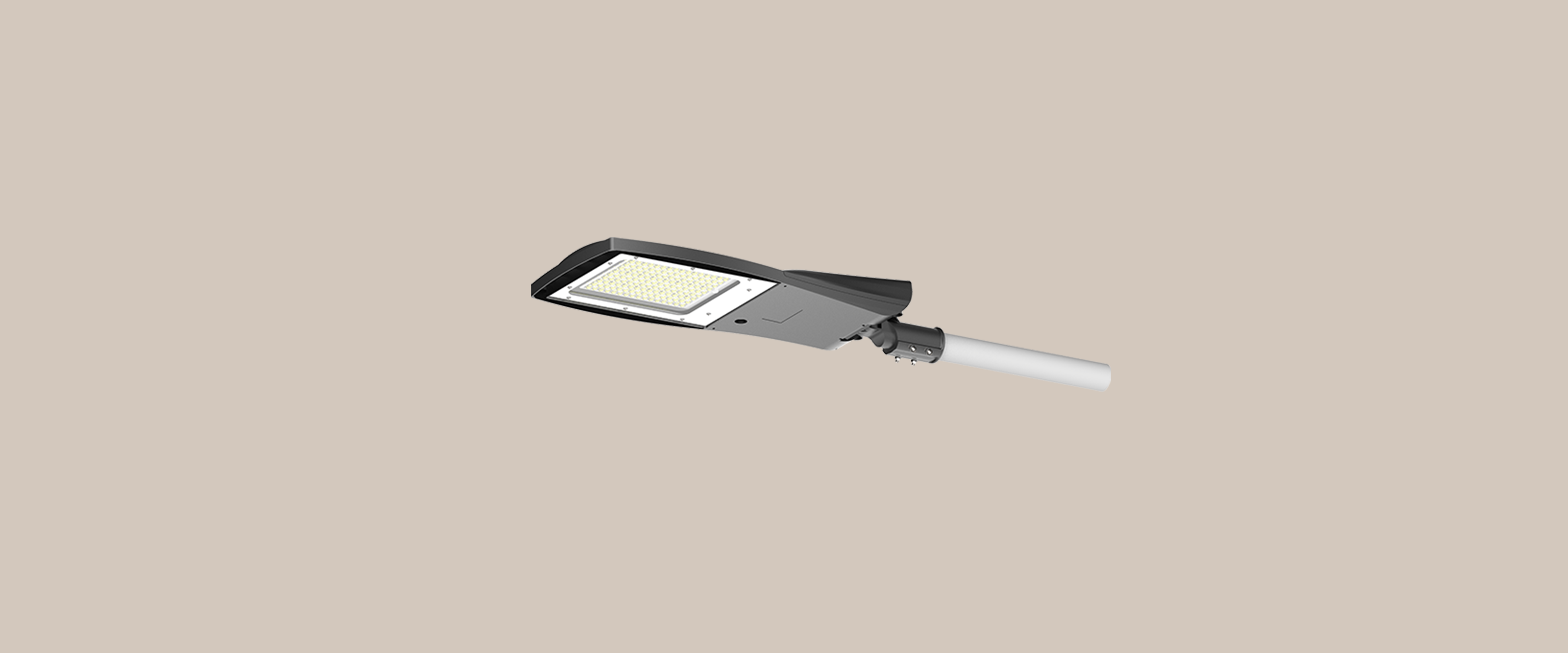

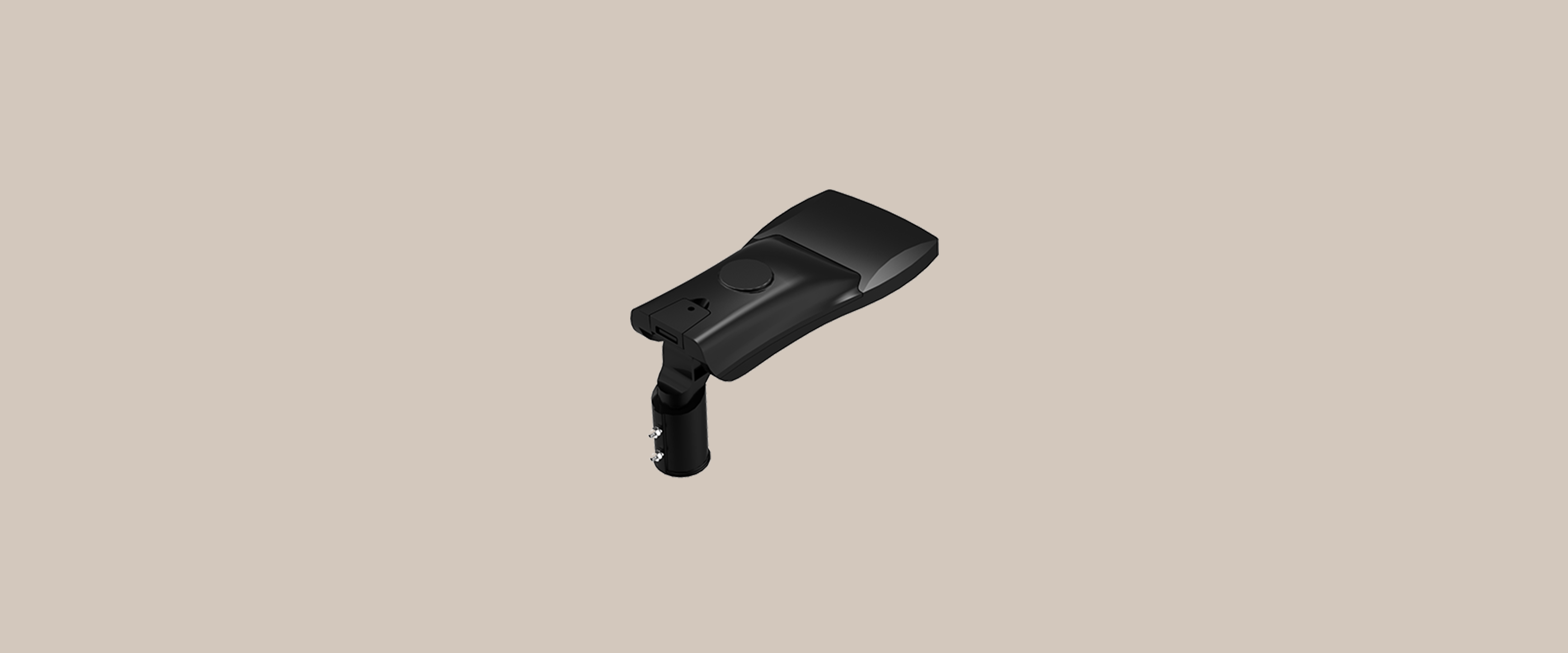

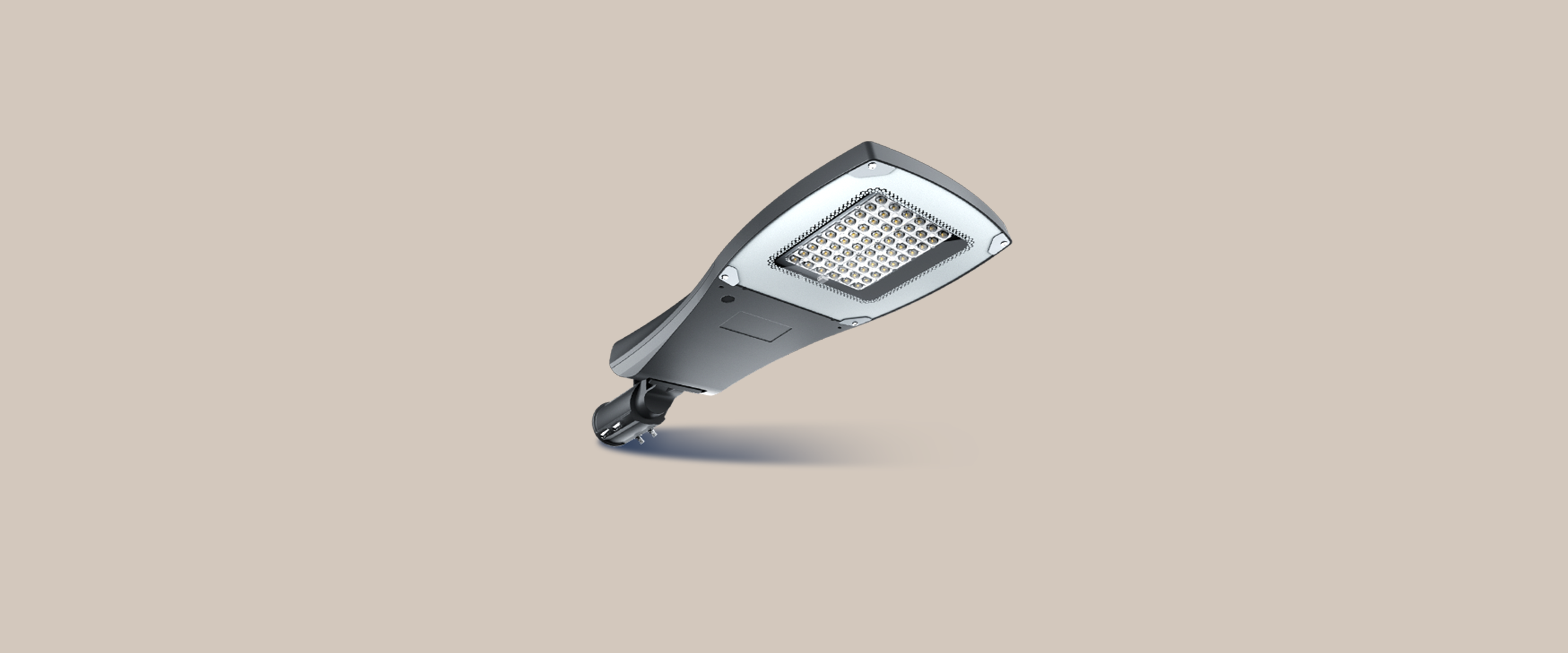

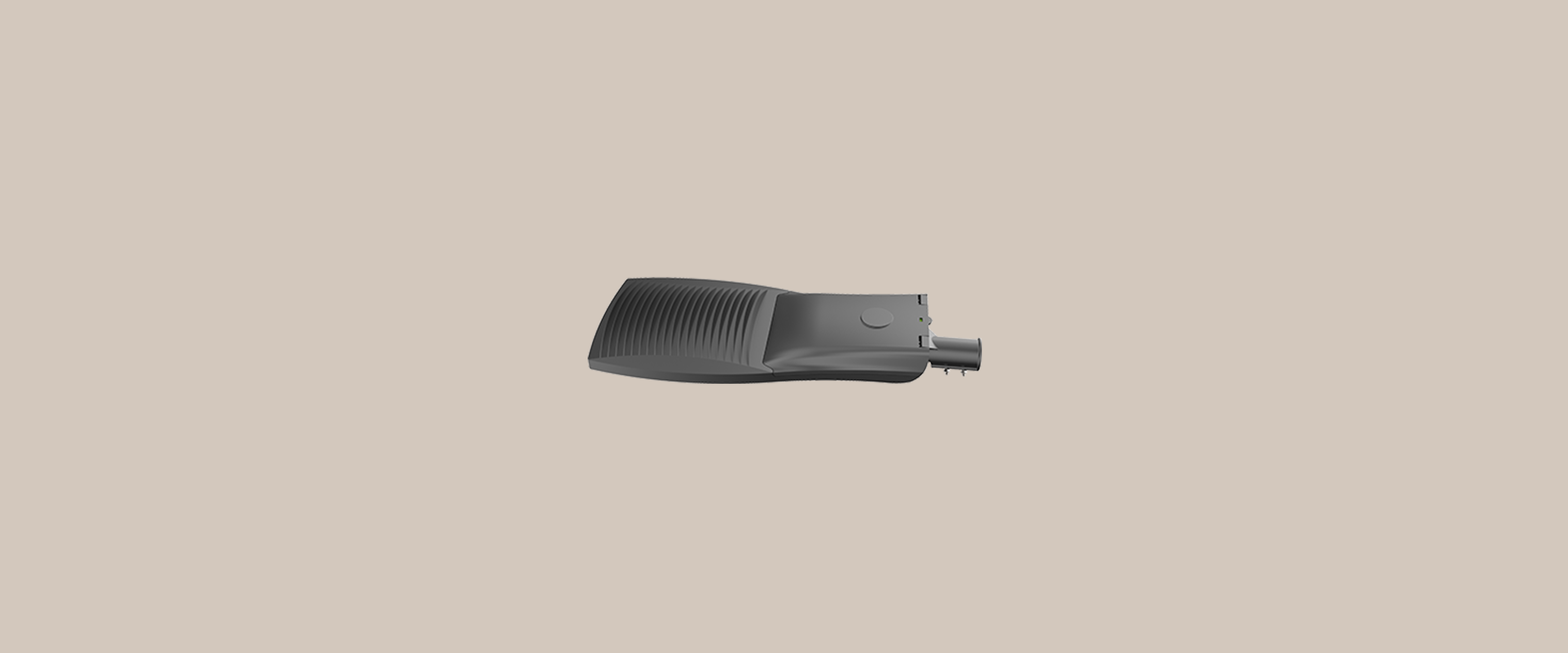

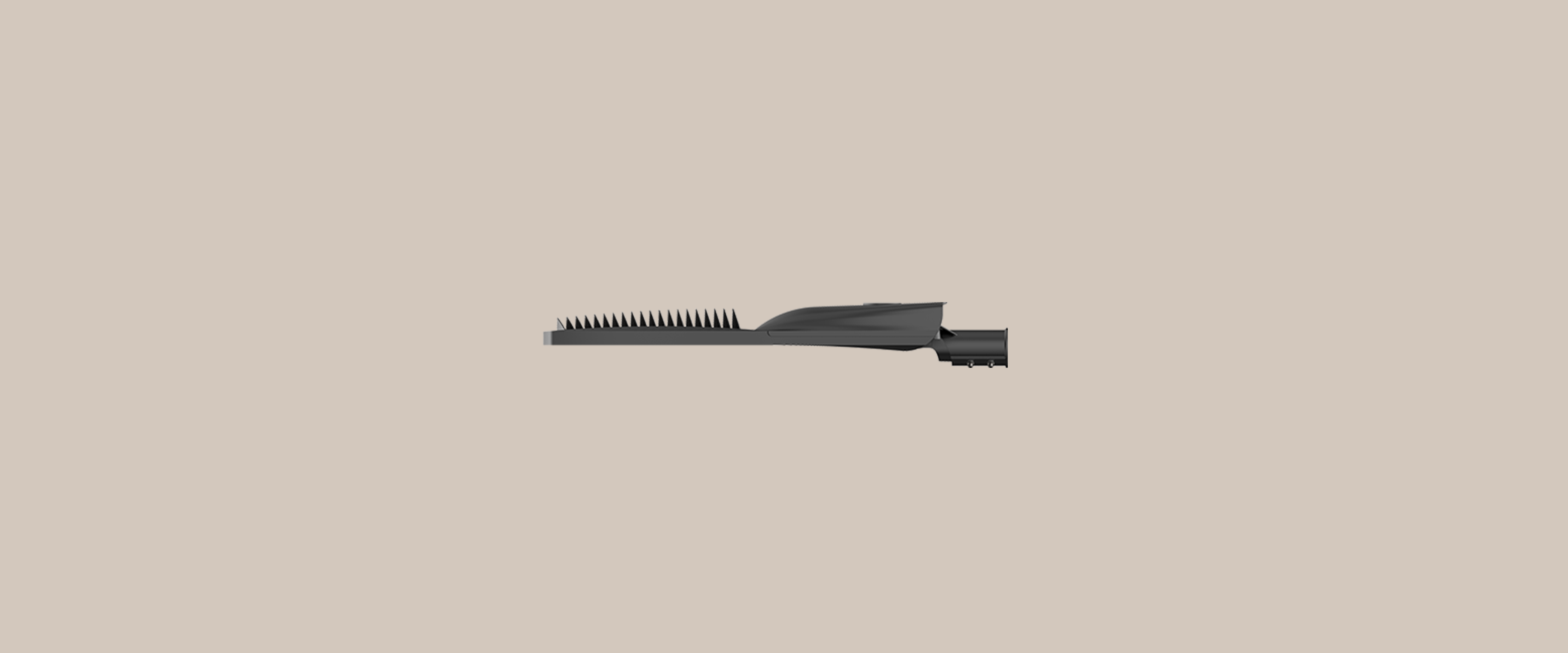

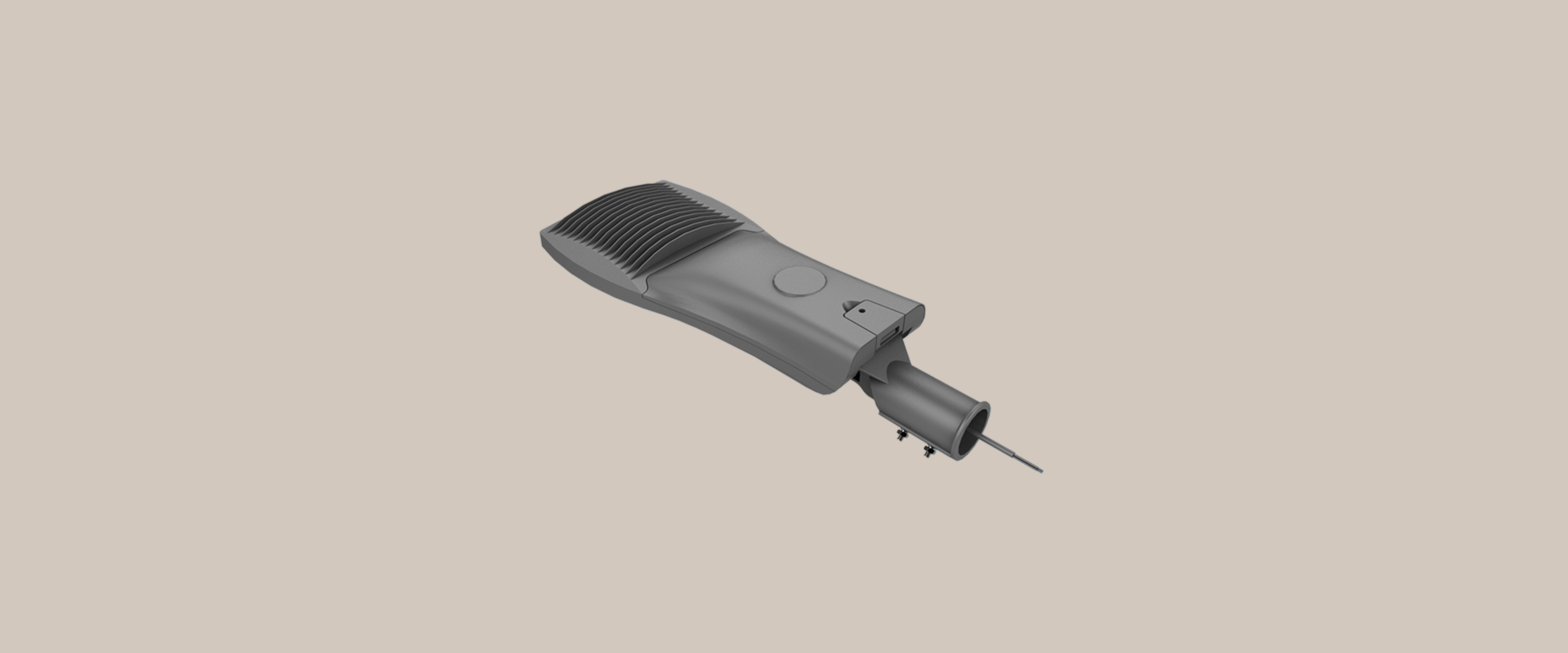

BELUGA
Street Lighting
BELUGA
Red Dot Design, Built to Last
BELUGA
Red Dot Design, Built to Last
BELUGA
Red Dot Design, Built to Last
BELUGA
Red Dot Design, Built to Last
BELUGA
Red Dot Design, Built to Last
BELUGA
Red Dot Design, Built to Last
BELUGA
Red Dot Design, Built to Last
Lighting Effects
- Products Specification:
- Type:Street Lighting
- Power:50W 60W 90W
- CCT:3000K/4000K/5000K/5700K
- Weight:3.6-5.8kg
- Heat-Sink:Aluminum
- Product Dimension:①573×220×131mm ②664×251×132mm
③664×251×132mm ④740×285×132mm - Max Projected Area :①0.09㎡ ②0.12㎡ ③0.12㎡ ④0.15㎡
- Light Pole Diameter:ø60 mm
(ø76 mm optional; ø42 mm and ø50 mm are also optional for 60W and below)
- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 50W
- 60W
- 90W
Beam Angle- Beam Angle
- 138°
CRI- CRI
- Ra>70
Color- Color
- 3000K/4000K/5000K/5700K
Control- Control
Dimming type- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
Finish- Finish
- N/A
Reflector- Reflector
- N/A
IP Rating- IP Rating
- 66-IP66
Accessory- Accessory
- N/A
Power(W)
- Power(W)
- 50W
- 60W
- 90W
Beam Angle
- Beam Angle
- 138°
CRI
- CRI
- Ra>70
Color
- Color
- 3000K/4000K/5000K/5700K
Control
- Control
Dimming type
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
Finish
- Finish
- N/A
Reflector
- Reflector
- N/A
IP Rating
- IP Rating
- 66-IP66
Accessory
- Accessory
- N/A
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
