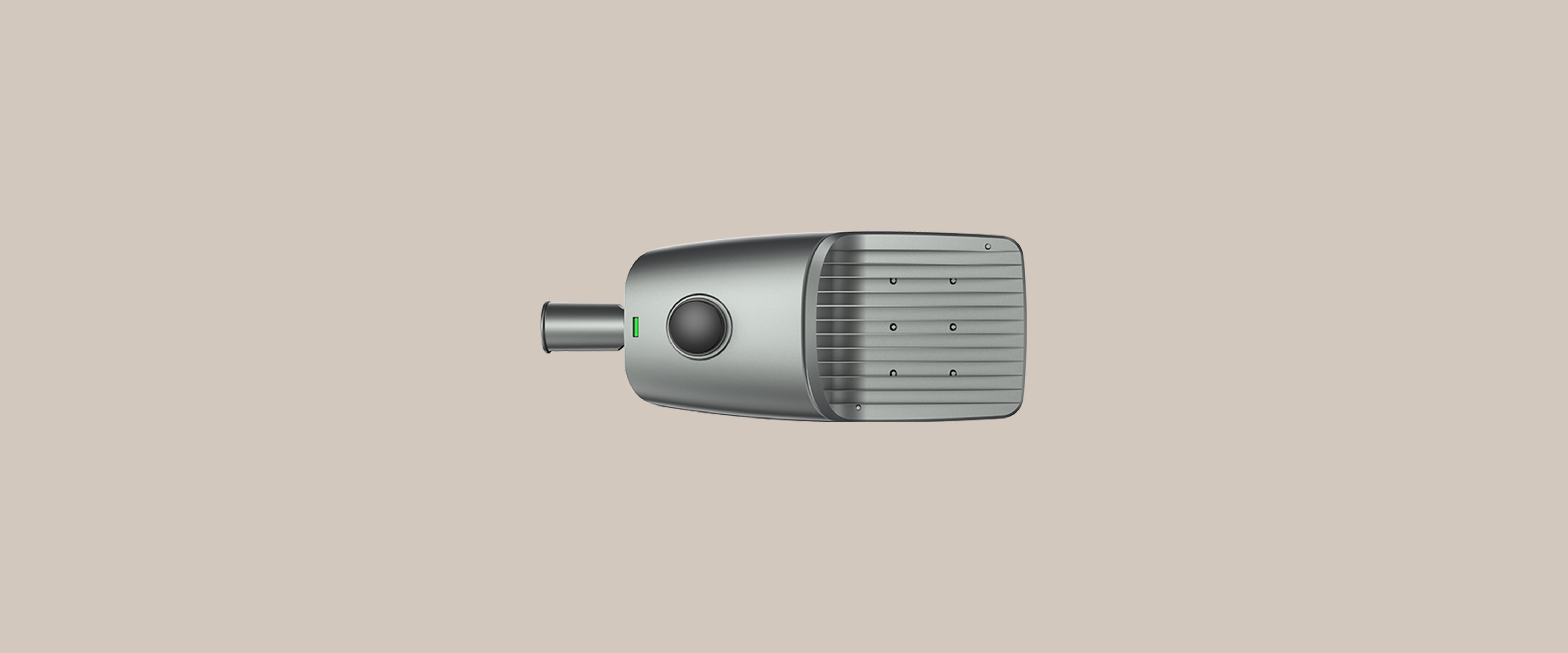

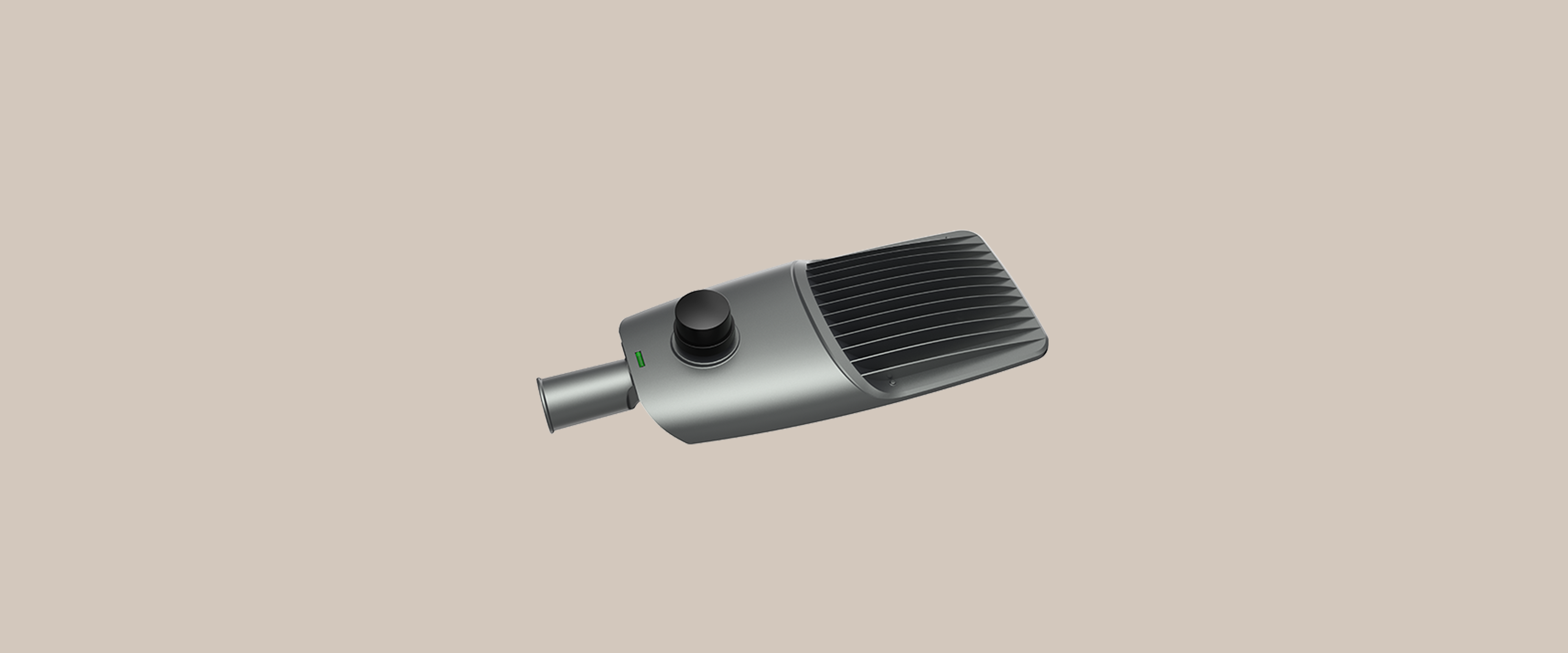

ECOLUZIA

Street Lighting

ECOLUZIA

Professional Design, Efficient and Durable

ECOLUZIA

Professional Design, Efficient and Durable

ECOLUZIA

Professional Design, Efficient and Durable

ECOLUZIA

Professional Design, Efficient and Durable

ECOLUZIA

Professional Design, Efficient and Durable

ECOLUZIA

Professional Design, Efficient and Durable

ECOLUZIA

Professional Design, Efficient and Durable

ECOLUZIA

Professional Design, Efficient and Durable

ECOLUZIA

Professional Design, Efficient and Durable

Lighting Effects

Products Specification:: Type:Street Lighting; Power:40W 60W 100W 150W 200W; CCT:2200K/2700K/3000K/4000K/5000K/5700K; Weight:1.7-5.5kg; Heat-Sink:Aluminum; Product Dimension:①468×173×94mm ②529×203×93mm
③628×210×94mm ④688×276×95mm; Max Projected Area :①0.07㎡ ②0.09㎡ ③0.11㎡ ④0.16㎡; Light Pole Diameter:ø60 mm

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
40W
60W
100W
150W
200W

Beam Angle

Beam Angle
117°

CRI

CRI
Ra>70

Color

Color
2200K/2700K/3000K/4000K/5000K/5700K

Control

Control

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming
5-DMX512

Finish

Finish
N/A

Reflector

Reflector
N/A

IP Rating

IP Rating
66-IP66

Accessory

Accessory
N/A

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite

Model No: UNI-STF3-2-040; UNI-STF3-3-060; UNI-STF3-4-100; UNI-STF3-5-150; UNI-STF3-5-200

Luminous Flux (LM): /; /; /; /; /

Power (W): 40W; 60W; 100W; 150W; 200W

Beam Angle: 117°; 117°; 117°; 117°; 117°

CRI: Ra>70; Ra>70; Ra>70; Ra>70; Ra>70

Color: 2200K/2700K/3000K/4000K/5000K/5700K; 2200K/2700K/3000K/4000K/5000K/5700K; 2200K/2700K/3000K/4000K/5000K/5700K; 2200K/2700K/3000K/4000K/5000K/5700K; 2200K/2700K/3000K/4000K/5000K/5700K
