Home Products Outdoor VILLA - Garden Lighting

VILLA

Garden Lighting

VILLA

Timeless Design, Smart Care

VILLA

Timeless Design, Smart Care

VILLA

Timeless Design, Smart Care

VILLA

Timeless Design, Smart Care

VILLA

Timeless Design, Smart Care

VILLA

Timeless Design, Smart Care

VILLA

Timeless Design, Smart Care

Lighting Effects

Products Specification:: Type:Garden Lighting; Power:20W 30W 40W 50W 60W 70W 80W; CCT:3000K/4000K/5000K/5700K/6500K; Weight:7.4kg; Heat-Sink:Aluminum; Product Dimension:420×420×750mm; Luminaire Efficiency:135 lm/W@4000K、Ta=25℃; Max Projected Area:0.21㎡; Suggested Mounting Height:4-6m

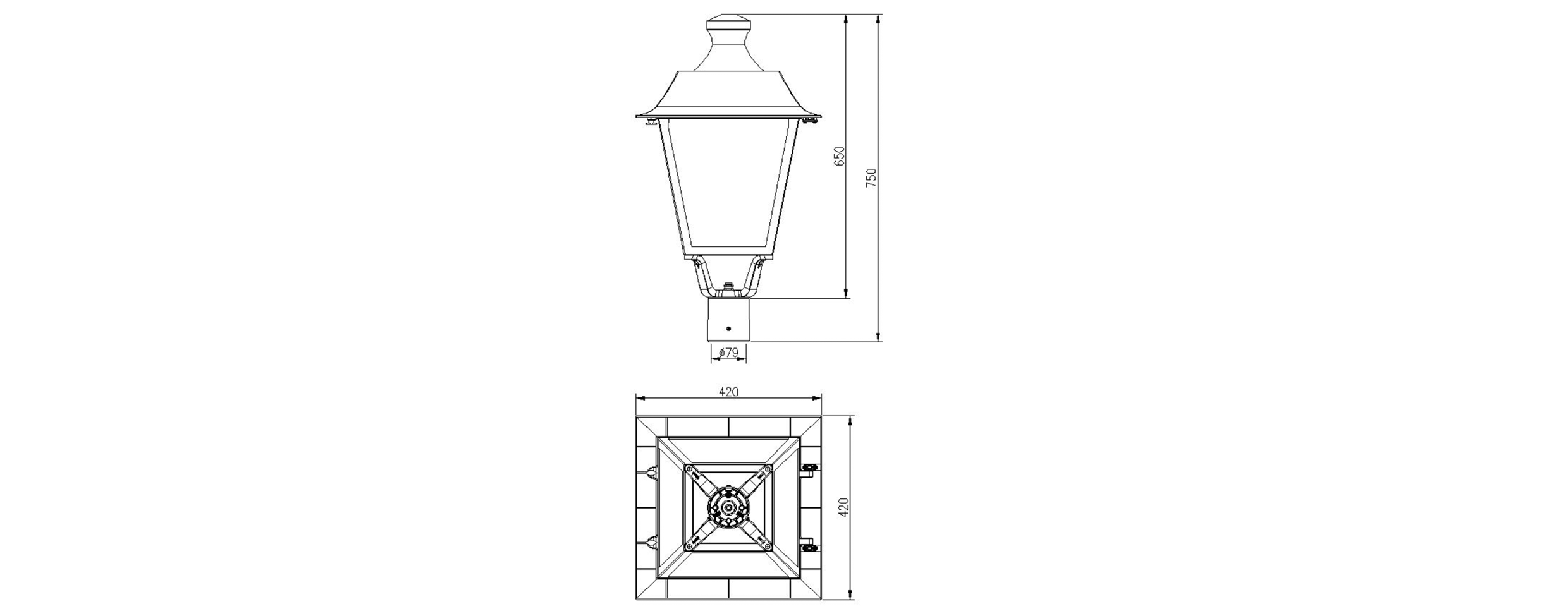

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
20W
30W
40W
50W
60W
70W
80W

Beam Angle

Beam Angle
110°

CRI

CRI
Ra>70

Color

Color
3000K/4000K/5000K/5700K/6500K

Control

Control

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming
5-DMX512

Finish

Finish
N/A

Reflector

Reflector
N/A

IP Rating

IP Rating
66-IP66

Accessory

Accessory
N/A

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite

Model No: UNI-YA05-1-020; UNI-YA05-1-030; UNI-YA05-1-040; UNI-YA05-1-050; UNI-YA05-1-060; UNI-YA05-1-070; UNI-YA05-1-080

Luminous Flux (LM): 2500LM; 3750LM; 5000LM; 6250LM; 7500LM; 8750LM; 10000LM

Power (W): 20W; 30W; 40W; 50W; 60W; 70W; 80W

Beam Angle: 110°; 110°; 110°; 110°; 110°; 110°; 110°

CRI: Ra>70; Ra>70; Ra>70; Ra>70; Ra>70; Ra>70; Ra>70

Color: 3000K/4000K/5000K/5700K/6500K; 3000K/4000K/5000K/5700K/6500K; 3000K/4000K/5000K/5700K/6500K; 3000K/4000K/5000K/5700K/6500K; 3000K/4000K/5000K/5700K/6500K; 3000K/4000K/5000K/5700K/6500K; 3000K/4000K/5000K/5700K/6500K
