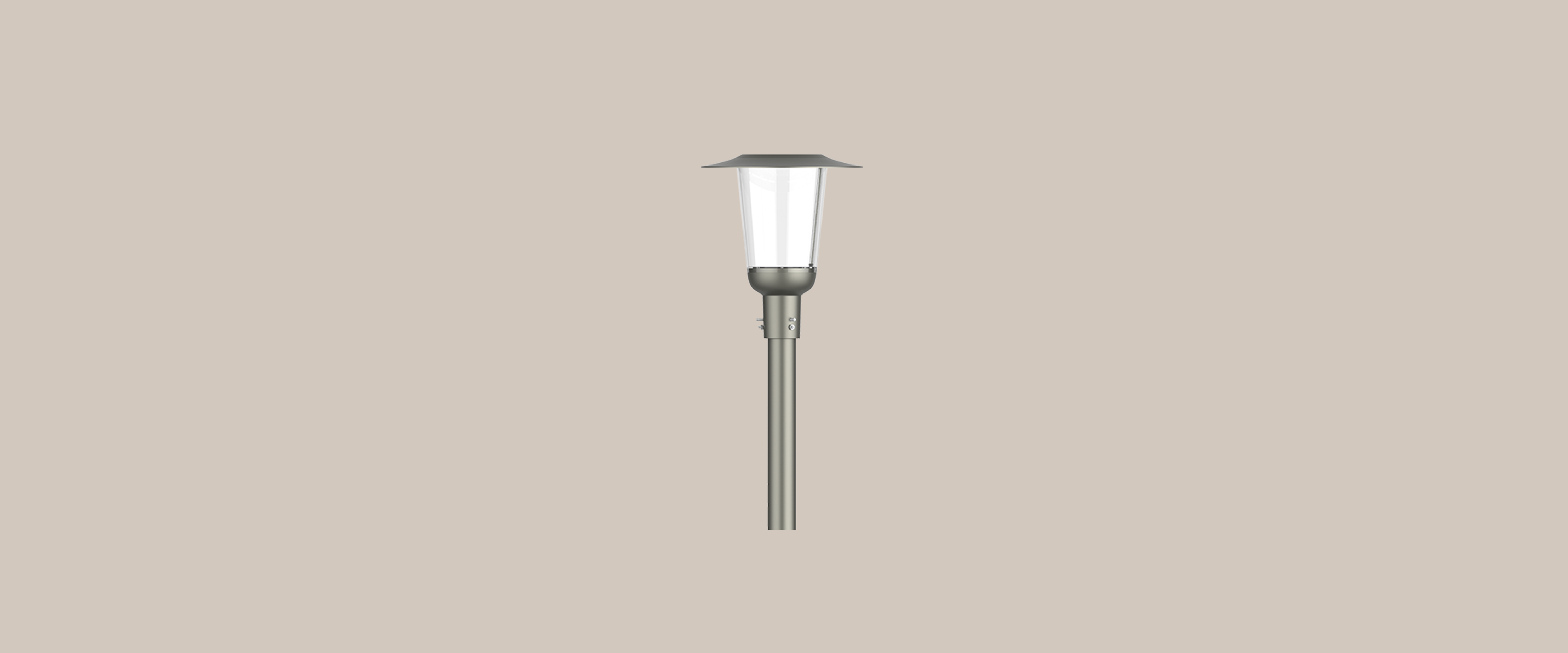

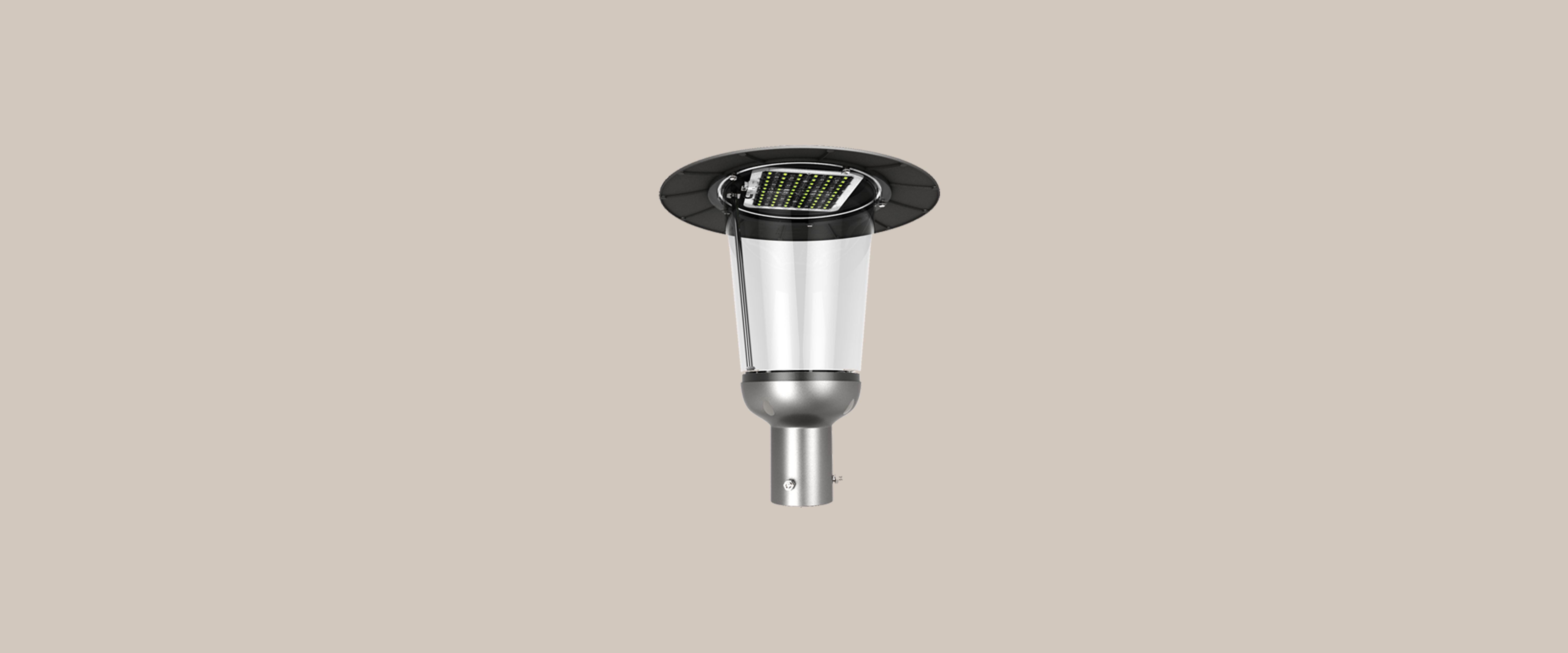

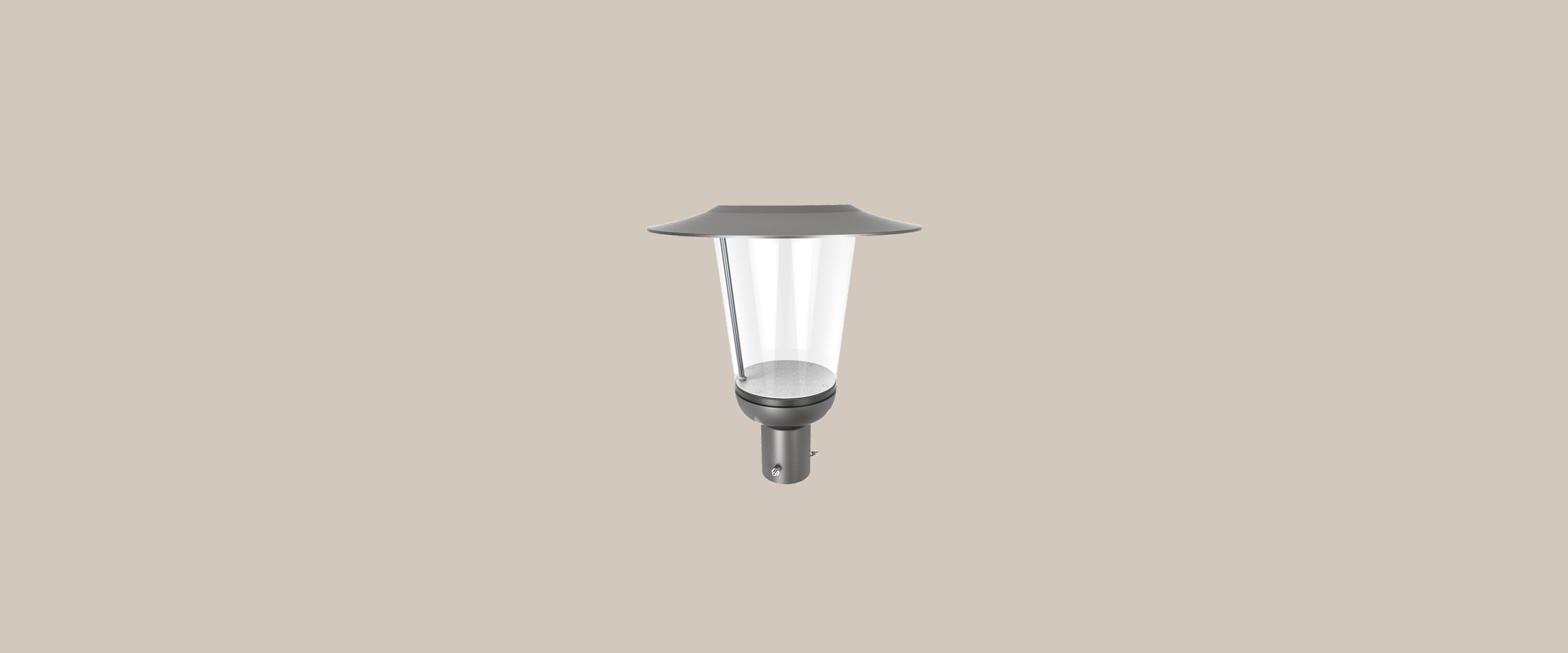

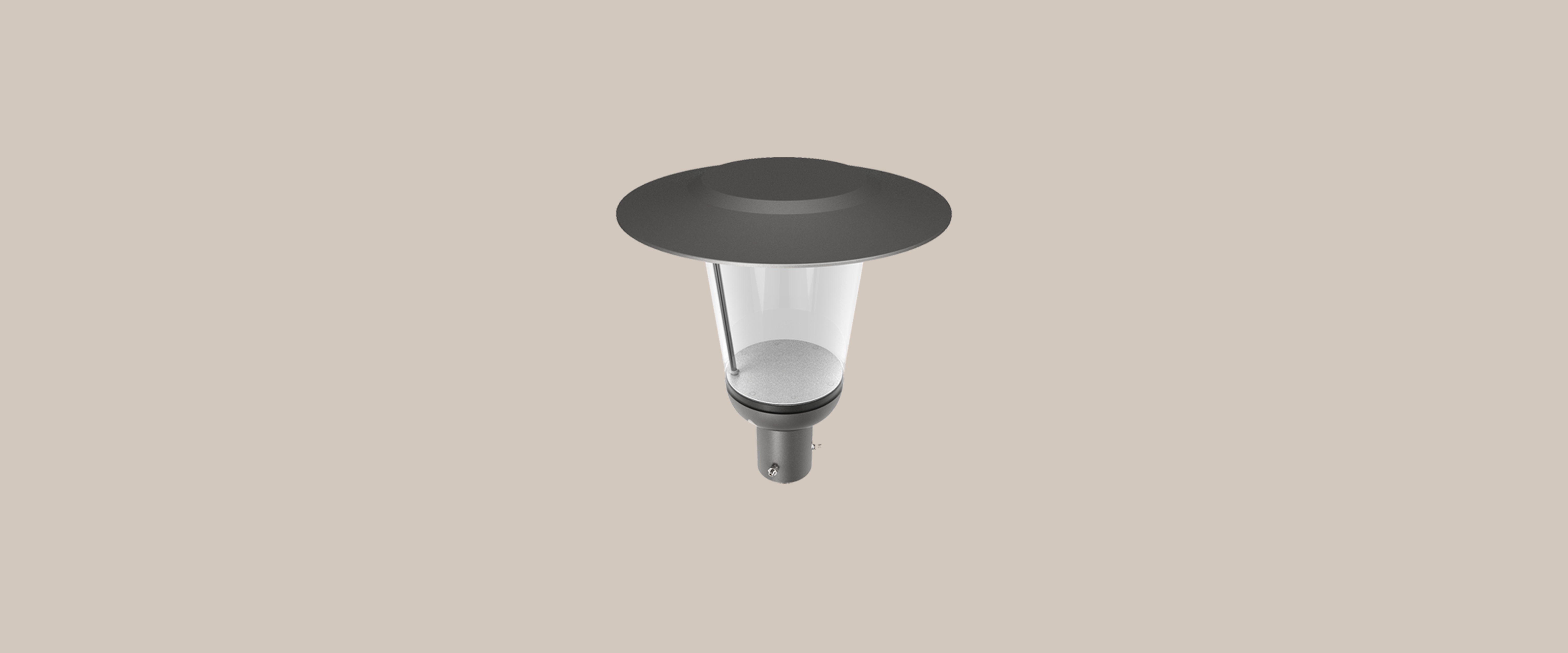

Garden Lighting
BETA
Professional Optics, Smart Connectivity
BETA
Professional Optics, Smart Connectivity
BETA
Professional Optics, Smart Connectivity
BETA
Professional Optics, Smart Connectivity
BETA
Professional Optics, Smart Connectivity
BETA
Professional Optics, Smart Connectivity
BETA
Professional Optics, Smart Connectivity
BETA
Professional Optics, Smart Connectivity
BETA
Professional Optics, Smart Connectivity
BETA
Professional Optics, Smart Connectivity
BETA
Professional Optics, Smart Connectivity
Lighting Effects
- Products Specification:
- Type:Garden Lighting
- Power:15W 25W 40W 60W 80W
- CCT:3000K/4000K/5000K/5700K
- Weight:4.3kg
- Heat-Sink:Aluminum
- Product Dimension:430×430×487mm
- Max Projected Area :0.22㎡
- Light Pole Diameter:ø76 mm
- Luminaire Efficiency:125 lm/W@4000K、Ta=25℃
- Suggested Mounting Height:3-6m

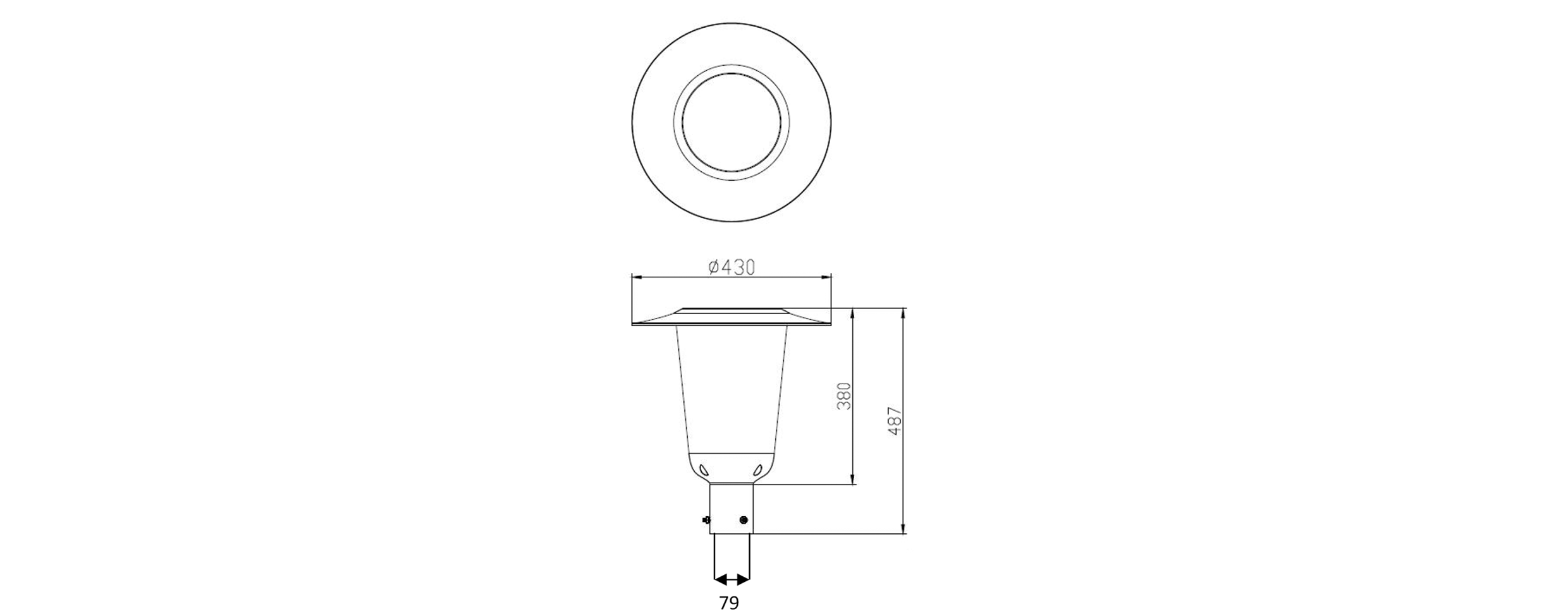

- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 15W
- 25W
- 40W
- 60W
- 80W
Beam Angle- Beam Angle
- 112°
CRI- CRI
- Ra>70
Color- Color
- 3000K/4000K/5000K/5700K
Control- Control
Dimming type- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
Finish- Finish
- N/A
Reflector- Reflector
- N/A
IP Rating- IP Rating
- 66-IP66
Accessory- Accessory
- N/A
- Power(W)
- 15W
- 25W
- 40W
- 60W
- 80W
- Beam Angle
- 112°
- CRI
- Ra>70
- Color
- 3000K/4000K/5000K/5700K
- Control
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
- Finish
- N/A
- Reflector
- N/A
- IP Rating
- 66-IP66
- Accessory
- N/A
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
UNI-YA04-1-15W
UNI-YA04-1-25W
UNI-YA04-1-40W
UNI-YA04-1-60W
UNI-YA04-1-80W
- Luminous Flux (LM)
1650LM
2750LM
4400LM
6600LM
8800LM
- Power (W)
15W
25W
40W
60W
80W
- Beam Angle
112°
112°
112°
112°
112°
- CRI
Ra>70
Ra>70
Ra>70
Ra>70
Ra>70
- Color
3000K/4000K/5000K/5700K
3000K/4000K/5000K/5700K
3000K/4000K/5000K/5700K
3000K/4000K/5000K/5700K
3000K/4000K/5000K/5700K
