JUPITER
Street Lighting
JUPITER
Professional Design, Full-featured Protection
JUPITER
Professional Design, Full-featured Protection
JUPITER
Professional Design, Full-featured Protection
JUPITER
Professional Design, Full-featured Protection
JUPITER
Professional Design, Full-featured Protection
JUPITER
Professional Design, Full-featured Protection
Lighting Effects
- Products Specification:
- Type:Street Lighting
- Power:40W 60W 90W 100W 120W 150W 180W 200W 240W
- CCT:2200K/2700K/3000K/4000K/5000K/5700K
- Weight:3.3-6.5kg
- Heat-Sink:Aluminum

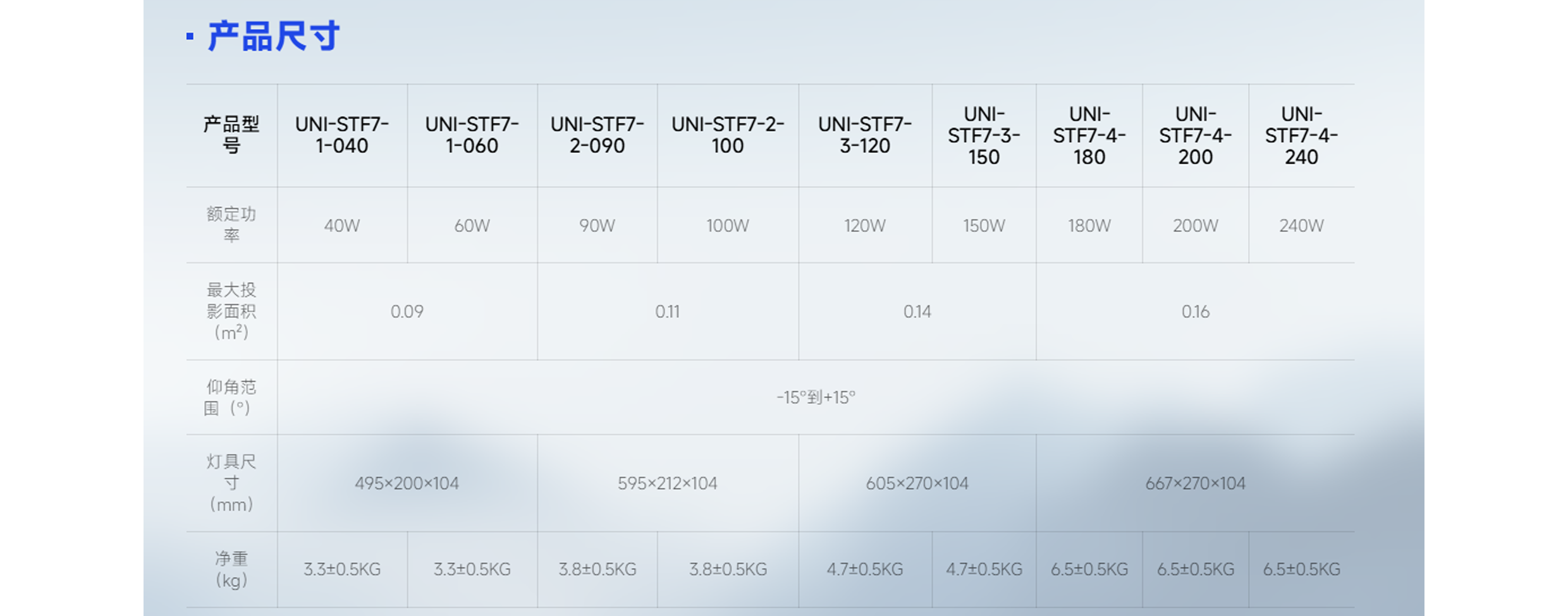

- Product Dimension:①495×200×104mm ②595×212×104mm
③605×270×104mm ④667×270×104mm - Max Projected Area :①0.09㎡ ②0.11㎡③0.14㎡ ④0.16㎡
- Light Pole Diameter:ø60 mm
- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 40W
- 60W
- 90W
- 100W
- 120W
- 150W
- 180W
- 200W
- 240W
Beam Angle- Beam Angle
- 117°
CRI- CRI
- Ra>70
Color- Color
- 2200K/2700K/3000K/4000K/5000K/5700K
Control- Control
Dimming type- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
Finish- Finish
- N/A
Reflector- Reflector
- N/A
IP Rating- IP Rating
- 66-IP66
Accessory- Accessory
- N/A
- Power(W)
- 40W
- 60W
- 90W
- 100W
- 120W
- 150W
- 180W
- 200W
- 240W
- Beam Angle
- 117°
- CRI
- Ra>70
- Color
- 2200K/2700K/3000K/4000K/5000K/5700K
- Control
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
- Finish
- N/A
- Reflector
- N/A
- IP Rating
- 66-IP66
- Accessory
- N/A
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
UNI-STF7-1-040
UNI-STF7-1-060
UNI-STF7-2-090
UNI-STF7-2-100
UNI-STF7-3-120
UNI-STF7-3-150
UNI-STF7-4-180
UNI-STF7-4-200
UNI-STF7-4-240
- Luminous Flux (LM)
/
/
/
/
/
/
/
/
/
- Power (W)
40W
60W
90W
100W
120W
150W
180W
200W
240W
- Beam Angle
117°
117°
117°
117°
117°
117°
117°
117°
117°
- CRI
Ra>70
Ra>70
Ra>70
Ra>70
Ra>70
Ra>70
Ra>70
Ra>70
Ra>70
- Color
2200K/2700K/3000K/4000K/5000K/5700K
2200K/2700K/3000K/4000K/5000K/5700K
2200K/2700K/3000K/4000K/5000K/5700K
2200K/2700K/3000K/4000K/5000K/5700K
2200K/2700K/3000K/4000K/5000K/5700K
2200K/2700K/3000K/4000K/5000K/5700K
2200K/2700K/3000K/4000K/5000K/5700K
2200K/2700K/3000K/4000K/5000K/5700K
2200K/2700K/3000K/4000K/5000K/5700K
- Control
