Home Products Outdoor POLARIS - Street Lighting

POLARIS

Street Lighting

POLARIS

Efficient Lighting, Reliable Choice

POLARIS

Efficient Lighting, Reliable Choice

POLARIS

Efficient Lighting, Reliable Choice

POLARIS

Efficient Lighting, Reliable Choice

POLARIS

Efficient Lighting, Reliable Choice

POLARIS

Efficient Lighting, Reliable Choice

POLARIS

Efficient Lighting, Reliable Choice

POLARIS

Efficient Lighting, Reliable Choice

Lighting Effects

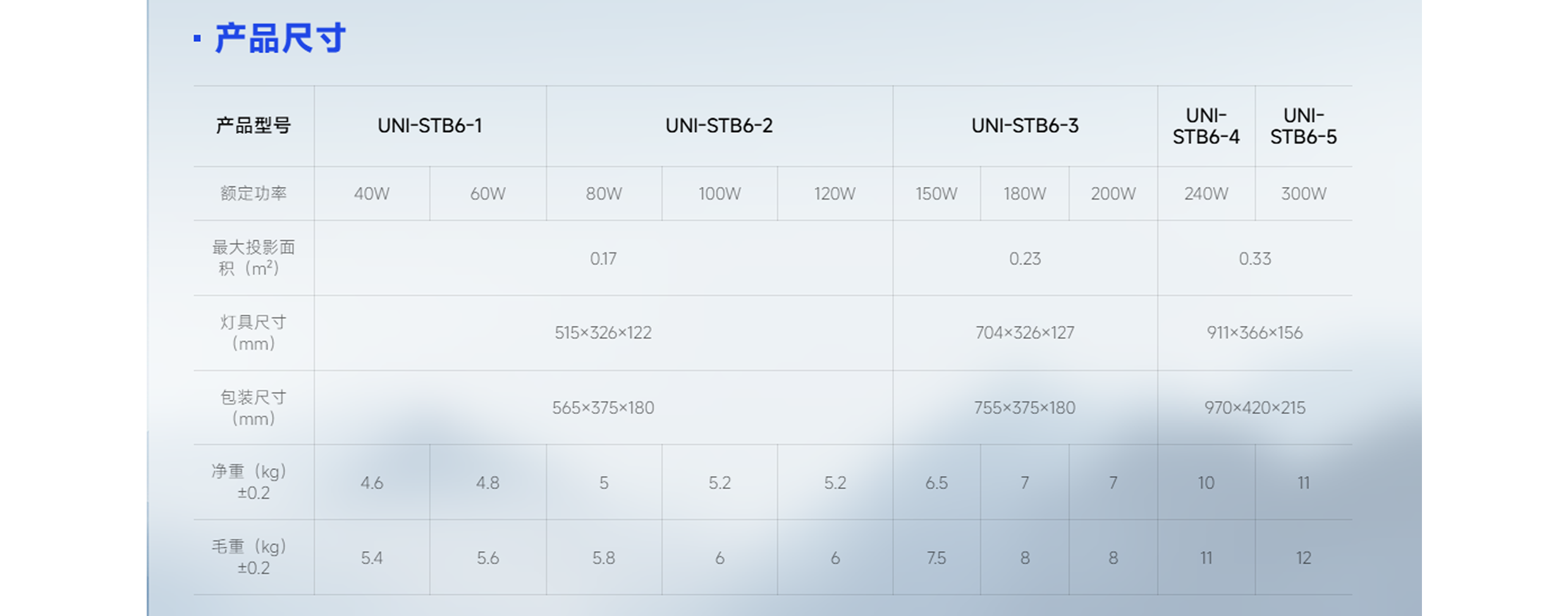

Products Specification:: Type:Street Lighting; Power:40W 60W 80W 100W 120W 150W 180W 200W 240W 300W; CCT:3000K/4000K/5000K/5700K; Weight:4.6-11kg; Heat-Sink:Aluminum; Product Dimension:①515×326×122 ②704×326×127
③911×366×156; Max Projected Area :①0.17㎡ ②0.23㎡ ③0.33㎡; Light Pole Diameter:ø60 mm

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
40W
60W
80W
100W
120W
150W
180W
200W
240W
300W

Beam Angle

Beam Angle
104°

CRI

CRI
Ra>70

Color

Color
3000K/4000K/5000K/5700K

Control

Control

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming
5-DMX512

Finish

Finish
N/A

Reflector

Reflector
N/A

IP Rating

IP Rating
65-IP65

Accessory

Accessory
N/A

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite

Model No: UNI-STB6-1-40W; UNI-STB6-1-60W; UNI-STB6-2-80W; UNI-STB6-2-100W; UNI-STB6-2-120W; UNI-STB6-3-150W; UNI-STB6-3-180W; UNI-STB6-3-200W; UNI-STB6-4-240W; UNI-STB6-5-300W

Luminous Flux (LM): /; /; /; /; /; /; /; /; /; /

Power (W): 40W; 60W; 80W; 100W; 120W; 150W; 180W; 200W; 240W; 300W

Beam Angle: 104°; 104°; 104°; 104°; 104°; 104°; 104°; 104°; 104°; 104°

CRI: Ra>70; Ra>70; Ra>70; Ra>70; Ra>70; Ra>70; Ra>70; Ra>70; Ra>70; Ra>70

Color: 3000K/4000K/5000K/5700K; 3000K/4000K/5000K/5700K; 3000K/4000K/5000K/5700K; 3000K/4000K/5000K/5700K; 3000K/4000K/5000K/5700K; 3000K/4000K/5000K/5700K; 3000K/4000K/5000K/5700K; 3000K/4000K/5000K/5700K; 3000K/4000K/5000K/5700K; 3000K/4000K/5000K/5700K
