M-BOX 145

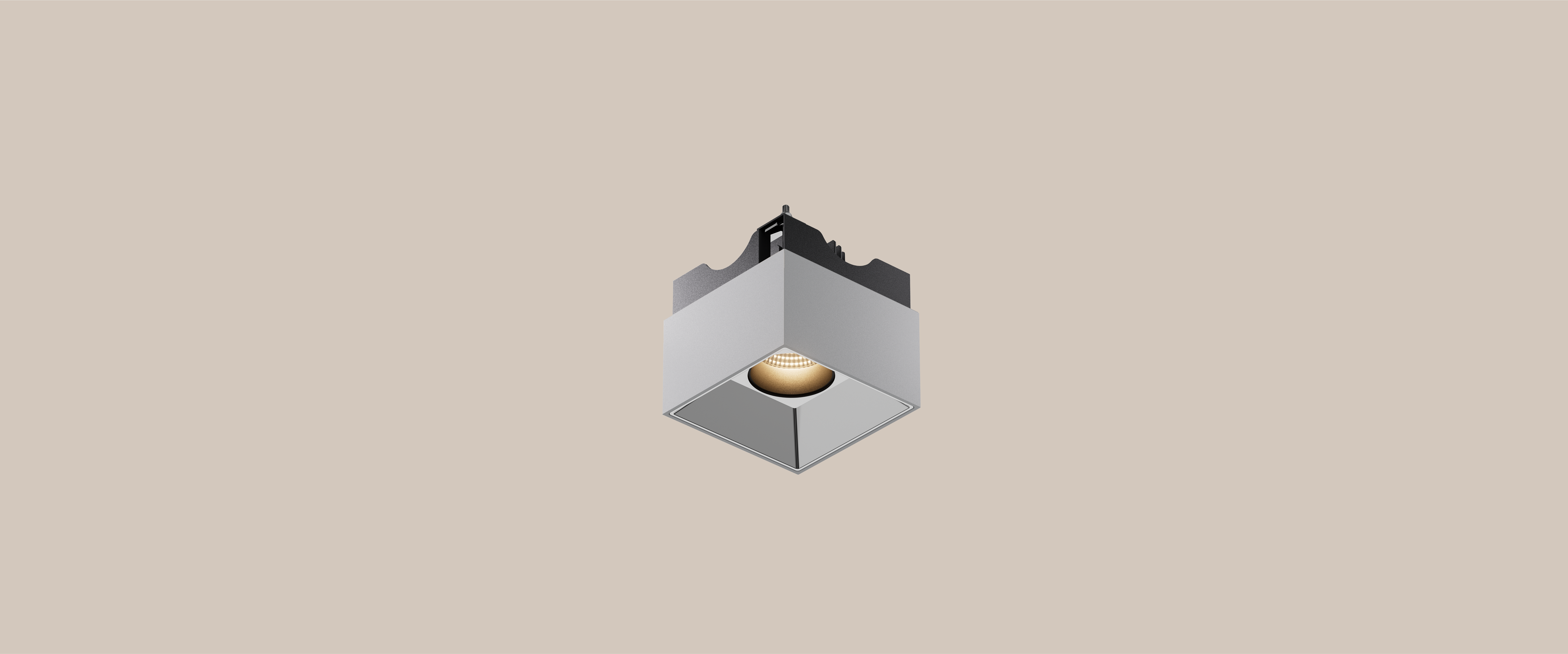

High Efficiency Semi-recessed Square Downlight

M-BOX 145

M-BOX 145

Lighting Effects

Products Specification:: Type:Semi-recessed Square Downlight; Cut-Out:145x145 mm; Power:30W 36W; Beam Angle:18° 28° 38° 52°; Weight:2.1kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:Painting/Powder coating

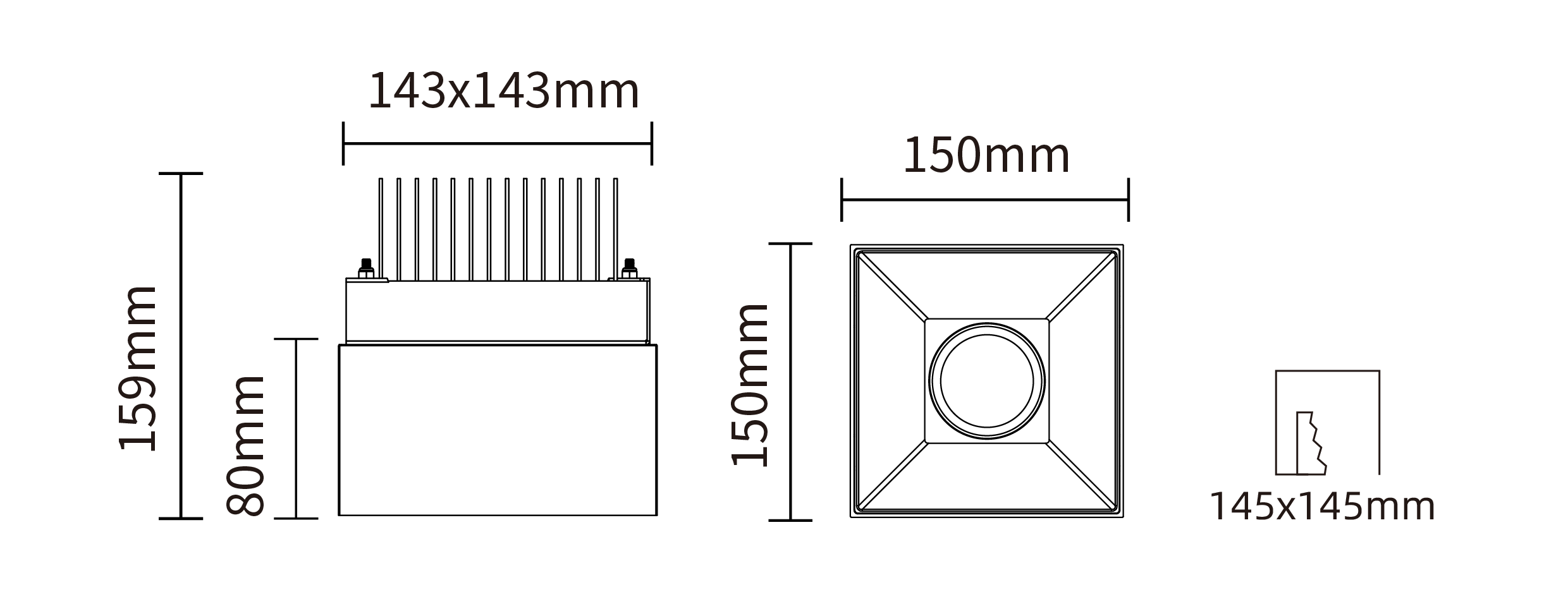

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
30W
36W

Beam Angle

Beam Angle
18°
28°
38°
52°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Black
Madrid Grey
Rose Gold

Reflector

Reflector
Mirror
Black
White
Madrid Grey
Red Golden

IP Rating

IP Rating
20-IP20

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR02705-30189027-HE; DR02705-30189030-HE; DR02705-30189040-HE; DR02705-30289027-HE; DR02705-30289030-HE; DR02705-30289040-HE; DR02705-30389027-HE; DR02705-30389030-HE; DR02705-30389040-HE; DR02705-30529027-HE; DR02705-30529030-HE; DR02705-30529040-HE; DR02705-36189027-HE; DR02705-36189030-HE; DR02705-36189040-HE; DR02705-36289027-HE; DR02705-36289030-HE; DR02705-36289040-HE; DR02705-36389027-HE; DR02705-36389030-HE; DR02705-36389040-HE; DR02705-36529027-HE; DR02705-36529030-HE; DR02705-36529040-HE

Luminous Flux (LM): 3012LM; 3171LM; 3329LM; 3140LM; 3306LM; 3471LM; 3223LM; 3393LM; 3562LM; 2918LM; 3072LM; 3225LM; 3663LM; 3856LM; 4049LM; 3876LM; 4081LM; 4285LM; 3954LM; 4162LM; 4370LM; 3565LM; 3753LM; 3941LM

Power (W): 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W

Beam Angle: 18°; 18°; 18°; 28°; 28°; 28°; 38°; 38°; 38°; 52°; 52°; 52°; 18°; 18°; 18°; 28°; 28°; 28°; 38°; 38°; 38°; 52°; 52°; 52°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

DWG

manual

Favorite

Application

Related Products

High Efficiency Adjustable Semi-recessed Square Downlight

Full Spectrum Surface-mounted Square Downlight

Full Spectrum Adjustable Surface-mounted Square Downlight

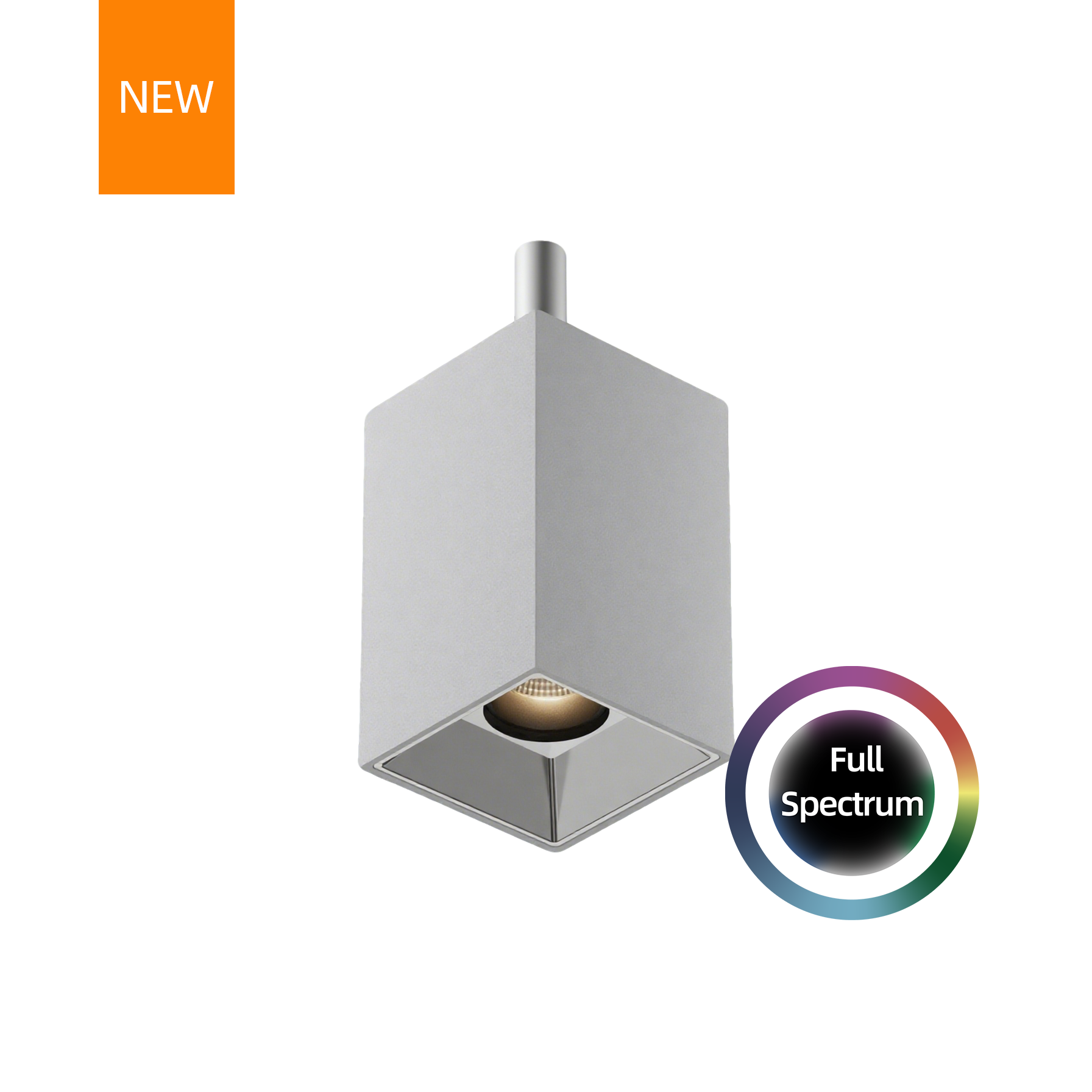

Full Spectrum Pendant Square Downlight
