M-BOX 70
Full Spectrum Surface-mounted Square Downlight
M-BOX 70
M-BOX 70
M-BOX 70
M-BOX 70
Lighting Effects
- Products Specification:
- Type:Surface-mounted Square Downlight
- Power:8W 12W
- Beam Angle:18° 28° 38° 48°
- Weight:0.45kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:Painting/Powder coating

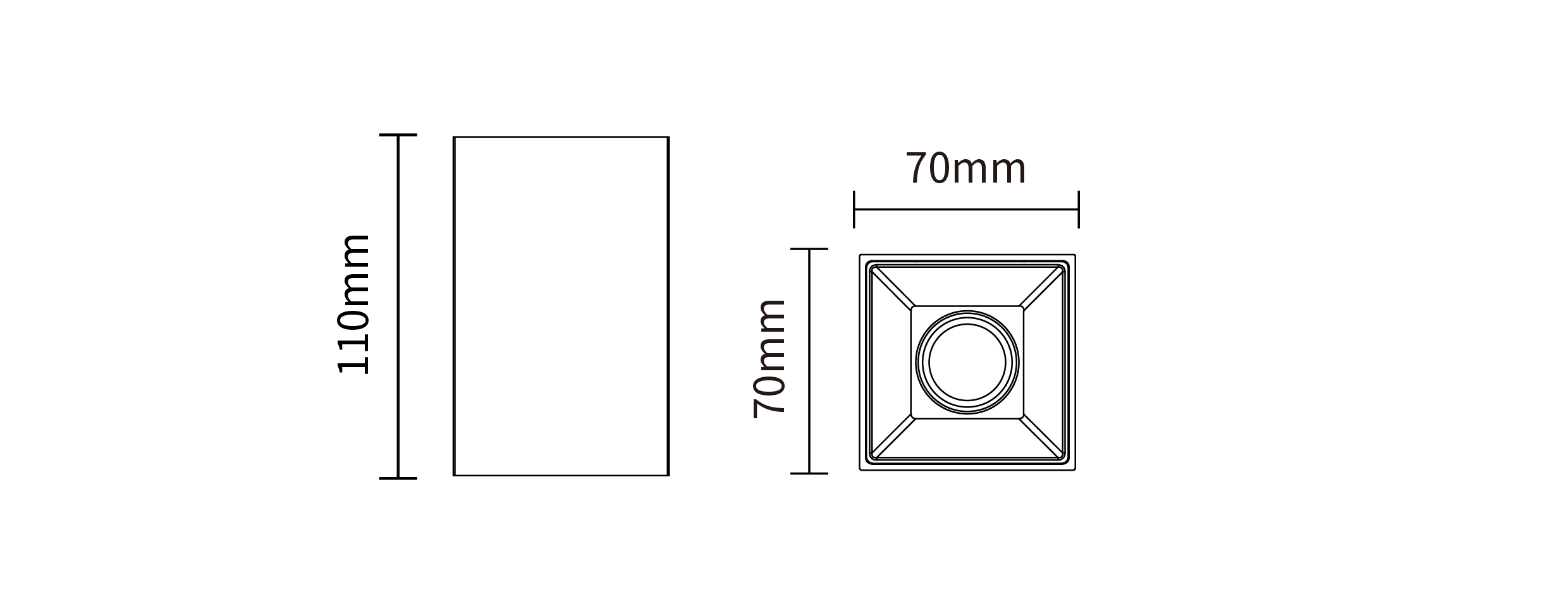

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 8W
- 12W
- Beam Angle
- 18°
- 28°
- 38°
- 48°
- CRI
- Ra>97
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- White
- Black
- Madrid Grey
- Rose Gold
- Reflector
- Mirror
- Black
- White
- Madrid Grey
- Red Golden
- IP Rating
- 20-IP20
- Accessory
- Honeycomb louver
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DS02701-08189727
DS02701-08189730
DS02701-08189740
DS02701-08289727
DS02701-08289730
DS02701-08289740
DS02701-08389727
DS02701-08389730
DS02701-08389740
DS02701-08489727
DS02701-08489730
DS02701-08489740
DS02701-12189727
DS02701-12189730
DS02701-12189740
DS02701-12289727
DS02701-12289730
DS02701-12289740
DS02701-12389727
DS02701-12389730
DS02701-12389740
DS02701-12489727
DS02701-12489730
DS02701-12489740
- Luminous Flux (LM)
483LM
509LM
534LM
553LM
582LM
612LM
533LM
561LM
589LM
502LM
529LM
555LM
651LM
685LM
720LM
810LM
853LM
895LM
795LM
837LM
879LM
735LM
773LM
812LM
- Power (W)
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
- Beam Angle
18°
18°
18°
28°
28°
28°
38°
38°
38°
48°
48°
48°
18°
18°
18°
28°
28°
28°
38°
38°
38°
48°
48°
48°
- CRI
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
Ra>97
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Specification
- IES
- DWG
- manual
- Favorite
