M-BOX 95
High Efficiency Adjustable Semi-recessed Square Downlight
M-BOX 95
M-BOX 95
Lighting Effects
- Products Specification:
- Type:Adjustable Semi-recessed Square Downlight
- Cut-Out:95x95 mm
- Power:8W 12W
- Beam Angle:15° 24° 36° 55°
- Weight:0.75kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:Painting/Powder coating

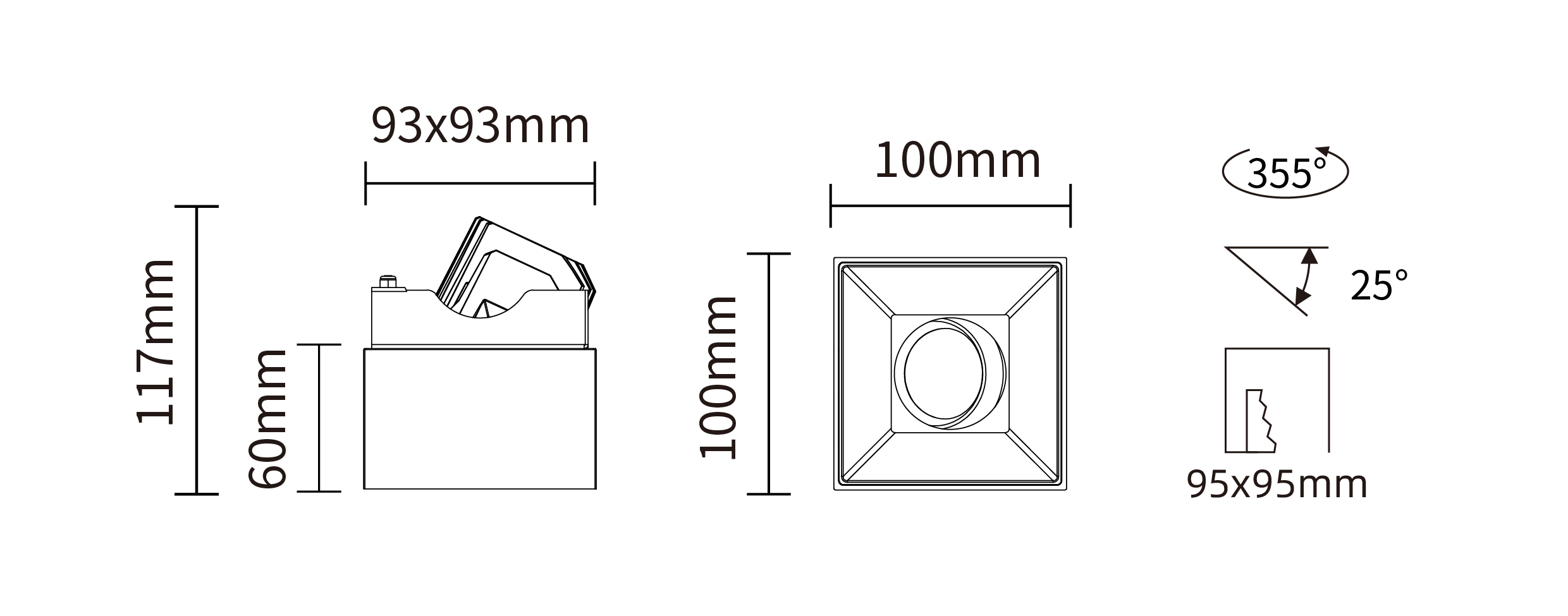

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 8W
- 12W
- Beam Angle
- 15°
- 24°
- 36°
- 55°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- White
- Black
- Madrid Grey
- Rose Gold
- Reflector
- Mirror
- Black
- White
- Madrid Grey
- Red Golden
- IP Rating
- 20-IP20
- Accessory
- Honeycomb louver
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DR02704-08159027-HE
DR02704-08159030-HE
DR02704-08159040-HE
DR02704-08249027-HE
DR02704-08249030-HE
DR02704-08249040-HE
DR02704-08369027-HE
DR02704-08369030-HE
DR02704-08369040-HE
DR02704-08559027-HE
DR02704-08559030-HE
DR02704-08559040-HE
DR02704-12159027-HE
DR02704-12159030-HE
DR02704-12159040-HE
DR02704-12249027-HE
DR02704-12249030-HE
DR02704-12249040-HE
DR02704-12369027-HE
DR02704-12369030-HE
DR02704-12369040-HE
DR02704-12559027-HE
DR02704-12559030-HE
DR02704-12559040-HE
- Luminous Flux (LM)
850LM
892LM
935LM
931LM
981LM
1030LM
933LM
982LM
1031LM
893LM
940LM
987LM
1223LM
1284LM
1345LM
1367LM
1439LM
1511LM
1368LM
1441LM
1513LM
1308LM
1377LM
1445LM
- Power (W)
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
- Beam Angle
15°
15°
15°
24°
24°
24°
36°
36°
36°
55°
55°
55°
15°
15°
15°
24°
24°
24°
36°
36°
36°
55°
55°
55°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Specification
- IES
- DWG
- manual
