POYO 115

Surface-mounted Downlight

POYO 115

Looking forward to being shining, like the jade is waiting for carving.

POYO 115

Looking forward to being shining, like the jade is waiting for carving.

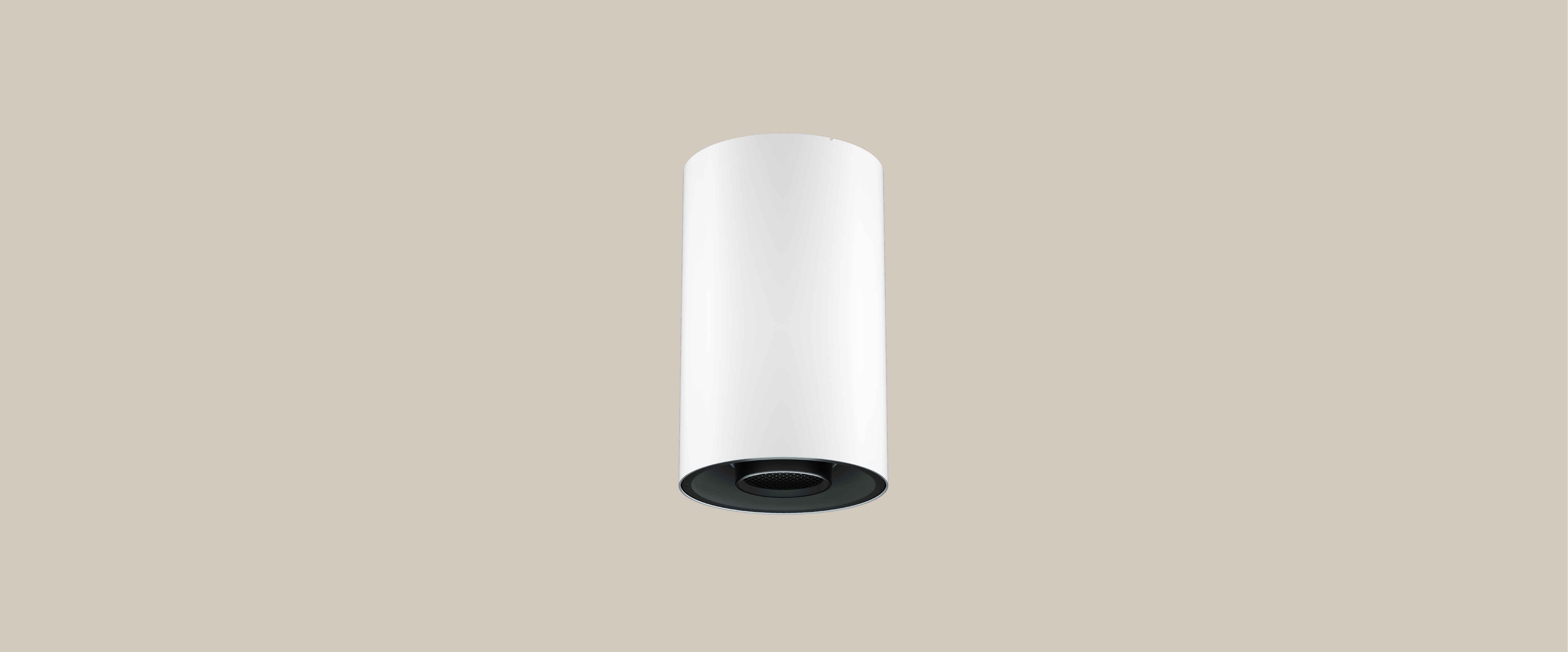

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of 350 degrees

and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

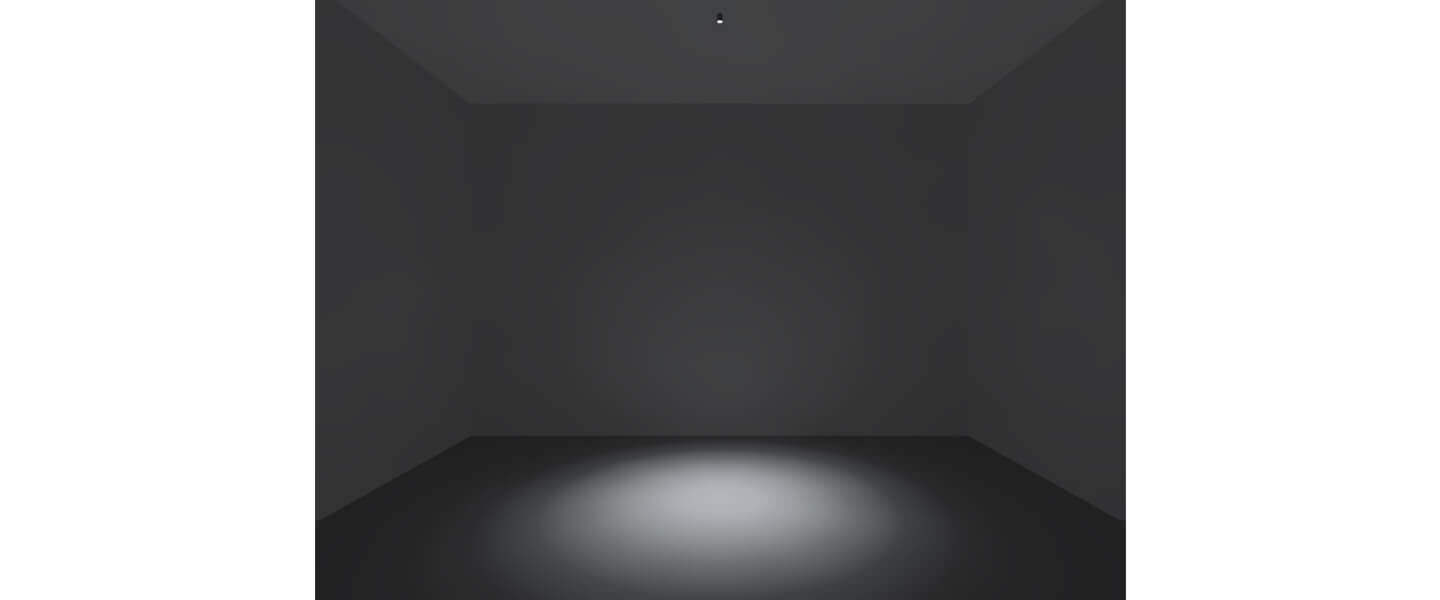

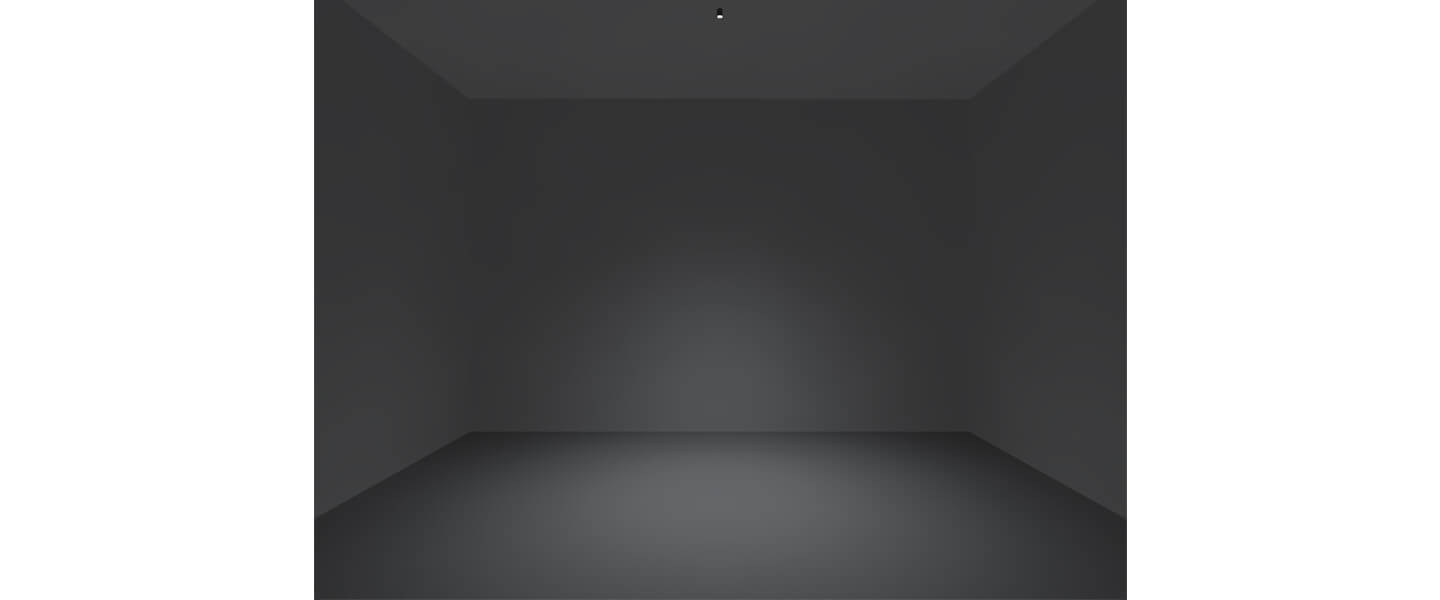

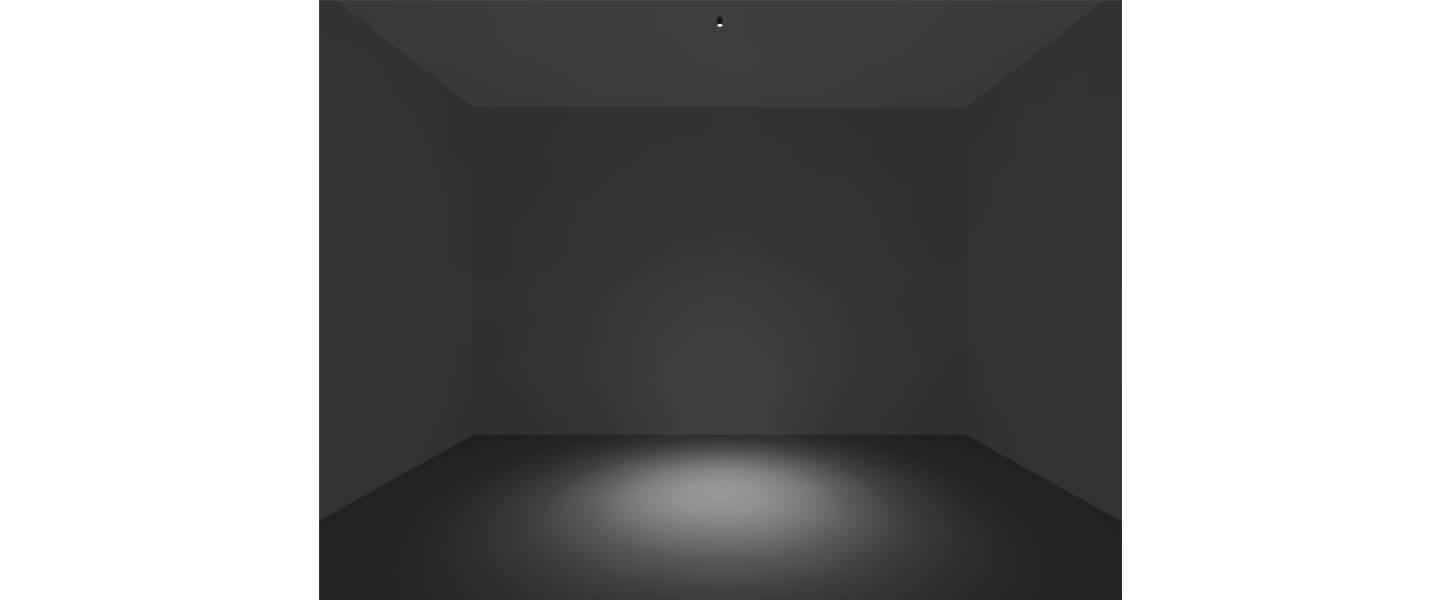

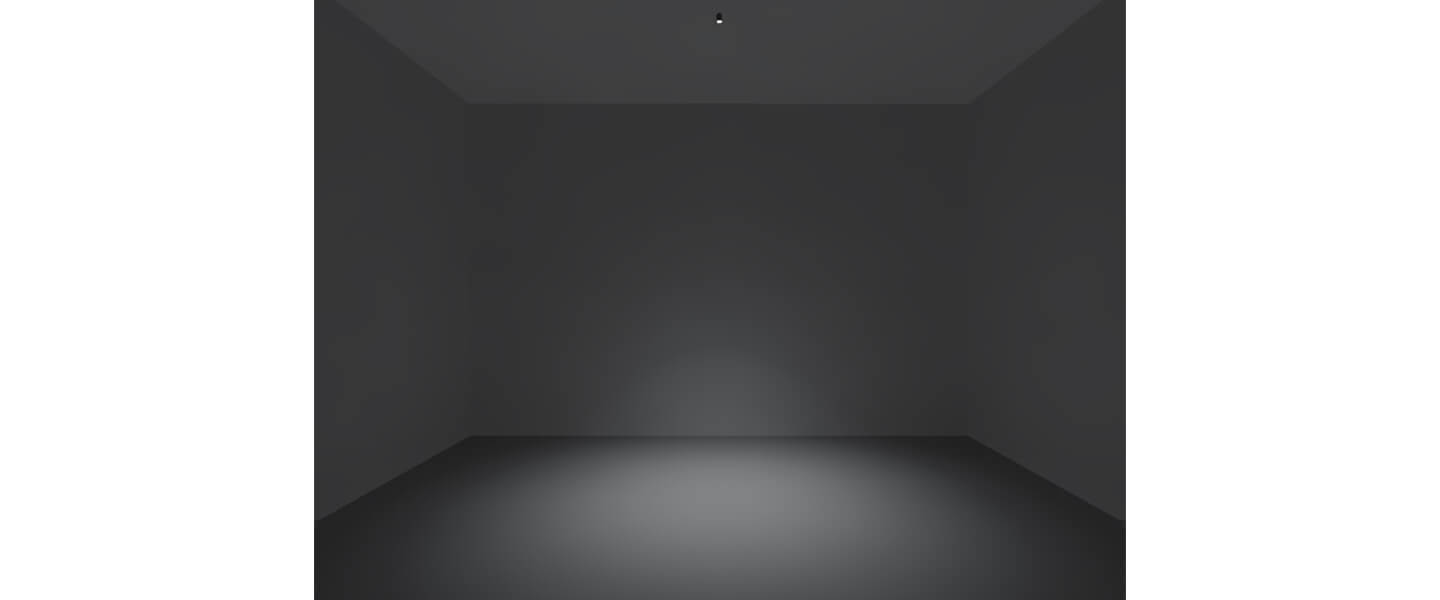

Lighting Effects

Products Specification:: Type:Surface-mounted Downlight; Beam Angle:18D 25D 40D 50D; Power:15W 20W 25W; CCT:2700K 3000K 4000K; Weight:1.6kg; Heat-Sink:Aluminum; Surface-Treatment:painting+plating

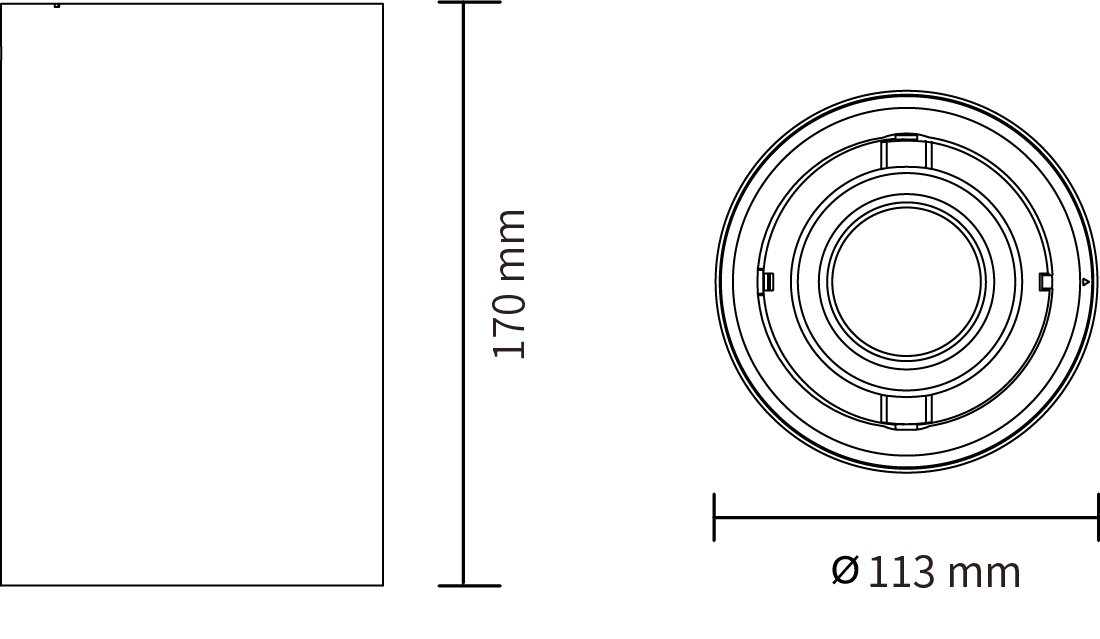

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
15W
20W
25W

Beam Angle

Beam Angle
18°
25°
35°
50°

CRI

CRI
Ra>80

Color

Color
2700K
3000K
4000K

Control

Control

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
92-Outdoor white
94-Outdoor grey

Reflector

Reflector
2-Black

IP Rating

IP Rating
65-IP65

Accessory

Accessory
1-Honeycomb louver
3-Cross louver
6-Soft lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite

Model No: 85141C1-15188027; 85141C1-15188030; 85141C1-15188040; 85141C1-15258027; 85141C1-15258030; 85141C1-15258040; 85141C1-15358027; 85141C1-15358030; 85141C1-15358040; 85141C1-15508027; 85141C1-15508030; 85141C1-15508040; 85141C1-20188027; 85141C1-20188030; 85141C1-20188040; 85141C1-20258027; 85141C1-20258030; 85141C1-20258040; 85141C1-20358027; 85141C1-20358030; 85141C1-20358040; 85141C1-20508027; 85141C1-20508030; 85141C1-20508040; 85141C1-25188027; 85141C1-25188030; 85141C1-25188040; 85141C1-25258027; 85141C1-25258030; 85141C1-25258040; 85141C1-25358027; 85141C1-25358030; 85141C1-25358040; 85141C1-25508027; 85141C1-25508030; 85141C1-25508040

Luminous Flux (LM): 919LM; 967LM; 1025LM; 1140LM; 1200LM; 1286LM; 1181LM; 1243LM; 1366LM; 963LM; 1014LM; 1107LM; 1303LM; 1372LM; 1415LM; 1622LM; 1708LM; 1764LM; 1630LM; 1716LM; 1834LM; 1390LM; 1464LM; 1483LM; 1486LM; 1565LM; 1578LM; 1878LM; 1977LM; 2011LM; 1929LM; 2031LM; 2035LM; 1648LM; 1735LM; 1712LM

Power (W): 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W

Beam Angle: 18°; 18°; 18°; 25°; 25°; 25°; 35°; 35°; 35°; 50°; 50°; 50°; 18°; 18°; 18°; 25°; 25°; 25°; 35°; 35°; 35°; 50°; 50°; 50°; 18°; 18°; 18°; 25°; 25°; 25°; 35°; 35°; 35°; 50°; 50°; 50°

CRI: Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
