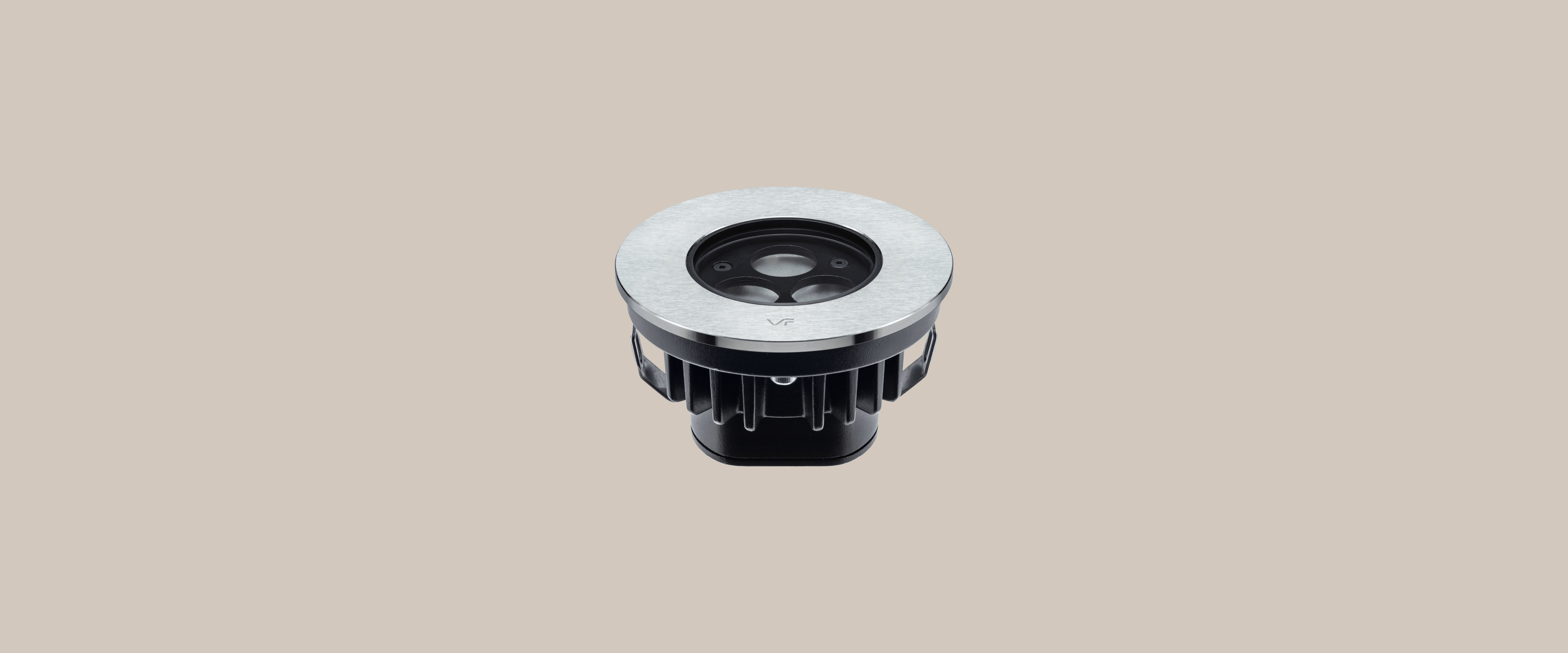

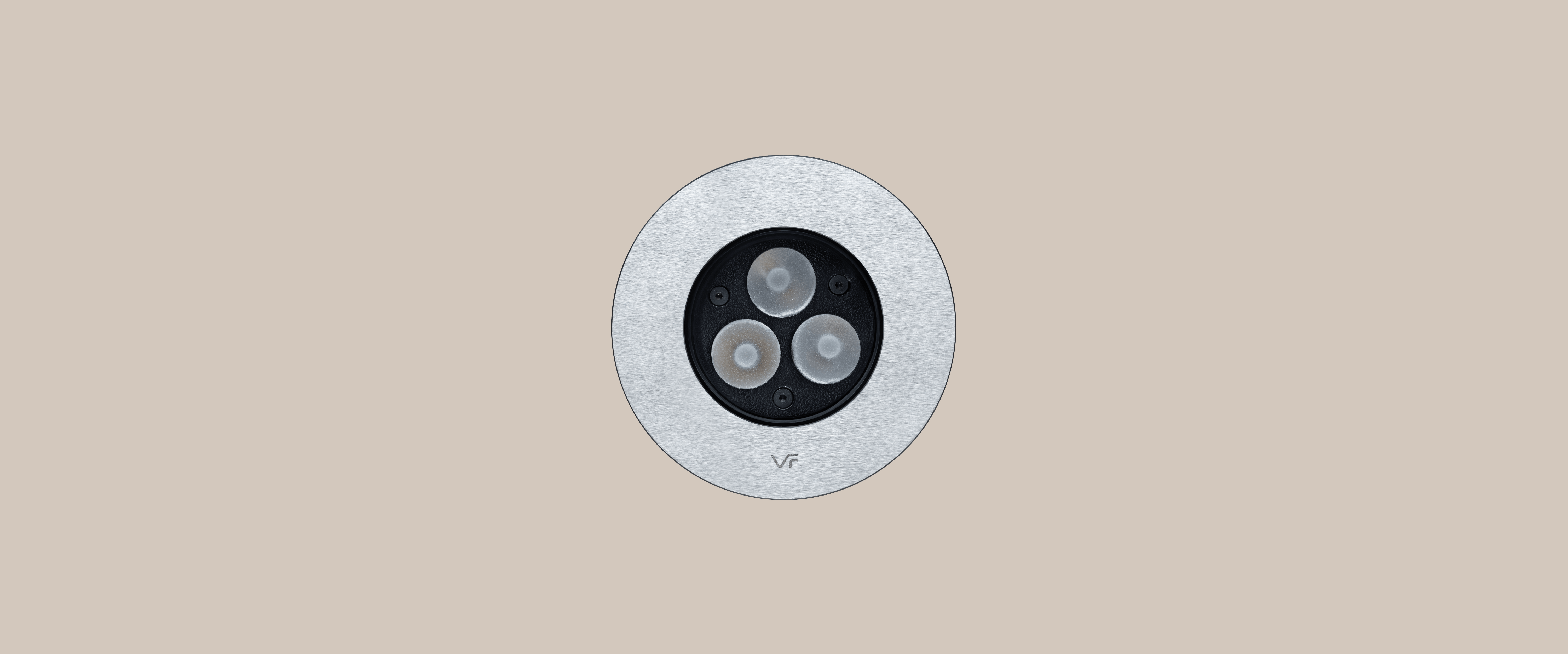

ASTA 103
Narrow Trim In-Ground Light
ASTA 103
Narrow Trim In-Ground Light
ASTA 103
Narrow Trim In-Ground Light
ASTA 103
Narrow Trim In-Ground Light
Lighting Effects
- Products Specification:
- Type:Narrow Trim In-Ground Light
- Beam Angle:10D 15D 25D 30D 45D 60D 30D T20 10X30D 10X20D 15X60D
- Power:7W
- Dimension:φ103*60 mm

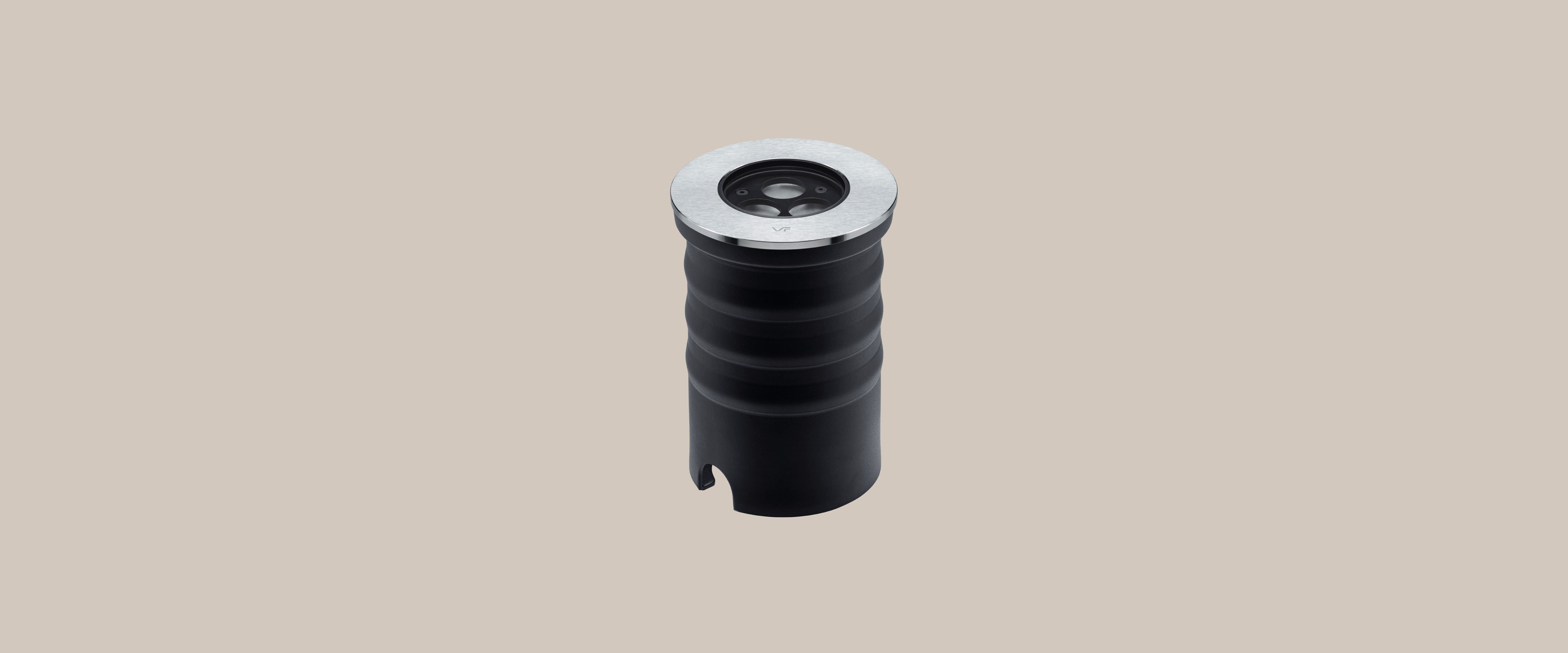

- Embedded Part Dimension:φ103*62 mm ø 103*150 mm
- Weight:0.79kg 1kg
- Heat-Sink:Aluminum
- Surface-Treatment:Plating
- CCT:2700K 3000K 4000K
- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 0.4W
- 7W
Beam Angle- Beam Angle
- diffuser
- T30°
- 10°
- 15*60°
- 15*25°
- 15°
- 20*30°
- 25°
- 30°
- 45°
- 60°
CRI- CRI
- >80
Color- Color
- 2700K
- 3000K
- 4000K
Control- Control
- ON/OFF/DALI/DMX512
Dimming type- Dimming type
- 1-Non Dim
- 4-DALI dimming
- 5-DMX512
Finish- Finish
- A3-Stainless
Reflector- Reflector
- N/A
IP Rating- IP Rating
- 67-IP67
Accessory- Accessory
- B-sea gull louver
- C-Crescent Louver
- Power(W)
- 0.4W
- 7W
- Beam Angle
- diffuser
- T30°
- 10°
- 15*60°
- 15*25°
- 15°
- 20*30°
- 25°
- 30°
- 45°
- 60°
- CRI
- >80
- Color
- 2700K
- 3000K
- 4000K
- Control
- ON/OFF/DALI/DMX512
- Dimming type
- 1-Non Dim
- 4-DALI dimming
- 5-DMX512
- Finish
- A3-Stainless
- Reflector
- N/A
- IP Rating
- 67-IP67
- Accessory
- B-sea gull louver
- C-Crescent Louver
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
BB00203-00000827
BB00203-00000830
BB00203-00000840
BB00203-00010827
BB00203-00015827
BB00203-00025827
BB00203-00030827
BB00203-00045827
BB00203-00060827
BB00203-01030827
BB00203-01020827
BB00203-01560827
BB00203-00010830
BB00203-00015830
BB00203-00025830
BB00203-00030830
BB00203-00045830
BB00203-00060830
BB00203-01030830
BB00203-01020830
BB00203-01560830
BB00203-00010840
BB00203-00015840
BB00203-00025840
BB00203-00030840
BB00203-00045840
BB00203-00060840
BB00203-01030840
BB00203-01020840
BB00203-01560840
BB00203-01T300827
BB00203-01T300830
BB00203-01T300840
- Luminous Flux (LM)
10LM
10LM
12LM
409LM
457LM
432LM
438LM
402LM
330LM
353LM
359LM
328LM
431LM
481LM
455LM
461LM
423LM
347LM
372LM
378LM
345LM
435LM
496LM
468LM
468LM
437LM
371LM
374LM
382LM
348LM
363LM
383LM
399LM
- Power (W)
0.4W
0.4W
0.4W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
- Beam Angle
diffuser
diffuser
diffuser
10°
15°
25°
30°
45°
60°
15*25°
20*30°
15*60°
10°
15°
25°
30°
45°
60°
15*25°
20*30°
15*60°
10°
15°
25°
30°
45°
60°
15*25°
20*30°
15*60°
T30°
T30°
T30°
- CRI
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
- Color
2700K
3000K
4000K
2700K
2700K
2700K
2700K
2700K
2700K
2700K
2700K
2700K
3000K
3000K
3000K
3000K
3000K
3000K
3000K
3000K
3000K
4000K
4000K
4000K
4000K
4000K
4000K
4000K
4000K
4000K
2700K
3000K
4000K
- Control
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
