Home Products Outdoor POYO 80 - Surface-mounted Mirror Downlight

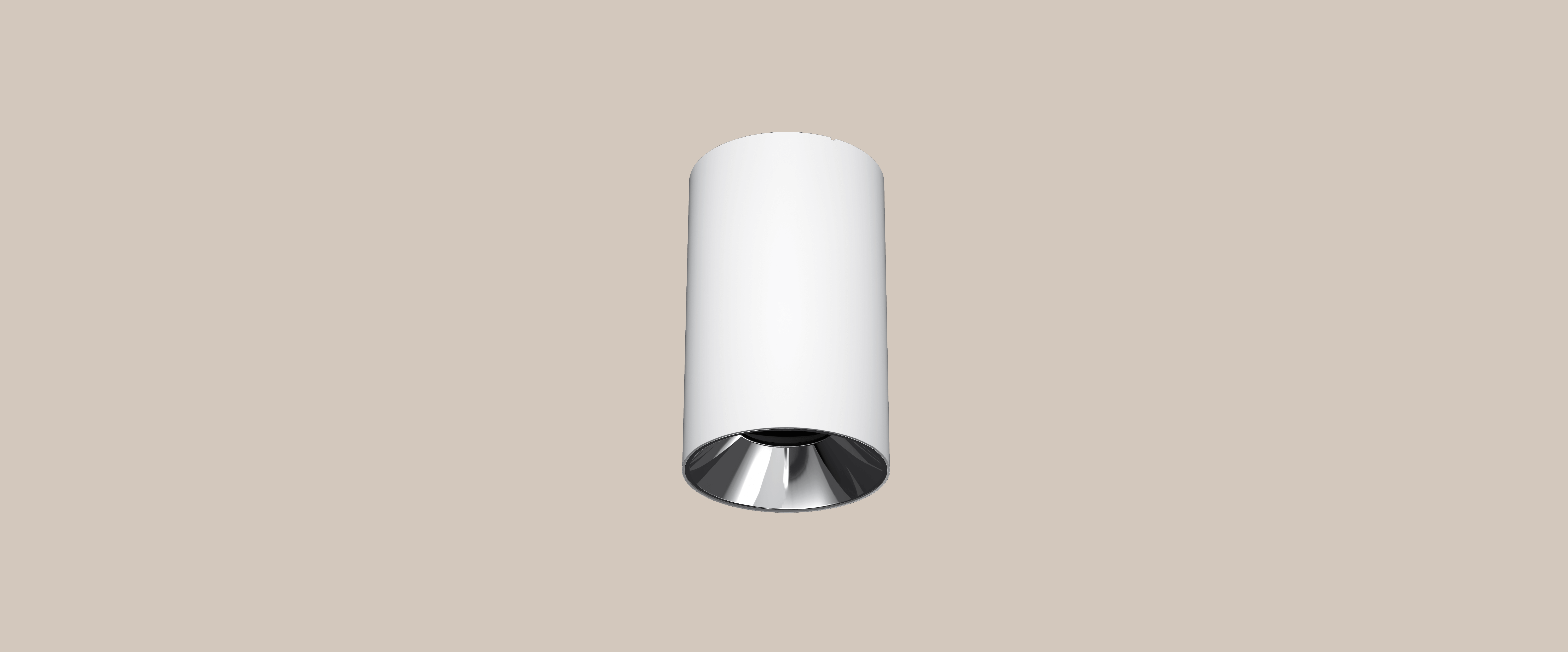

POYO 80

Surface-mounted Mirror Downlight

POYO 80

Looking forward to being shining, like the jade is waiting for carving.

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of 350 degrees

and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

Lighting Effects

Products Specification:: Type:Surface-mounted Mirror Downlight; Beam Angle:23D 32D 40D 50D; Power:5W 8W 10W 15W; CCT:2700K 3000K 4000K

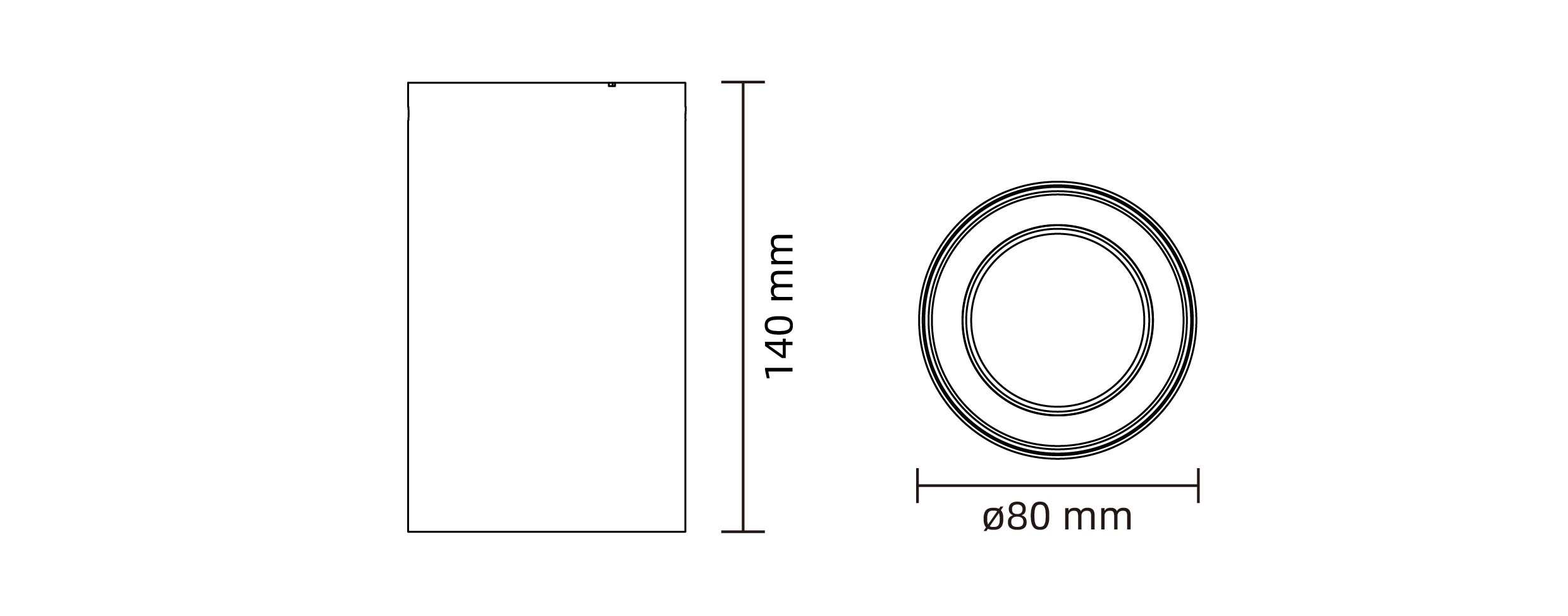

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
15 W
10 W
8 W
5 W

Beam Angle

Beam Angle
50°
40°
32°
23°

CRI

CRI
Ra>80

Color

Color
4000 K
3000 K
2700 K

Control

Control
DALI/0/1-10V/Triac

Model No
Luminous Flux (LM)
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
Favorite

Model No: 86141B1-15508040; 86141B1-15508030; 86141B1-15508027; 86141B1-15408040; 86141B1-15408030; 86141B1-15408027; 86141B1-15328040; 86141B1-15328030; 86141B1-15328027; 86141B1-15238040; 86141B1-15238030; 86141B1-15238027; 86141B1-10508040; 86141B1-10508030; 86141B1-10508027; 86141B1-10408040; 86141B1-10408030; 86141B1-10408027; 86141B1-10328040; 86141B1-10328030; 86141B1-10328027; 86141B1-10238040; 86141B1-10238030; 86141B1-10238027; 86141B1-08508040; 86141B1-08508030; 86141B1-08508027; 86141B1-08408040; 86141B1-08408030; 86141B1-08408027; 86141B1-08328040; 86141B1-08328030; 86141B1-08328027; 86141B1-08238040; 86141B1-08238030; 86141B1-08238027; 86141B1-05508040; 86141B1-05508030; 86141B1-05508027; 86141B1-05408040; 86141B1-05408030; 86141B1-05408027; 86141B1-05328040; 86141B1-05328030; 86141B1-05328027; 86141B1-05238040; 86141B1-05238030; 86141B1-05238027

Luminous Flux (LM): 1786 LM; 1701 LM; 1616 LM; 1786 LM; 1701 LM; 1616 LM; 1786 LM; 1701 LM; 1616 LM; 1786 LM; 1701 LM; 1616 LM; 1276 LM; 1215 LM; 1154 LM; 1276 LM; 1215 LM; 1154 LM; 1276 LM; 1215 LM; 1154 LM; 1276 LM; 1215 LM; 1154 LM; 1021 LM; 972 LM; 923 LM; 1021 LM; 972 LM; 923 LM; 1021 LM; 972 LM; 923 LM; 1021 LM; 972 LM; 923 LM; 610 LM; 581 LM; 552 LM; 610 LM; 581 LM; 552 LM; 610 LM; 581 LM; 552 LM; 610 LM; 581 LM; 552 LM

Power (W): 15 W; 15 W; 15 W; 15 W; 15 W; 15 W; 15 W; 15 W; 15 W; 15 W; 15 W; 15 W; 10 W; 10 W; 10 W; 10 W; 10 W; 10 W; 10 W; 10 W; 10 W; 10 W; 10 W; 10 W; 8 W; 8 W; 8 W; 8 W; 8 W; 8 W; 8 W; 8 W; 8 W; 8 W; 8 W; 8 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W

Beam Angle: 50°; 50°; 50°; 40°; 40°; 40°; 32°; 32°; 32°; 23°; 23°; 23°; 50°; 50°; 50°; 40°; 40°; 40°; 32°; 32°; 32°; 23°; 23°; 23°; 50°; 50°; 50°; 40°; 40°; 40°; 32°; 32°; 32°; 23°; 23°; 23°; 50°; 50°; 50°; 40°; 40°; 40°; 32°; 32°; 32°; 23°; 23°; 23°

CRI: Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80

Color: 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K

Control: DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac
