POYO 80

Surface-mounted Anti-glare Adjustable Downlight

POYO 80

ooking forward to being shining, like the jade is waiting for carving.

POYO 80

ooking forward to being shining, like the jade is waiting for carving.

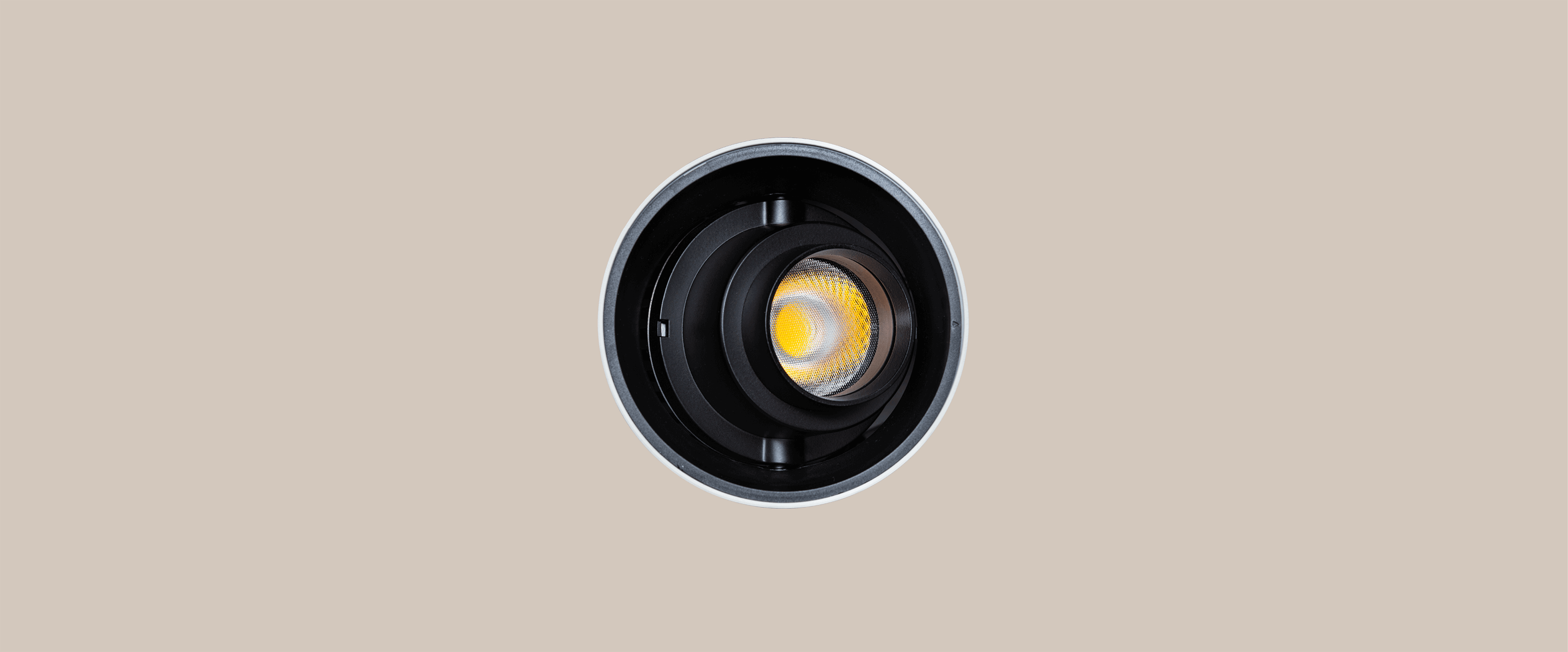

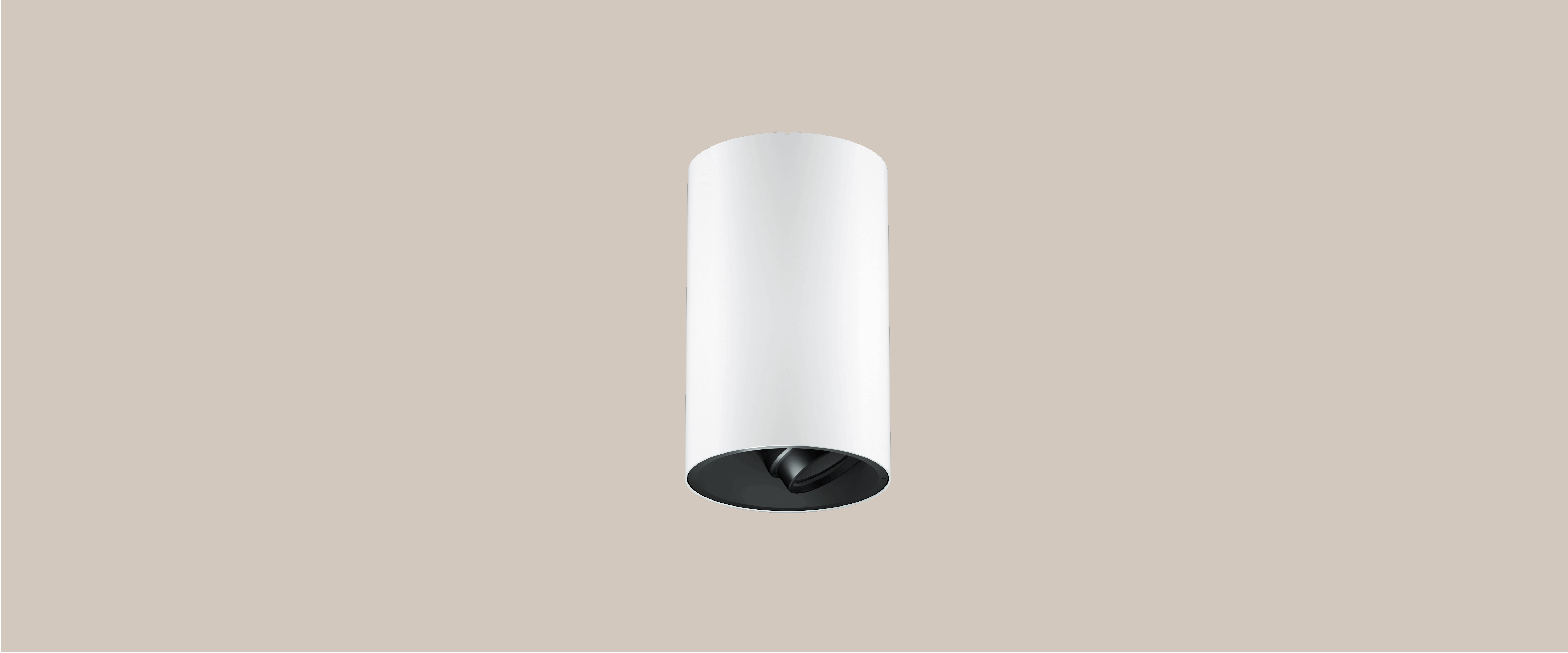

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of
350 degrees and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

Lighting Effects

Products Specification:
Type:Surface-mounted Anti-glare Adjustable Downlight
Beam Angle:15D 27D 37D 58D
Power:5W 8W
CCT:2700K 3000K 4000K
Line Drawing:
General Features:

Accessories:
Reflector Color:
Frame Color:

Select your Model No:

Power(W)
  • Power(W)
  • 8W
  • 5 W
Beam Angle
  • Beam Angle
  • 58°
  • 37°
  • 27°
  • 15°
CRI
  • CRI
  • Ra>80
Color
  • Color
  • 4000 K
  • 3000 K
  • 2700 K
Control
  • Control
  • DALI/  0/1-10V/Triac
  • Model No

  • Luminous Flux (LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Control

  • Specification

  • IES

  • Favorite

Model No

85142B1-08588040

85142B1-08588030

85142B1-08588027

85142B1-08378040

85142B1-08378030

85142B1-08378027

85142B1-08278040

85142B1-08278030

85142B1-08278027

85142B1-08158040

85142B1-08158030

85142B1-08158027

85142B1-05588040

85142B1-05588030

85142B1-05588027

85142B1-05378040

85142B1-05378030

85142B1-05378027

85142B1-05278040

85142B1-05278030

85142B1-05278027

85142B1-05158040

85142B1-05158030

85142B1-05158027

Luminous Flux (LM)

1021 LM

972 LM

923 LM

1021 LM

972 LM

923 LM

1021 LM

972 LM

923 LM

846 LM

806 LM

766 LM

610 LM

581 LM

552 LM

610 LM

581 LM

552 LM

610 LM

581 LM

552 LM

508 LM

484 LM

460 LM

Power (W)

8W

8W

8W

8W

8W

8W

8W

8W

8W

8W

8W

8W

5 W

5 W

5 W

5 W

5 W

5 W

5 W

5 W

5 W

5 W

5 W

5 W

Beam Angle

58°

58°

58°

37°

37°

37°

27°

27°

27°

15°

15°

15°

58°

58°

58°

37°

37°

37°

27°

27°

27°

15°

15°

15°

CRI

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Color

4000 K

3000 K

2700 K

4000 K

3000 K

2700 K

4000 K

3000 K

2700 K

4000 K

3000 K

2700 K

4000 K

3000 K

2700 K

4000 K

3000 K

2700 K

4000 K

3000 K

2700 K

4000 K

3000 K

2700 K

Control

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

DALI/  0/1-10V/Triac

Specification
IES
Favorite

Application
