Home Products Indoor M-BOX 65 - Full Spectrum Adjustable Semi-recessed Square Downlight

M-BOX 65

Full Spectrum Adjustable Semi-recessed Square Downlight

M-BOX 65

M-BOX 65

Lighting Effects

Products Specification:: Type:Adjustable Semi-recessed Square Downlight; Cut-Out:65x65 mm; Power:5W 8W; Beam Angle:18° 28° 38° 48°; Weight:0.38kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:Painting/Powder coating

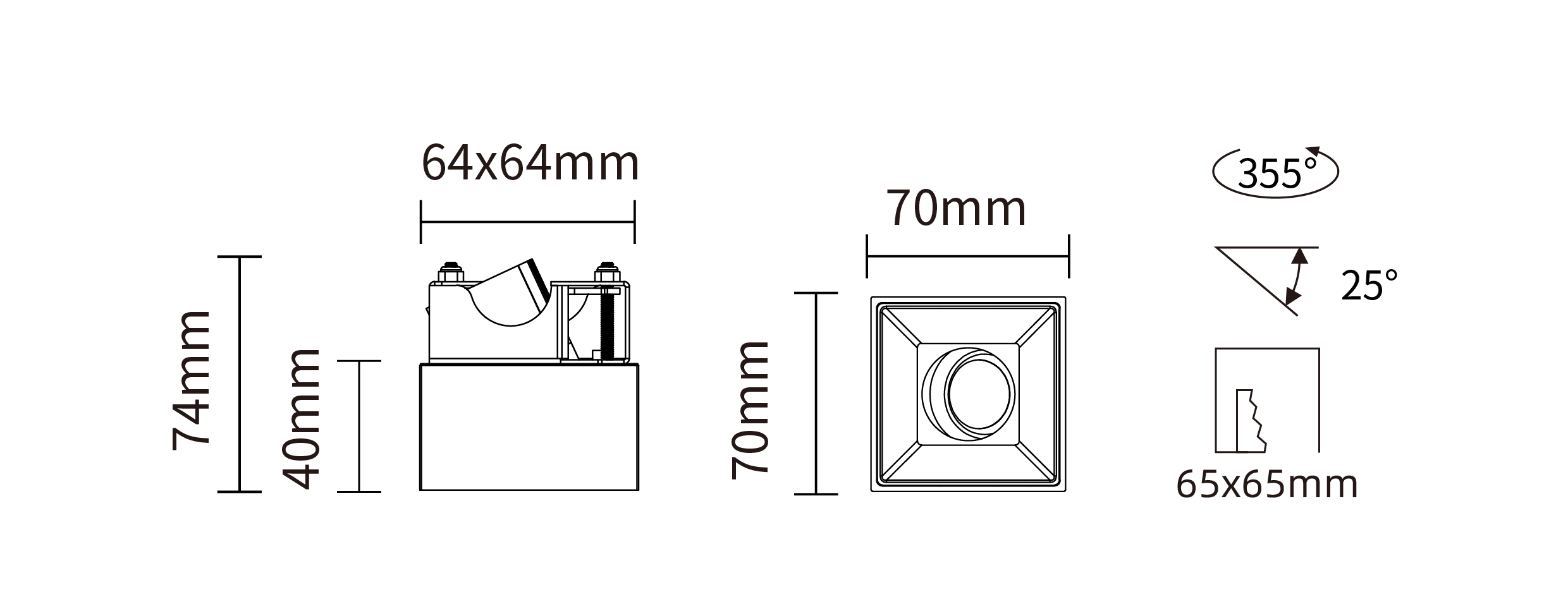

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
5W
8W

Beam Angle

Beam Angle
18°
28°
38°
48°

CRI

CRI
Ra>97

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Black
Madrid Grey
Rose Gold

Reflector

Reflector
Mirror
Black
White
Madrid Grey
Red Golden

IP Rating

IP Rating
20-IP20

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR02702-05189727; DR02702-05189730; DR02702-05189740; DR02702-05289727; DR02702-05289730; DR02702-05289740; DR02702-05389727; DR02702-05389730; DR02702-05389740; DR02702-05489727; DR02702-05489730; DR02702-05489740; DR02702-08189727; DR02702-08189730; DR02702-08189740; DR02702-08289727; DR02702-08289730; DR02702-08289740; DR02702-08389727; DR02702-08389730; DR02702-08389740; DR02702-08489727; DR02702-08489730; DR02702-08489740

Luminous Flux (LM): 324LM; 341LM; 358LM; 353LM; 371LM; 390LM; 330LM; 347LM; 365LM; 311LM; 328LM; 344LM; 483LM; 509LM; 534LM; 553LM; 582LM; 612LM; 533LM; 561LM; 589LM; 502LM; 529LM; 555LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W

Beam Angle: 18°; 18°; 18°; 28°; 28°; 28°; 38°; 38°; 38°; 48°; 48°; 48°; 18°; 18°; 18°; 28°; 28°; 28°; 38°; 38°; 38°; 48°; 48°; 48°

CRI: Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97; Ra>97

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

DWG

manual

Favorite

Application
