M-BOX 100
High Efficiency Wall-mounted Square Downlight
M-BOX 100
Lighting Effects
- Products Specification:
- Type:Wall-mounted Square Downlight
- Power:15W 20W
- Beam Angle:15° 24° 36° 55°
- Weight:0.86kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:Painting/Powder coating

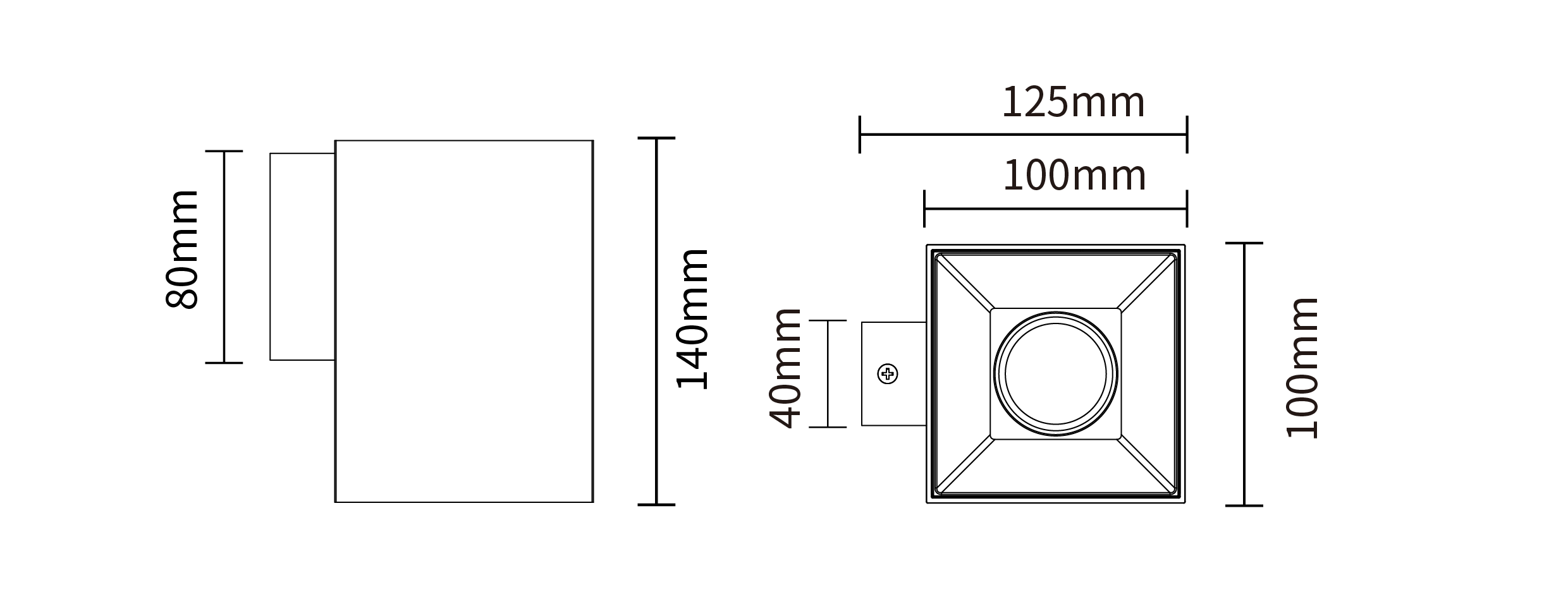

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 15W
- 20W
- Beam Angle
- 15°
- 24°
- 36°
- 55°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- White
- Black
- Madrid Grey
- Rose Gold
- Reflector
- Mirror
- Black
- White
- Madrid Grey
- Red Golden
- IP Rating
- 20-IP20
- Accessory
- Honeycomb louver
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DW02703-15159027-HE
DW02703-15159030-HE
DW02703-15159040-HE
DW02703-15249027-HE
DW02703-15249030-HE
DW02703-15249040-HE
DW02703-15369027-HE
DW02703-15369030-HE
DW02703-15369040-HE
DW02703-15559027-HE
DW02703-15559030-HE
DW02703-15559040-HE
DW02703-20159027-HE
DW02703-20159030-HE
DW02703-20159040-HE
DW02703-20249027-HE
DW02703-20249030-HE
DW02703-20249040-HE
DW02703-20369027-HE
DW02703-20369030-HE
DW02703-20369040-HE
DW02703-20559027-HE
DW02703-20559030-HE
DW02703-20559040-HE
- Luminous Flux (LM)
1352LM
1419LM
1487LM
1526LM
1606LM
1686LM
1520LM
1601LM
1681LM
1450LM
1527LM
1603LM
1874LM
1967LM
2061LM
2162LM
2276LM
2390LM
2109LM
2220LM
2331LM
2006LM
2112LM
2218LM
- Power (W)
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
20W
20W
20W
20W
20W
20W
20W
20W
20W
20W
20W
20W
- Beam Angle
15°
15°
15°
24°
24°
24°
36°
36°
36°
55°
55°
55°
15°
15°
15°
24°
24°
24°
36°
36°
36°
55°
55°
55°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
