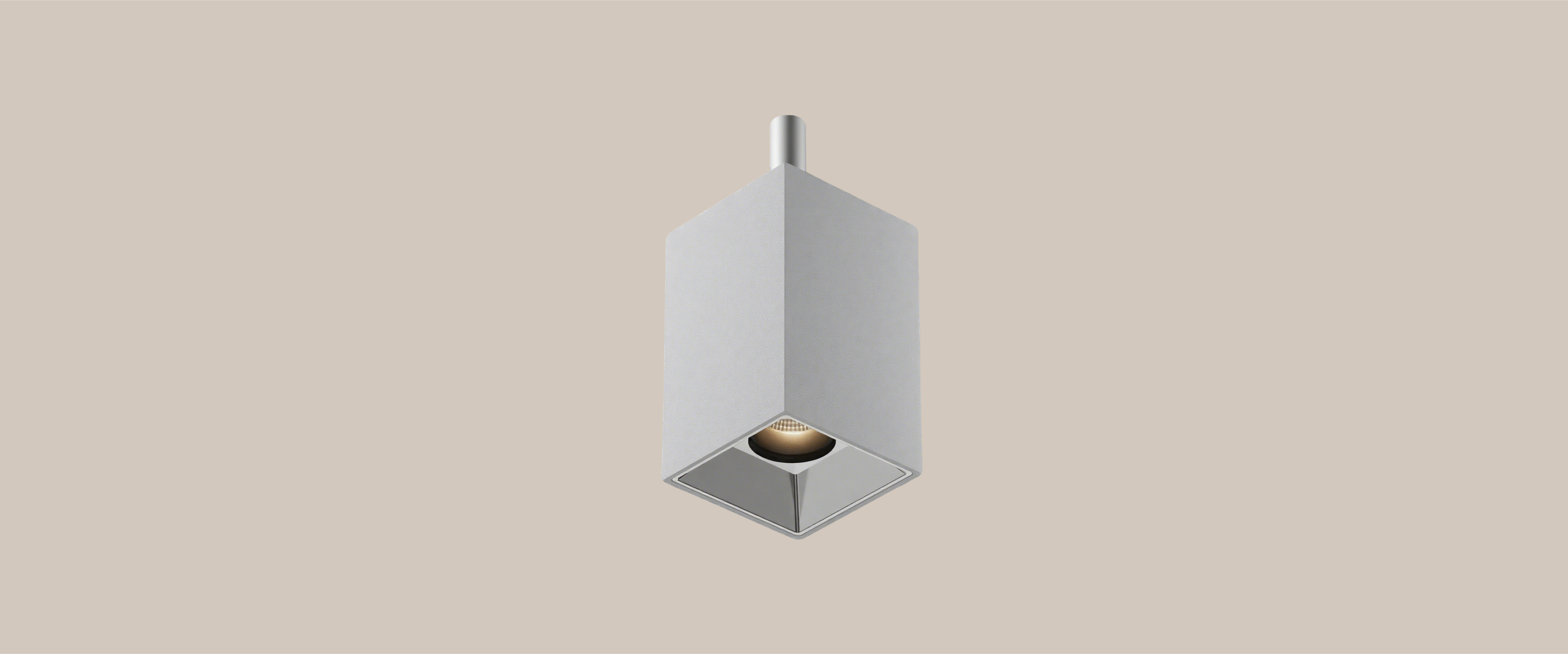

M-BOX 150
High Efficiency Adjustable Pendant Square Downlight
M-BOX 150
Lighting Effects
- Products Specification:
- Type:Adjustable Pendant Square Downlight
- Power:20W 25W
- Beam Angle:18° 28° 38° 52°
- Weight:2kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:Painting/Powder coating

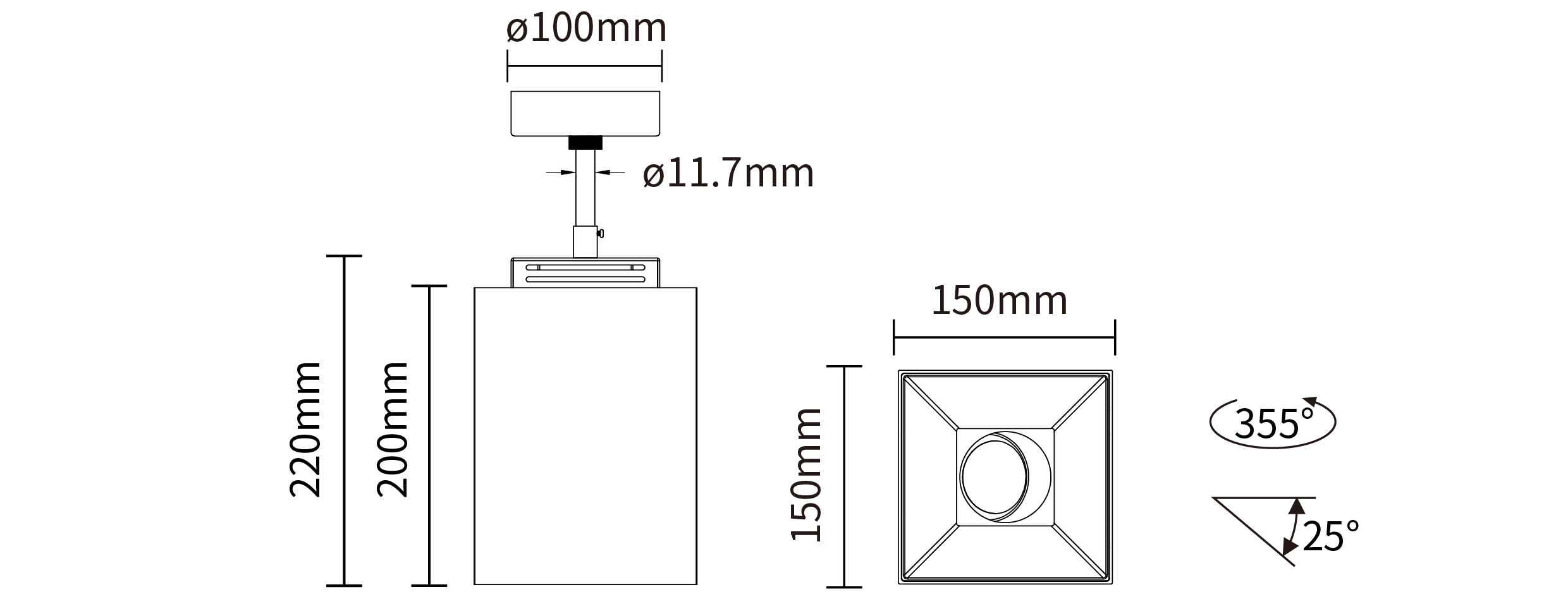

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 20W
- 25W
- Beam Angle
- 18°
- 28°
- 38°
- 52°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- White
- Black
- Madrid Grey
- Rose Gold
- Reflector
- Mirror
- Black
- White
- Madrid Grey
- Red Golden
- IP Rating
- 20-IP20
- Accessory
- Honeycomb louver
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DP02706-20189027-HE
DP02706-20189030-HE
DP02706-20189040-HE
DP02706-20289027-HE
DP02706-20289030-HE
DP02706-20289040-HE
DP02706-20389027-HE
DP02706-20389030-HE
DP02706-20389040-HE
DP02706-20529027-HE
DP02706-20529030-HE
DP02706-20529040-HE
DP02706-25189027-HE
DP02706-25189030-HE
DP02706-25189040-HE
DP02706-25289027-HE
DP02706-25289030-HE
DP02706-25289040-HE
DP02706-25389027-HE
DP02706-25389030-HE
DP02706-25389040-HE
DP02706-25529027-HE
DP02706-25529030-HE
DP02706-25529040-HE
- Luminous Flux (LM)
2242LM
2361LM
2479LM
2277LM
2397LM
2517LM
2340LM
2463LM
2586LM
2120LM
2231LM
2343LM
2614LM
2752LM
2890LM
2688LM
2830LM
2971LM
2779LM
2926LM
3072LM
2517LM
2649LM
2782LM
- Power (W)
20W
20W
20W
20W
20W
20W
20W
20W
20W
20W
20W
20W
25W
25W
25W
25W
25W
25W
25W
25W
25W
25W
25W
25W
- Beam Angle
18°
18°
18°
28°
28°
28°
38°
38°
38°
52°
52°
52°
18°
18°
18°
28°
28°
28°
38°
38°
38°
52°
52°
52°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
