Home Products Indoor M-BOX 145 - Semi-recessed Square Downlight

M-BOX 145

Semi-recessed Square Downlight

M-BOX 145

M-BOX 145

Lighting Effects

Products Specification:: Type:Semi-recessed Square Downlight; Cut-Out:145x145 mm; Power:30W 36W; Beam Angle:18° 28° 38° 52°; Weight:2.1kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:Painting/Powder coating

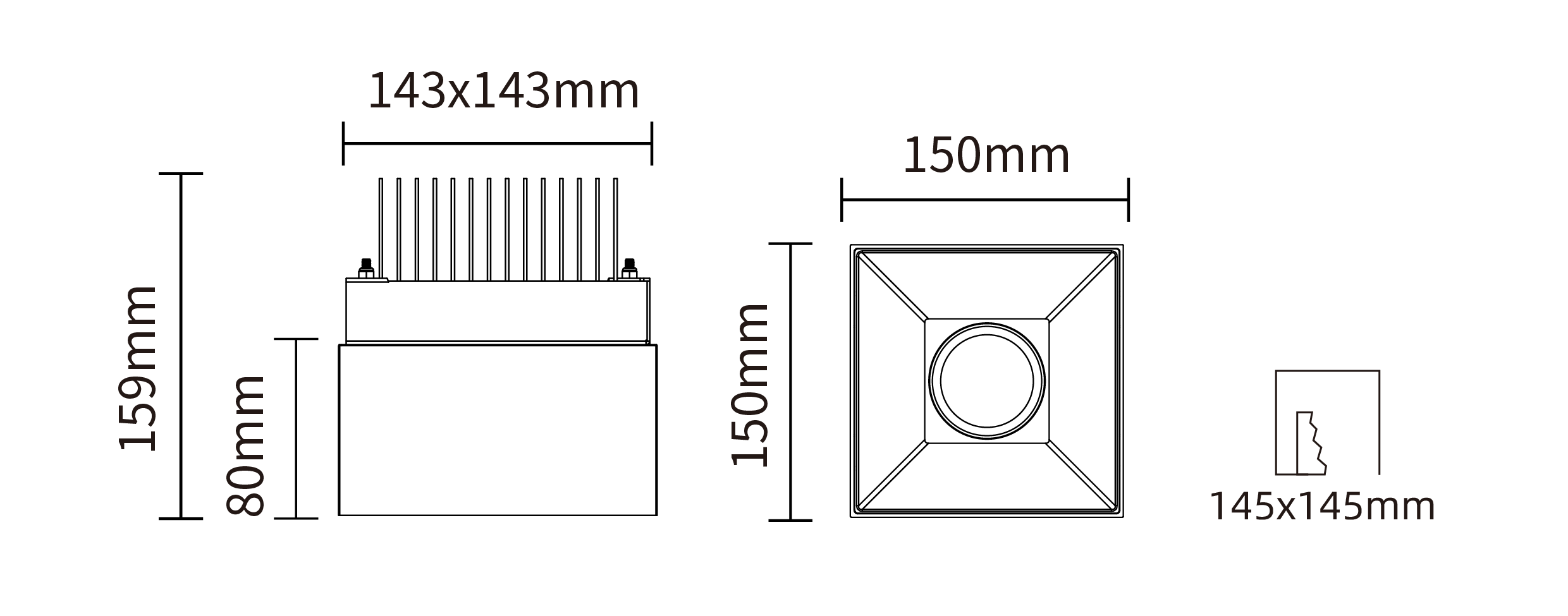

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
30W
36W

Beam Angle

Beam Angle
18°
28°
38°
52°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Black
Madrid Grey
Rose Gold

Reflector

Reflector
Mirror
Black
White
Madrid Grey
Red Golden

IP Rating

IP Rating
20-IP20

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR02705-30189027; DR02705-30189030; DR02705-30189040; DR02705-30289027; DR02705-30289030; DR02705-30289040; DR02705-30389027; DR02705-30389030; DR02705-30389040; DR02705-30529027; DR02705-30529030; DR02705-30529040; DR02705-36189027; DR02705-36189030; DR02705-36189040; DR02705-36289027; DR02705-36289030; DR02705-36289040; DR02705-36389027; DR02705-36389030; DR02705-36389040; DR02705-36529027; DR02705-36529030; DR02705-36529040

Luminous Flux (LM): 2135LM; 2247LM; 2384LM; 2427LM; 2555LM; 2711LM; 2452LM; 2581LM; 2847LM; 2209LM; 2326LM; 2501LM; 2596LM; 2733LM; 2790LM; 2918LM; 3072LM; 3368LM; 2962LM; 3117LM; 3448LM; 2718LM; 2861LM; 3088LM

Power (W): 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W; 36W

Beam Angle: 18°; 18°; 18°; 28°; 28°; 28°; 38°; 38°; 38°; 52°; 52°; 52°; 18°; 18°; 18°; 28°; 28°; 28°; 38°; 38°; 38°; 52°; 52°; 52°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

DWG

manual

Favorite

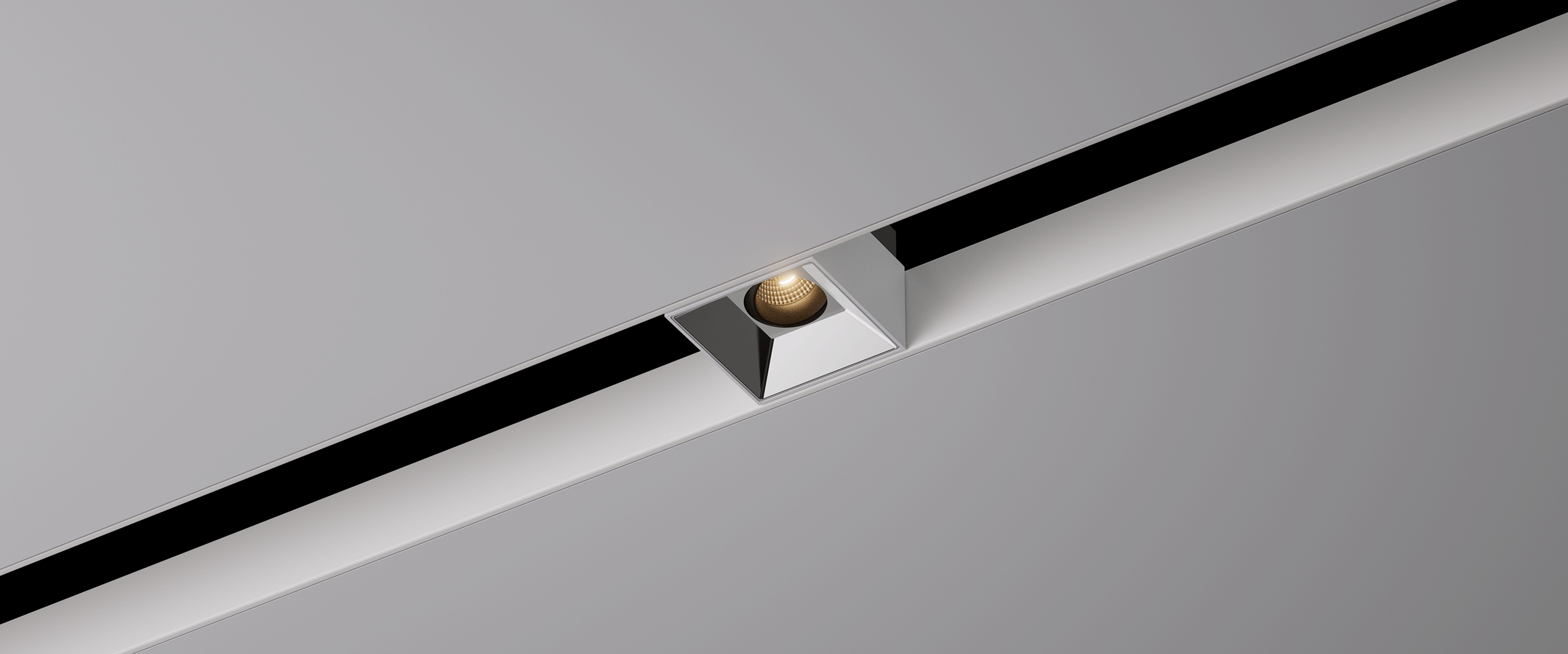

Application
