Home Products Indoor M-BOX 95 - Adjustable Semi-recessed Square Downlight

M-BOX 95

Adjustable Semi-recessed Square Downlight

M-BOX 95

M-BOX 95

Lighting Effects

Products Specification:: Type:Adjustable Semi-recessed Square Downlight; Cut-Out:95x95 mm; Power:8W 12W; Beam Angle:15° 24° 36° 55°; Weight:0.75kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:Painting/Powder coating

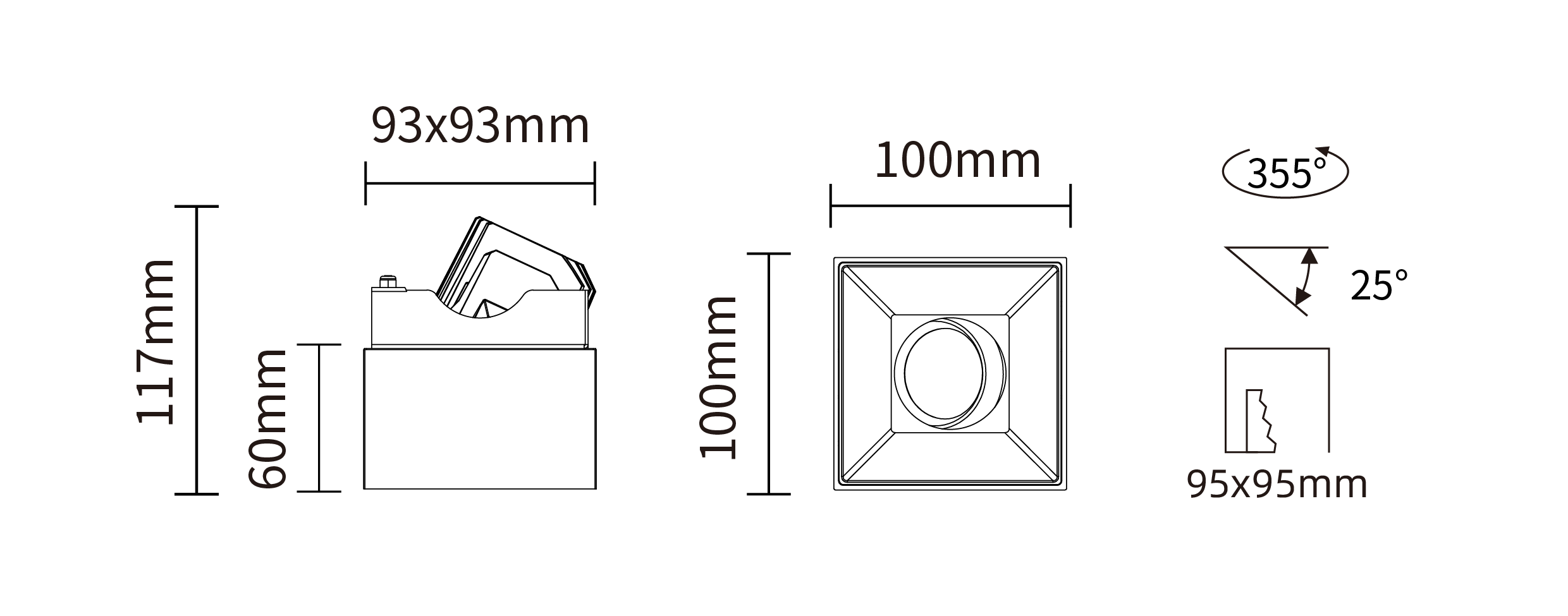

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
8W
12W

Beam Angle

Beam Angle
15°
24°
36°
55°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Black
Madrid Grey
Rose Gold

Reflector

Reflector
Mirror
Black
White
Madrid Grey
Red Golden

IP Rating

IP Rating
20-IP20

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR02704-08159027; DR02704-08159030; DR02704-08159040; DR02704-08249027; DR02704-08249030; DR02704-08249040; DR02704-08369027; DR02704-08369030; DR02704-08369040; DR02704-08559027; DR02704-08559030; DR02704-08559040; DR02704-12159027; DR02704-12159030; DR02704-12159040; DR02704-12249027; DR02704-12249030; DR02704-12249040; DR02704-12369027; DR02704-12369030; DR02704-12369040; DR02704-12559027; DR02704-12559030; DR02704-12559040

Luminous Flux (LM): 617LM; 649LM; 734LM; 725LM; 764LM; 815LM; 738LM; 777LM; 811LM; 672LM; 708LM; 769LM; 901LM; 949LM; 1077LM; 1087LM; 1145LM; 1222LM; 1107LM; 1165LM; 1229LM; 1005LM; 1058LM; 1155LM

Power (W): 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W

Beam Angle: 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 55°; 55°; 55°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 55°; 55°; 55°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

DWG

manual

Favorite

Application
