Home Products Indoor M-BOX 95 - Semi-recessed Square Downlight

M-BOX 95

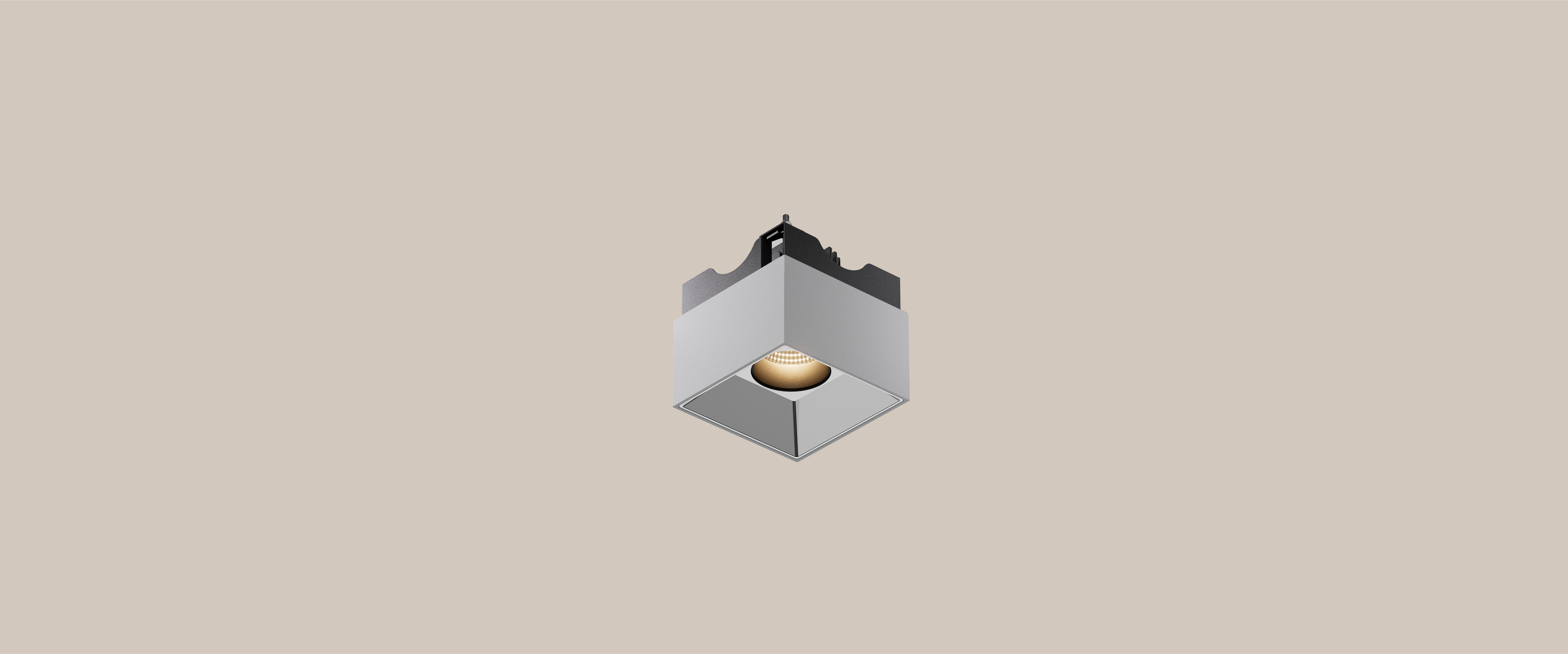

Semi-recessed Square Downlight

M-BOX 95

M-BOX 95

Lighting Effects

Products Specification:: Type:Semi-recessed Square Downlight; Cut-Out:95x95 mm; Power:15W 20W; Beam Angle:15° 24° 36° 55°; Weight:0.86kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:Painting/Powder coating

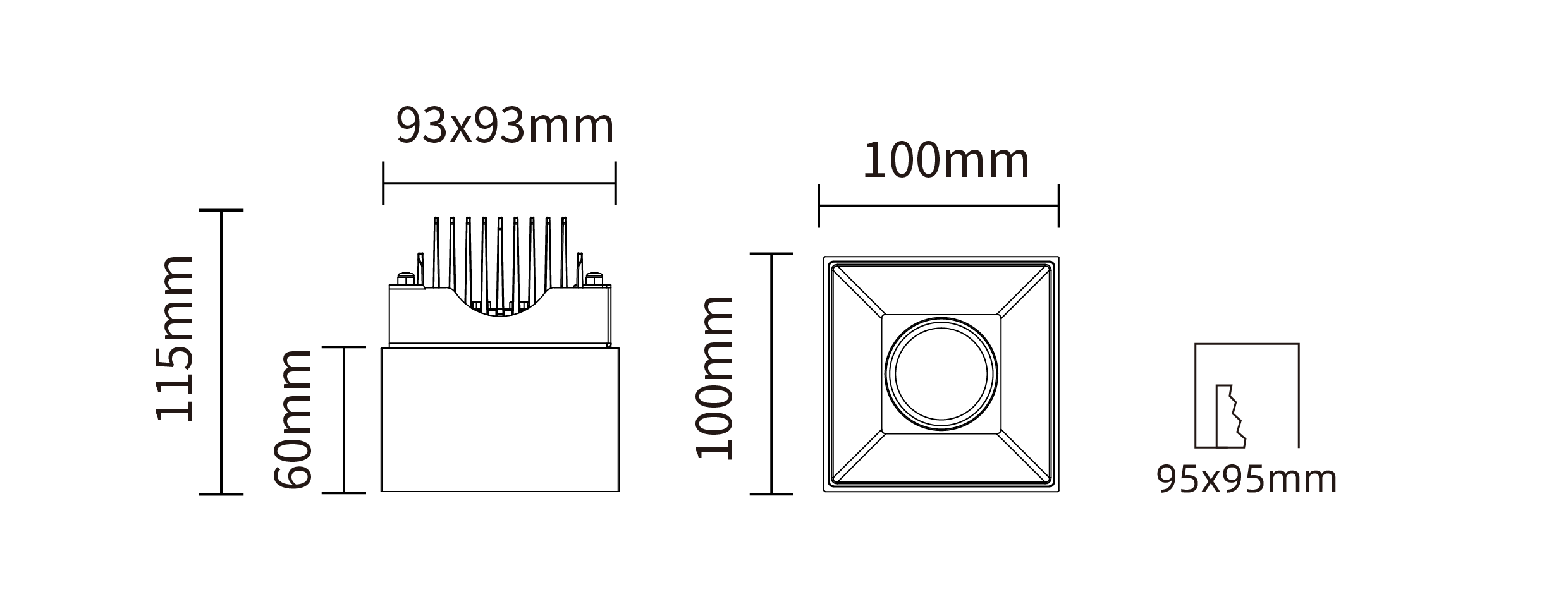

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
15W
20W

Beam Angle

Beam Angle
15°
24°
36°
55°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Black
Madrid Grey
Rose Gold

Reflector

Reflector
Mirror
Black
White
Madrid Grey
Red Golden

IP Rating

IP Rating
20-IP20

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR02703-15159027; DR02703-15159030; DR02703-15159040; DR02703-15249027; DR02703-15249030; DR02703-15249040; DR02703-15369027; DR02703-15369030; DR02703-15369040; DR02703-15559027; DR02703-15559030; DR02703-15559040; DR02703-20159027; DR02703-20159030; DR02703-20159040; DR02703-20249027; DR02703-20249030; DR02703-20249040; DR02703-20369027; DR02703-20369030; DR02703-20369040; DR02703-20559027; DR02703-20559030; DR02703-20559040

Luminous Flux (LM): 1056LM; 1112LM; 1270LM; 1311LM; 1380LM; 1466LM; 1324LM; 1394LM; 1484LM; 1208LM; 1271LM; 1407LM; 1393LM; 1467LM; 1629LM; 1771LM; 1865LM; 1950LM; 1737LM; 1829LM; 1981LM; 1633LM; 1719LM; 1837LM

Power (W): 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W

Beam Angle: 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 55°; 55°; 55°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 55°; 55°; 55°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

DWG

manual

Favorite

Application
