POYO 115

Surface-mounted Anti-glare Fixed Downlight

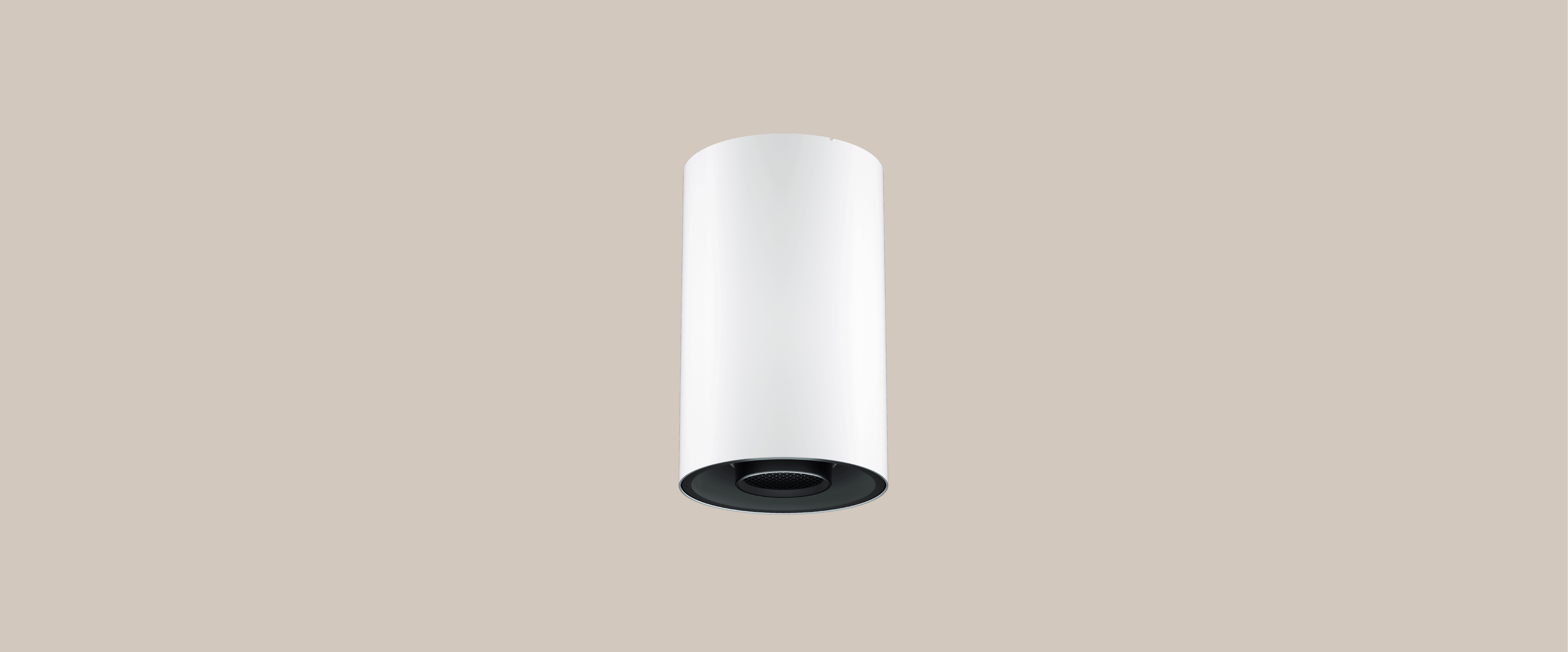

POYO 115

Looking forward to being shining like the jade is waiting for carving

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of 350 degrees

and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

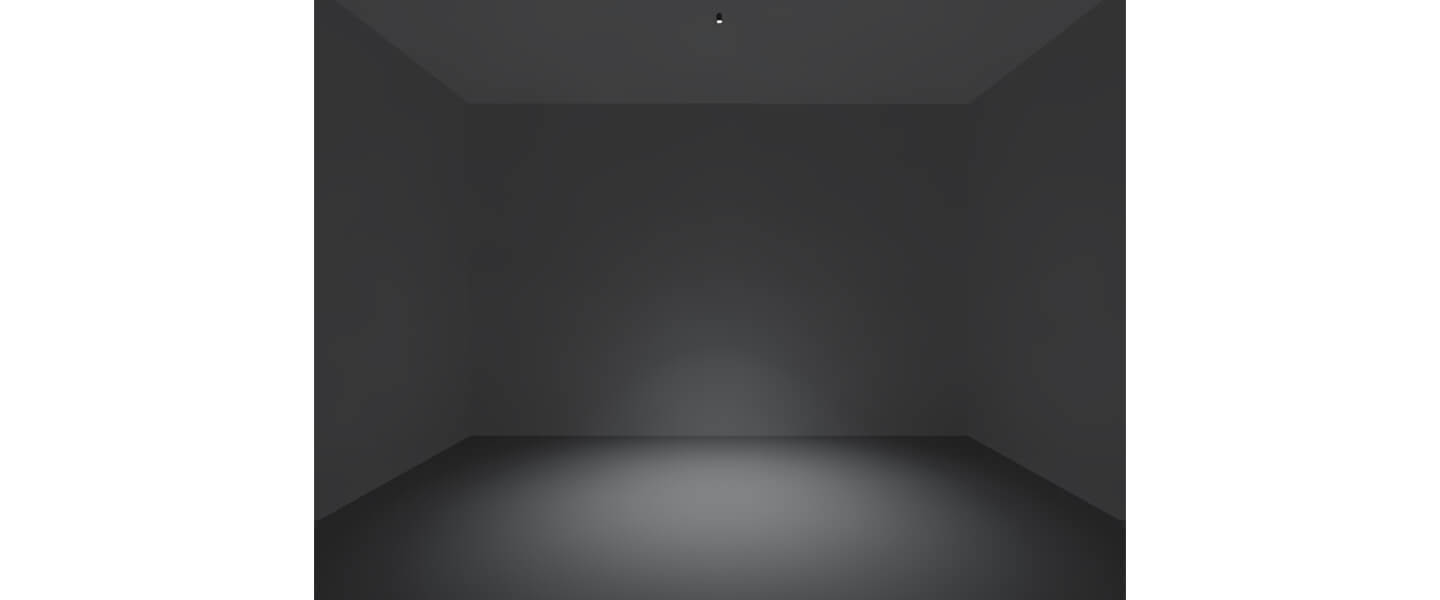

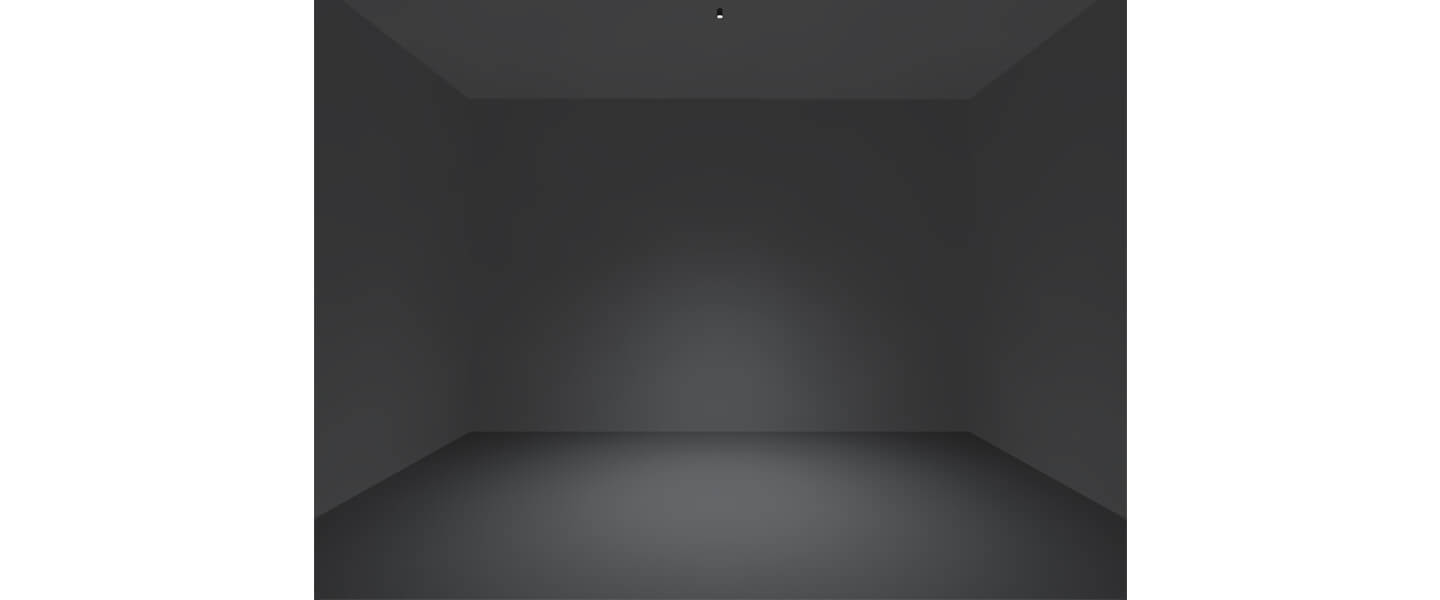

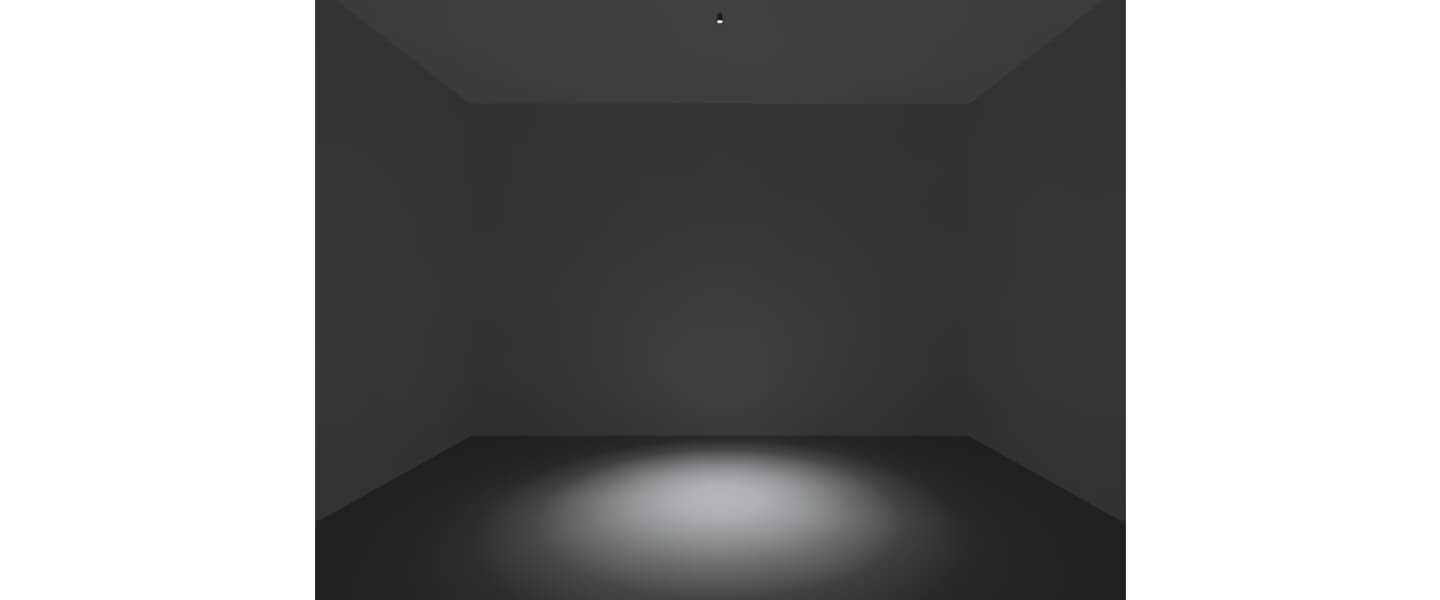

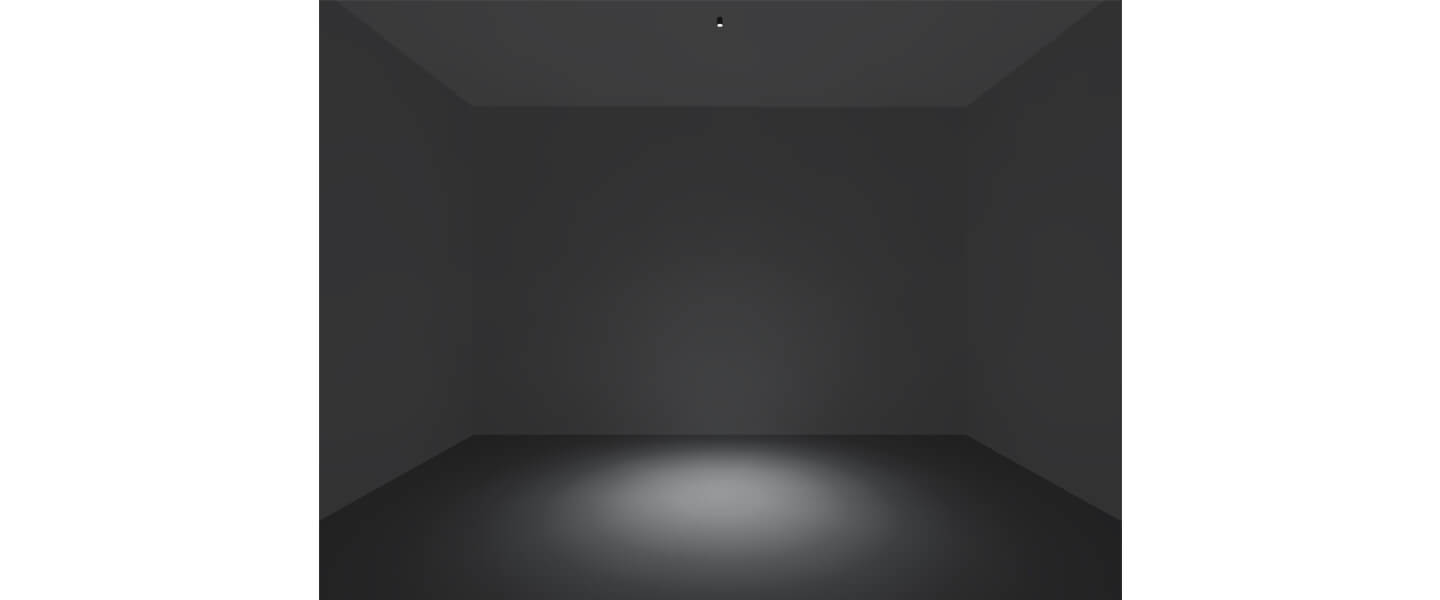

Lighting Effects

Products Specification:: Type:Surface-mounted Anti-glare Fixed Downlight; Beam Angle:18D 25D 40D 50D; Power:15W 20W 25W; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating; Weight:1.29kg

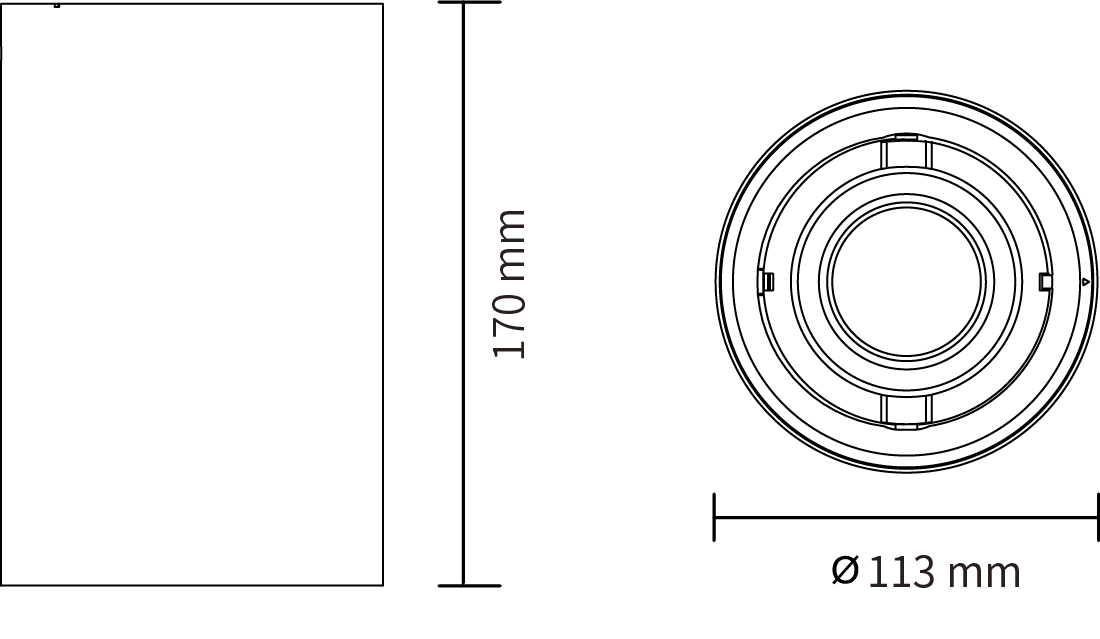

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
15W
20W
25W

Beam Angle

Beam Angle
18°
25°
35°
50°

CRI

CRI
Ra>80

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
01-White
03-Grey

Reflector

Reflector
2-Black

IP Rating

IP Rating
20-IP20
65-IP65

Accessory

Accessory
1-Honeycomb louver
4-Linear lens
3-Cross louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: 85141C1-15188027; 85141C1-15188030; 85141C1-15188040; 85141C1-15258027; 85141C1-15258030; 85141C1-15258040; 85141C1-15358027; 85141C1-15358030; 85141C1-15358040; 85141C1-15508027; 85141C1-15508030; 85141C1-15508040; 85141C1-20188027; 85141C1-20188030; 85141C1-20188040; 85141C1-20258027; 85141C1-20258030; 85141C1-20258040; 85141C1-20358027; 85141C1-20358030; 85141C1-20358040; 85141C1-20508027; 85141C1-20508030; 85141C1-20508040; 85141C1-25188027; 85141C1-25188030; 85141C1-25188040; 85141C1-25258027; 85141C1-25258030; 85141C1-25258040; 85141C1-25358027; 85141C1-25358030; 85141C1-25358040; 85141C1-25508027; 85141C1-25508030; 85141C1-25508040

Luminous Flux (LM): 919LM; 967LM; 1025LM; 1140LM; 1200LM; 1286LM; 1181LM; 1243LM; 1366LM; 963LM; 1014LM; 1107LM; 1303LM; 1372LM; 1415LM; 1622LM; 1708LM; 1764LM; 1630LM; 1716LM; 1834LM; 1390LM; 1464LM; 1483LM; 1486LM; 1565LM; 1578LM; 1878LM; 1977LM; 2011LM; 1929LM; 2031LM; 2035LM; 1648LM; 1735LM; 1712LM

Power (W): 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W

Beam Angle: 18°; 18°; 18°; 25°; 25°; 25°; 35°; 35°; 35°; 50°; 50°; 50°; 18°; 18°; 18°; 25°; 25°; 25°; 35°; 35°; 35°; 50°; 50°; 50°; 18°; 18°; 18°; 25°; 25°; 25°; 35°; 35°; 35°; 50°; 50°; 50°

CRI: Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
