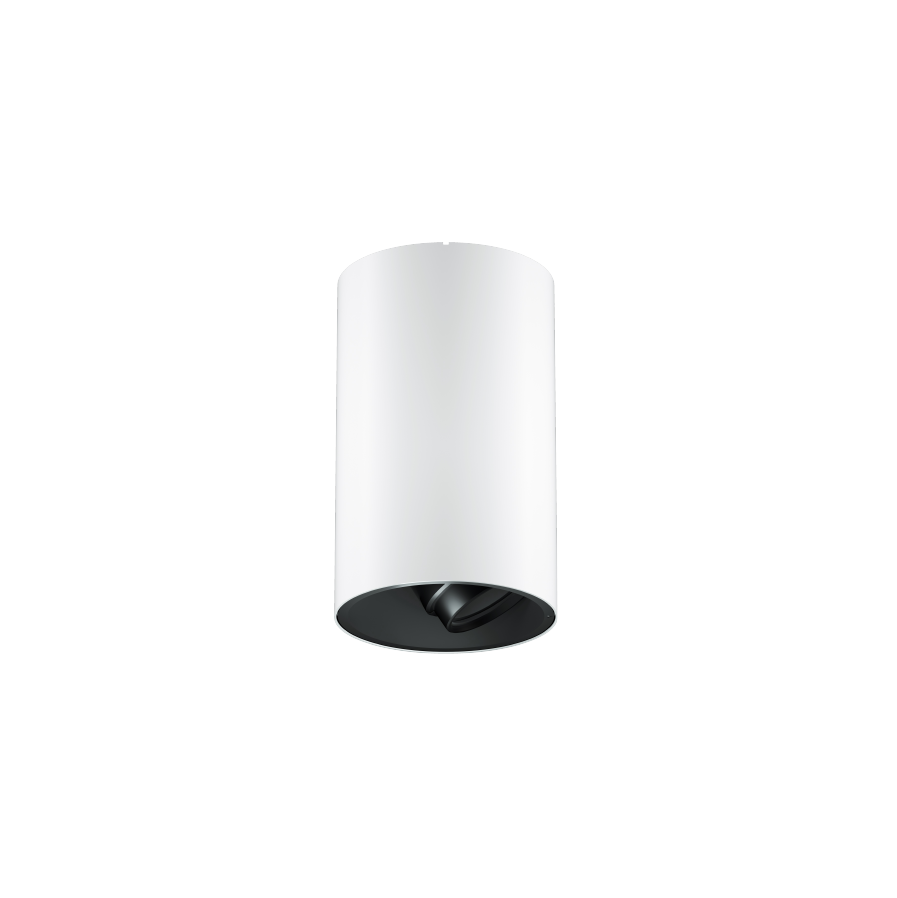

POYO 80

Surface-mounted Anti-glare Adjustable Downlight

POYO 80

Looking forward to being shining, like the jade is waiting for carving.

POYO 80

Looking forward to being shining, like the jade is waiting for carving.

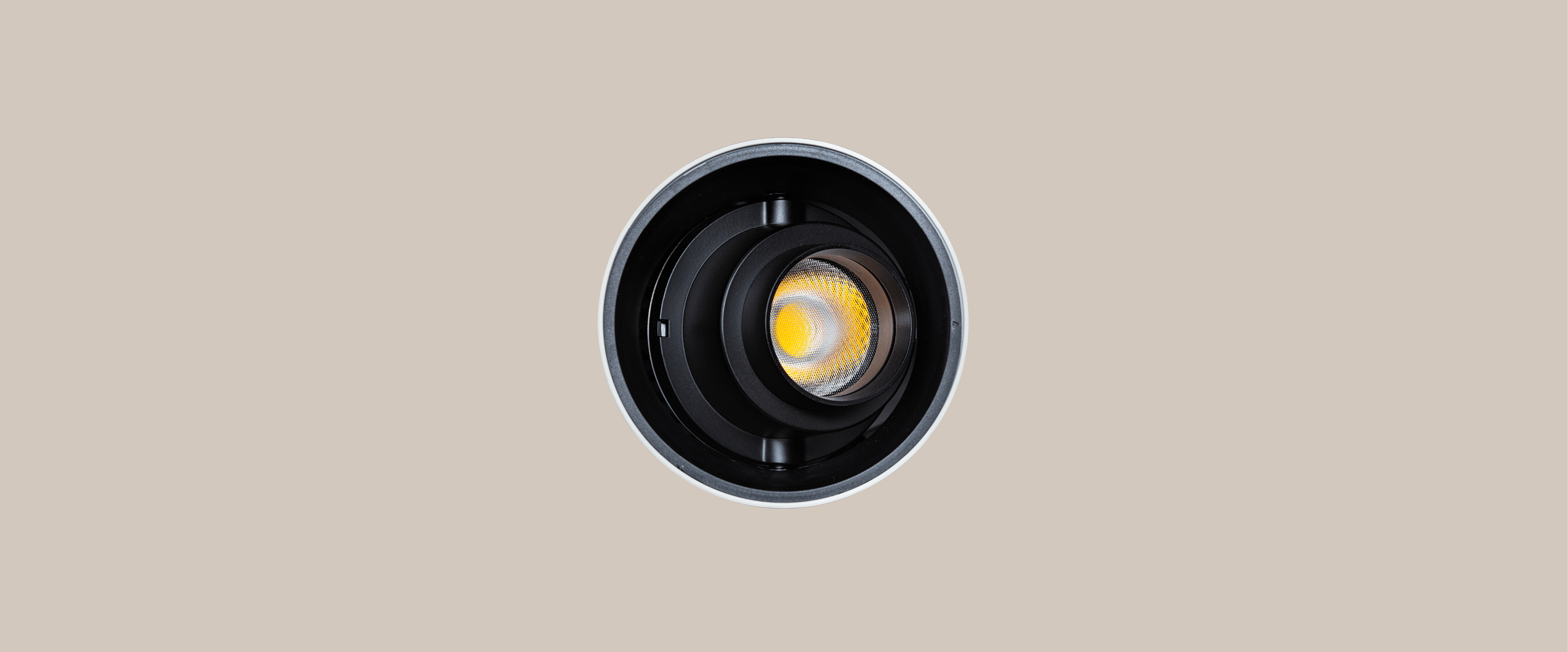

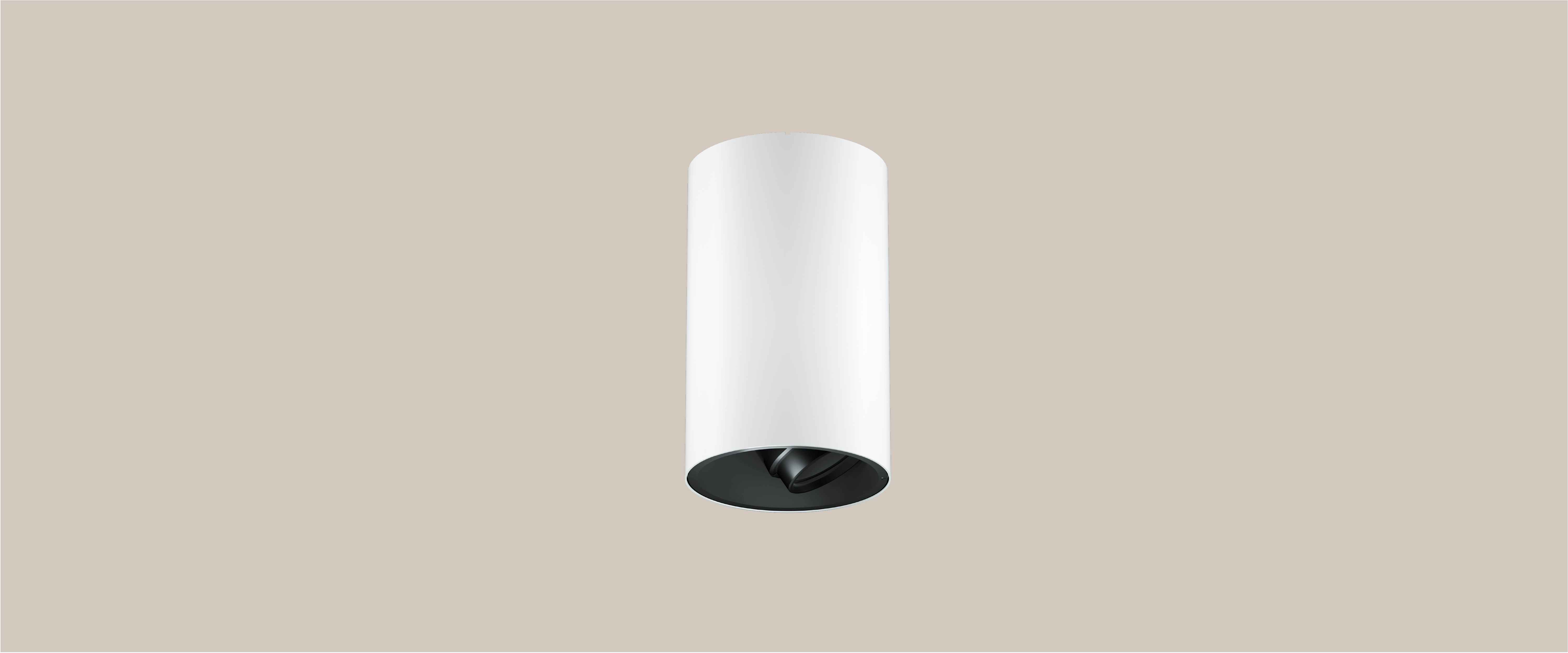

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of 350 degrees

and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

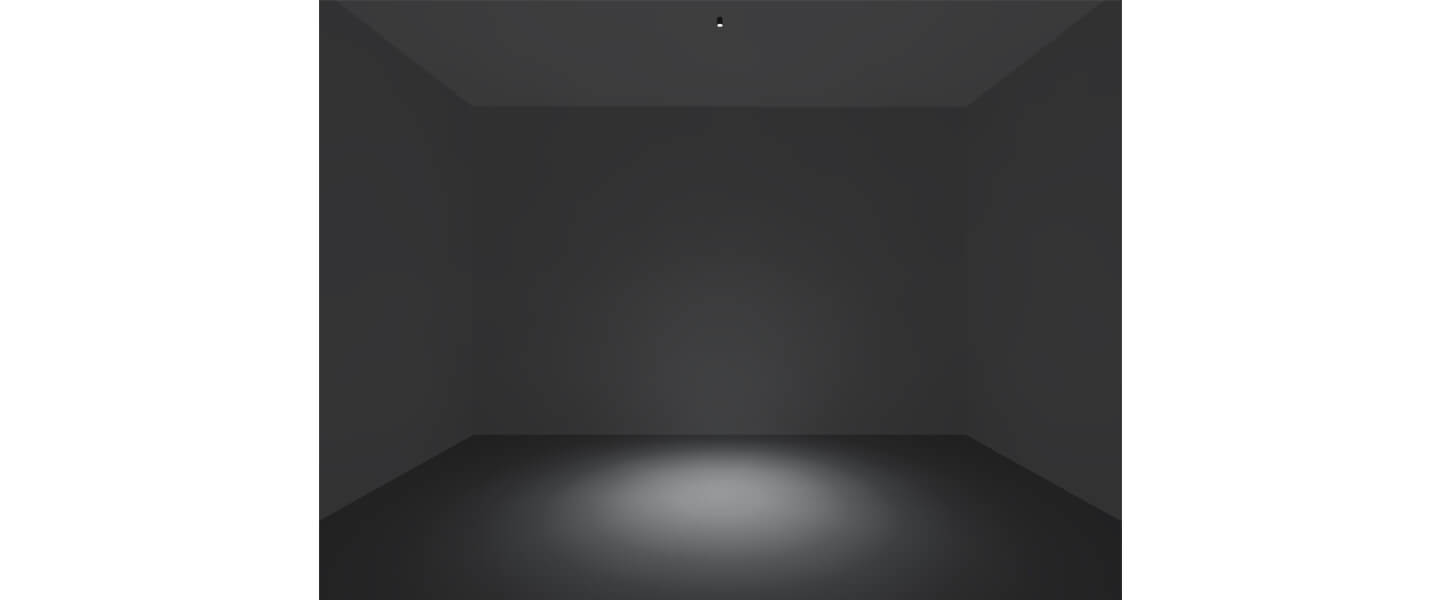

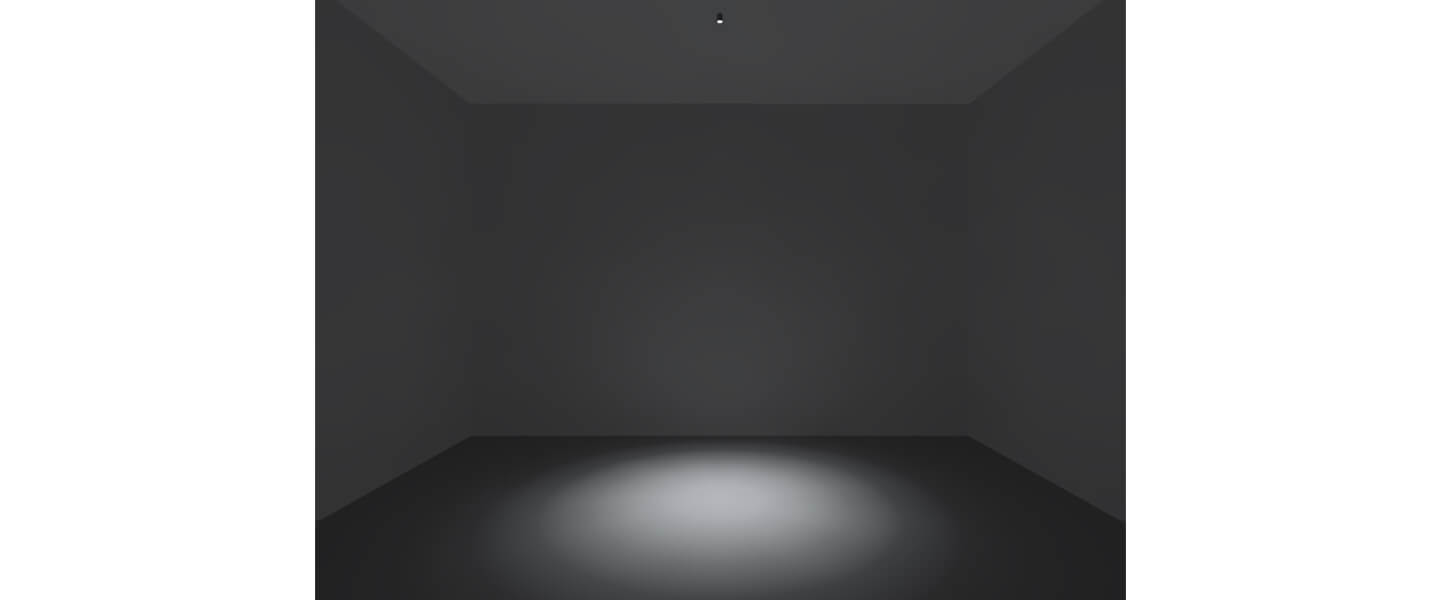

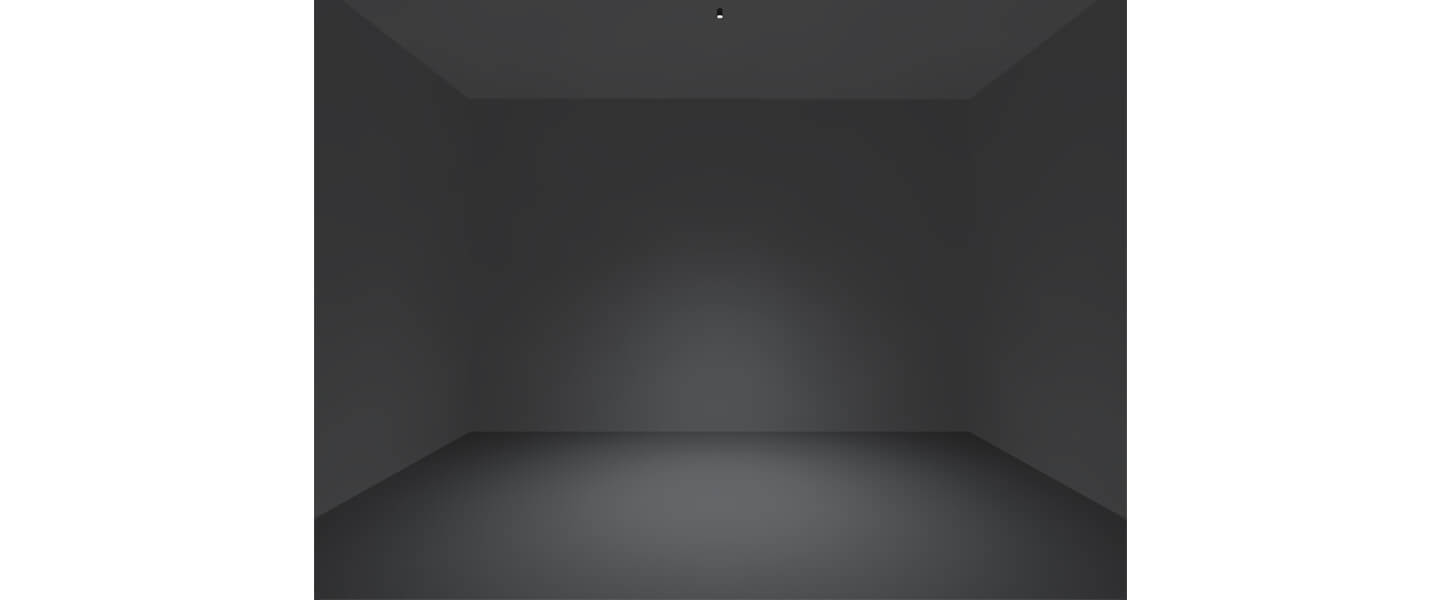

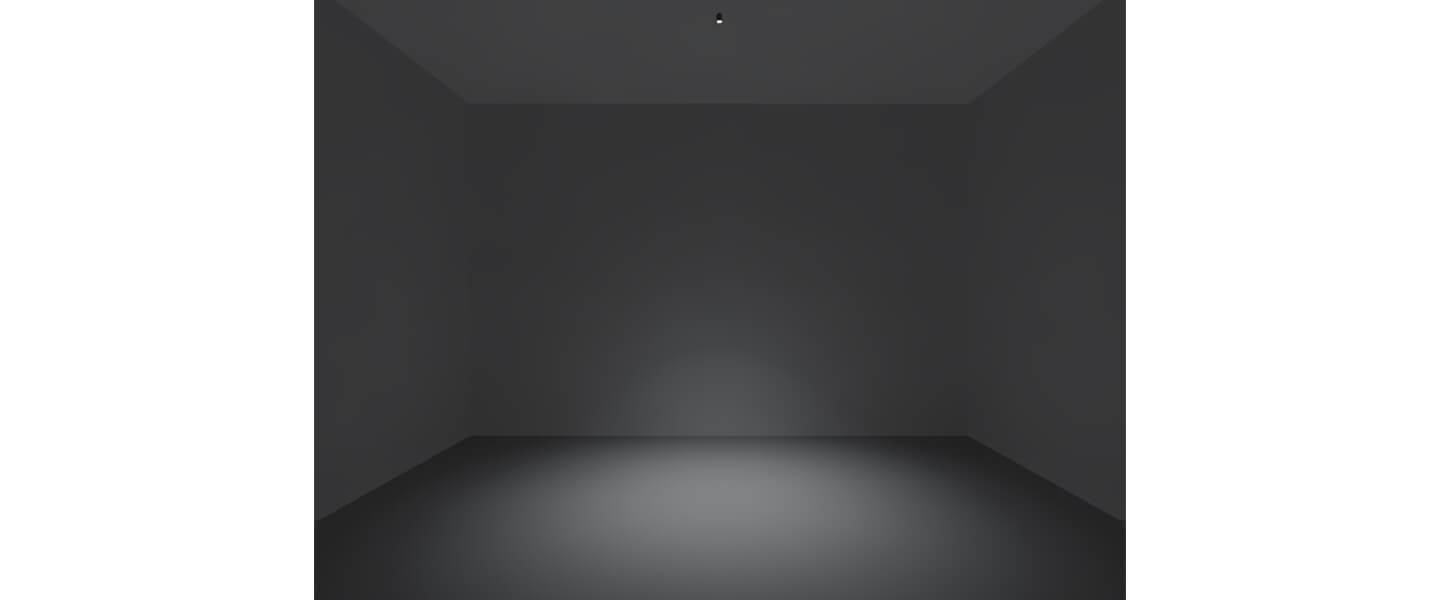

Lighting Effects

Products Specification:: Type:Surface-mounted Anti-glare Adjustable Downlight; Beam Angle:15D 27D 37D 58D; Power:5W 8W; CCT:2700K 3000K 4000K; Weight:0.85kg; Heat-Sink:Aluminum; Surface-Treatment:painting+plating

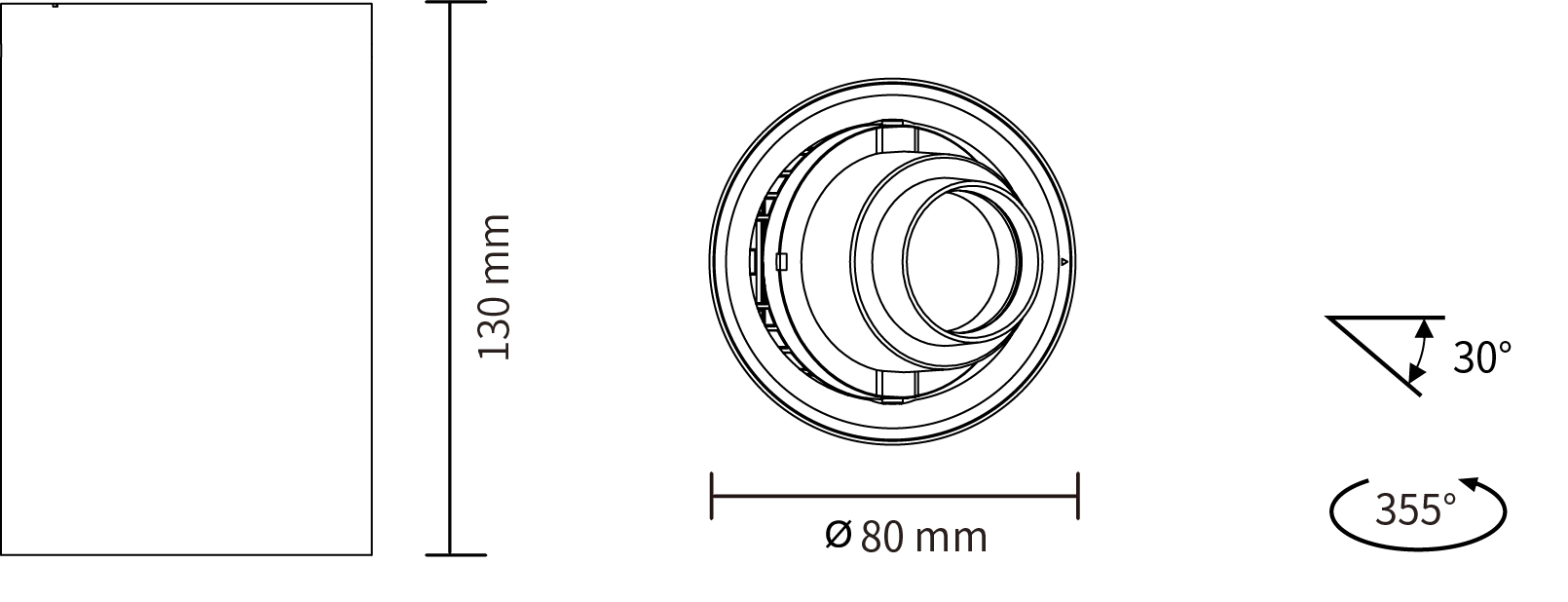

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
5W
8W

Beam Angle

Beam Angle
15°
27°
37°
58°

CRI

CRI
Ra>80

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
01-White
02-Black

Reflector

Reflector
2-Black

IP Rating

IP Rating
20-IP20
65-IP65

Accessory

Accessory
1-Honeycomb louver
3-Cross louver
6-Soft lens

Model No
Source Lumen (LM)
Power (W)
Beam Angle
CRI
Color
Specification
IES
Favorite

Model No: 85142B1-05158027; 85142B1-05158030; 85142B1-05158040; 85142B1-05278027; 85142B1-05278030; 85142B1-05278040; 85142B1-05378027; 85142B1-05378030; 85142B1-05378040; 85142B1-05588027; 85142B1-05588030; 85142B1-05588040; 85142B1-08158027; 85142B1-08158030; 85142B1-08158040; 85142B1-08278027; 85142B1-08278030; 85142B1-08278040; 85142B1-08378027; 85142B1-08378030; 85142B1-08378040; 85142B1-08588027; 85142B1-08588030; 85142B1-08588040

Luminous Flux (LM): 460LM; 484LM; 508LM; 552LM; 580LM; 610LM; 552LM; 580LM; 610LM; 552LM; 580LM; 610LM; 765LM; 806LM; 846LM; 923LM; 972LM; 1020LM; 923LM; 972LM; 1020LM; 923LM; 972LM; 1020LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W

Beam Angle: 15°; 15°; 15°; 27°; 27°; 27°; 37°; 37°; 37°; 58°; 58°; 58°; 15°; 15°; 15°; 27°; 27°; 27°; 37°; 37°; 37°; 58°; 58°; 58°

CRI: Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
