LINA

Surface-mounted Linear Light

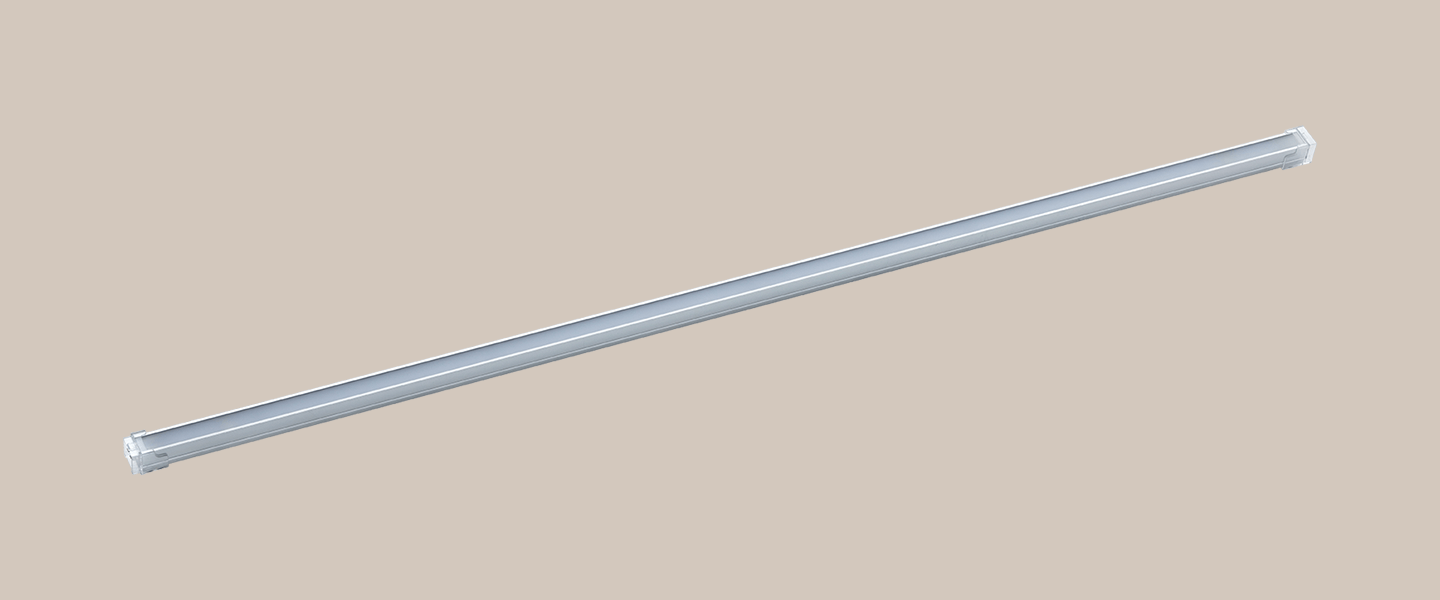

LINA

LED Surface-mounted Linear Light

LINA

LED Surface-mounted Linear Light

LINA

LED Surface-mounted Linear Light

LINA

LED Surface-mounted Linear Light

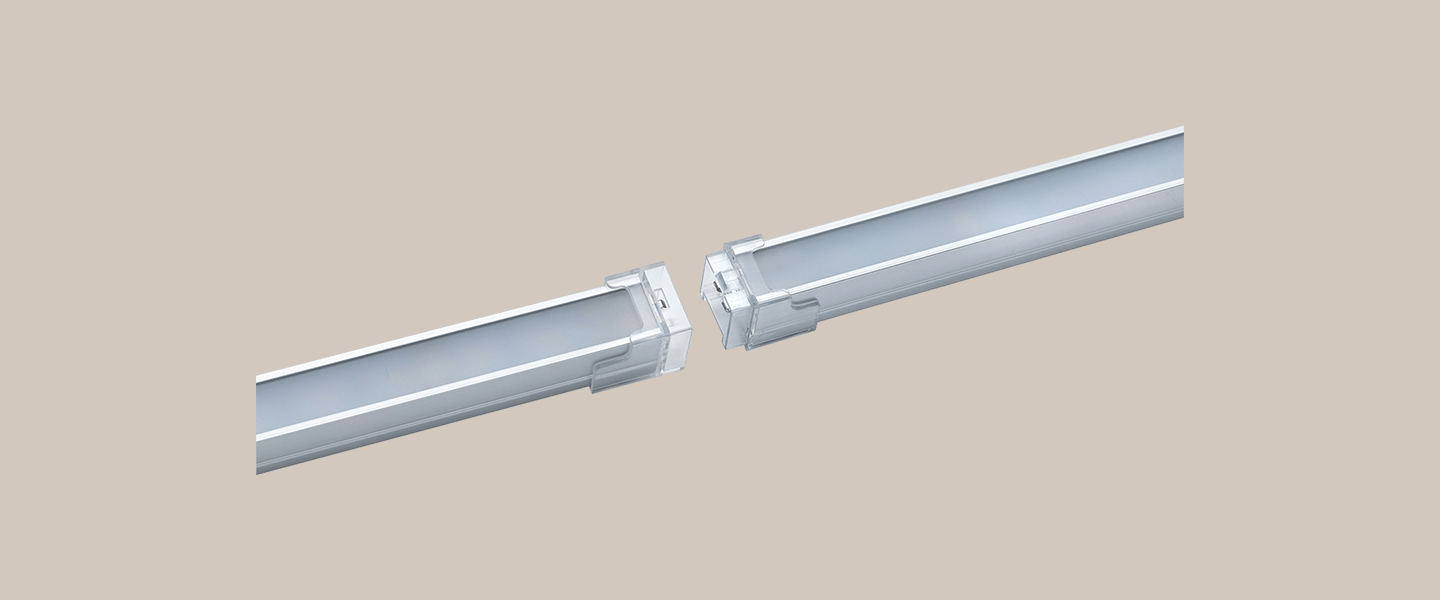

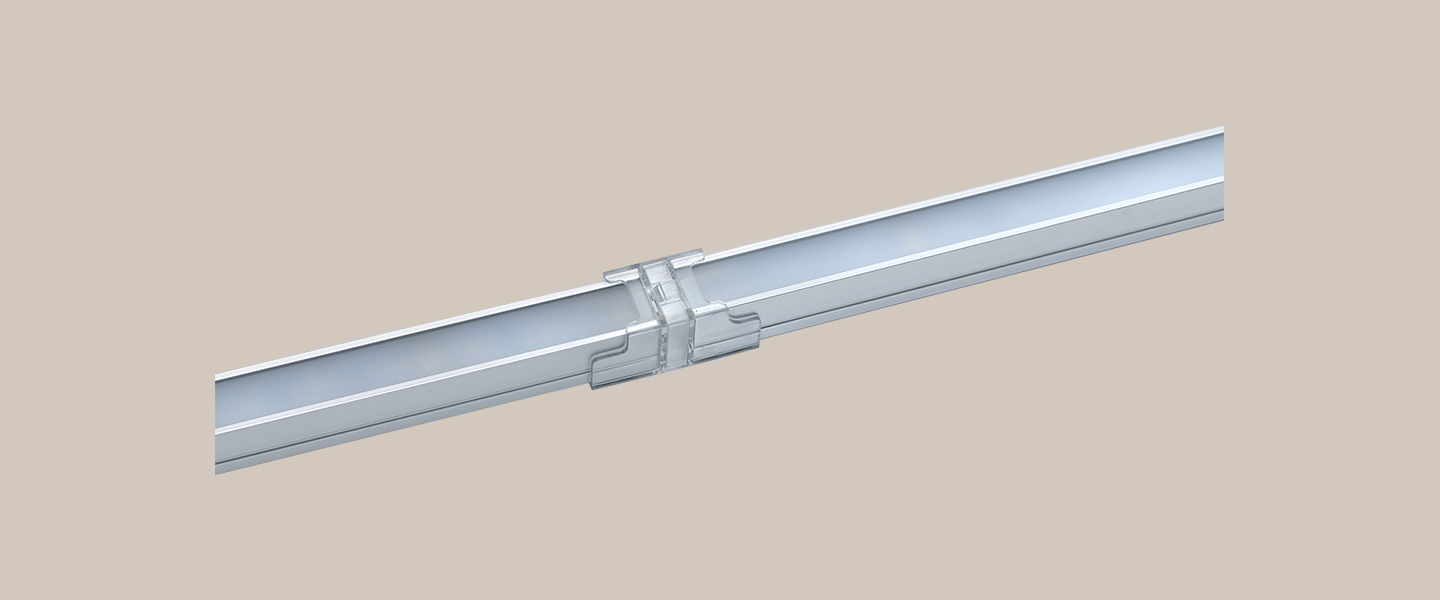

The two ends of the light body adopt the structure design of male and female splicing, so that the workers can construct without remembering the polarity pros and cons during installation. Due to the output part of the product at both ends connecting device made by high light transmittance and heat-resistant transparent materials for ensuring no dark space after joining together the lights, and the design of putting conductive performance and elasticity copper directly on the PCB board, makes the product normally works even in the harsh conditions of ceilin's uneven dark slot;
What is more special is that the connection design of the power is at the bottom of the light, instead of the two ends of the flexible strip light, the purpose of which is to solve the problem of the dark area at the continuous joint of the product. This product is equipped with a variety of installation accessories, such as direct shot, adjustable and different length corner splicing double end plug wires, so that the product can meet the requirements of different light environment design.

Lighting Effects

Products Specification:
Type:LED Surface-mounted Linear Light
Beam Angle:100D
Power:1.6W 2.5W 5W
CCT:2700K 3000K 4000K
Line Drawing:
General Features:

Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 15 W
  • 7.5 W
  • 4.2 W
  • 5 W
  • 2.5 W
  • 1.6 W
Beam Angle
  • Beam Angle
  • 100°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 4000 K
  • 3000 K
  • 2700 K
  • Model No

  • Luminous Flux (LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • Favorite

Model No

3424114-15A19040-XXXX-02

3424114-15A19030-XXXX-02

3424114-15A19027-XXXX-02

3424114-08A19040-XXXX-01

3424114-08A19030-XXXX-01

3424114-08A19027-XXXX-01

3424114-04A19040-XXXX-12

3424114-04A19030-XXXX-12

3424114-04A19027-XXXX-12

4424114-05A19040-XXXX-02

4424114-05A19030-XXXX-02

4424114-05A19027-XXXX-02

4424114-03A19040-XXXX-01

4424114-03A19030-XXXX-01

4424114-03A19027-XXXX-01

4424114-02A19040-XXXX-12

4424114-02A19030-XXXX-12

4424114-02A19027-XXXX-12

Luminous Flux (LM)

1214 LM

1181 LM

1175 LM

615 LM

612 LM

589 LM

367 LM

360 LM

338 LM

505 LM

510 LM

477LM

255 LM

285 LM

235 LM

171 LM

170 LM

163 LM

Power (W)

15 W

15 W

15 W

7.5 W

7.5 W

7.5 W

4.2 W

4.2 W

4.2 W

5 W

5 W

5 W

2.5 W

2.5 W

2.5 W

1.6 W

1.6 W

1.6 W

Beam Angle

100°

100°

100°

100°

100°

100°

100°

100°

100°

100°

100°

100°

100°

100°

100°

100°

100°

100°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

4000 K

3000 K

2700 K

4000 K

3000 K

2700 K

4000 K

3000 K

2700 K

4000 K

3000 K

2700 K

4000 K

3000 K

2700 K

4000 K

3000 K

2700 K

Specification
IES
Favorite

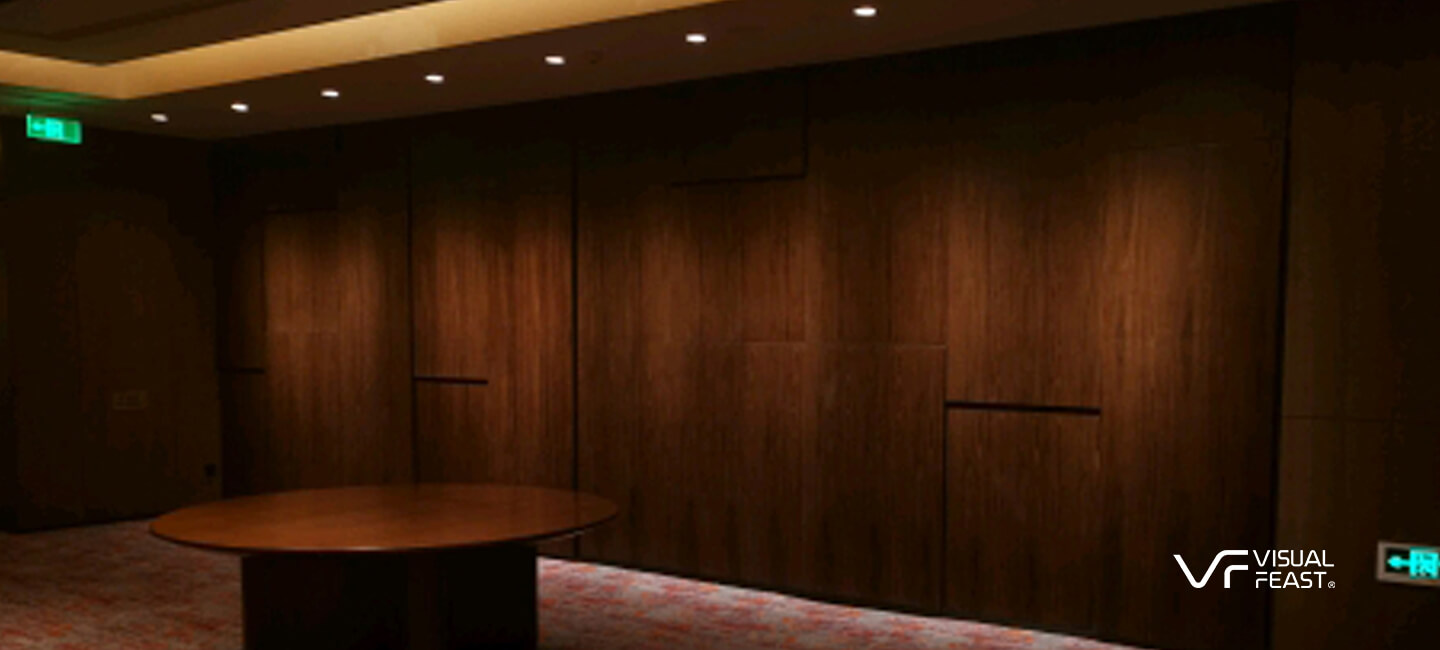

Application
