IF

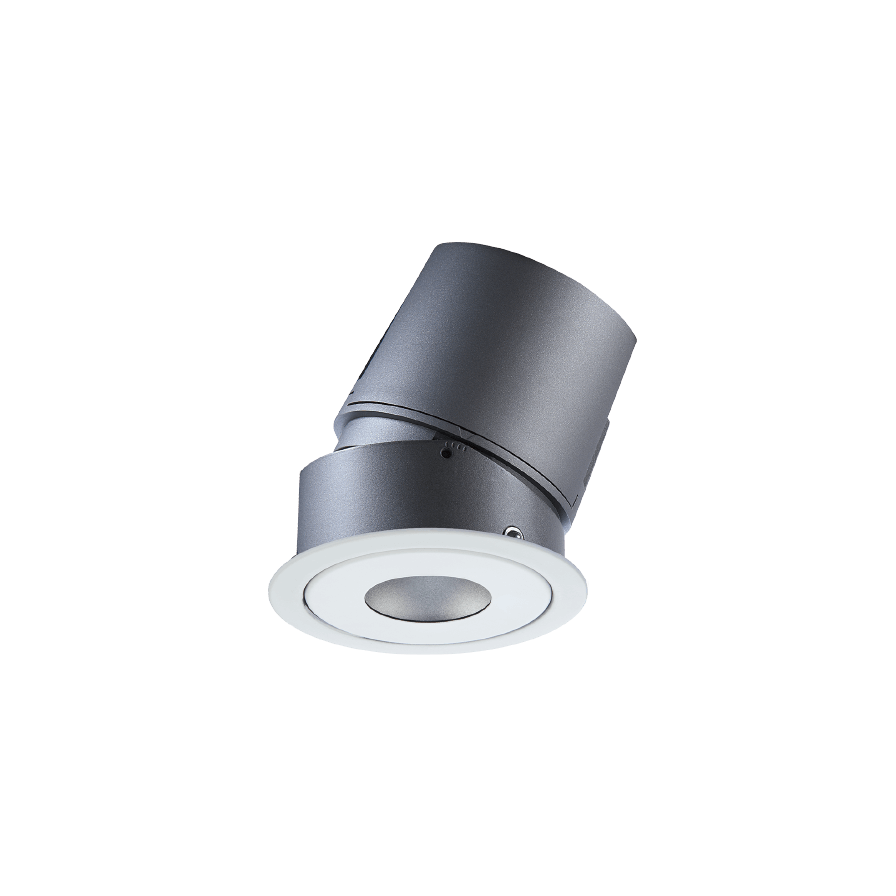

Round Adjustable Recessed Downlight
IF

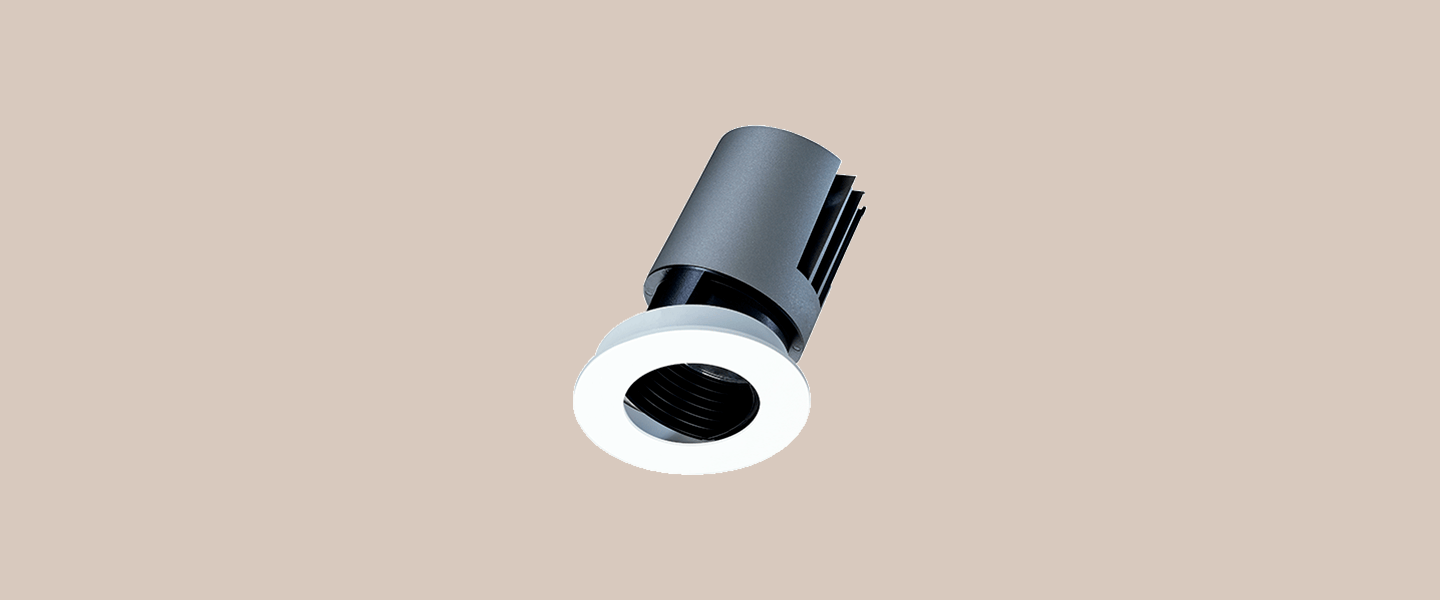

LED COB Round Adjustable Recessed Downlight
IF series is the classic product series of VF, the lamp is small and exquisite, the lamp height is only 90mm, and it can be widely adapted to the installation space with limited height of the lamp. Even the lamp height is only 90mm, but the Anti-glare is well controlled, 8D, 15D, 25D, 32D, 36D, 50D light distribution with excellent light quality.
Lamps style have round open type, round pin hole, round oval hole, equipped with mirror reflector or champagne gold reflector, which can achieve different interior design and lighting design styles.

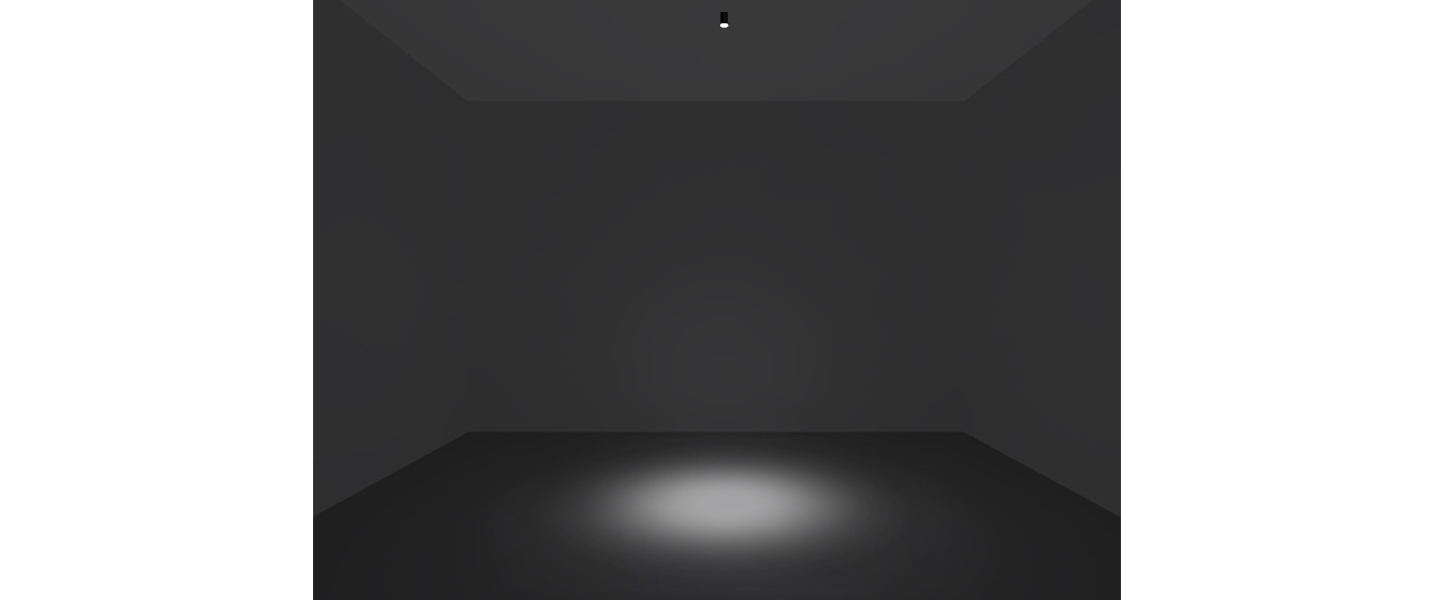

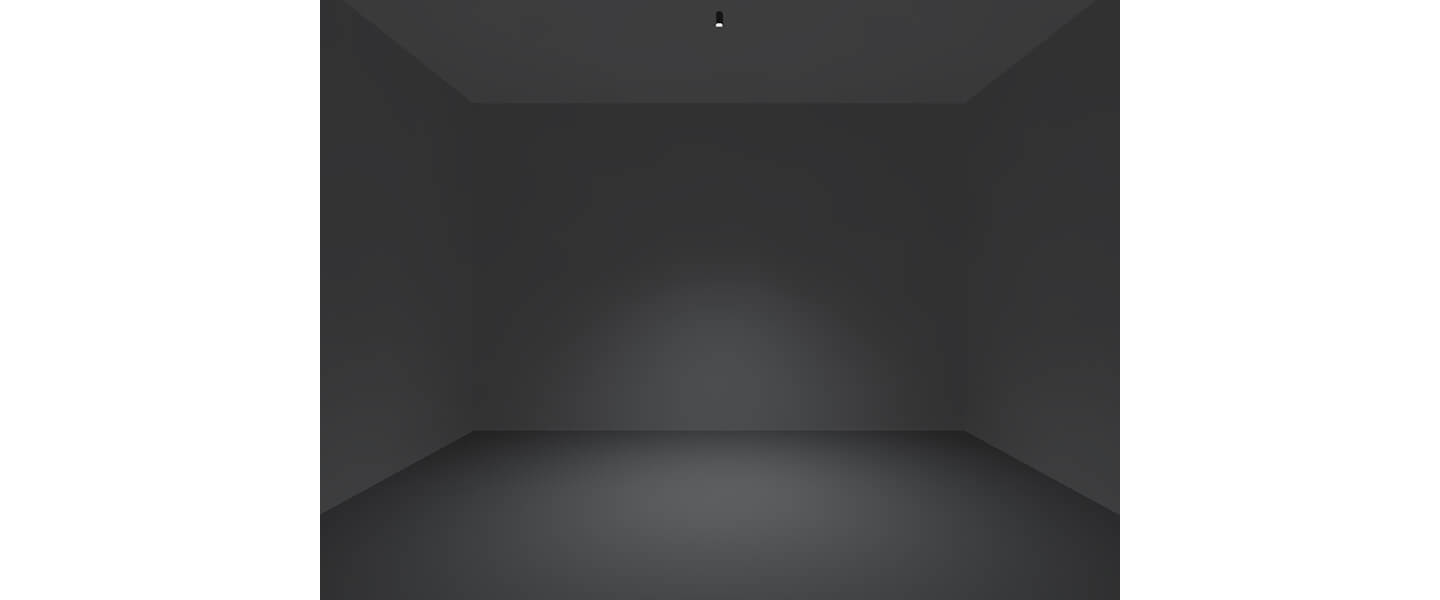

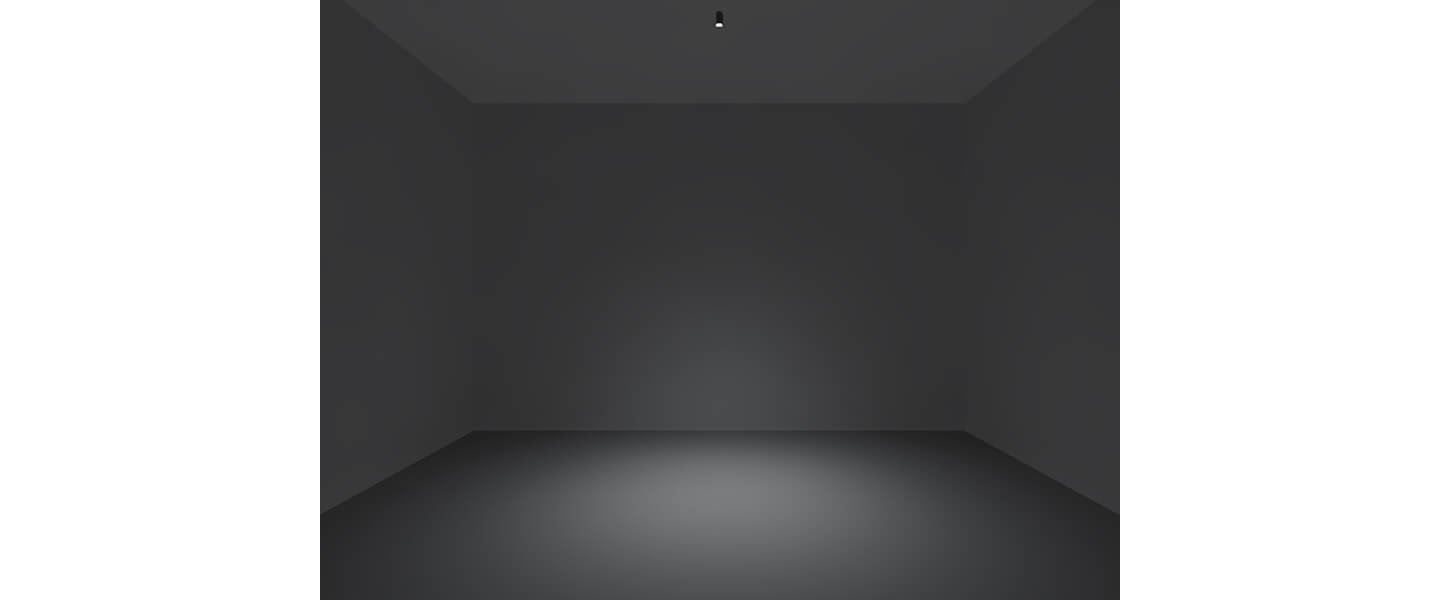

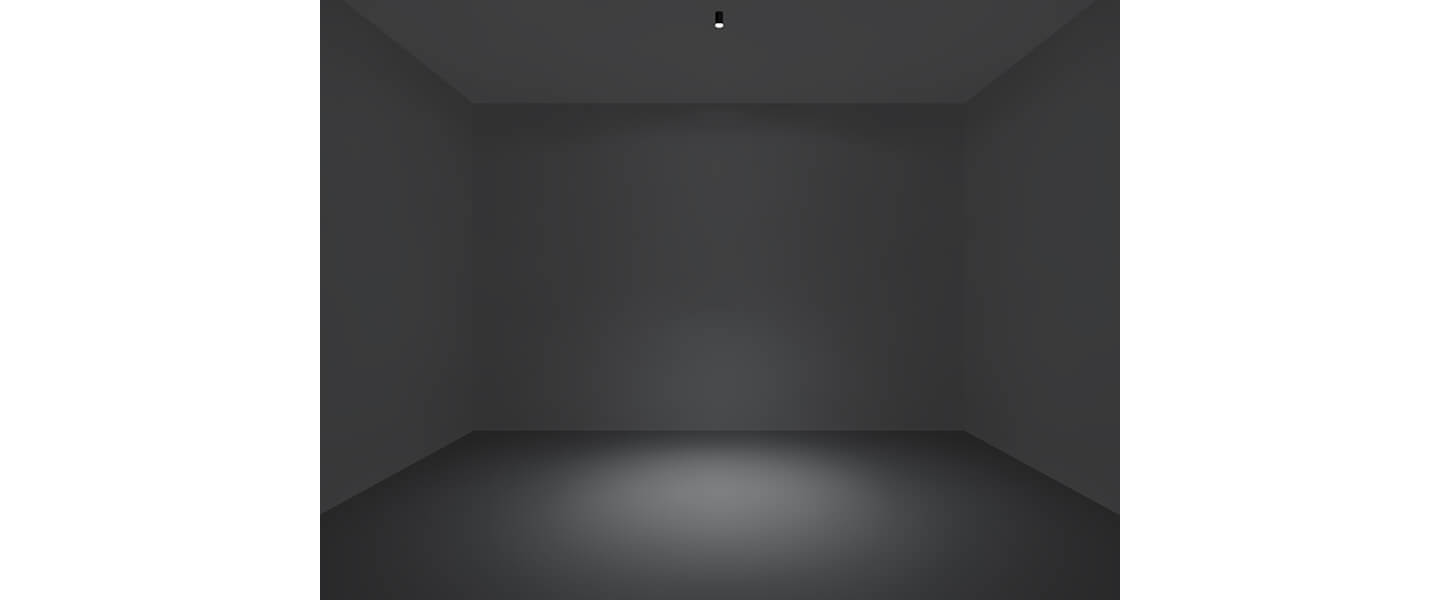

Lighting Effects
- Products Specification:
- Type:Round Adjustable Recessed Downlight
- Cut-Out:ø 80 mm
- Beam Angle:8D 15D 25D 32D 36D 55D
- Power:5W 8W 10W 12W 15W
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:painting+plating
- Weight:0.46kg
- Remarks:IP44 for visible body of fitting after installation, not avaible for using with honeycomb louver.
- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 5W
- 8W
- 10W
- 12W
- 15W
- Beam Angle
- 8°
- 15°
- 25°
- 32°
- 36°
- 55°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- Finish
- 01-White
- 02-Black
- Reflector
- N/A
- IP Rating
- 44-IP44
- Accessory
- 1-Honeycomb louver
- 4-Linear lens
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DR00209-05369027
DR00209-05369030
DR00209-05369040
DR00209-05509027
DR00209-05509030
DR00209-05509040
DR00209-08089027
DR00209-08089030
DR00209-08159027
DR00209-08159030
DR00209-08159040
DR00209-08259027
DR00209-08259030
DR00209-08259040
DR00209-08329027
DR00209-08329030
DR00209-08329040
DR00209-08369027
DR00209-08369030
DR00209-08369040
DR00209-08509027
DR00209-08509030
DR00209-08509040
DR00209-10089027
DR00209-10089030
DR00209-12159027
DR00209-12159030
DR00209-12159040
DR00209-12259027
DR00209-12259030
DR00209-12259040
DR00209-12329027
DR00209-12329030
DR00209-12329040
DR00209-12369027
DR00209-12369030
DR00209-12369040
DR00209-12509027
DR00209-12509030
DR00209-12509040
DR00209-15159027
DR00209-15159030
DR00209-15159040
DR00209-15259027
DR00209-15259030
DR00209-15259040
DR00209-15329027
DR00209-15329030
DR00209-15329040
DR00209-15369027
DR00209-15369030
DR00209-15369040
DR00209-15509027
DR00209-15509030
DR00209-15509040
- Luminous Flux (LM)
333LM
340LM
347LM
272LM
269LM
283LM
416LM
431LM
481LM
464LM
519LM
433LM
489LM
498LM
407LM
448LM
461LM
476LM
489LM
495LM
389LM
388LM
403LM
469LM
487LM
487LM
538LM
548LM
494LM
657LM
680LM
464LM
602LM
621LM
680LM
701LM
698LM
555LM
561LM
567LM
612LM
669LM
682LM
782LM
824LM
894LM
725LM
749LM
816LM
883LM
924LM
957LM
753LM
762LM
787LM
- Power (W)
5W
5W
5W
5W
5W
5W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
10W
10W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
- Beam Angle
36°
36°
36°
55°
55°
55°
8°
8°
15°
15°
15°
25°
25°
25°
32°
32°
32°
36°
36°
36°
55°
55°
55°
8°
8°
15°
15°
15°
25°
25°
25°
32°
32°
32°
36°
36°
36°
55°
55°
55°
15°
15°
15°
25°
25°
25°
32°
32°
32°
36°
36°
36°
55°
55°
55°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Specification
- DWG
- IES
- manual
