IF

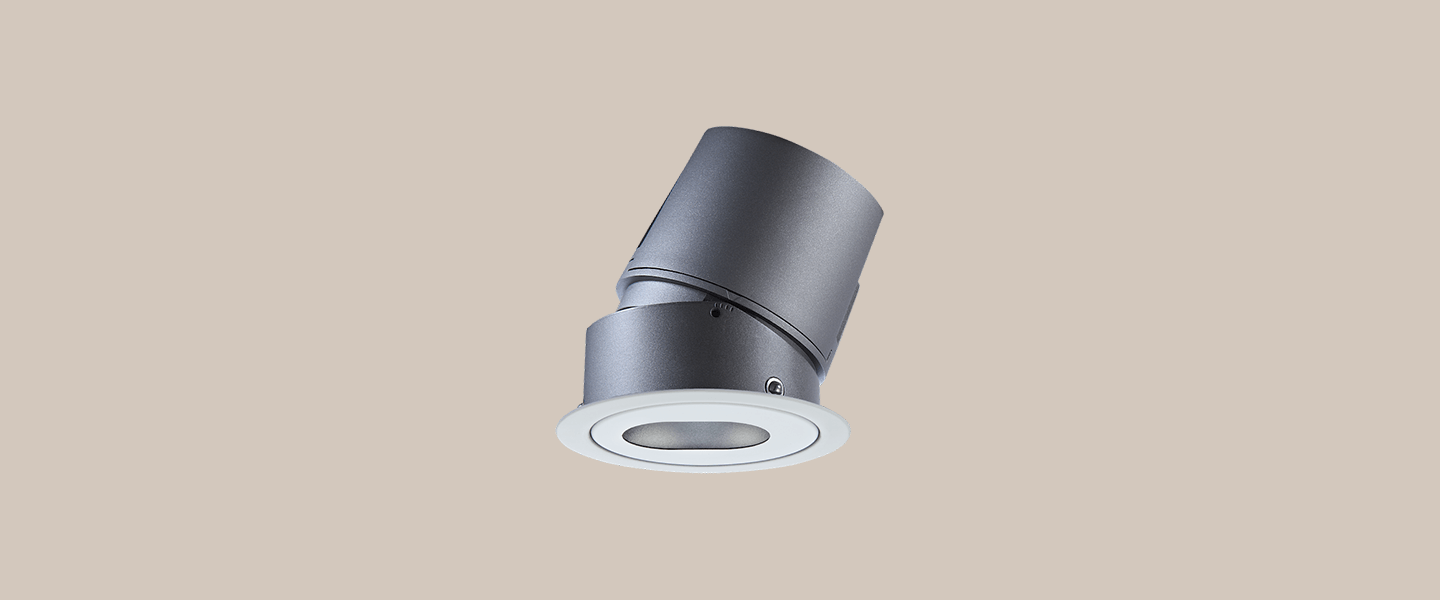

Round Oval Hole Adjustable Recessed Downlight

LED COB Round Oval Hole Adjustable Recessed Downlight

IF series is the classic product series of VF, the lamp is small and exquisite, the lamp height is only 90mm, and it can be widely adapted to the installation space with limited height of the lamp. Even the lamp height is only 90mm, but the Anti-glare is well controlled, 8D, 15D, 25D, 32D, 36D, 50D light distribution with excellent light quality.

Lamps style have round open type, round pin hole, round oval hole, equipped with mirror reflector or champagne gold reflector, which can achieve different interior design and lighting design styles.

Lighting Effects

Products Specification:: Type: Round Oval Hole Adjustable Recessed Downlight; Mechanical Performance:Fixed / Adjustable; Cut-Out:ø 80 mm; Beam Angle:8D 15D 25D 30D 36D 50D; Power:5W 8W 10W 12W 15W; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating; Weight:0.43kg

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
5W
8W
12W
15W
20W

Beam Angle

Beam Angle
15°
25°
32°
36°
50°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type

Finish

Finish
02-Black
01-White

Reflector

Reflector
3-Mirror

IP Rating

IP Rating
44-IP44

Accessory

Accessory
1-Honeycomb louver
4-Linear lens

Model No
Source Lumen (LM)
Power (W)
Beam Angle
CRI
Color
Specification
IES
Favorite

Model No: 0811203-05159027; 0811203-05159030; 0811203-05159040; 0811203-05259027; 0811203-05259030; 0811203-05259040; 0811203-05329027; 0811203-05329030; 0811203-05329040; 0811203-05369027; 0811203-05369030; 0811203-05369040; 0811203-05509027; 0811203-05509030; 0811203-05509040; 0811203-08159027; 0811203-08159030; 0811203-08159040; 0811203-08259027; 0811203-08259030; 0811203-08259040; 0811203-08329027; 0811203-08329030; 0811203-08329040; 0811203-08369027; 0811203-08369030; 0811203-08369040; 0811203-08509027; 0811203-08509030; 0811203-08509040; 0811203-12159027; 0811203-12159030; 0811203-12159040; 0811203-12259027; 0811203-12259030; 0811203-12259040; 0811203-12329027; 0811203-12329030; 0811203-12329040; 0811203-12369027; 0811203-12369030; 0811203-12369040; 0811203-12509027; 0811203-12509030; 0811203-12509040; 0811203-15159027; 0811203-15159030; 0811203-15159040; 0811203-15259027; 0811203-15259030; 0811203-15259040; 0811203-15329027; 0811203-15329030; 0811203-15329040; 0811203-15369027; 0811203-15369030; 0811203-15369040; 0811203-15509027; 0811203-15509030; 0811203-15509040; 0811203-20259027; 0811203-20259030; 0811203-20259040; 0811203-20329027; 0811203-20329030; 0811203-20329040; 0811203-20369027; 0811203-20369030; 0811203-20369040; 0811203-20509027; 0811203-20509030; 0811203-20509040

Luminous Flux (LM): 476LM; 502LM; 527LM; 554LM; 583LM; 612LM; 554LM; 583LM; 612LM; 554LM; 583LM; 612LM; 554LM; 583LM; 612LM; 706LM; 761LM; 844LM; 883LM; 930LM; 976LM; 883LM; 930LM; 976LM; 883LM; 930LM; 976LM; 883LM; 930LM; 976LM; 1046LM; 1101LM; 1156LM; 1253LM; 1319LM; 1385LM; 1253LM; 1319LM; 1385LM; 1253LM; 1319LM; 1385LM; 1253LM; 1319LM; 1385LM; 1157LM; 1218LM; 1279LM; 1522LM; 1602LM; 1682LM; 1522LM; 1602LM; 1682LM; 1522LM; 1602LM; 1682LM; 1522LM; 1602LM; 1682LM; 2055LM; 2163LM; 2271LM; 2055LM; 2163LM; 2271LM; 2055LM; 2163LM; 2271LM; 2055LM; 2163LM; 2271LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W

Beam Angle: 15°; 15°; 15°; 25°; 25°; 25°; 32°; 32°; 32°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 25°; 25°; 25°; 32°; 32°; 32°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 25°; 25°; 25°; 32°; 32°; 32°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 25°; 25°; 25°; 32°; 32°; 32°; 36°; 36°; 36°; 50°; 50°; 50°; 25°; 25°; 25°; 32°; 32°; 32°; 36°; 36°; 36°; 50°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
