MIZAR 52

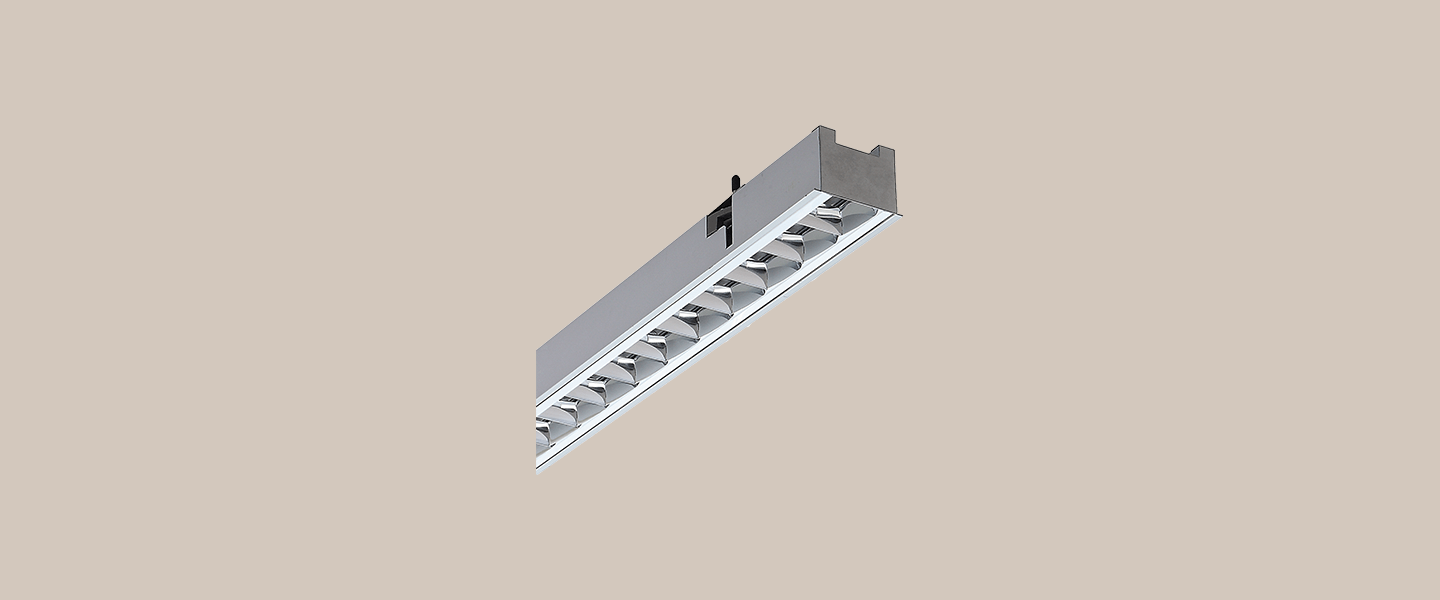

251mm Mid Power LED Recessed Linear Light

MIZAR 52

Mid Power LED Recessed Linear Light

As the first linear lighting product in the true sense, MIZAR can help designers to achieve a variety of lighting effects in a single building with a same lamp appearance, so as to ensure the overall harmony of construction and decoration, to embody their "mix" and "proper". The functional realizing is come from its rich grading angle: 23° , 33° , 37° , 43 ° , 48 ° , 24*40 ° , 27*43 ° , 15*46 ° , then to couple with the way of installing of lamps: recessed mounted, surface mounted. It ensures that this series can be used for wall reflected glare lighting, wall washer lighting, accent lighting and basic lighting in various space environments.

Upholding VISUAI FEAST lighting idea, VISUAI COMFORT is one of important part and also the most significant lighting experience brought by MIZAR series to customer. With its unique dim light reflector technology, the UGR of this series lamp can be effectively controlled within 16, and it even can bring better visual experience to customer if cooperated with LED light source of high indication (RA90).

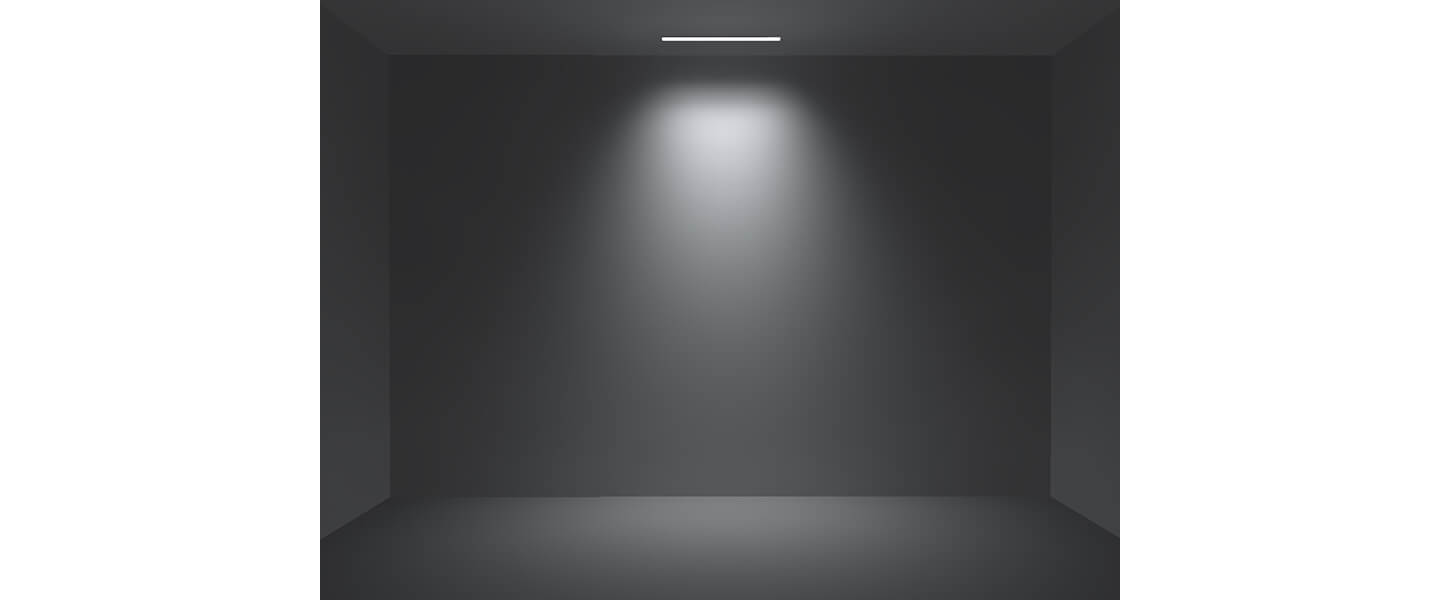

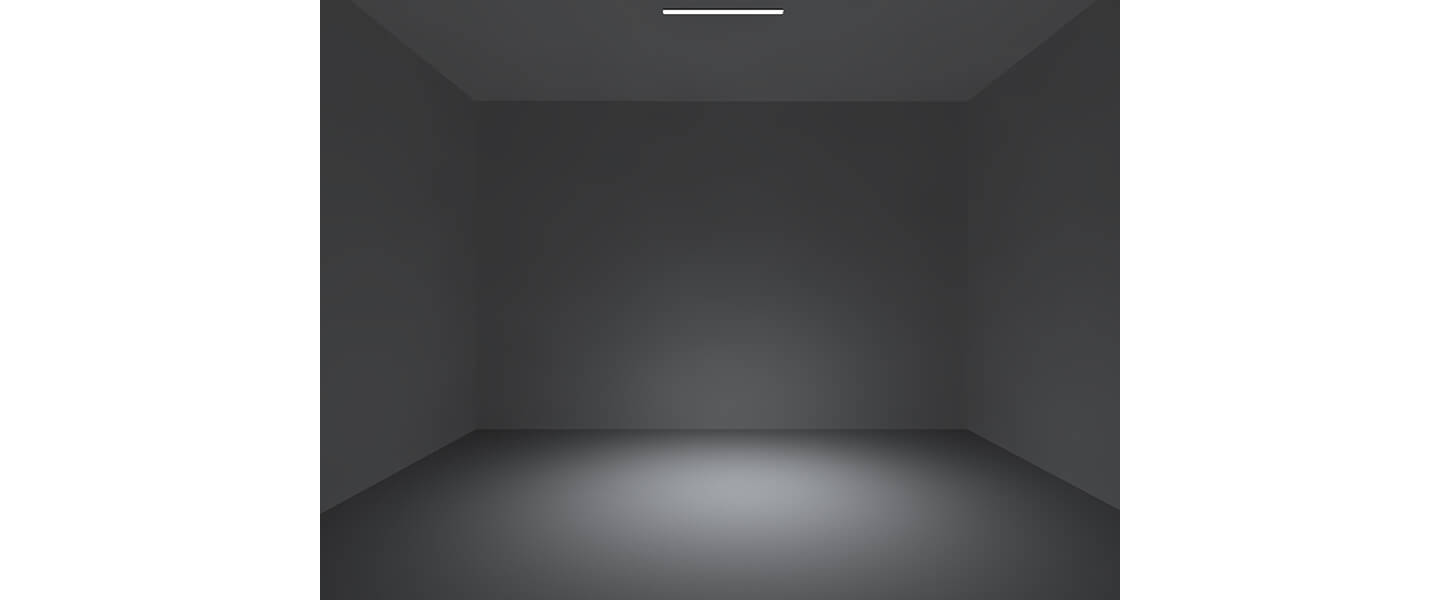

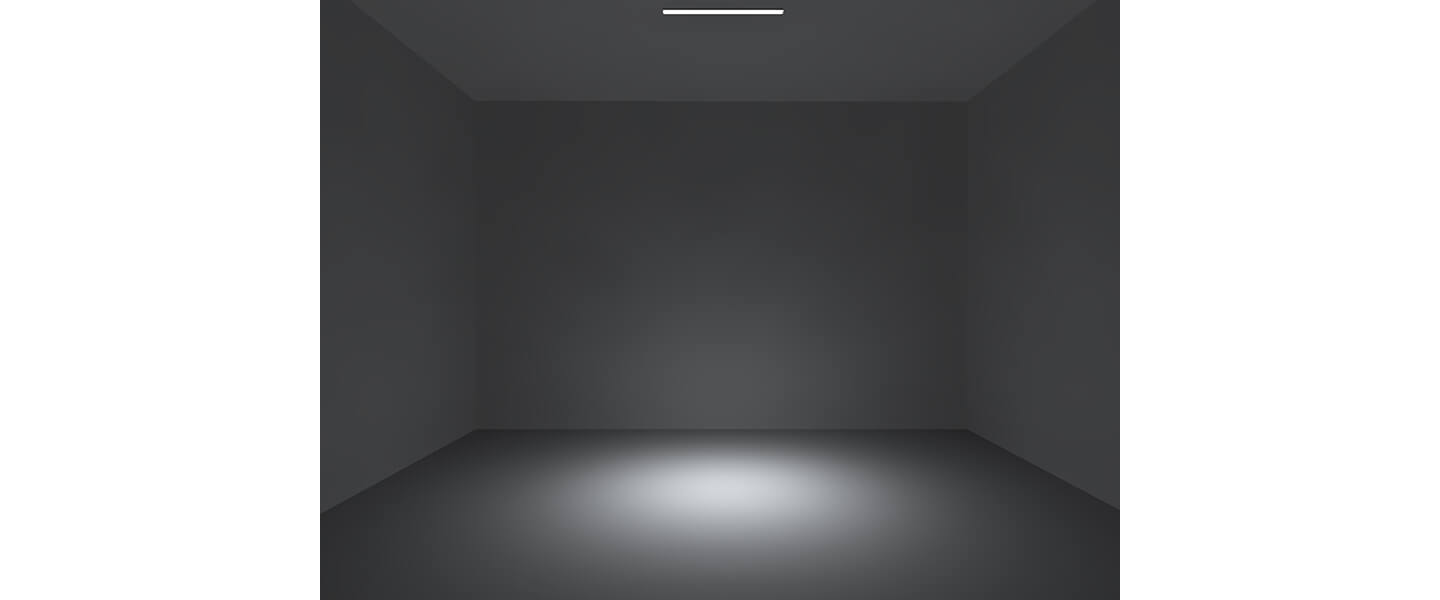

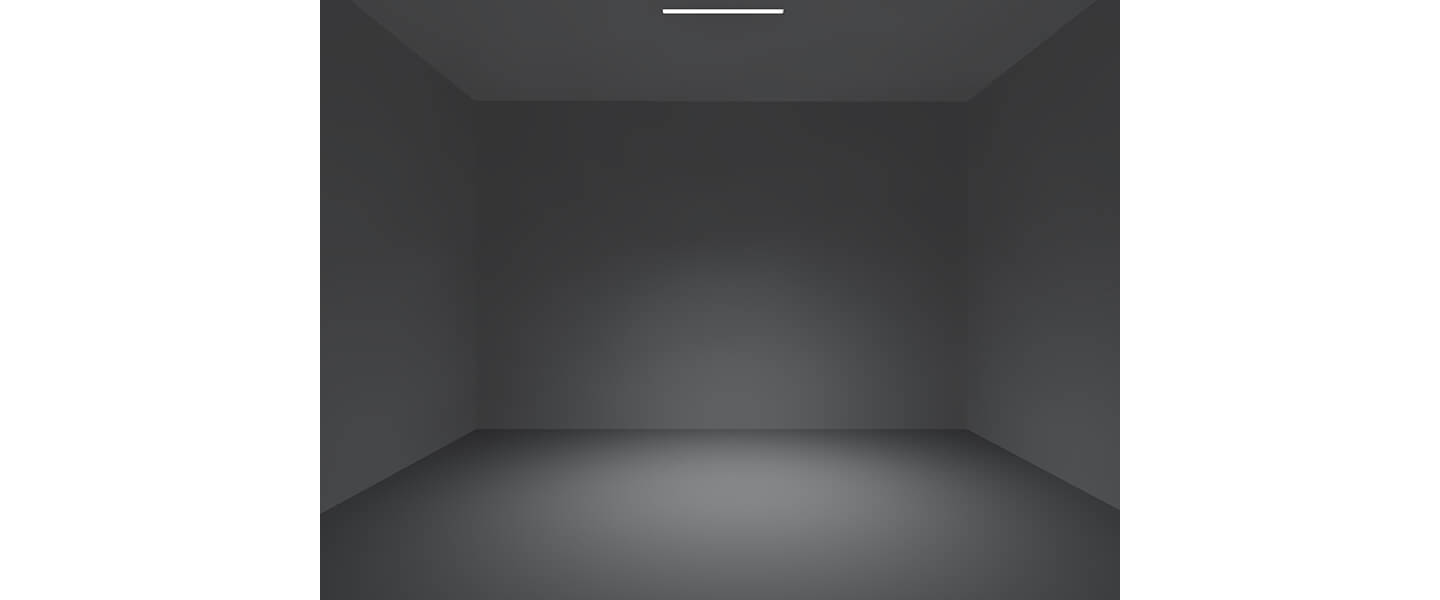

Lighting Effects

Products Specification:
Type:Mid Power LED Recessed Linear Light
Cut-Out:253 * 55 mm
Beam Angle:23D 33D 43D 24*40D
Power:3W 5W 6W
CCT :2700K 3000K 4000K
Weight:0.33kg
Heat-Sink:Aluminum
Surface-Treatment:painting+plating
Line Drawing:
General Features:


Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 5W
  • 6W
Beam Angle
  • Beam Angle
  • 23°
  • 24X40°
  • 33°
  • 43°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 2700K
  • 3000K
  • 4000K
Dimming type
  • Dimming type
  • 1-Non Dim
  • 3-0-10V dimming
  • 4-DALI dimming
Finish
  • Finish
  • 02-Black
Reflector
  • Reflector
  • 3-Mirror
IP Rating
  • IP Rating
  • 20-IP20
Accessory
  • Accessory
  • N/A
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • manual

  • Favorite

Model No

LR00201-251-03239027

LR00201-251-03239030

LR00201-251-03239040

LR00201-251-03339027

LR00201-251-03339030

LR00201-251-03339040

LR00201-251-03439027

LR00201-251-03439030

LR00201-251-03439040

LR00201-251-0324X409027

LR00201-251-0324X409030

LR00201-251-0324X409040

LR00201-251-06239027

LR00201-251-06239030

LR00201-251-06239040

LR00201-251-06339027

LR00201-251-06339030

LR00201-251-06339040

LR00201-251-06439027

LR00201-251-06439030

LR00201-251-06439040

LR00201-251-0624X409027

LR00201-251-0624X409030

LR00201-251-0624X409040

Luminous Flux (LM)

374LM

381LM

403LM

371LM

386LM

407LM

354LM

369LM

380LM

316LM

319LM

335LM

448LM

468LM

474LM

449LM

478LM

489LM

432LM

446LM

461LM

377LM

391LM

411LM

Power (W)

5W

5W

5W

5W

5W

5W

5W

5W

5W

5W

5W

5W

6W

6W

6W

6W

6W

6W

6W

6W

6W

6W

6W

6W

Beam Angle

23°

23°

23°

33°

33°

33°

43°

43°

43°

24X40°

24X40°

24X40°

23°

23°

23°

33°

33°

33°

43°

43°

43°

24X40°

24X40°

24X40°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

Specification
IES
manual
Favorite
