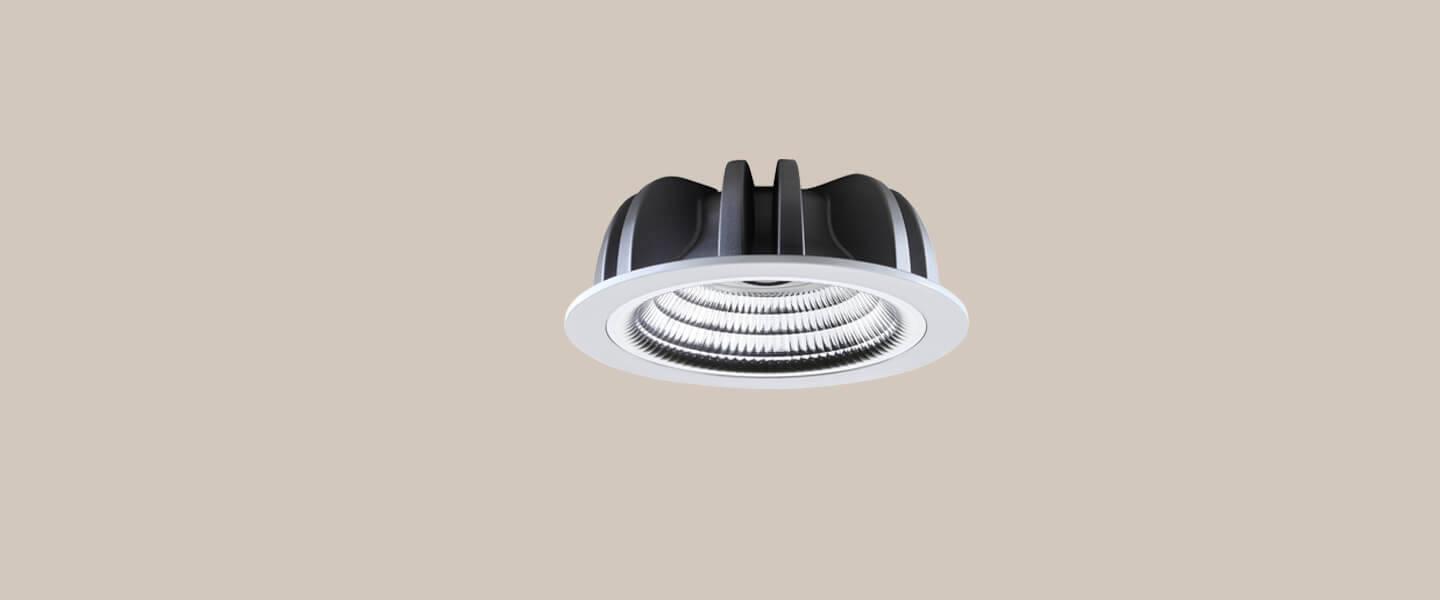

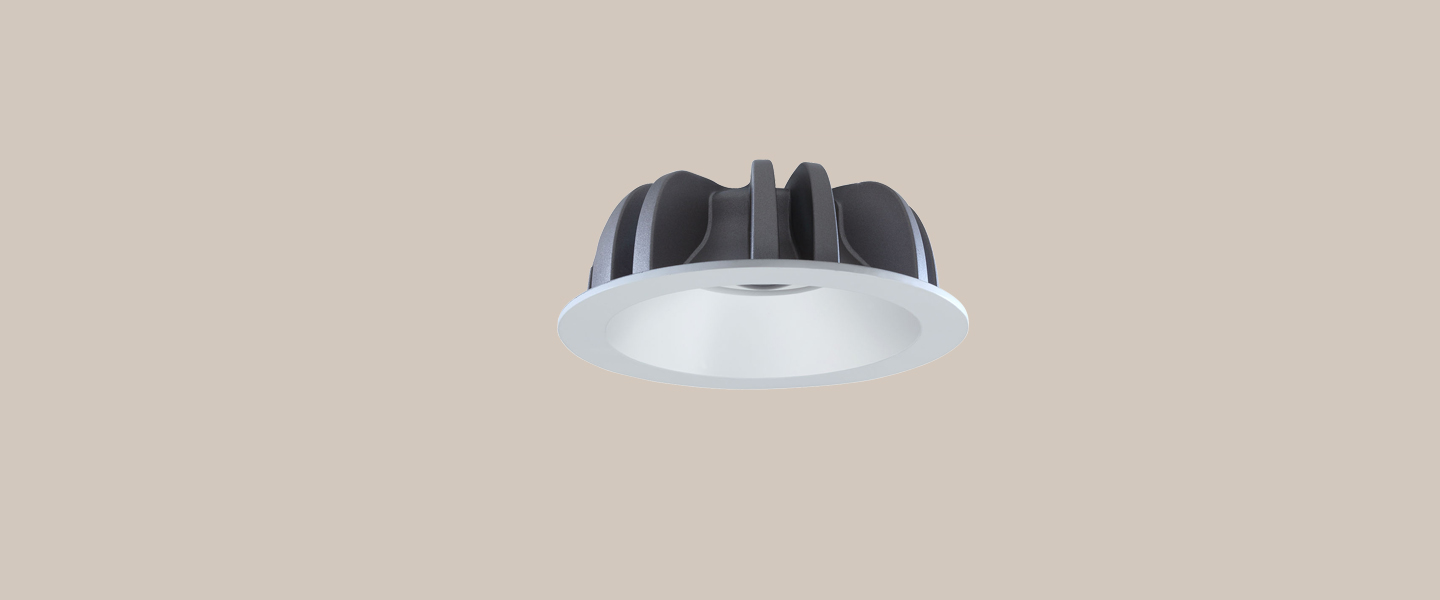

PEARL 220

Round Fixed Recessed Downlight

PEARL 220

This product would be discontinued since 2023-5-2

PEARL 220

This product would be discontinued since 2023-5-2

Pearl, which provides basis lighting for indoor environments, has significant advantages. The COB wide beam angle can reach to 80 ° , which not only perfectly solved the problem of installation distribution of lamp caused by its quantities, but also fully guaranteed the uniformity of illumination. Then, this series has a wide range of specifications, ranging from 3" to 8" size, 8w to 60w power. As a basis lighting appliance, this series can provide rich choices for designers and owners no matter in narrow small space or spacious & tall space.

This series of products adopts the integrated design of heatsink and front trim. While achieving good heat dissipation, it also effectively reduces the height of the lamps. The height of 8" lamps is maximum 70mm, which grant designer rich choices in the area that has limitation to lamps height.

Lighting Effects

Products Specification:: Type:Recessed Round Fixed Downlight; Cut-Out:ø220mm; Beam Angle:45D 80D; Power:32W 40W; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating; Weight:1.87kg

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
32W
40W
60W

Beam Angle

Beam Angle
45°
80°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
02-Black
01-White

Reflector

Reflector
1-White
3-Mirror

IP Rating

IP Rating
20-IP20
44-IP44

Accessory

Accessory
N/A

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: 58111F1-32459027; 58111F1-32459030; 58111F1-32459040; 58111F1-32809027; 58111F1-32809030; 58111F1-32809040; 58111F1-40459027; 58111F1-40459030; 58111F1-40459040; 58111F1-40809027; 58111F1-40809030; 58111F1-40809040; 58111F1-60459027; 58111F1-60459030; 58111F1-60459040; 58111F1-60809027; 58111F1-60809030; 58111F1-60809040

Luminous Flux (LM): 2976LM; 3132LM; 3512LM; 2724LM; 2867LM; 3237LM; 3582LM; 3771LM; 4250LM; 3274LM; 3447LM; 3869LM; 5184LM; 5457LM; 5941LM; 4725LM; 4974LM; 5321LM
