PEARL 175

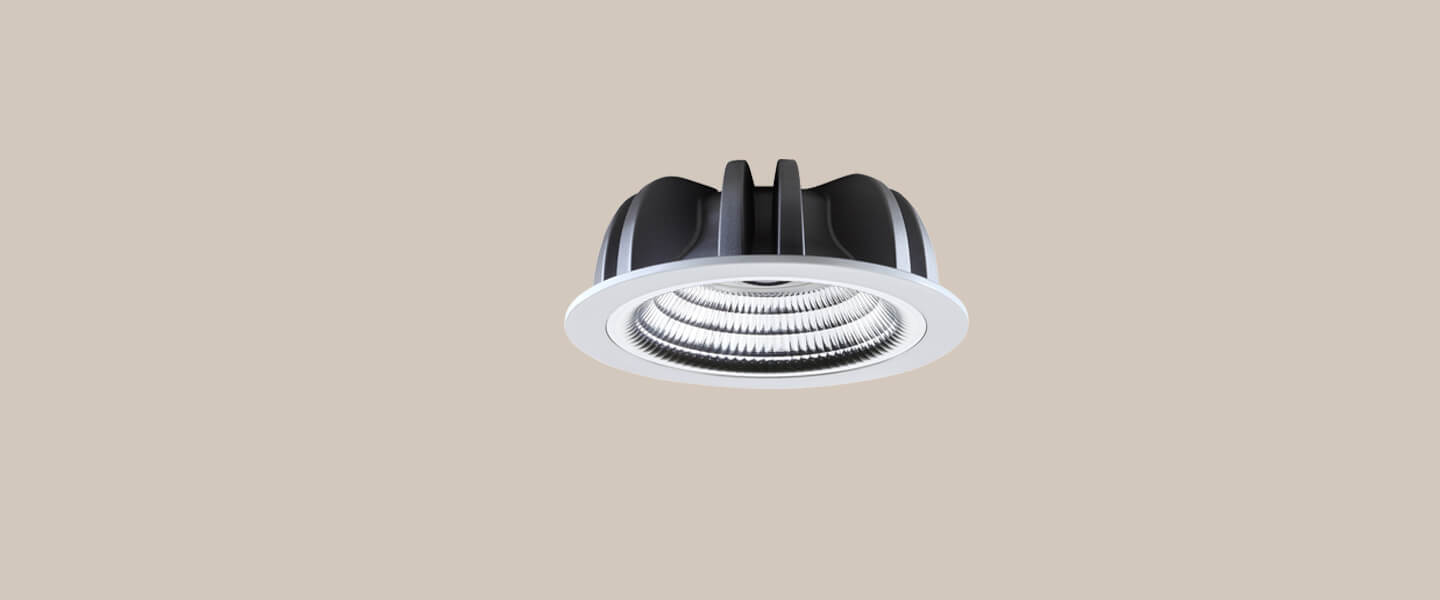

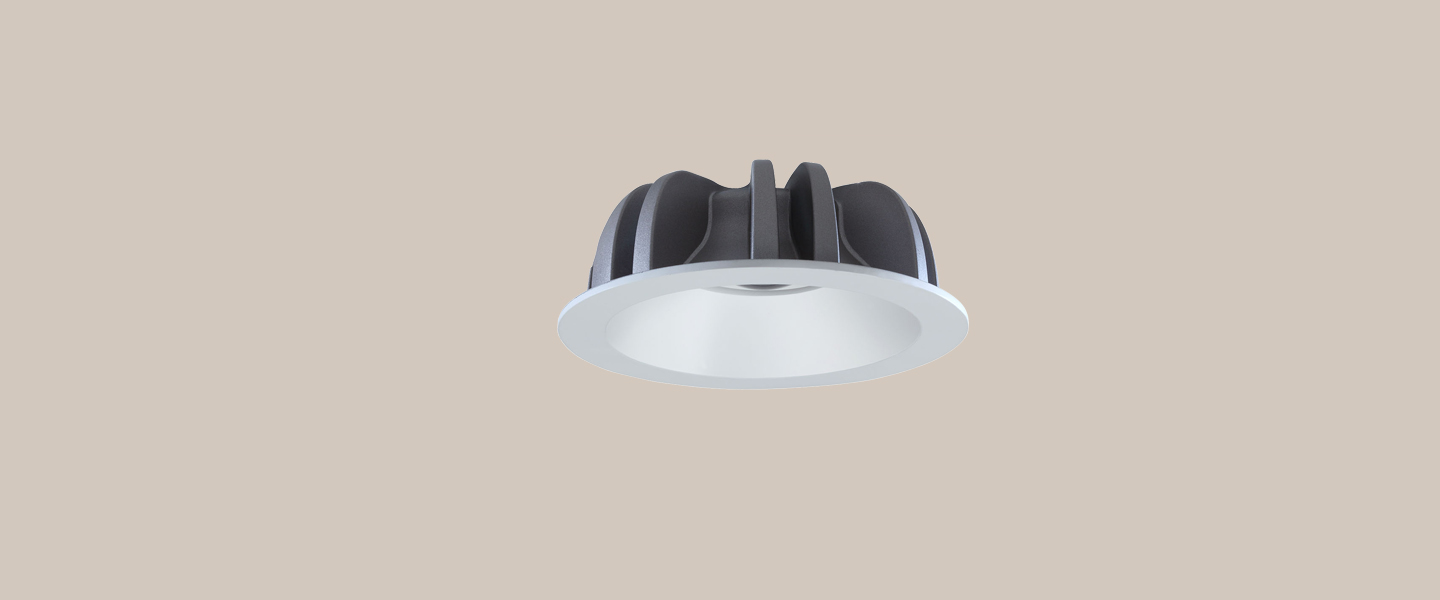

Round Fixed Recessed Downlight
PEARL 175
This product would be discontinued since 2023-5-2
PEARL 175
This product would be discontinued since 2023-5-2
Pearl, which provides basis lighting for indoor environments, has significant advantages. The COB wide beam angle can reach to 80 ° , which not only perfectly solved the problem of installation distribution of lamp caused by its quantities, but also fully guaranteed the uniformity of illumination. Then, this series has a wide range of specifications, ranging from 3" to 8" size, 8w to 60w power. As a basis lighting appliance, this series can provide rich choices for designers and owners no matter in narrow small space or spacious & tall space.
This series of products adopts the integrated design of heatsink and front trim. While achieving good heat dissipation, it also effectively reduces the height of the lamps. The height of 8" lamps is maximum 70mm, which grant designer rich choices in the area that has limitation to lamps height.
Lighting Effects
- Products Specification:
- Type: Round Fixed Recessed Downlight
- Cut-Out:ø175mm
- Beam Angle:55D 75D
- Power:27W 40W
- CCT:2700K 3000K 4000K
- Weight:1.1kg
- Heat-Sink:Aluminum
- Surface-Treatment:painting+plating
- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
Power(W)
- Power(W)
- 27W
- 40W
Beam Angle
- Beam Angle
- 55°
- 75°
CRI
- CRI
- Ra>90
Color
- Color
- 2700K
- 3000K
- 4000K
Dimming type
- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
Finish
- Finish
- 02-Black
- 01-White
Reflector
- Reflector
- 1-White
- 3-Mirror
IP Rating
- IP Rating
- 20-IP20
Accessory
- Accessory
- N/A
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
58111E1-27559027
58111E1-27559030
58111E1-27559040
58111E1-27759027
58111E1-27759030
58111E1-27759040
58111E1-40559027
58111E1-40559030
58111E1-40559040
58111E1-40759027
58111E1-40759030
58111E1-40759040
- Luminous Flux (LM)
1982LM
2087LM
2265LM
2289LM
2410LM
2579LM
2665LM
2805LM
2979LM
3000LM
3158LM
3420LM
- Power (W)
27W
27W
27W
27W
27W
27W
40W
40W
40W
40W
40W
40W
- Beam Angle
55°
55°
55°
75°
75°
75°
55°
55°
55°
75°
75°
75°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
