ARCUS 40
Wall Washer
ARCUS 40
ARCUS 40

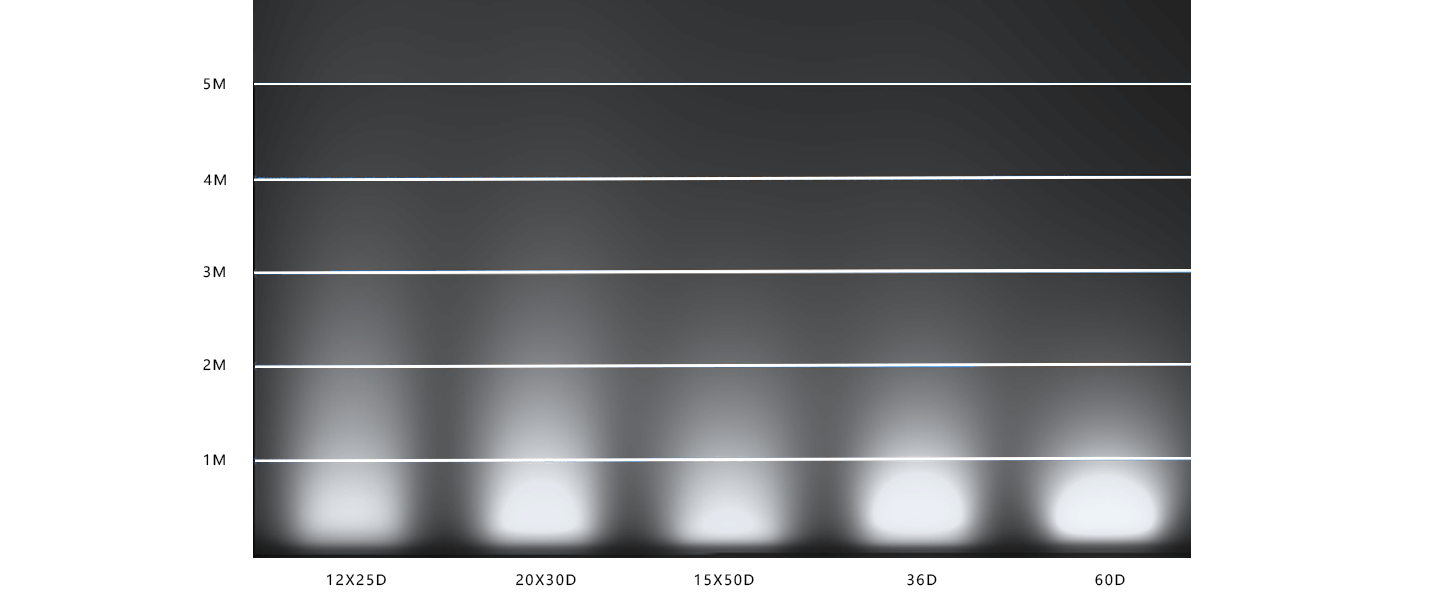

Lighting Effects
- Products Specification:
- Type:Wall Washer
- Beam Angle:12x25D 20x30D 15x55D 30D 60D
- Power:24W 36W
- Dimension:1000*40*55mm
- Weight:2.25kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:powder coating

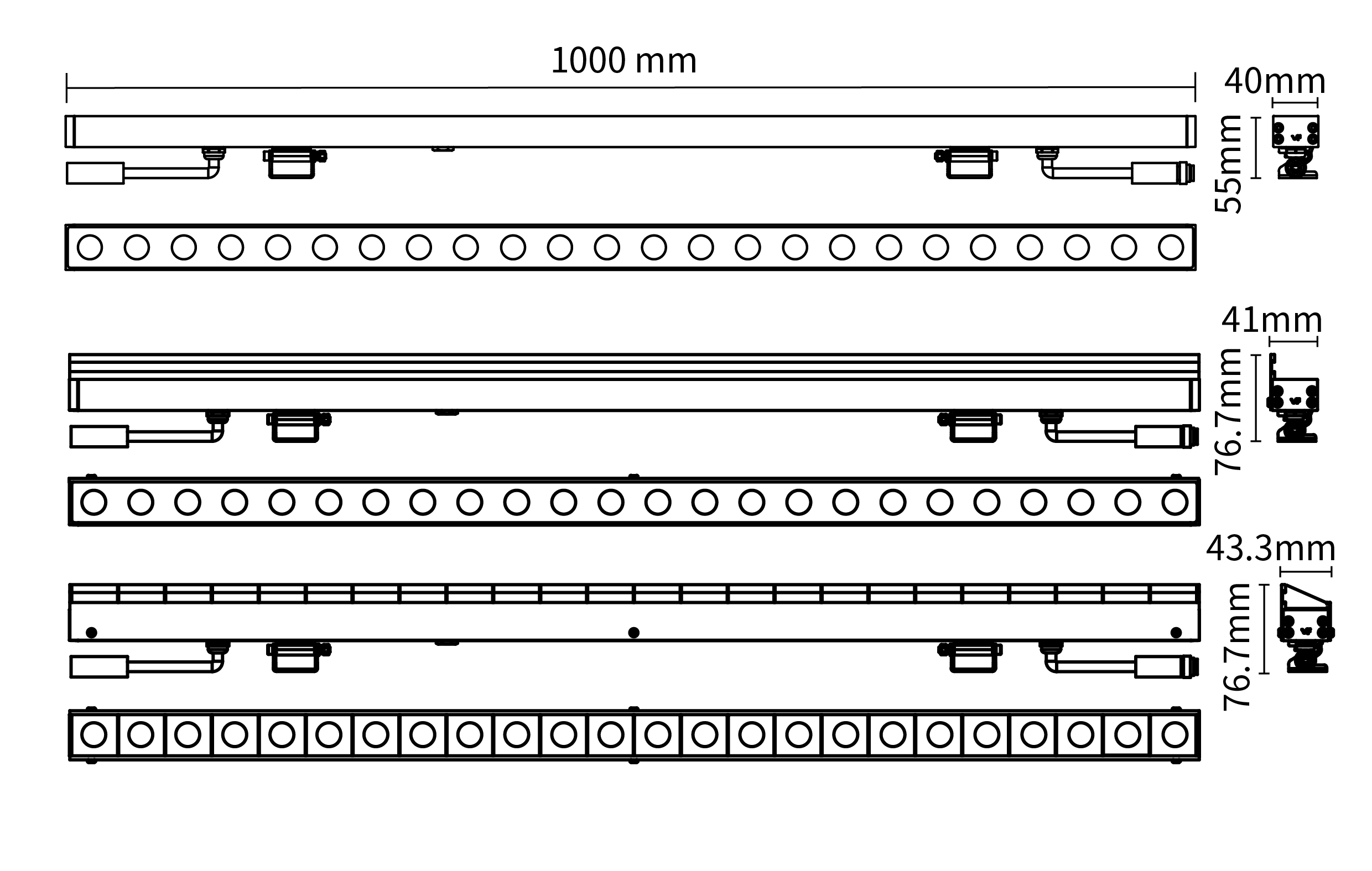

- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 24W
- 36W
Beam Angle- Beam Angle
- 12X25°
- 15X55°
- 20X30°
- 30°
- 60°
CRI- CRI
- >80
Color- Color
- 2700K
- 3000K
- 4000K
Control- Control
- ON/OFF/DALI/DMX512
Dimming type- Dimming type
- 1-Non Dim
- 4-DALI dimming
- 5-DMX512
Finish- Finish
- 03-Grey
Reflector- Reflector
- N/A
IP Rating- IP Rating
- 66-IP66
Accessory- Accessory
- E-glare
- C-Grid
- Power(W)
- 24W
- 36W
- Beam Angle
- 12X25°
- 15X55°
- 20X30°
- 30°
- 60°
- CRI
- >80
- Color
- 2700K
- 3000K
- 4000K
- Control
- ON/OFF/DALI/DMX512
- Dimming type
- 1-Non Dim
- 4-DALI dimming
- 5-DMX512
- Finish
- 03-Grey
- Reflector
- N/A
- IP Rating
- 66-IP66
- Accessory
- E-glare
- C-Grid
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
BL00102-2412258027
BL00102-2412258030
BL00102-2412258040
BL00102-2420308027
BL00102-2420308030
BL00102-2420308040
BL00102-2415558027
BL00102-2415558030
BL00102-2415558040
BL00102-243098027
BL00102-24308030
BL00102-24308040
BL00102-24608027
BL00102-24608030
BL00102-24608040
BL00102-3612258027
BL00102-3612258030
BL00102-3612258040
BL00102-3620308027
BL00102-3620308030
BL00102-3620308040
BL00102-3615558027
BL00102-3615558030
BL00102-3615558040
BL00102-36308027
BL00102-36308030
BL00102-36308040
BL00102-36608027
BL00102-36608030
BL00102-36608040
- Luminous Flux (LM)
2394LM
2322LM
2790LM
2511LM
2436LM
2905LM
2313LM
2244LM
2567LM
2432LM
2359LM
2576LM
2332LM
2262LM
2727LM
3226LM
3129LM
3396LM
3380LM
3278LM
3558LM
3117LM
3023LM
3281LM
3317LM
3217LM
3492LM
3128LM
3034LM
3293LM
- Power (W)
24W
24W
24W
24W
24W
24W
24W
24W
24W
24W
24W
24W
24W
24W
24W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
- Beam Angle
12X25°
12X25°
12X25°
20X30°
20X30°
20X30°
15X55°
15X55°
15X55°
30°
30°
30°
60°
60°
60°
12X25°
12X25°
12X25°
20X30°
20X30°
20X30°
15X55°
15X55°
15X55°
30°
30°
30°
60°
60°
60°
- CRI
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Control
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
- Specification
