Home Products Outdoor ASTA 155 - In-ground Light

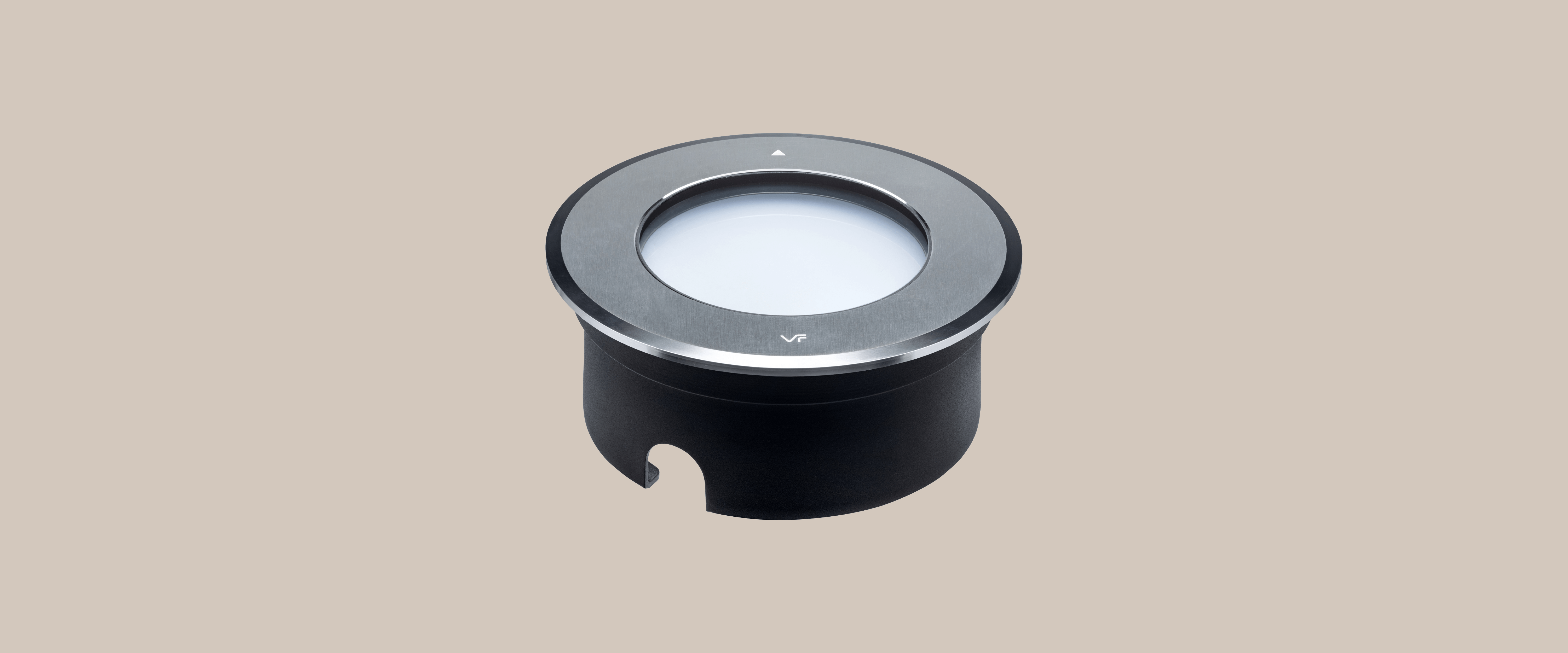

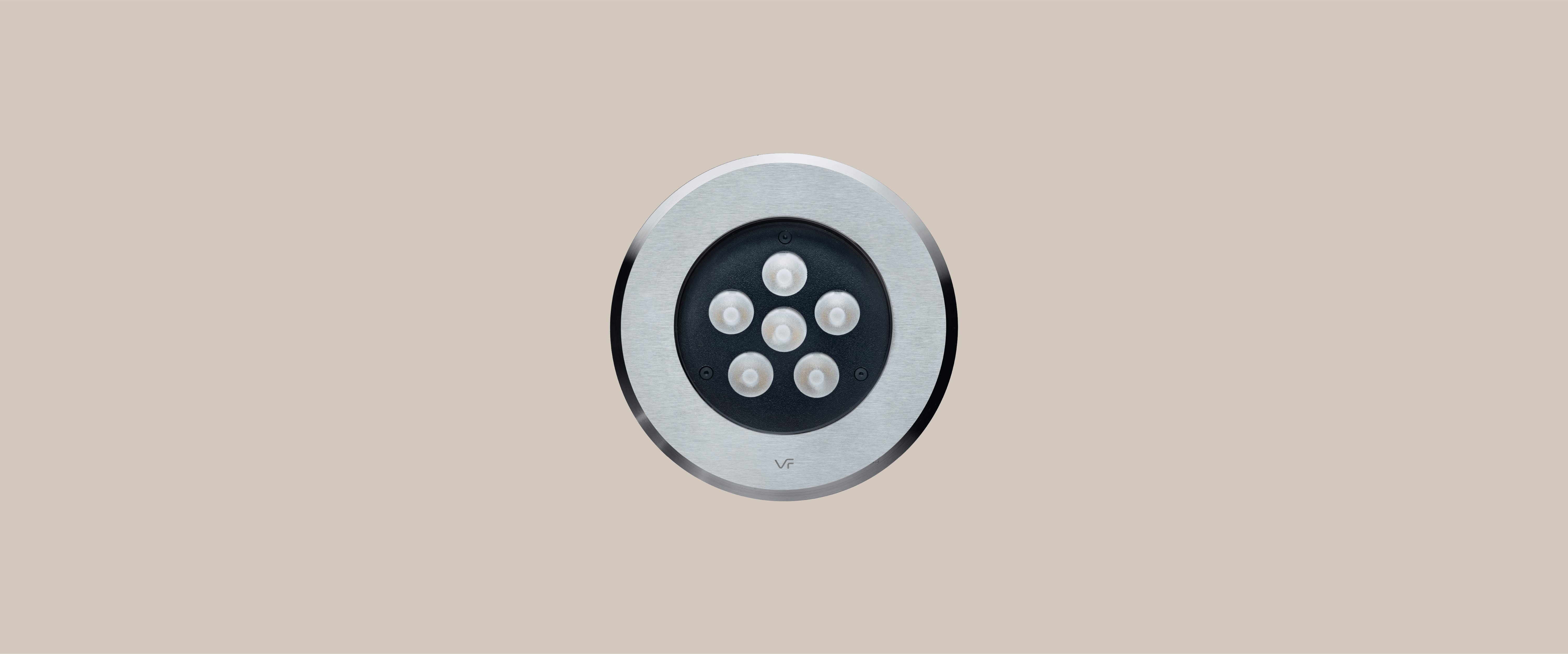

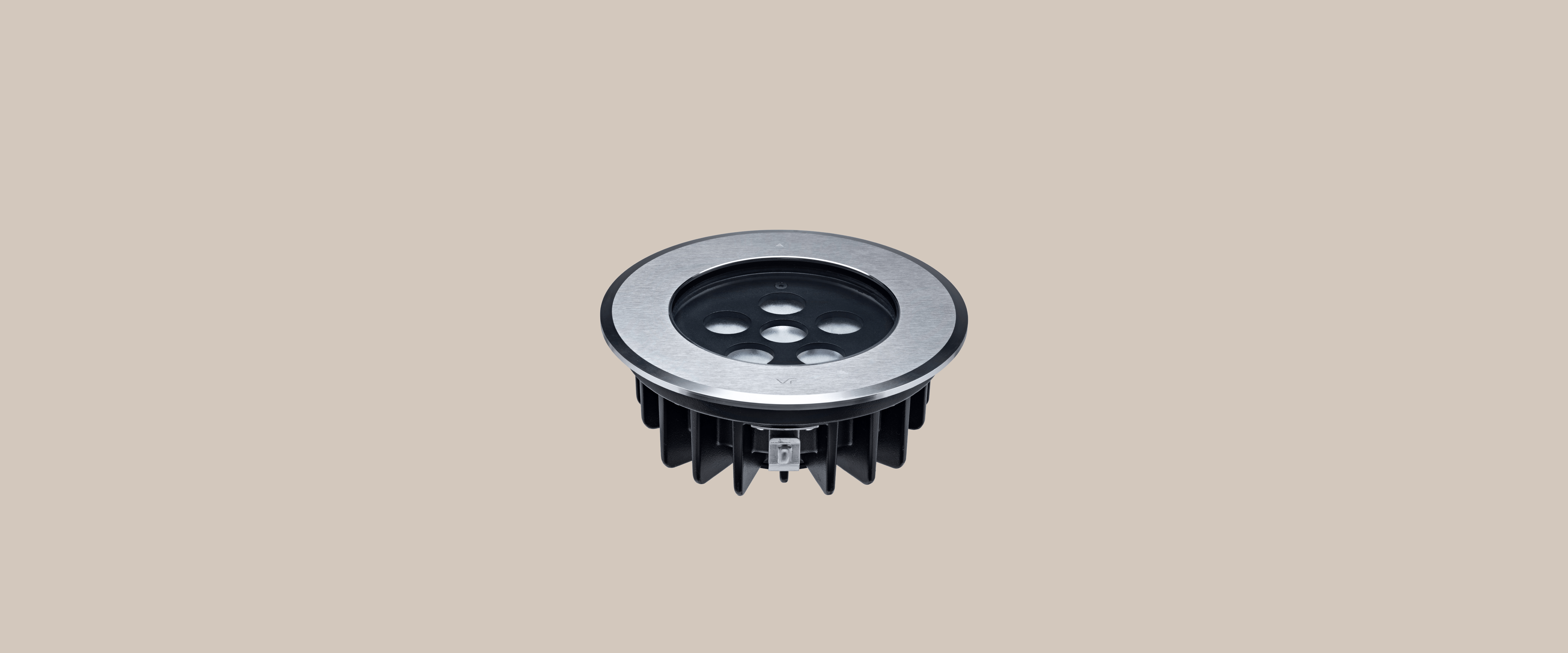

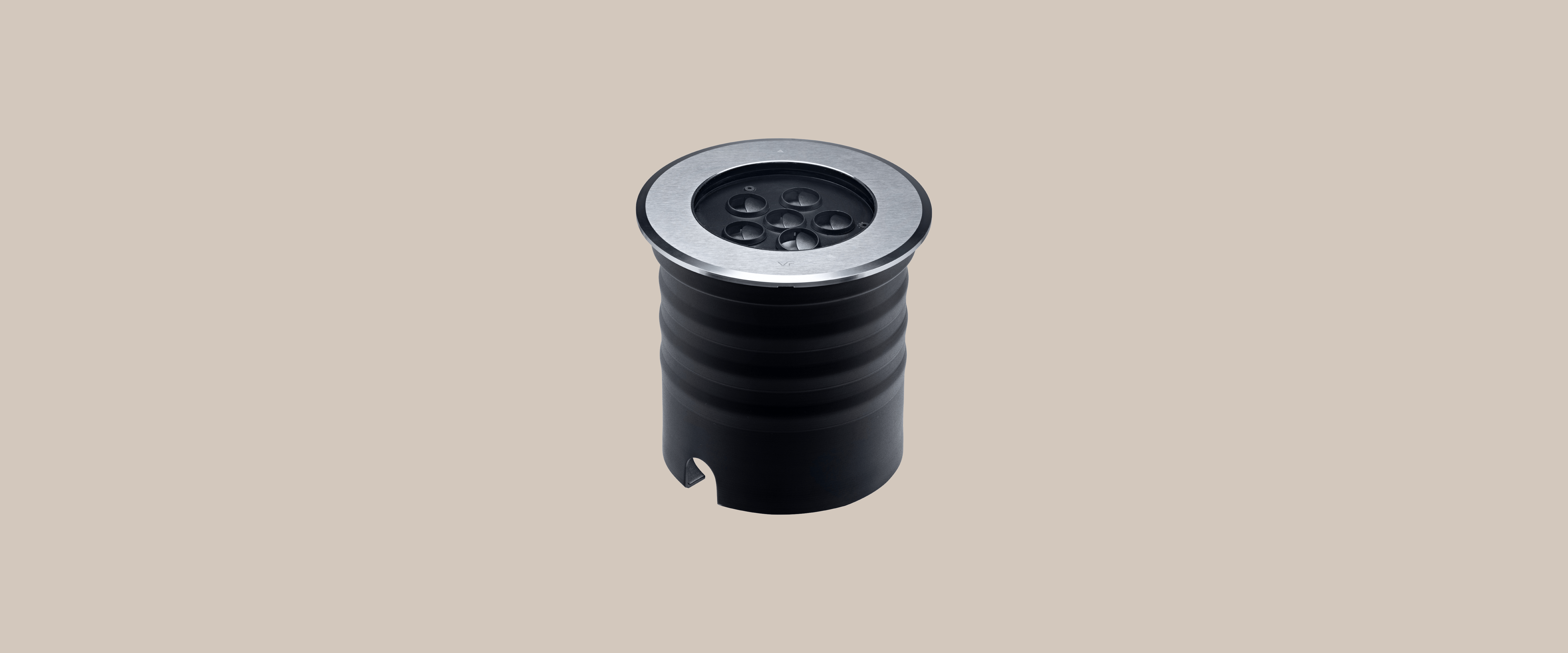

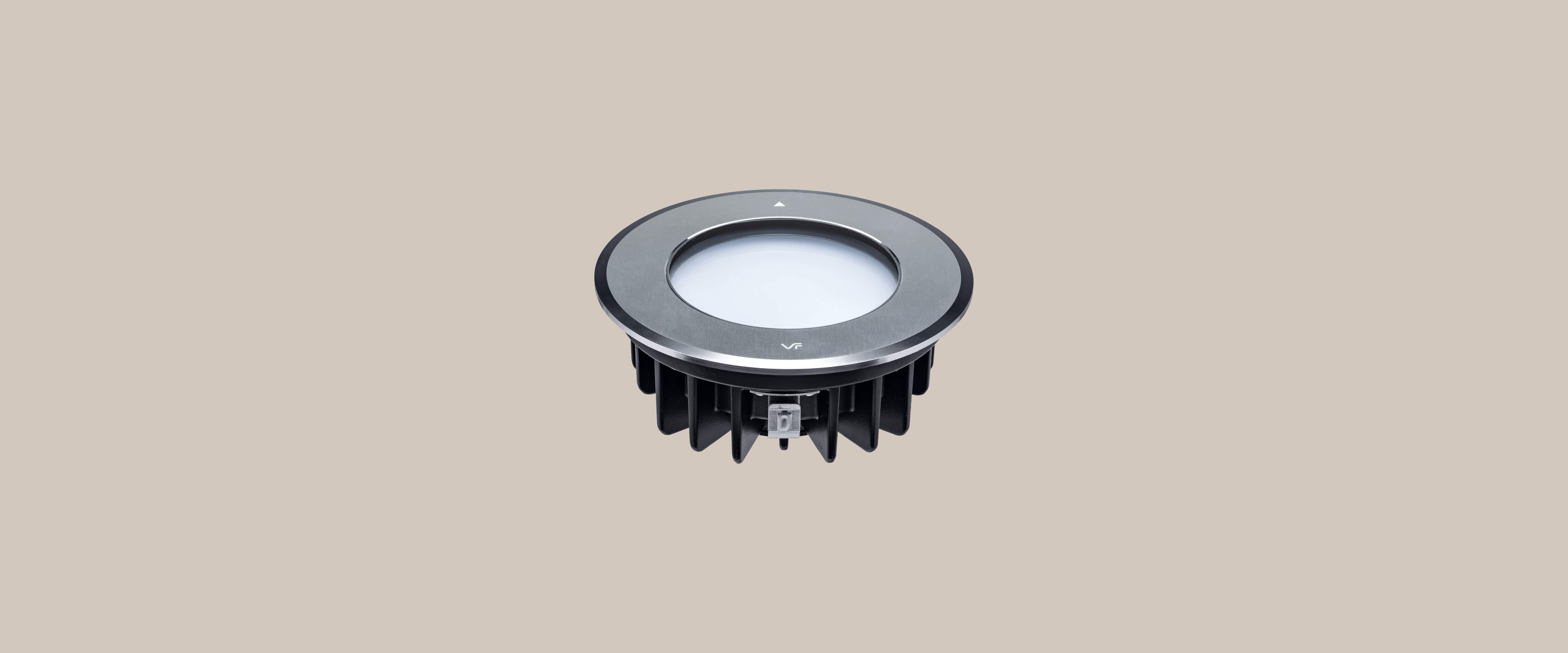

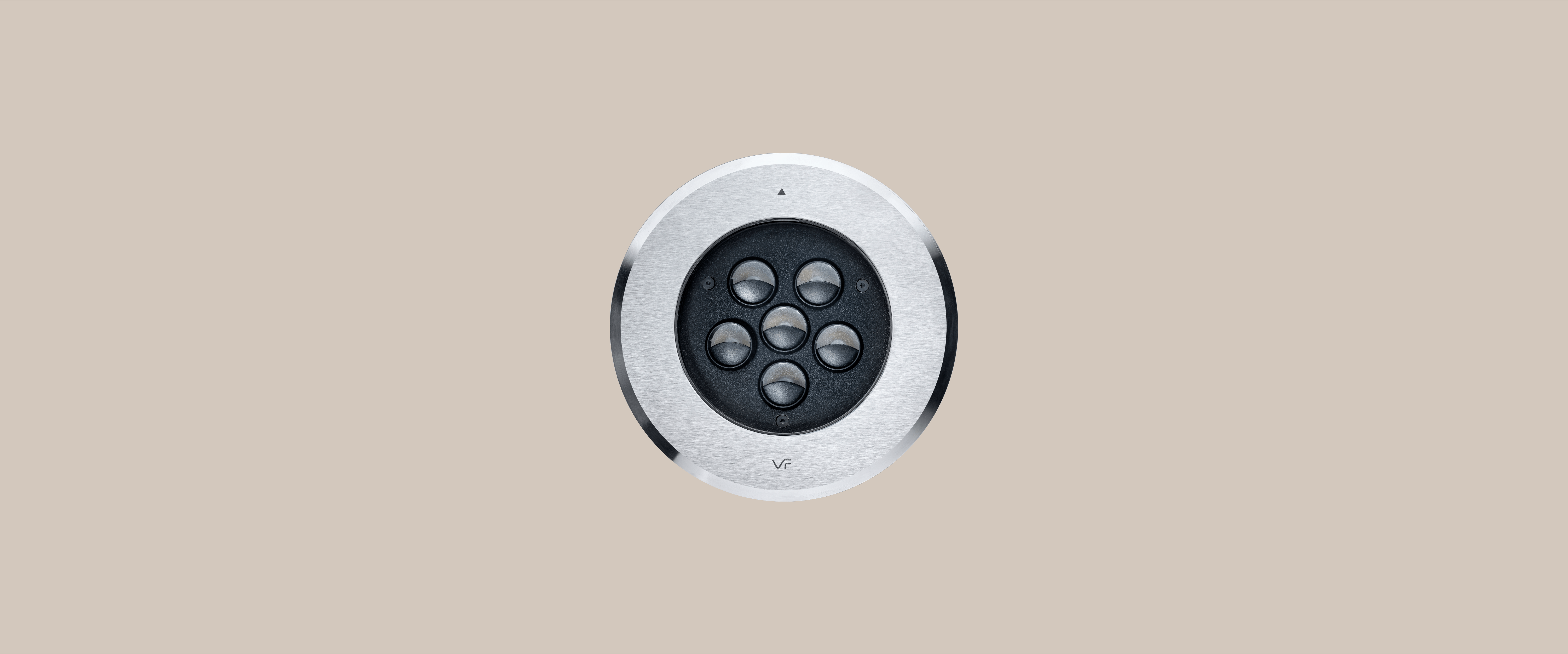

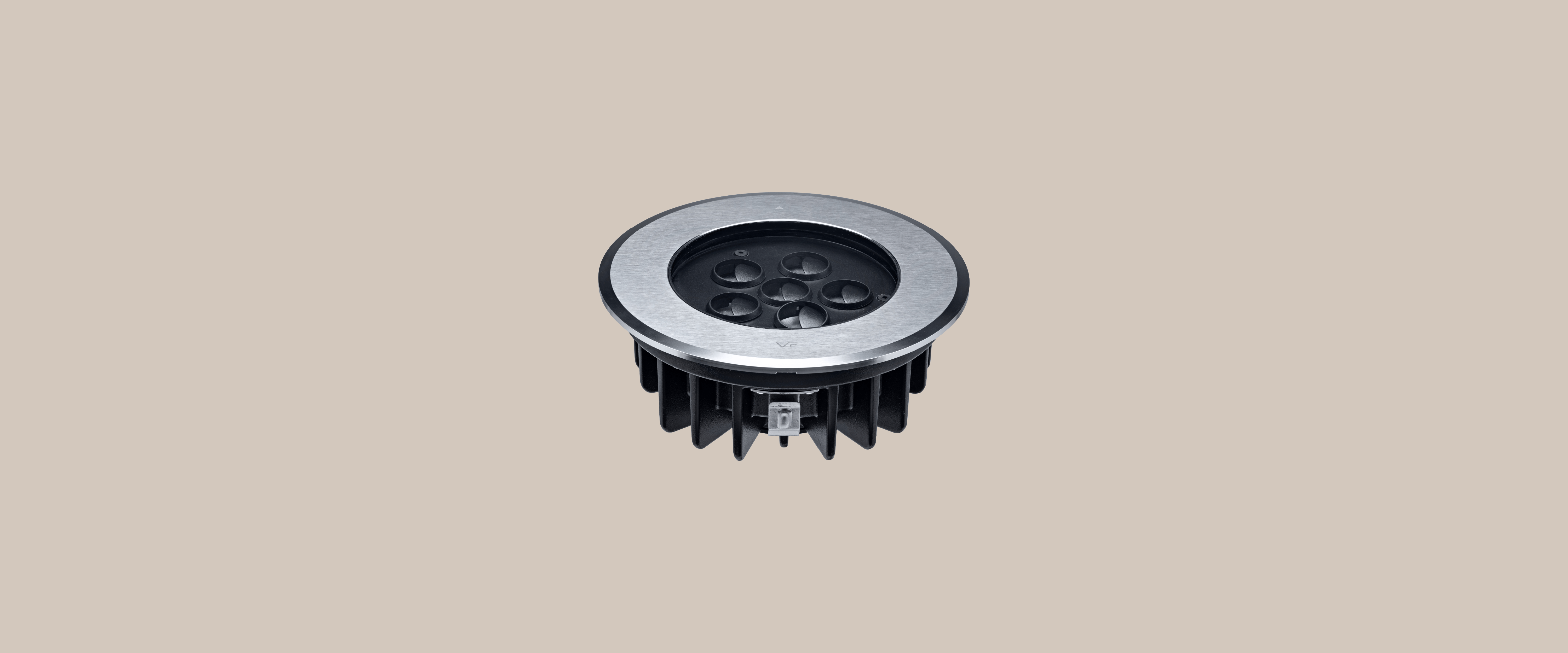

ASTA 155

In-ground Light

ASTA 155

In-ground Light

ASTA 155

In-ground Light

ASTA 155

In-ground Light

ASTA 155

In-ground Light

ASTA 155

In-ground Light

ASTA 155

In-ground Light

ASTA 155

In-ground Light

ASTA 155

In-ground Light

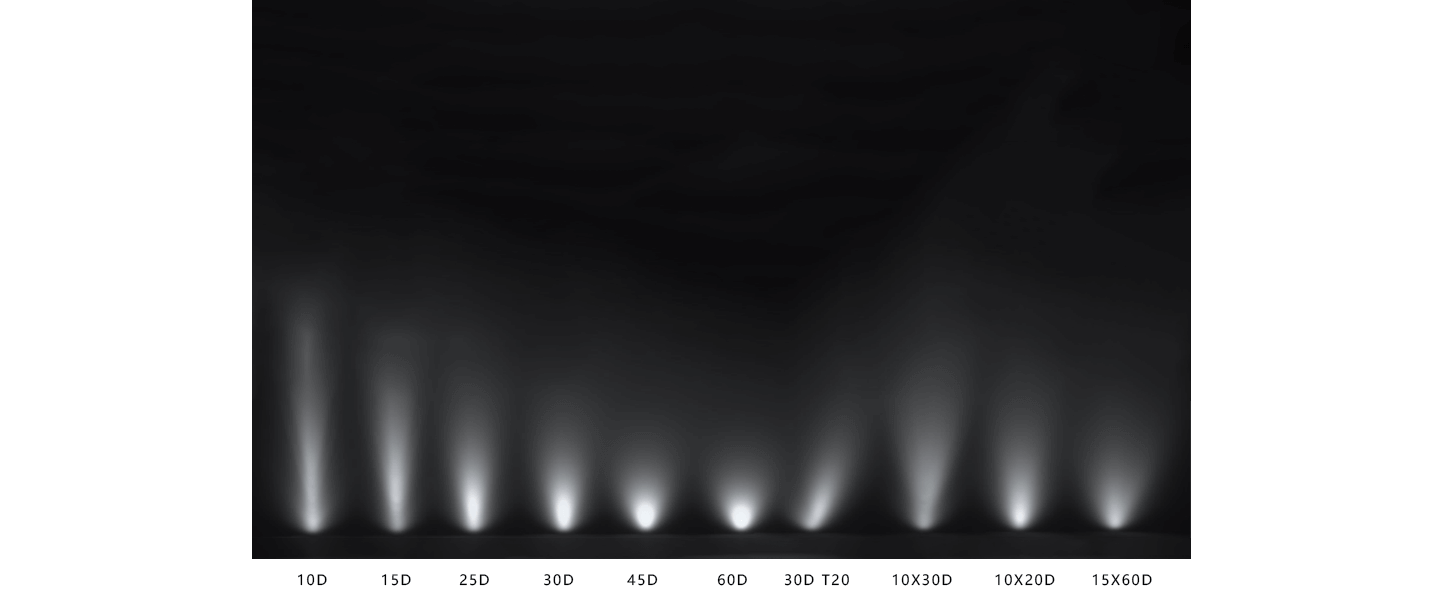

Lighting Effects

Products Specification:: Type: In-ground Light; Beam Angle:10D 15D 25D 30D 45D 60D 30D T20 10X30D 10X20D 15X60D; Power:14W; Dimension:φ 155*64 mm; Embedded Part Dimension:φ 148*62 mm φ 148*150 mm; Weight :1.51kg 1.71kg; CCT:2200K 2700K 3000K 4000K 5000K 5700K 6500K

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
14W
0.7W

Beam Angle

Beam Angle
20*50°
20*30°
10*30°
30° T20
60°
45°
30°
25°
15°
10°

CRI

CRI
>80

Color

Color
6500K
5700K
5000K
4000K
3000K
2700K

Control

Control
ON/OFF/DALI/DMX512

Model No
Luminous Flux (LM)
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
Favorite

Model No: B1-012014-02050865-X932-0X-X-XX; B1-012014-02030865-X932-0X-X-XX; B1-012014-01030865-X932-0X-X-XX; B1-012014-P0030865-X932-0X-X-XX; B1-012014-00060865-X932-0X-X-XX; B1-012014-00045865-X932-0X-X-XX; B1-012014-00030865-X932-0X-X-XX; B1-012014-00025865-X932-0X-X-XX; B1-012014-00015865-X932-0X-X-XX; B1-012014-00010865-X932-0X-X-XX; B1-012014-02050857-X932-0X-X-XX; B1-012014-02030857-X932-0X-X-XX; B1-012014-01030857-X932-0X-X-XX; B1-012014-P0030857-X932-0X-X-XX; B1-012014-00060857-X932-0X-X-XX; B1-012014-00045857-X932-0X-X-XX; B1-012014-00030857-X932-0X-X-XX; B1-012014-00025857-X932-0X-X-XX; B1-012014-00015857-X932-0X-X-XX; B1-012014-00010857-X932-0X-X-XX; B1-012014-02050850-X932-0X-X-XX; B1-012014-02030850-X932-0X-X-XX; B1-012014-01030850-X932-0X-X-XX; B1-012014-P0030850-X932-0X-X-XX; B1-012014-00060850-X932-0X-X-XX; B1-012014-00045850-X932-0X-X-XX; B1-012014-00030850-X932-0X-X-XX; B1-012014-00025850-X932-0X-X-XX; B1-012014-00015850-X932-0X-X-XX; B1-012014-00010850-X932-0X-X-XX; B1-012014-02050840-X932-0X-X-XX; B1-012014-02030840-X932-0X-X-XX; B1-012014-01030840-X932-0X-X-XX; B1-012014-P0030840-X932-0X-X-XX; B1-012014-00060840-X932-0X-X-XX; B1-012014-00045840-X932-0X-X-XX; B1-012014-00030840-X932-0X-X-XX; B1-012014-00025840-X932-0X-X-XX; B1-012014-00015840-X932-0X-X-XX; B1-012014-00010840-X932-0X-X-XX; B1-012014-02050830-X932-0X-X-XX; B1-012014-02030830-X932-0X-X-XX; B1-012014-01030830-X932-0X-X-XX; B1-012014-P0030830-X932-0X-X-XX; B1-012014-00060830-X932-0X-X-XX; B1-012014-00045830-X932-0X-X-XX; B1-012014-00030830-X932-0X-X-XX; B1-012014-00025830-X932-0X-X-XX; B1-012014-00015830-X932-0X-X-XX; B1-012014-00010830-X932-0X-X-XX; B1-012014-02050827-X932-0X-X-XX; B1-012014-02030827-X932-0X-X-XX; B1-012014-01030827-X932-0X-X-XX; B1-012014-P0030827-X932-0X-X-XX; B1-012014-00060827-X932-0X-X-XX; B1-012014-00045827-X932-0X-X-XX; B1-012014-00030827-X932-0X-X-XX; B1-012014-00025827-X932-0X-X-XX; B1-012014-00015827-X932-0X-X-XX; B1-012014-00010827-X932-0X-X-XX; B1-012004-00000865-X932-0X-X-XX; B1-012004-00000857-X932-0X-X-XX; B1-012004-00000850-X932-0X-X-XX; B1-012004-00000840-X932-0X-X-XX; B1-012004-00000830-X932-0X-X-XX; B1-012004-00000827-X932-0X-X-XX

Luminous Flux (LM): 672LM; 827LM; 911LM; 758LM; 732LM; 838LM; 893LM; 907LM; 973LM; 875LM; 672LM; 827LM; 911LM; 758LM; 732LM; 838LM; 893LM; 907LM; 973LM; 875LM; 672LM; 827LM; 911LM; 758LM; 732LM; 838LM; 893LM; 907LM; 973LM; 875LM; 672LM; 827LM; 911LM; 758LM; 732LM; 838LM; 893LM; 907LM; 973LM; 875LM; 592LM; 694LM; 827LM; 654LM; 611LM; 703LM; 798LM; 796LM; 859LM; 619LM; 574LM; 673LM; 802LM; 634LM; 593LM; 682LM; 774LM; 772LM; 833LM; 600LM; 22.8LM; 22.8LM; 24LM; 24LM; 22.8LM; 22.1LM

Power (W): 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 14W; 0.7W; 0.7W; 0.7W; 0.7W; 0.7W; 0.7W

Beam Angle: 20*50°; 20*30°; 10*30°; 30° T20; 60°; 45°; 30°; 25°; 15°; 10°; 20*50°; 20*30°; 10*30°; 30° T20; 60°; 45°; 30°; 25°; 15°; 10°; 20*50°; 20*30°; 10*30°; 30° T20; 60°; 45°; 30°; 25°; 15°; 10°; 20*50°; 20*30°; 10*30°; 30° T20; 60°; 45°; 30°; 25°; 15°; 10°; 20*50°; 20*30°; 10*30°; 30° T20; 60°; 45°; 30°; 25°; 15°; 10°; 20*50°; 20*30°; 10*30°; 30° T20; 60°; 45°; 30°; 25°; 15°; 10°; Plane Emitting; Plane Emitting; Plane Emitting; Plane Emitting; Plane Emitting; Plane Emitting

CRI: >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80; >80

Color: 6500K; 6500K; 6500K; 6500K; 6500K; 6500K; 6500K; 6500K; 6500K; 6500K; 5700K; 5700K; 5700K; 5700K; 5700K; 5700K; 5700K; 5700K; 5700K; 5700K; 5000K; 5000K; 5000K; 5000K; 5000K; 5000K; 5000K; 5000K; 5000K; 5000K; 4000K; 4000K; 4000K; 4000K; 4000K; 4000K; 4000K; 4000K; 4000K; 4000K; 3000K; 3000K; 3000K; 3000K; 3000K; 3000K; 3000K; 3000K; 3000K; 3000K; 2700K; 2700K; 2700K; 2700K; 2700K; 2700K; 2700K; 2700K; 2700K; 2700K; 6500K; 5700K; 5000K; 4000K; 3000K; 2700K

Control: ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512; ON/OFF/DALI/DMX512

Specification

IES

Favorite

Application

Related Products

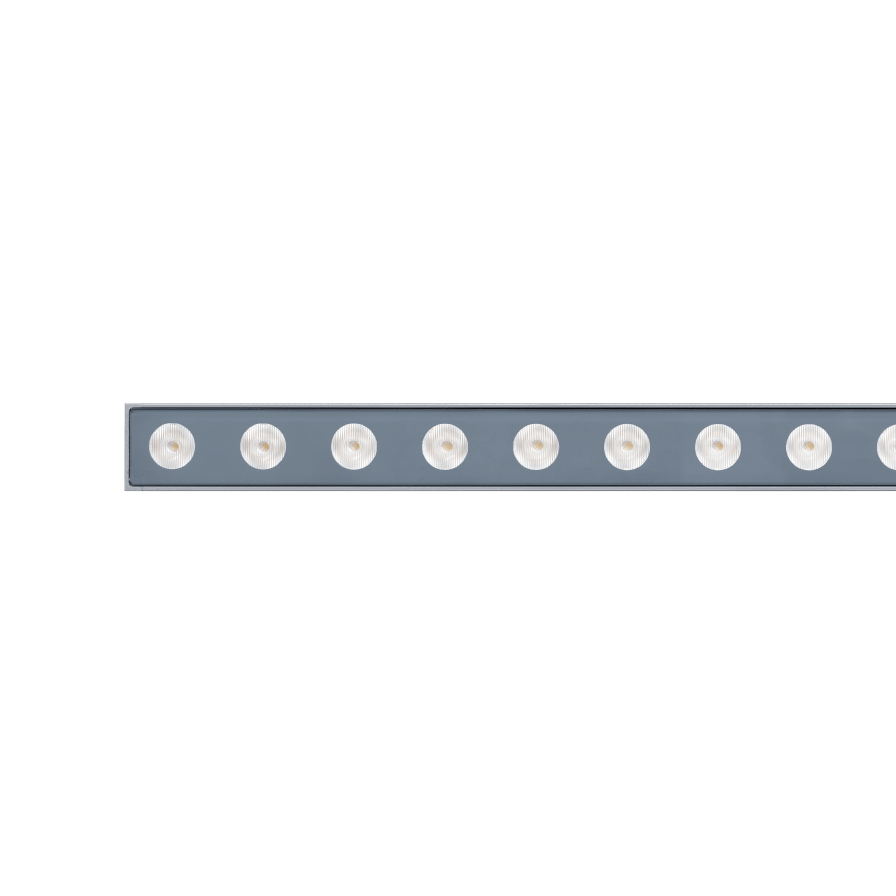

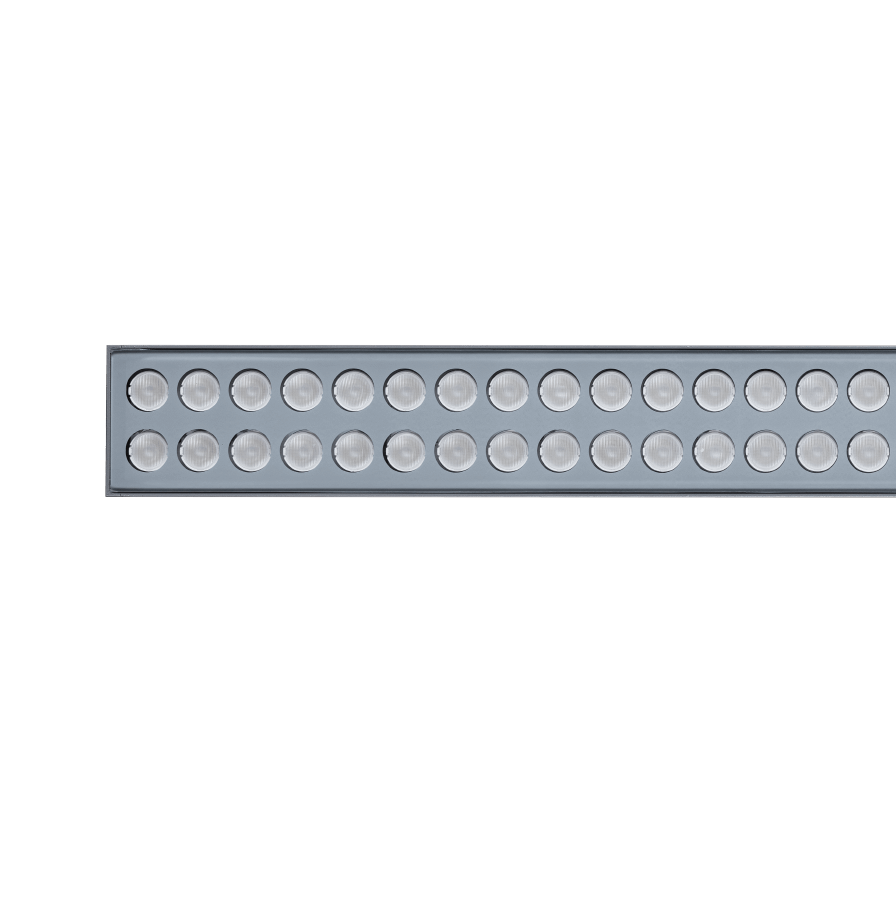

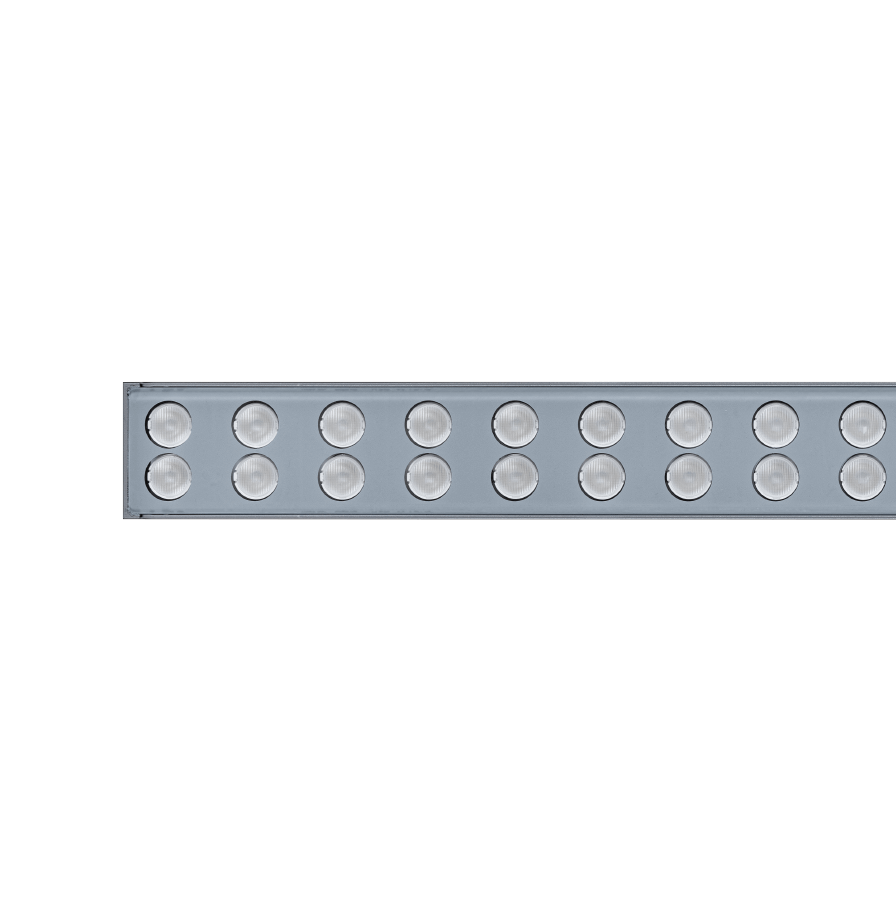

Linear In-ground Light
