GLEAM 50

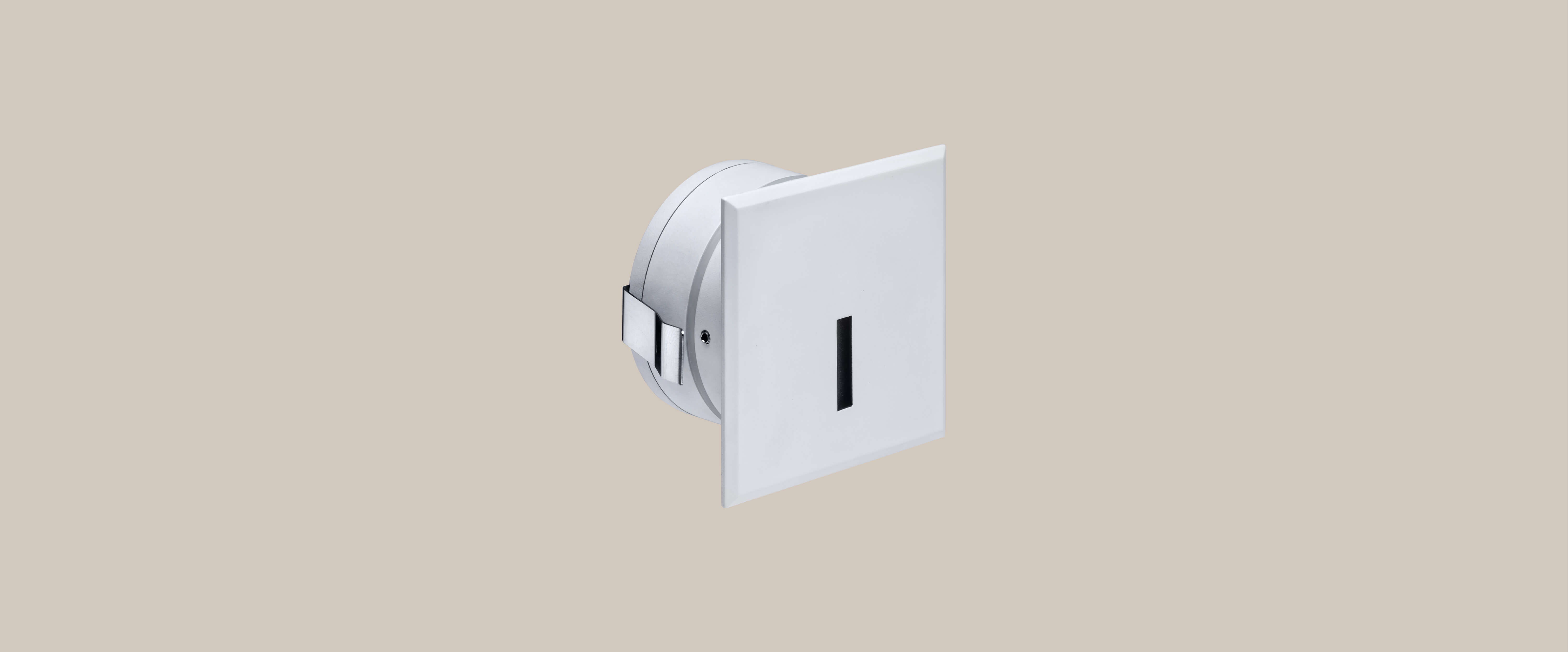

Recessed slot hole Foot Light

GLEAM 50

Gleams of light at night.

Five types of light hole design with replaceable square /round cap make creative light shape and uniform light effect. Small and elegant,hidden light point,integrated with building. Integrated low voltage photovoltaic modules supplied power easily. It is safty for using in wet areas.

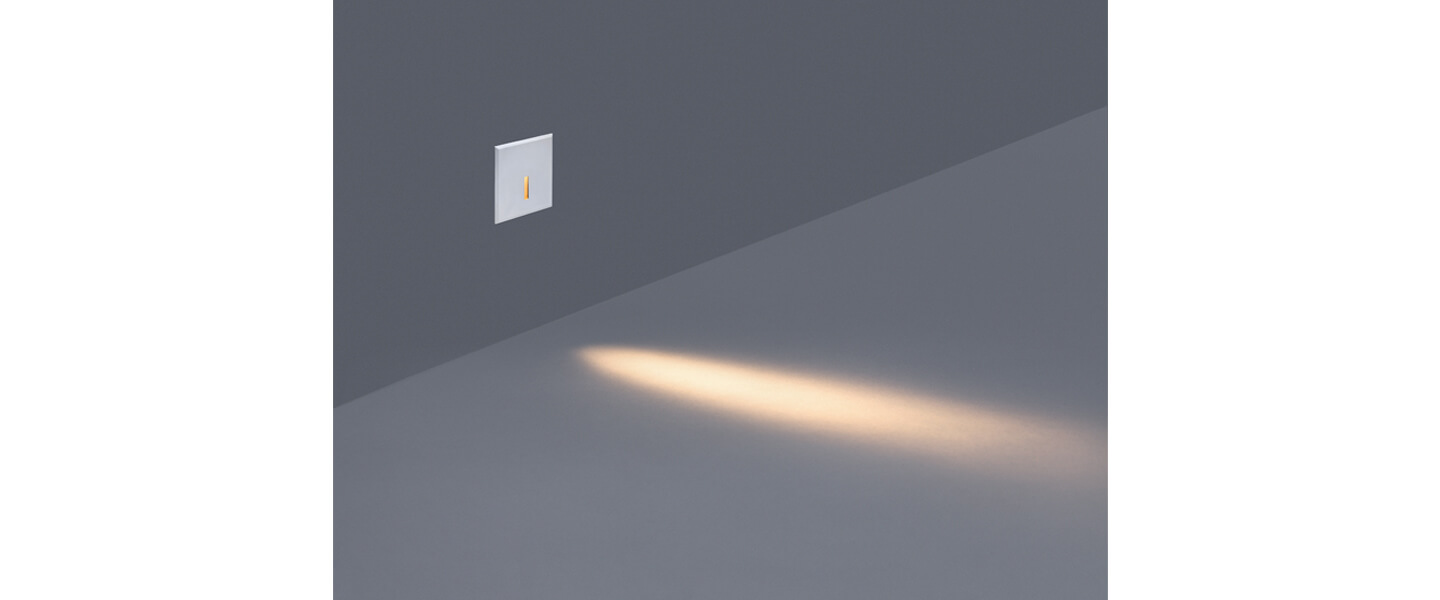

Lighting Effects

Products Specification:
Type:Recessed slot hole Foot Light
Cut-Out:ø 50 mm
Power:1W 3W
CCT:2700K 3000K 4000K
Weight:0.08kg
Heat-Sink:Die-casting Aluminum
Surface-Treatment:Plating
Remarks:ø55 mm for fixture with embedded parts

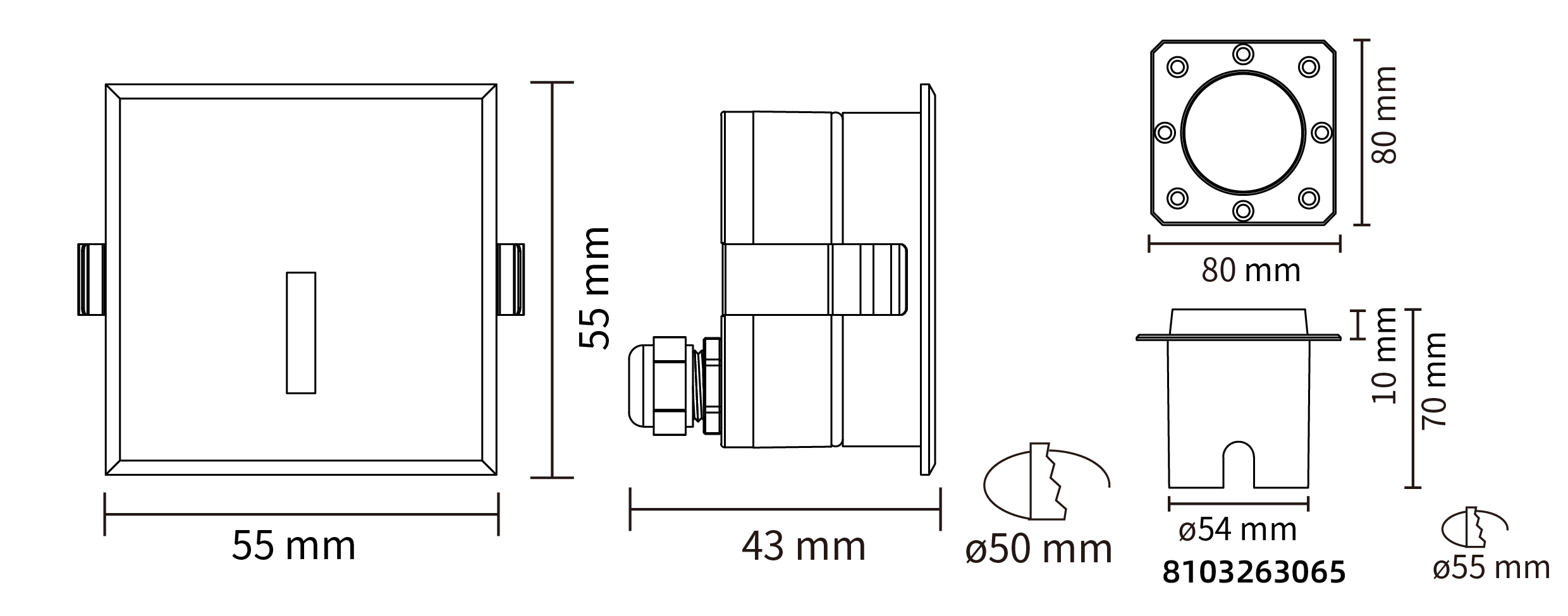

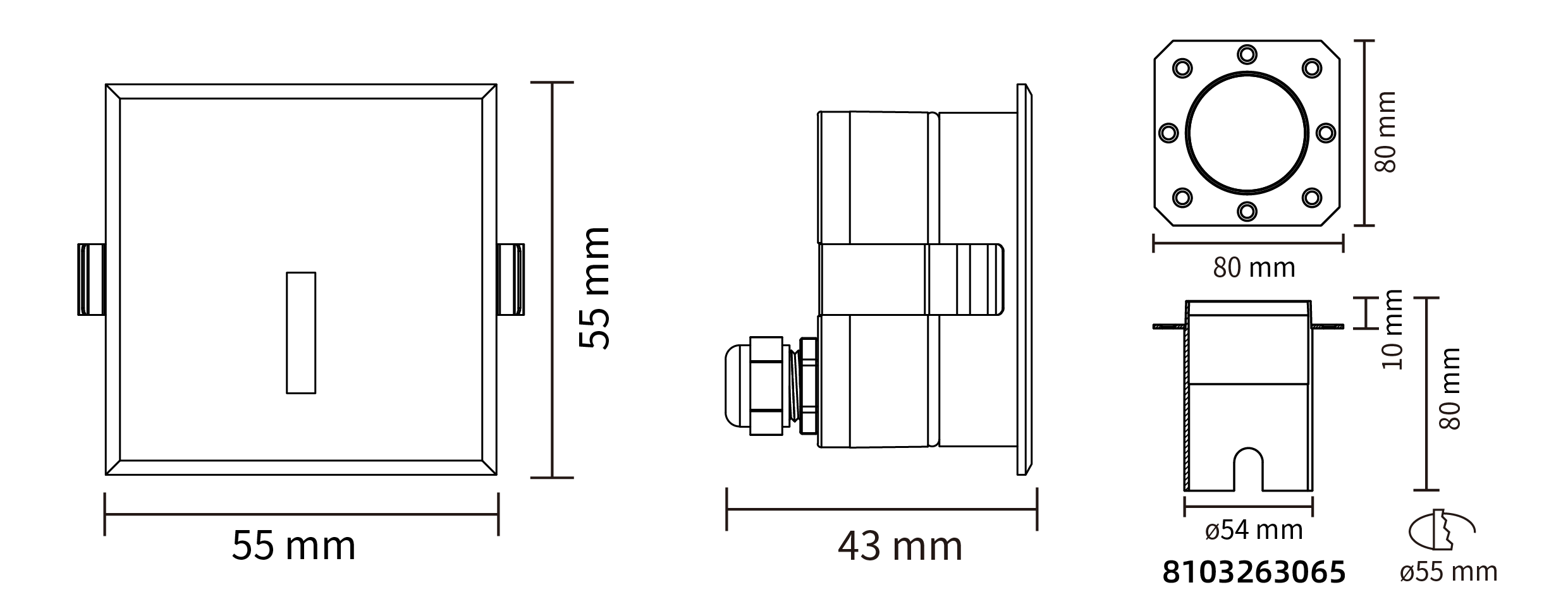

Line Drawing:
General Features:

Accessories:
Reflector Color:
Frame Color:

Select your Model No:

Power(W)
  • Power(W)
  • 1 W
  • 3 W
Beam Angle
  • Beam Angle
  • 18X45°
CRI
  • CRI
  • Ra>80
Color
  • Color
  • 2700 K
  • 3000 K
  • 4000 K
Control
  • Control
Dimming type
  • Dimming type
  • 1-Non Dim
Finish
  • Finish
  • 92-Outdoor white
  • 93-Outdoor black
  • 94-Outdoor grey
Reflector
  • Reflector
  • nothing
IP Rating
  • IP Rating
  • 65-IP65
Accessory
  • Accessory
  • nothing
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Control

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No

DR00601-01XX8027

DR00601-01XX8030

DR00601-01XX8040

DR00601-03XX8027

DR00601-03XX8030

DR00601-03XX8040

Luminous Flux (LM)

1LM

1LM

1LM

2LM

2LM

2LM

Power (W)

1 W

1 W

1 W

3 W

3 W

3 W

Beam Angle

18X45°

18X45°

18X45°

18X45°

18X45°

18X45°

CRI

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Color

2700 K

3000 K

4000 K

2700 K

3000 K

4000 K

Control

Specification
IES
DWG
manual
Favorite

Application
