Home Products Outdoor POYO 80 - Surface-mounted Downlight

POYO 80

Surface-mounted Downlight

POYO 80

Looking forward to being shining, like the jade is waiting for carving.

POYO 80

Looking forward to being shining, like the jade is waiting for carving.

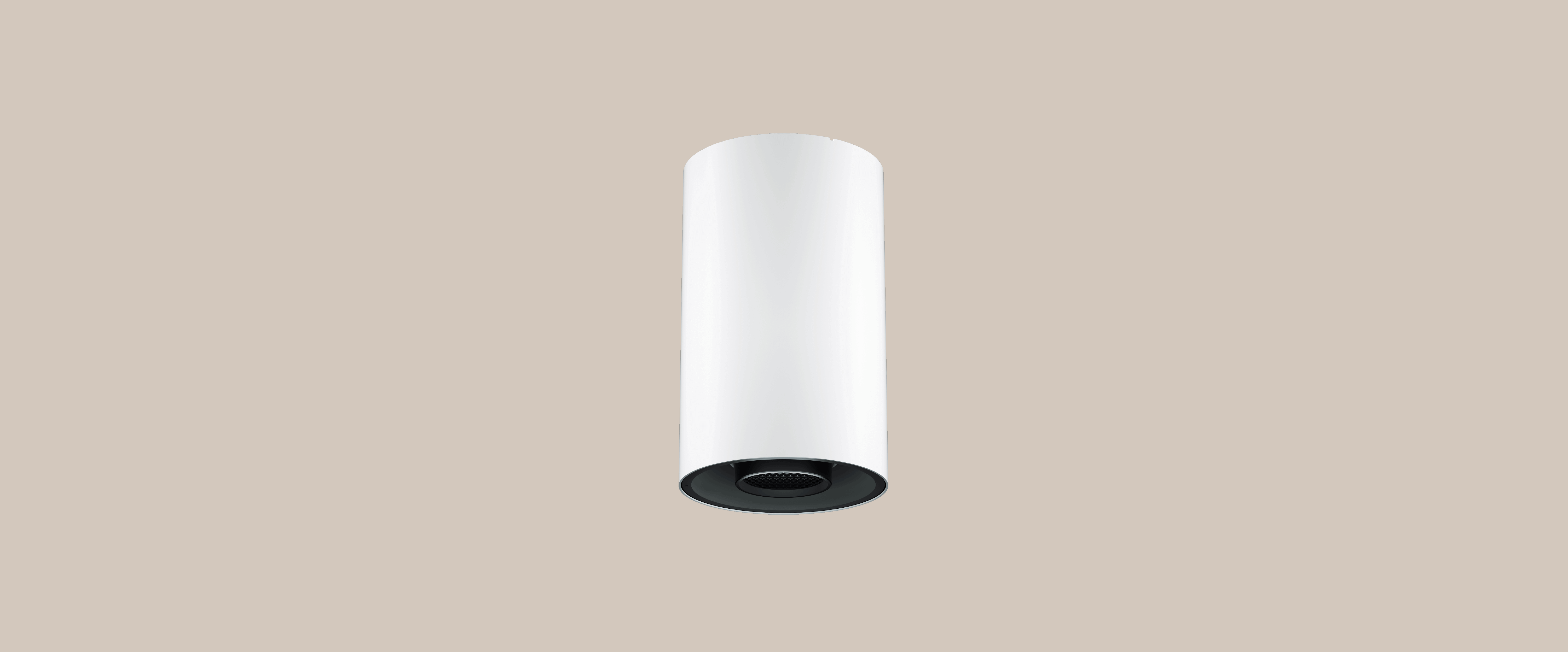

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of

350 degrees and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

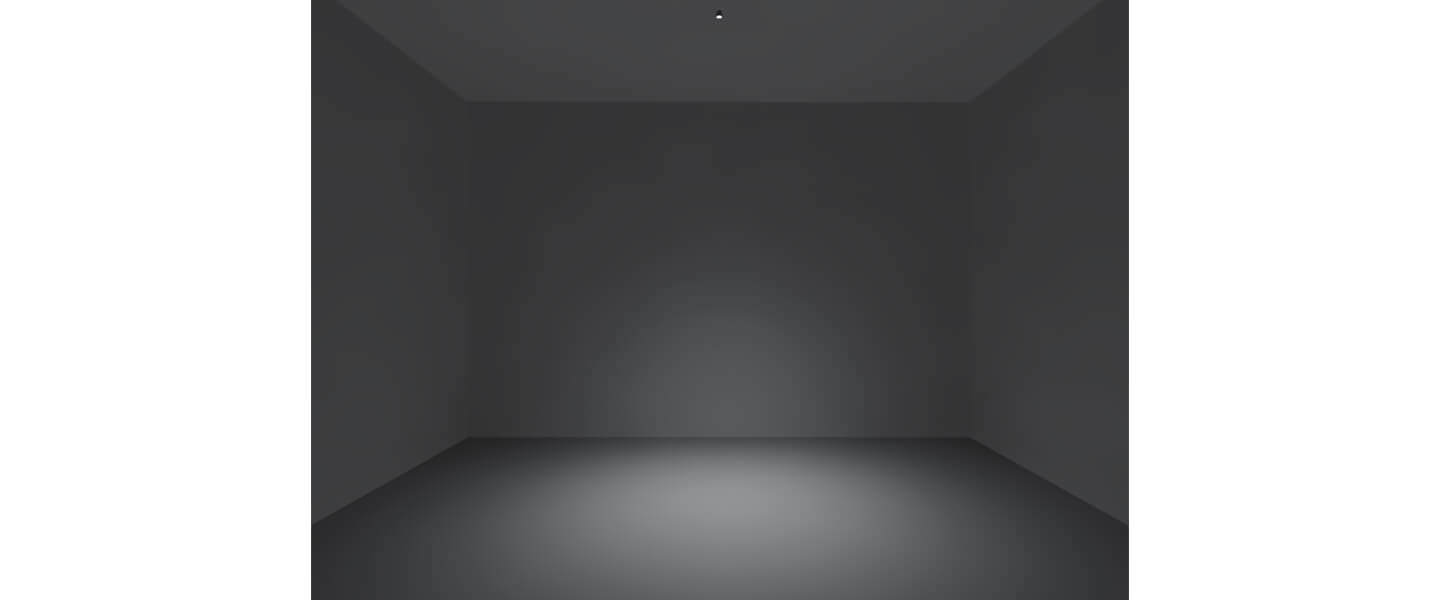

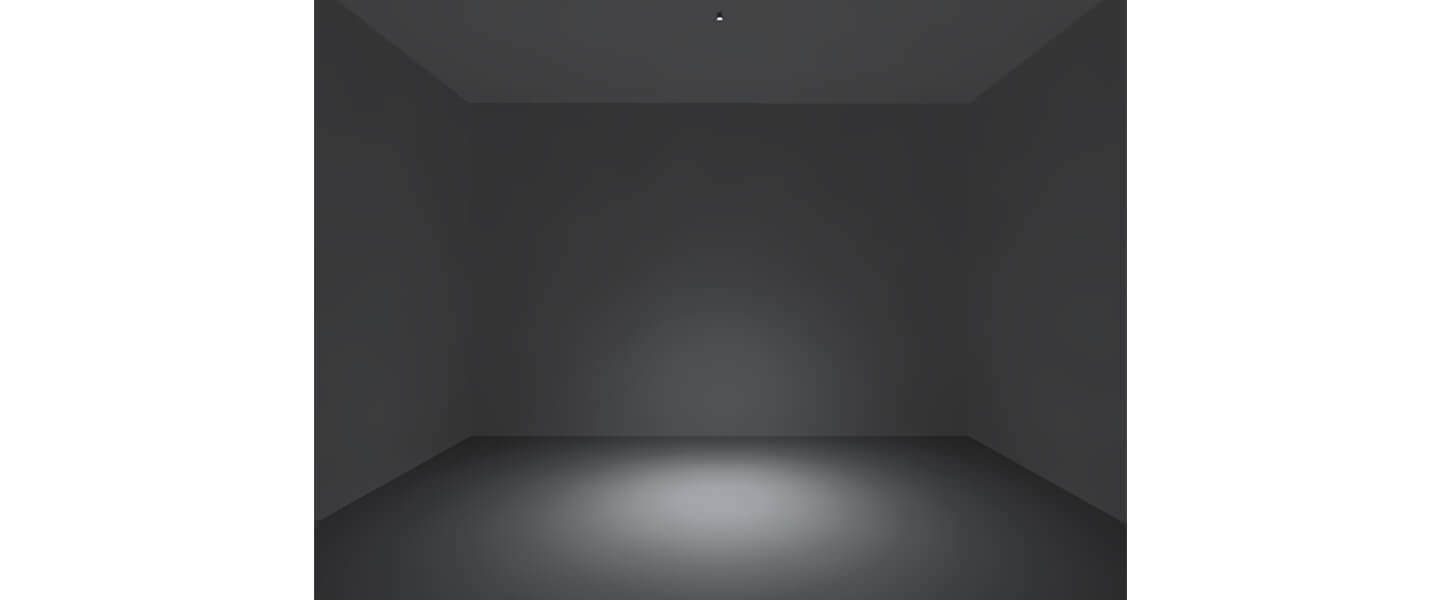

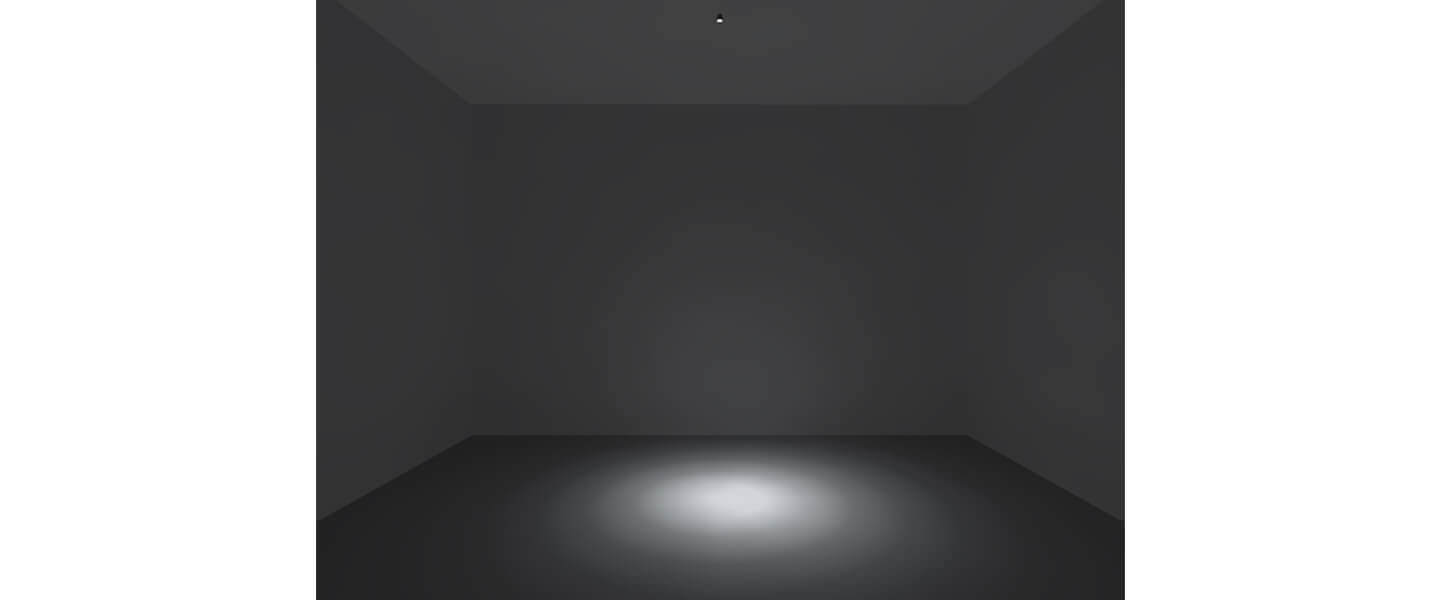

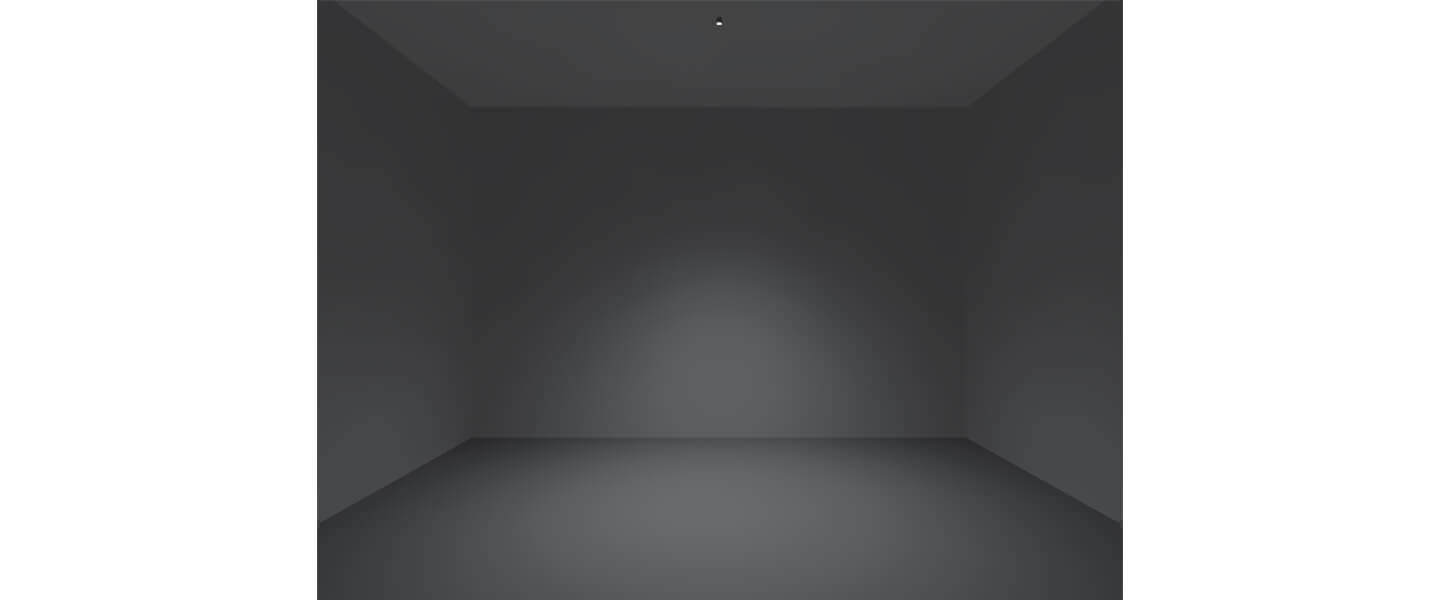

Lighting Effects

Products Specification:: Type:Surface-mounted Downlight; Beam Angle:15D 25D 37D 58D; Power:5W 8W 10W 15W; CCT:2700K 3000K 4000K; Weight:0.85kg; Heat-Sink:Aluminum; Surface-Treatment:painting+plating

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
5W
8W
10W
15W

Beam Angle

Beam Angle
15°
27°
37°
58°

CRI

CRI
Ra>80

Color

Color
2700K
3000K
4000K

Control

Control

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
92-Outdoor white
94-Outdoor grey

Reflector

Reflector
2-Black

IP Rating

IP Rating
65-IP65

Accessory

Accessory
1-Honeycomb louver
3-Cross louver
6-Soft lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite

Model No: 85141B1-05158027; 85141B1-05158030; 85141B1-05158040; 85141B1-05278027; 85141B1-05278030; 85141B1-05278040; 85141B1-05378027; 85141B1-05378030; 85141B1-05378040; 85141B1-05588027; 85141B1-05588030; 85141B1-05588040; 85141B1-08158027; 85141B1-08158030; 85141B1-08158040; 85141B1-08278027; 85141B1-08278030; 85141B1-08278040; 85141B1-08378027; 85141B1-08378030; 85141B1-08378040; 85141B1-08588027; 85141B1-08588030; 85141B1-08588040; 85141B1-10158027; 85141B1-10158030; 85141B1-10158040; 85141B1-10278027; 85141B1-10278030; 85141B1-10278040; 85141B1-10378027; 85141B1-10378030; 85141B1-10378040; 85141B1-10588027; 85141B1-10588030; 85141B1-10588040; 85141B1-15278027; 85141B1-15278030; 85141B1-15278040; 85141B1-15378027; 85141B1-15378030; 85141B1-15378040; 85141B1-15588027; 85141B1-15588030; 85141B1-15588040

Luminous Flux (LM): 363LM; 382LM; 390LM; 348LM; 366LM; 381LM; 373LM; 393LM; 405LM; 338LM; 356LM; 372LM; 574LM; 604LM; 608LM; 551LM; 580LM; 604LM; 590LM; 621LM; 642LM; 534LM; 562LM; 589LM; 708LM; 745LM; 738LM; 707LM; 744LM; 772LM; 752LM; 792LM; 825LM; 683LM; 719LM; 752LM; 981LM; 1032LM; 1062LM; 1103LM; 1162LM; 1130LM; 964LM; 1014LM; 1028LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W

Beam Angle: 15°; 15°; 15°; 27°; 27°; 27°; 37°; 37°; 37°; 58°; 58°; 58°; 15°; 15°; 15°; 27°; 27°; 27°; 37°; 37°; 37°; 58°; 58°; 58°; 15°; 15°; 15°; 27°; 27°; 27°; 37°; 37°; 37°; 58°; 58°; 58°; 27°; 27°; 27°; 37°; 37°; 37°; 58°; 58°; 58°

CRI: Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
