KLEE 36
Suspended Up & Down Linear Light-Dual-Color Extruded Prismatic Cover
KLEE 36
Lighting Effects
- Products Specification:
- Type:Suspended Up & Down Linear Light-Dual-Color Extruded Prismatic Cover
- Beam Angle:UP/DOWN 100x50D/90D
- Power:45W 68W 90W
- CCT:3000K 3500K 4000K
- Weight:2.38kg
- Heat-Sink:Aluminum
- Surface-Treatment:Painting/Powder coating

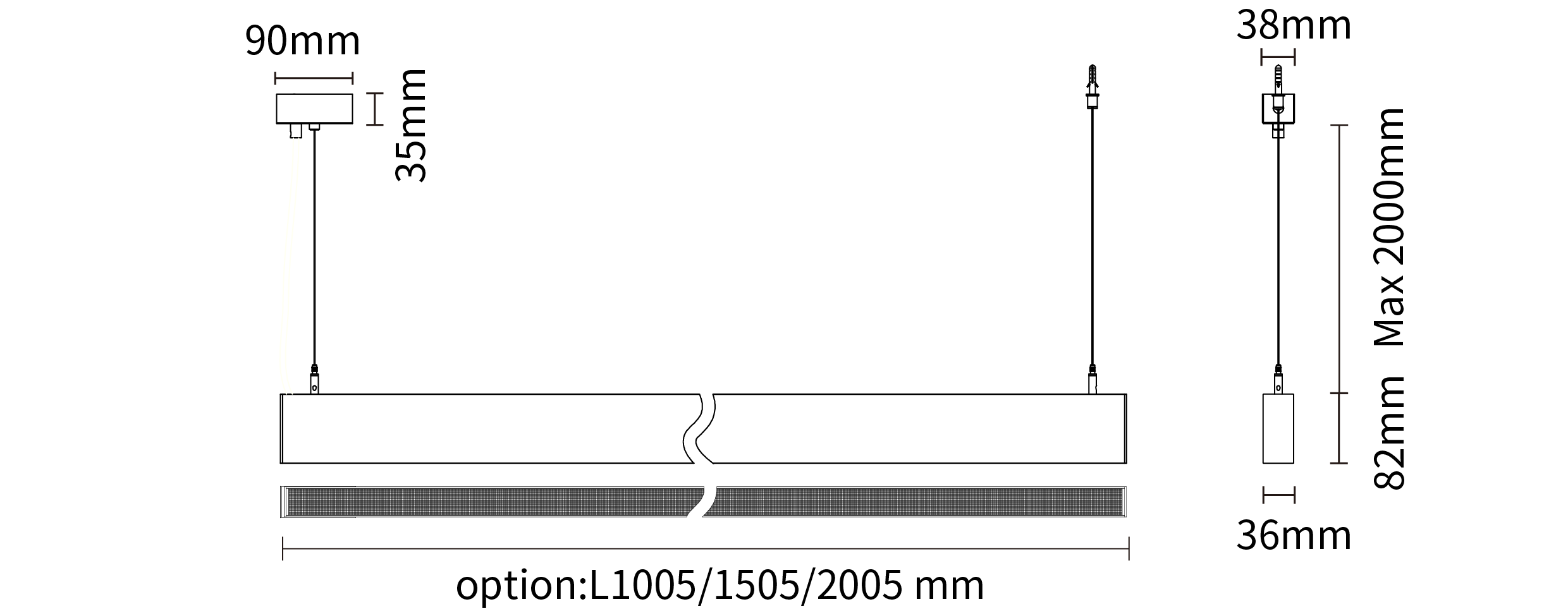

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 15 W /30 W
- 23 W/45 W
- 30 W /15 W
- 30 W/60 W
- 45 W/23 W
- 60 W/30 W
- Beam Angle
- 100x150°/90°
- CRI
- Ra>90
- Color
- 3000K
- 3500K
- 4000K
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- 01-White
- 02-Black
- 03-Grey
- Reflector
- N/A
- IP Rating
- 20-IP20
- Accessory
- Dual-Color Extruded Prismatic Cover
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
LP00116-45B19030-1M
LP00116-45B19035-1M
LP00116-45B19040-1M
LP00116-45B29030-1M
LP00116-45B29035-1M
LP00116-45B29040-1M
LP00116-68B19030-1.5M
LP00116-68B19035-1.5M
LP00116-68B19040-1.5M
LP00116-68B29030-1.5M
LP00116-68B29035-1.5M
LP00116-68B29040-1.5M
LP00116-90B19030-2M
LP00116-90B19035-2M
LP00116-90B19040-2M
LP00116-90B29030-2M
LP00116-90B29035-2M
LP00116-90B29040-2M
- Luminous Flux (LM)
UP/DOWN 3051LM/1281LM
UP/DOWN 3115LM/1307LM
UP/DOWN 3212LM/1348LM
UP/DOWN 1568LM/2424LM
UP/DOWN 1601LM/2475LM
UP/DOWN 1650LM/2552LM
UP/DOWN 4348LM/1921LM
UP/DOWN 4577LM/1961LM
UP/DOWN 4818LM/2022LM
UP/DOWN 2234LM/3636LM
UP/DOWN 2352LM/3712LM
UP/DOWN 2475LM/3827LM
UP/DOWN 5797LM/2561LM
UP/DOWN 6102LM/2615LM
UP/DOWN 6424LM/2696LM
UP/DOWN 2979LM/4848LM
UP/DOWN 3135LM/4950LM
UP/DOWN 3300LM/5103LM
- Power (W)
30 W /15 W
30 W /15 W
30 W /15 W
15 W /30 W
15 W /30 W
15 W /30 W
45 W/23 W
45 W/23 W
45 W/23 W
23 W/45 W
23 W/45 W
23 W/45 W
60 W/30 W
60 W/30 W
60 W/30 W
30 W/60 W
30 W/60 W
30 W/60 W
- Beam Angle
100x150°/90°
100x150°/90°
100x150°/90°
100x150°/90°
100x150°/90°
100x150°/90°
100x150°/90°
100x150°/90°
100x150°/90°
100x150°/90°
100x150°/90°
100x150°/90°
100x150°/90°
100x150°/90°
100x150°/90°
100x150°/90°
100x150°/90°
100x150°/90°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
3000K
3500K
4000K
3000K
3500K
4000K
3000K
3500K
4000K
3000K
3500K
4000K
3000K
3500K
4000K
3000K
3500K
4000K
- Specification
- IES
- DWG
- manual
- Favorite
