LINA-H 4030
Suspended Up & Down Linear Light-Prismatic Cover
LINA-H 4030
Suspended Up & Down
Lighting Effects
- Products Specification:
- Type:Suspended Up & Down Linear Light-Transparent cover
- Beam Angle:100D 110D
- Power:30W 45W 60W
- CCT:3000K 3500K 4000K
- Weight:1.73kg
- Heat-Sink:Aluminum
- Surface-Treatment:Painting/Powder coating

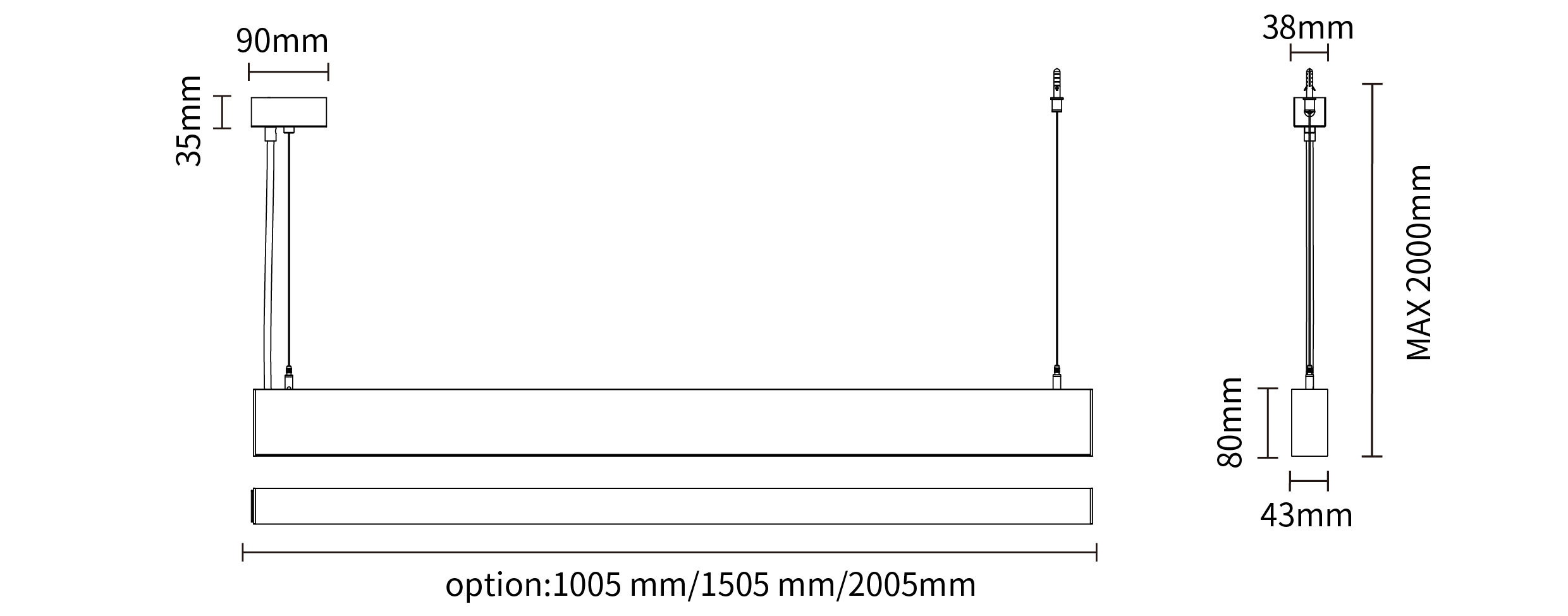

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 20W /10W / 1M
- 30W /15W / 1.5M
- 40W /20W / 2M
- Beam Angle
- 100°/110°
- CRI
- Ra>90
- Color
- 3000K
- 3500K
- 4000K
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- White
- Black
- Grey
- Reflector
- N/A
- IP Rating
- 20-IP20
- Accessory
- Prismatic cover
- Frosted stripe cover
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
LP01005-30B39030-1M
LP01005-30B39035-1M
LP01005-30B39040-1M
LP01005-45B39030-1.5M
LP01005-45B39035-1.5M
LP01005-450B39040-1.5M
LP01005-60B39030-2M
LP01005-60B39035-2M
LP01005-60B39040-2M
- Luminous Flux (LM)
UP/DOWN 2055LM/1113LM
UP/DOWN 2169LM/1175LM
UP/DOWN 2283LM/1237LM
UP/DOWN 3380LM/1922LM
UP/DOWN 3211LM/1826LM
UP/DOWN 3050LM/1735LM
UP/DOWN 4542LM/2467LM
UP/DOWN 4315LM/2344LM
UP/DOWN 4099LM/2227LM
- Power (W)
20W /10W / 1M
20W /10W / 1M
20W /10W / 1M
30W /15W / 1.5M
30W /15W / 1.5M
30W /15W / 1.5M
40W /20W / 2M
40W /20W / 2M
40W /20W / 2M
- Beam Angle
100°/110°
100°/110°
100°/110°
100°/110°
100°/110°
100°/110°
100°/110°
100°/110°
100°/110°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
3000K
3500K
4000K
4000K
3500K
3000K
4000K
3500K
3000K
