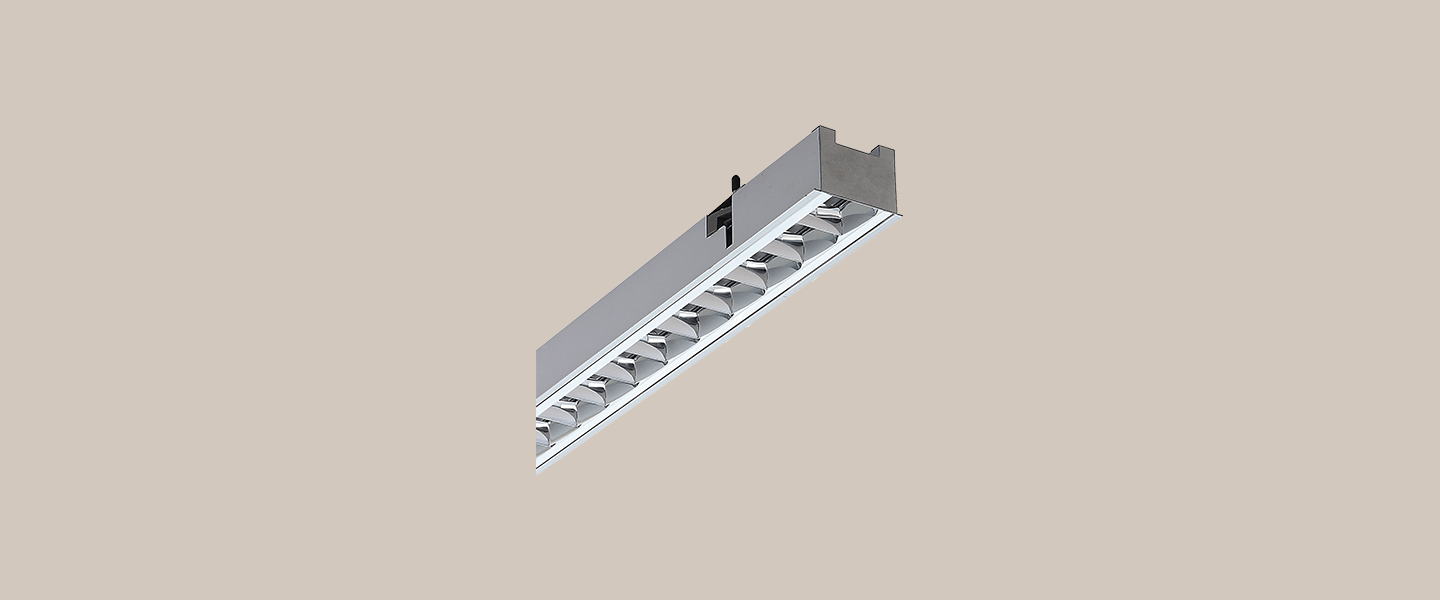

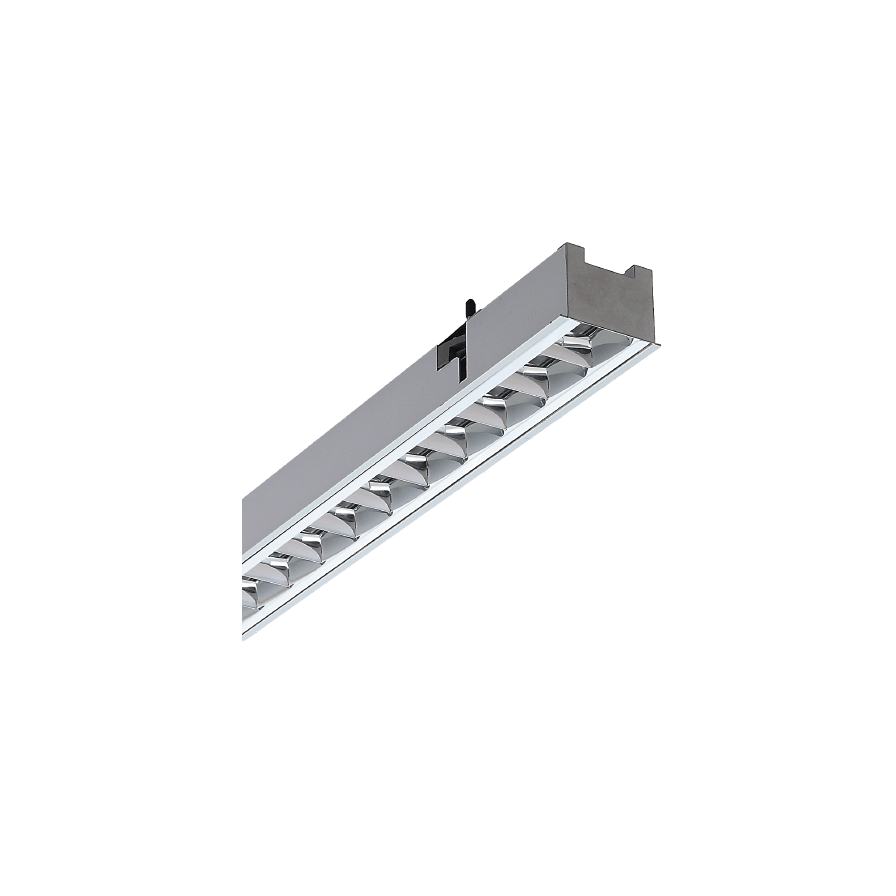

MIZAR 997

High Power LED Recessed Linear Light

MIZAR 997

High Power LED Recessed Linear Light

As the first linear lighting product in the true sense, MIZAR can help designers to achieve a variety of lighting effects in a single building with a same lamp appearance, so as to ensure the overall harmony of construction and decoration, to embody their "mix" and "proper". The functional realizing is come from its rich grading angle: 23° , 33° , 37° , 43 ° , 48 ° , 24*40 ° , 27*43 ° , 15*46 ° , then to couple with the way of installing of lamps: recessed mounted, surface mounted. It ensures that this series can be used for wall reflected glare lighting, wall washer lighting, accent lighting and basic lighting in various space environments.

Upholding VISUAI FEAST lighting idea, VISUAI COMFORT is one of important part and also the most significant lighting experience brought by MIZAR series to customer. With its unique dim light reflector technology, the UGR of this series lamp can be effectively controlled within 16, and it even can bring better visual experience to customer if cooperated with LED light source of high indication (RA90).

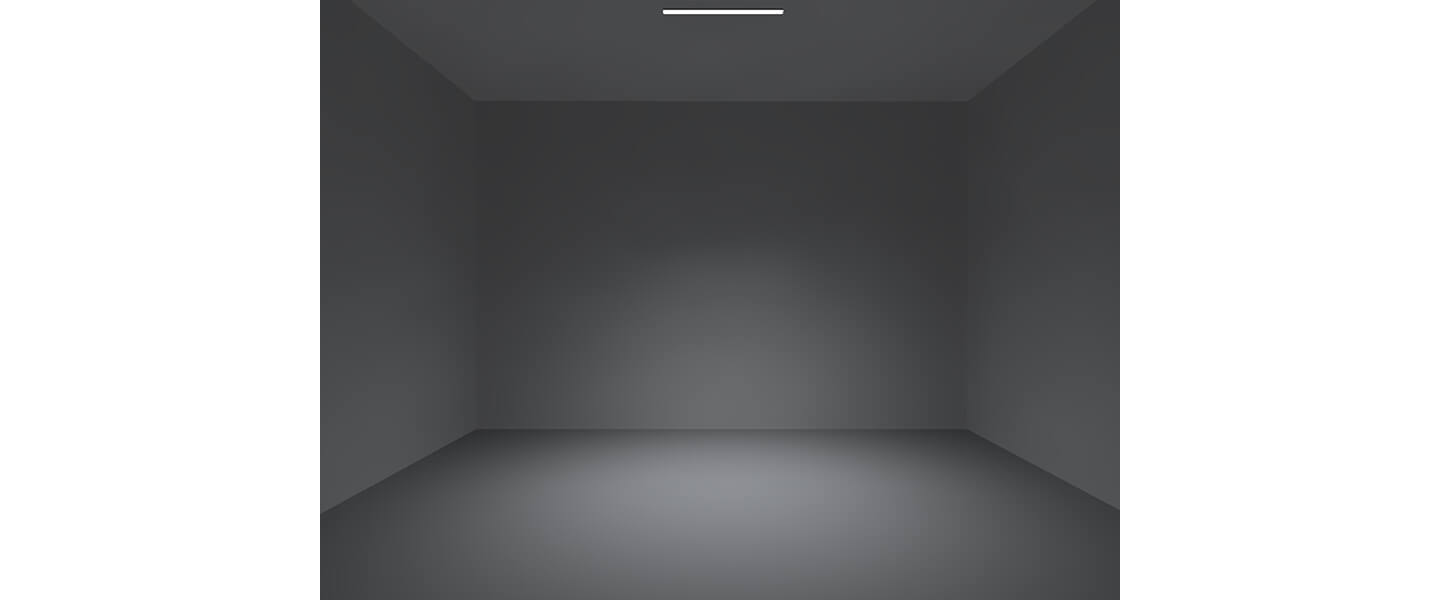

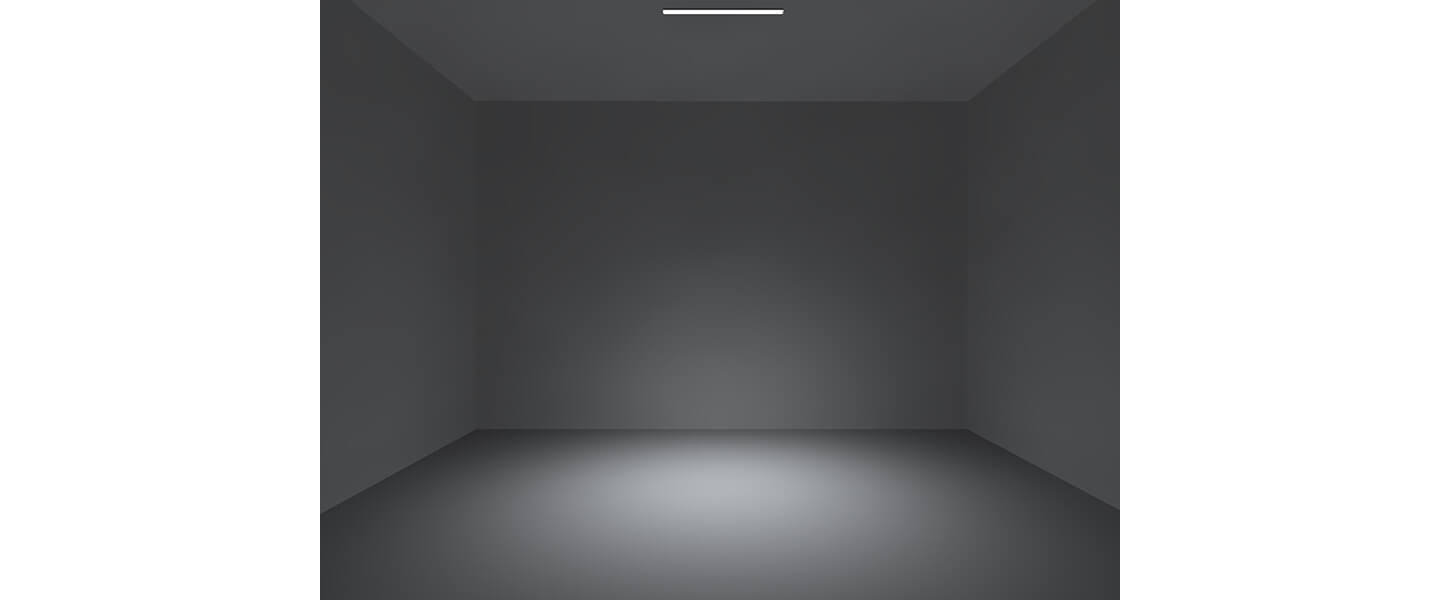

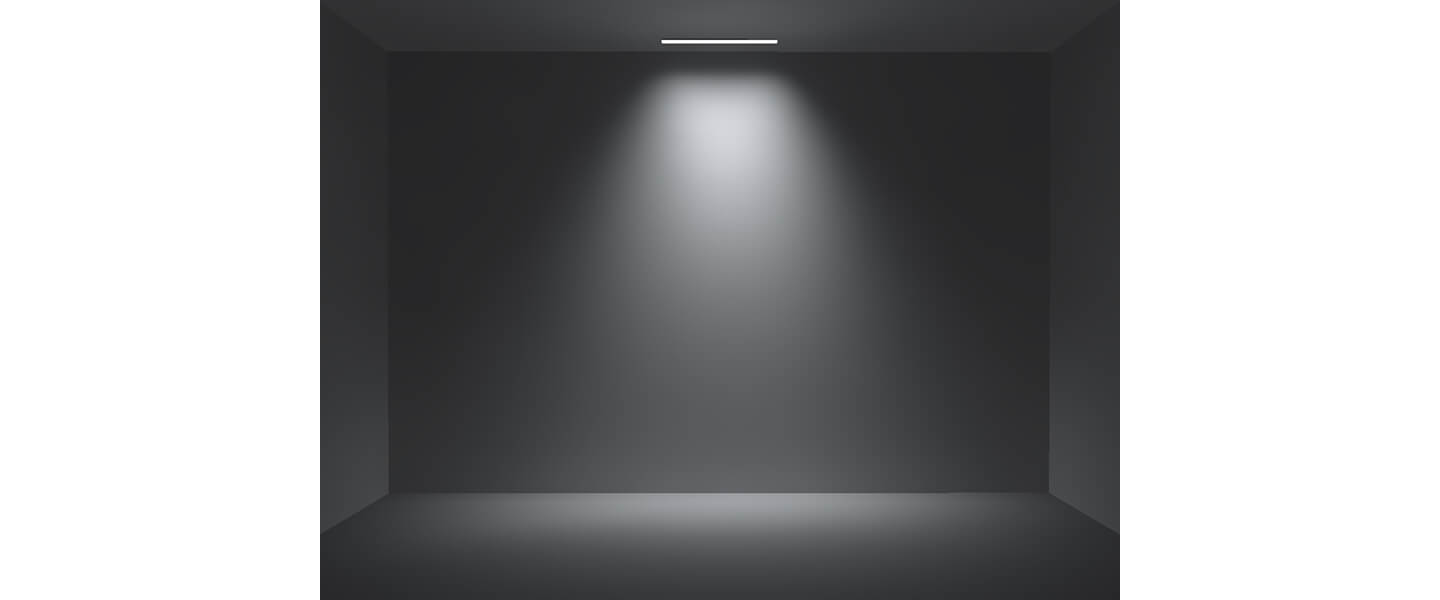

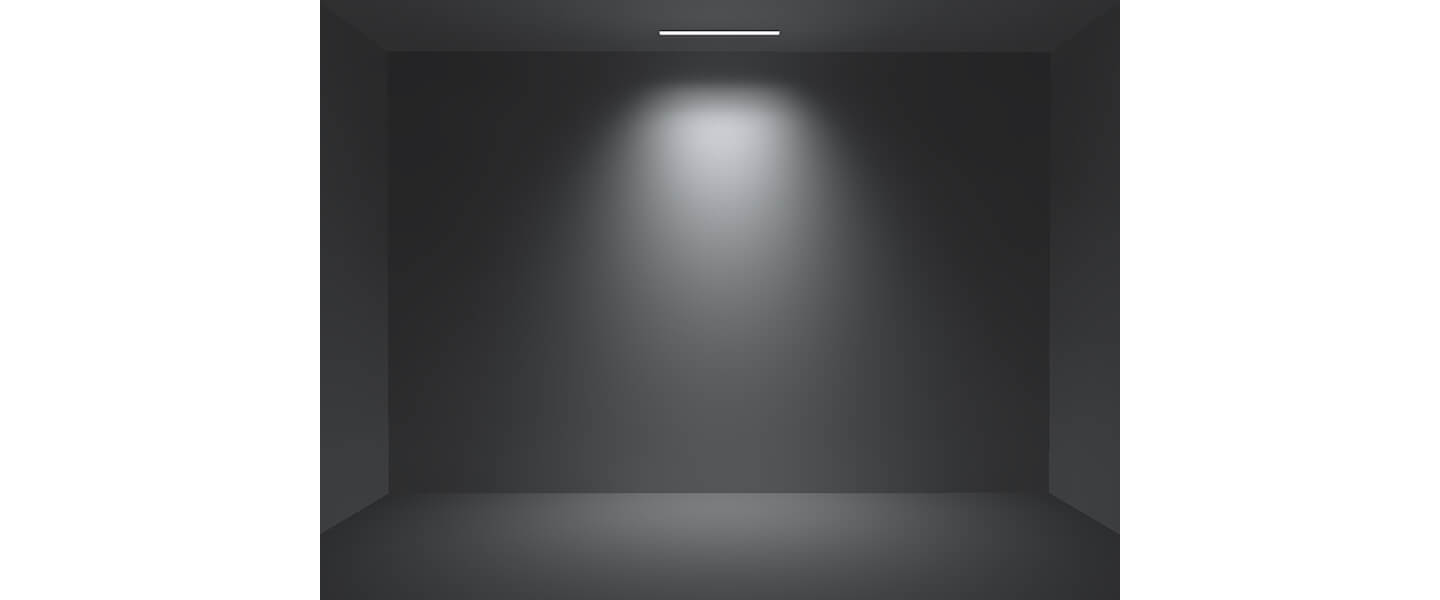

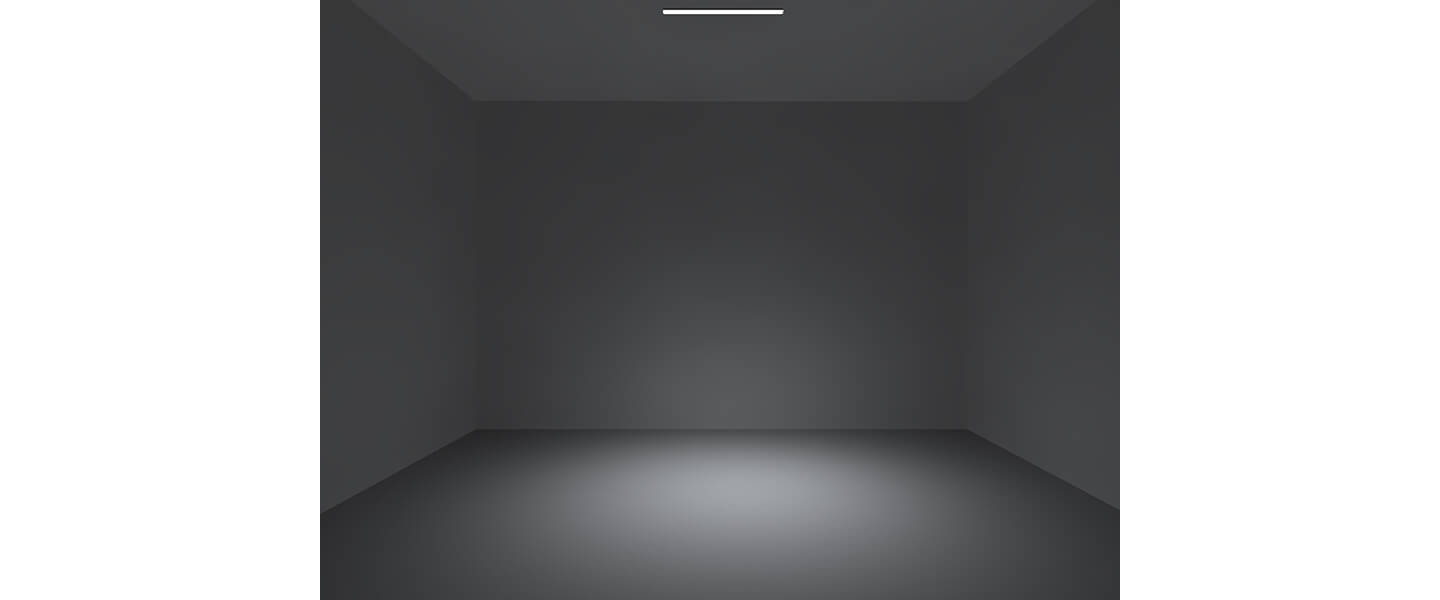

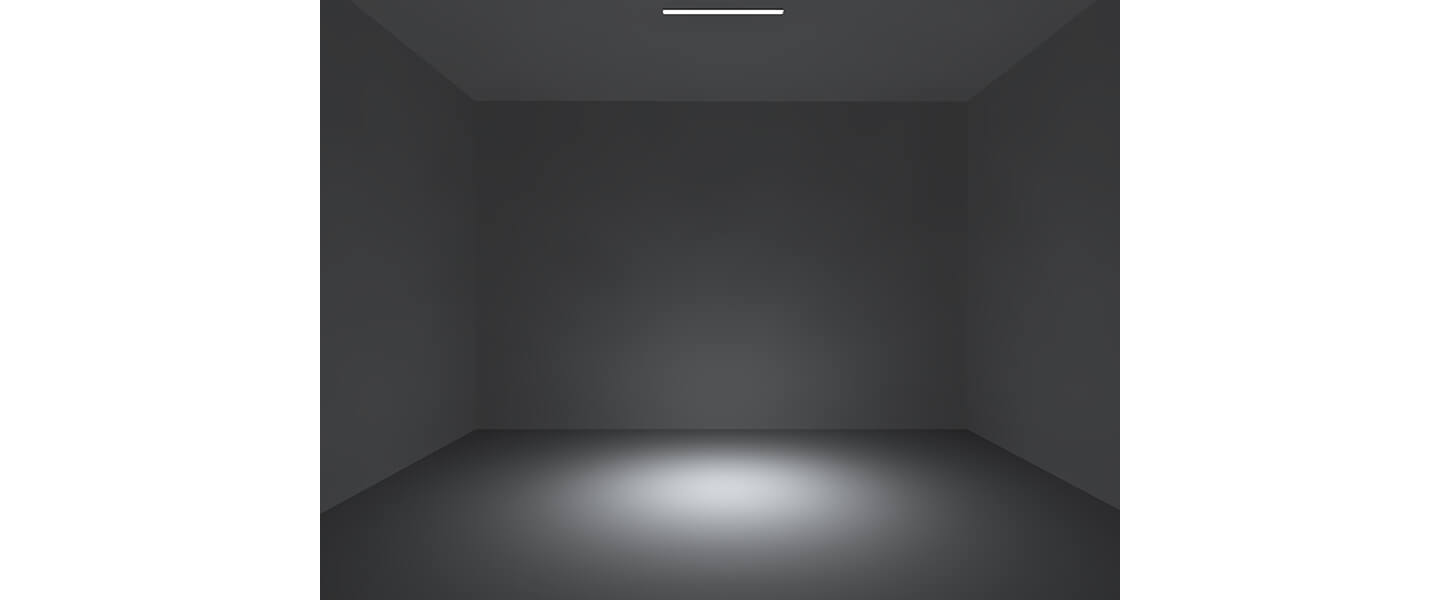

Lighting Effects

Products Specification:
Type:High Power LED Recessed Linear Light
Cut-Out:1000 * 55 mm
Beam Angle:23D 37D 48D 15*46D 27*43D
Power:28W 35W 40W
CCT:2700K 3000K 4000K
Weight:1.28kg
Heat-Sink:Aluminum
Surface-Treatment:painting+plating
Line Drawing:
General Features:


Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 28W
  • 35W
  • 40W
Beam Angle
  • Beam Angle
  • 15X46°
  • 23°
  • 27X43°
  • 37°
  • 48°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 2700K
  • 3000K
  • 4000K
Dimming type
  • Dimming type
  • 1-Non Dim
  • 3-0-10V dimming
  • 4-DALI dimming
Finish
  • Finish
  • 02-Black
Reflector
  • Reflector
  • 3-Mirror
IP Rating
  • IP Rating
  • 20-IP20
Accessory
  • Accessory
  • N/A
  • Model No

  • Source Lumen (LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • manual

  • Favorite

Model No

3721117-02-02-28239027

3721117-02-02-28239030

3721117-02-02-28239040

3721117-02-02-28379027

3721117-02-02-28379030

3721117-02-28379040

3721117-02-28409027

3721117-02-28409030

3721117-02-28409040

3721117-02-2815X469027

3721117-02-2815X469030

3721117-02-2815X469040

3721117-02-2827X439027

3721117-02-2827X439030

3721117-02-2827X439040

3721117-02-35239027

3721117-02-35239030

3721117-02-35239040

3721117-02-35379027

3721117-02-35379030

3721117-02-35379040

3721117-02-35409027

3721117-02-35409030

3721117-02-35409040

3721117-02-3515X469027

3721117-02-3515X469030

3721117-02-3515X469040

3721117-02-3527X439027

3721117-02-3527X439030

3721117-02-3527X439040

3721117-02-40239027

3721117-02-40239030

3721117-02-40239040

3721117-02-40379027

3721117-02-40379030

3721117-02-40379040

3721117-02-40409027

3721117-02-40409030

3721117-02-40409040

3721117-02-4015X469027

3721117-02-4015X469030

3721117-02-4015X469040

3721117-02-4027X439027

3721117-02-4027X439030

3721117-02-4027X439040

Luminous Flux (LM)

1735LM

1857LM

2087LM

1735LM

1857LM

2087LM

1735LM

1857LM

2087LM

1735LM

1857LM

2087LM

1735LM

1857LM

2087LM

2200LM

2350LM

2645LM

2200LM

2350LM

2645LM

2200LM

2350LM

2645LM

2200LM

2350LM

2645LM

2200LM

2350LM

2645LM

2545LM

2639LM

2932LM

2545LM

2639LM

2932LM

2545LM

2639LM

2932LM

2545LM

2639LM

2932LM

2545LM

2639LM

2932LM

Power (W)

28W

28W

28W

28W

28W

28W

28W

28W

28W

28W

28W

28W

28W

28W

28W

35W

35W

35W

35W

35W

35W

35W

35W

35W

35W

35W

35W

35W

35W

35W

40W

40W

40W

40W

40W

40W

40W

40W

40W

40W

40W

40W

40W

40W

40W

Beam Angle

23°

23°

23°

37°

37°

37°

48°

48°

48°

15X46°

15X46°

15X46°

27X43°

27X43°

27X43°

23°

23°

23°

37°

37°

37°

48°

48°

48°

15X46°

15X46°

15X46°

27X43°

27X43°

27X43°

23°

23°

23°

37°

37°

37°

48°

48°

48°

15X46°

15X46°

15X46°

27X43°

27X43°

27X43°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

Specification
IES
manual
Favorite

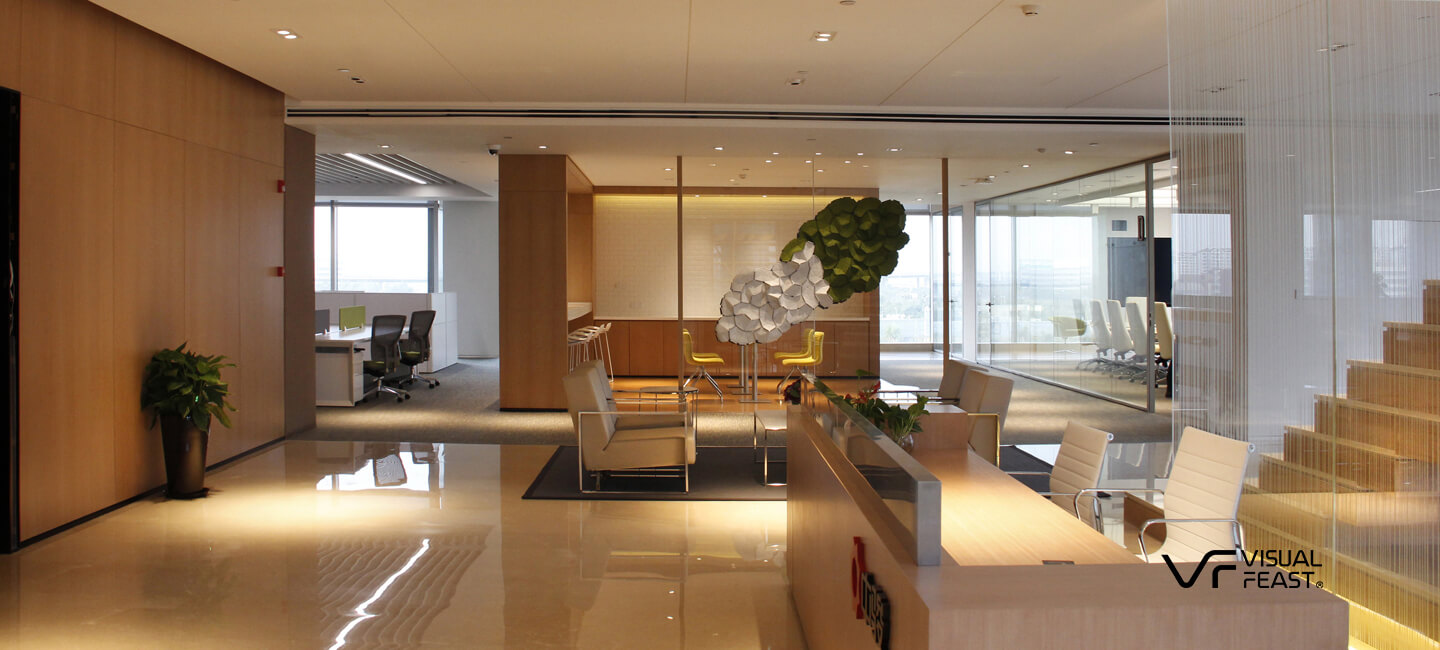

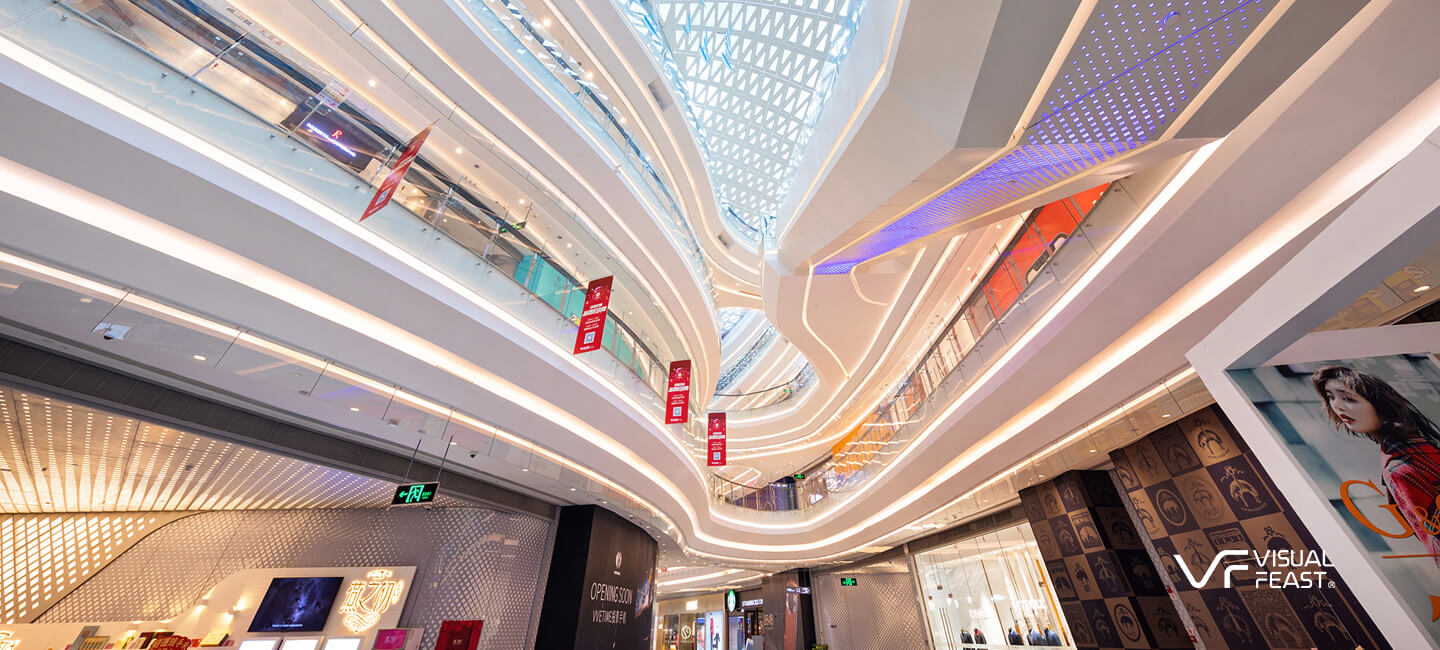

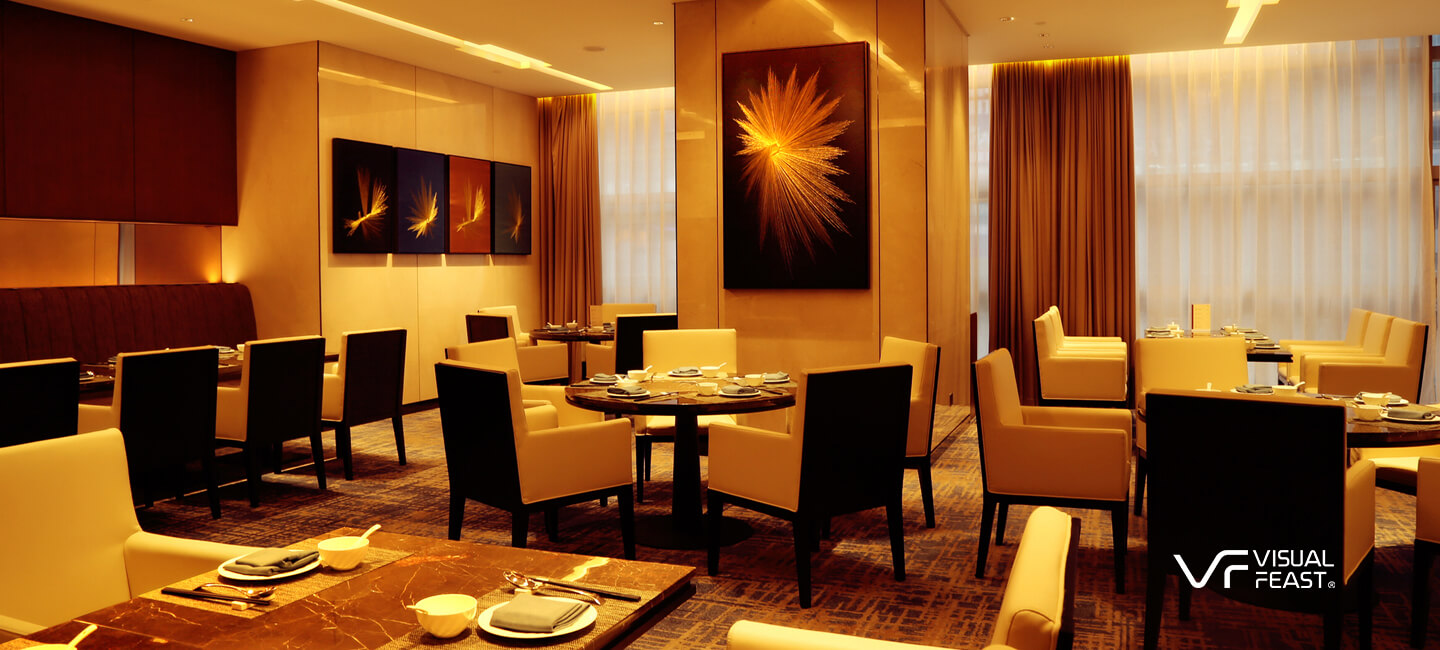

Application
