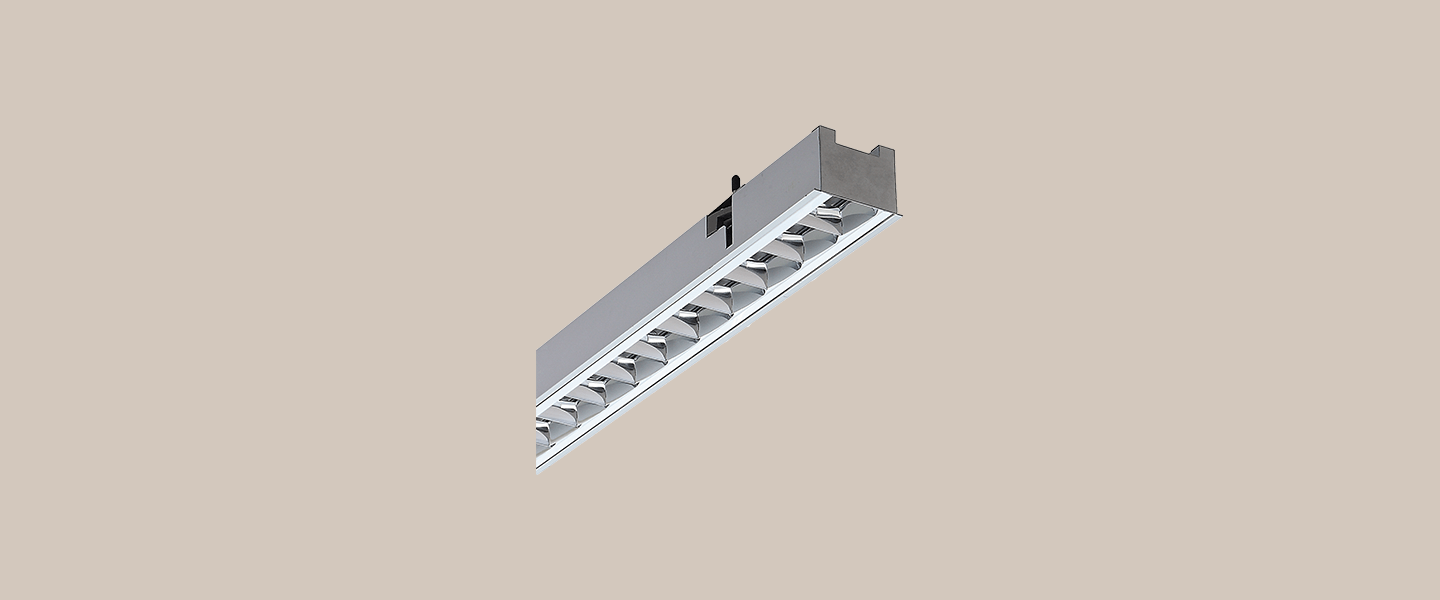

MIZAR 500

High Power LED Recessed Linear Light

MIZAR 500

High Power LED Recessed Linear Light

As the first linear lighting product in the true sense, MIZAR can help designers to achieve a variety of lighting effects in a single building with a same lamp appearance, so as to ensure the overall harmony of construction and decoration, to embody their "mix" and "proper". The functional realizing is come from its rich grading angle: 23° , 33° , 37° , 43 ° , 48 ° , 24*40 ° , 27*43 ° , 15*46 ° , then to couple with the way of installing of lamps: recessed mounted, surface mounted. It ensures that this series can be used for wall reflected glare lighting, wall washer lighting, accent lighting and basic lighting in various space environments.

Upholding VISUAI FEAST lighting idea, VISUAI COMFORT is one of important part and also the most significant lighting experience brought by MIZAR series to customer. With its unique dim light reflector technology, the UGR of this series lamp can be effectively controlled within 16, and it even can bring better visual experience to customer if cooperated with LED light source of high indication (RA90).

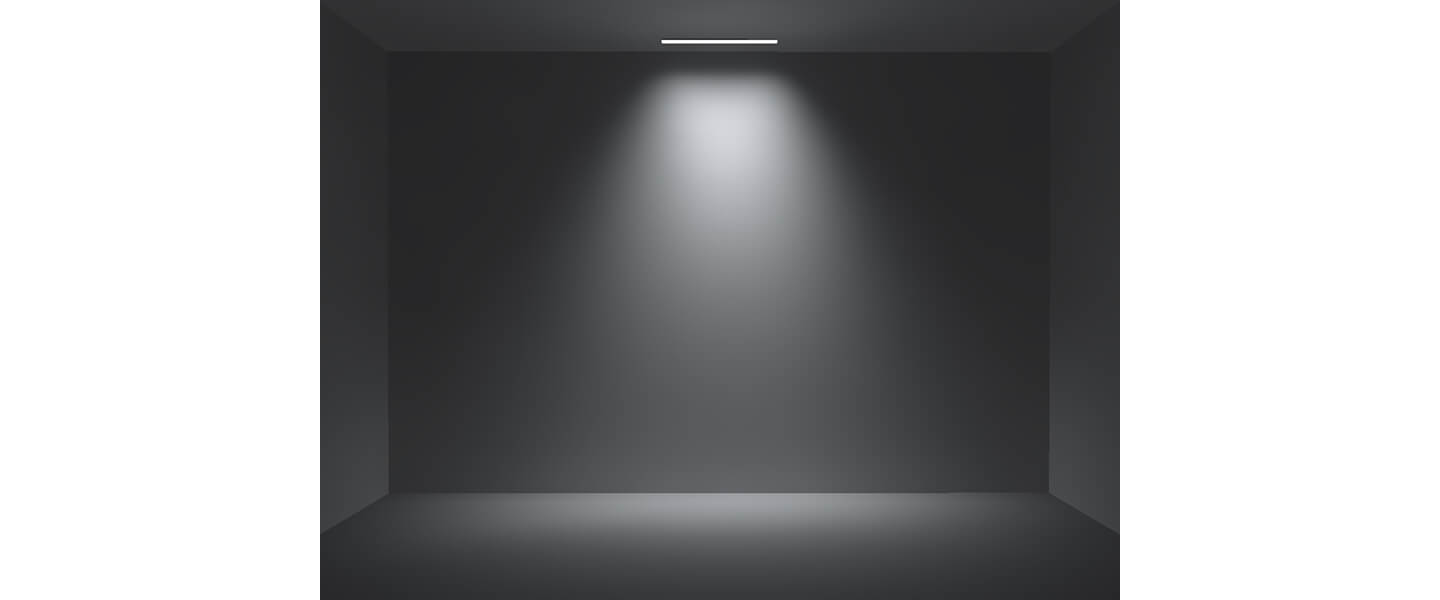

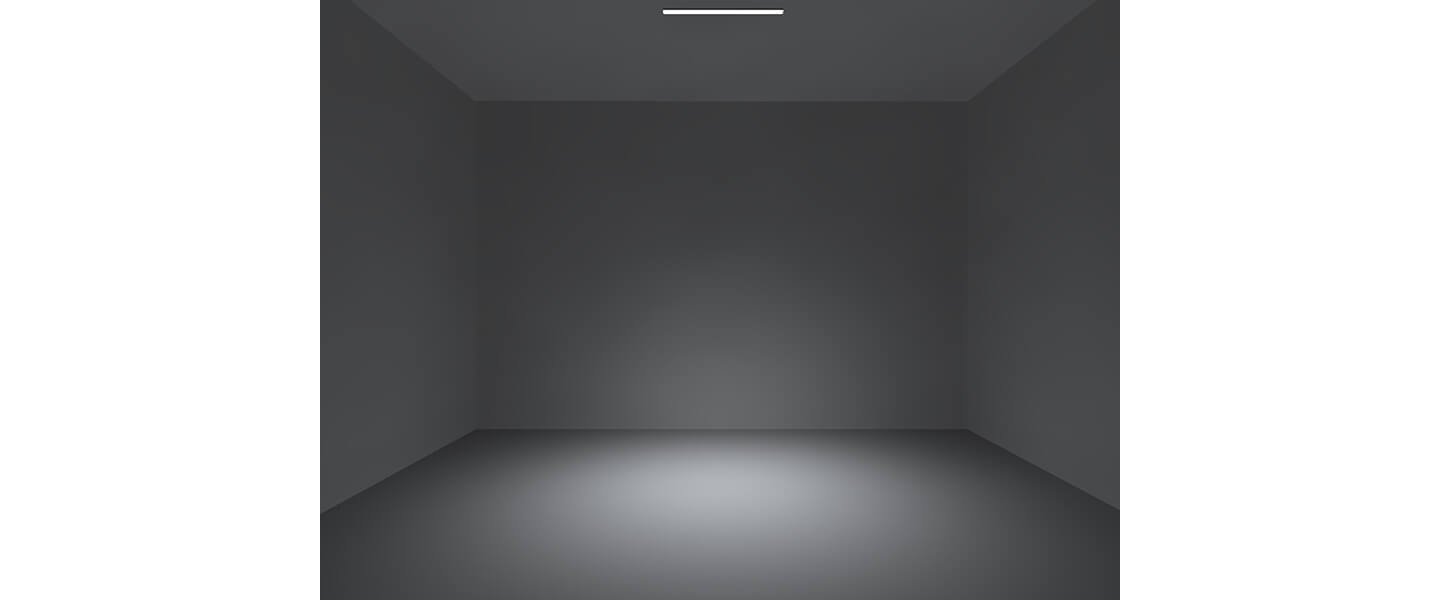

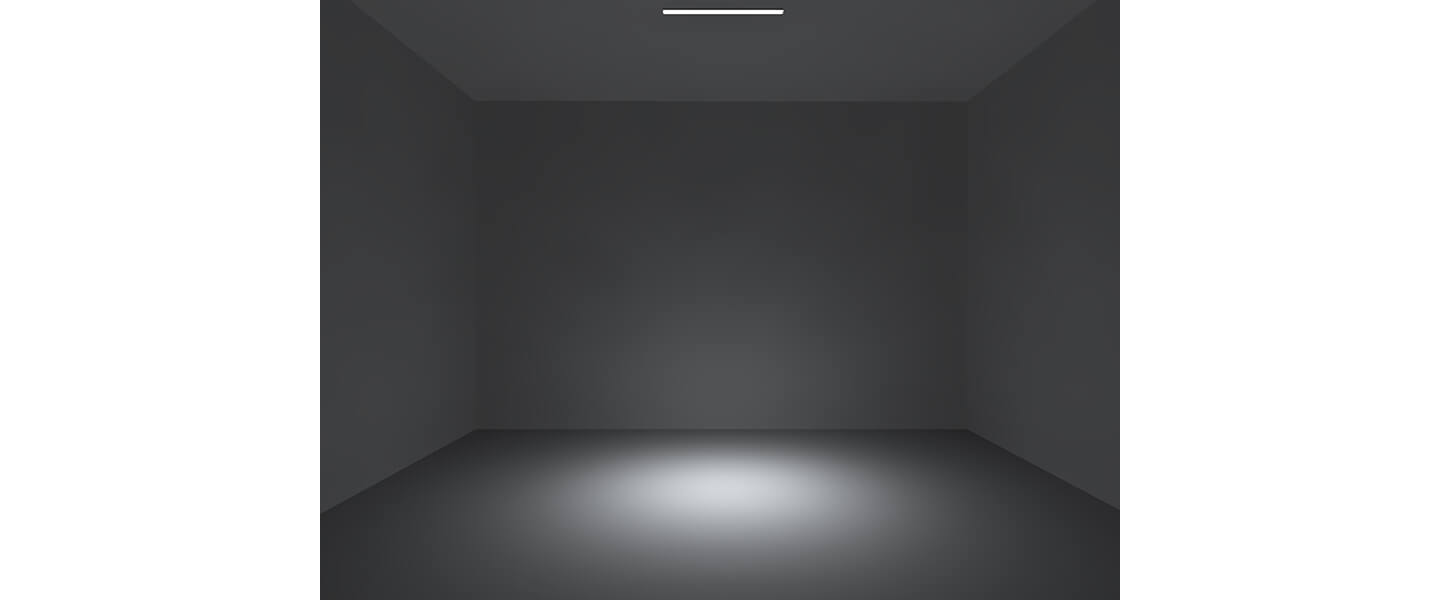

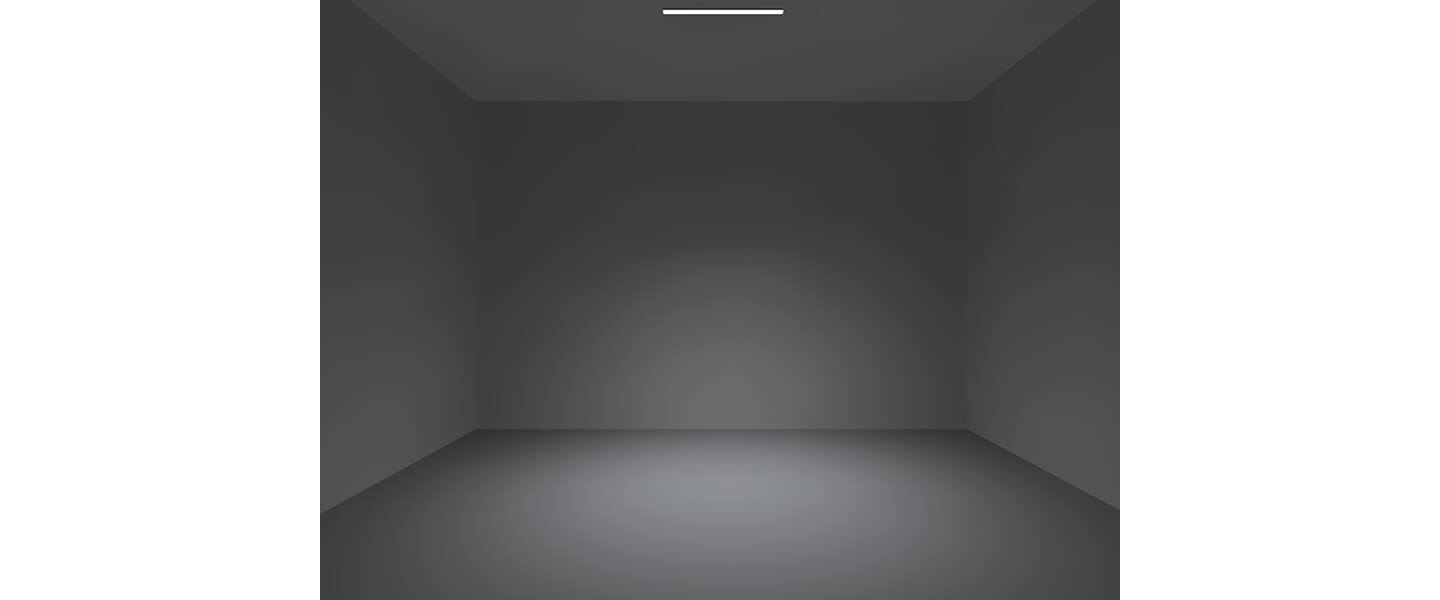

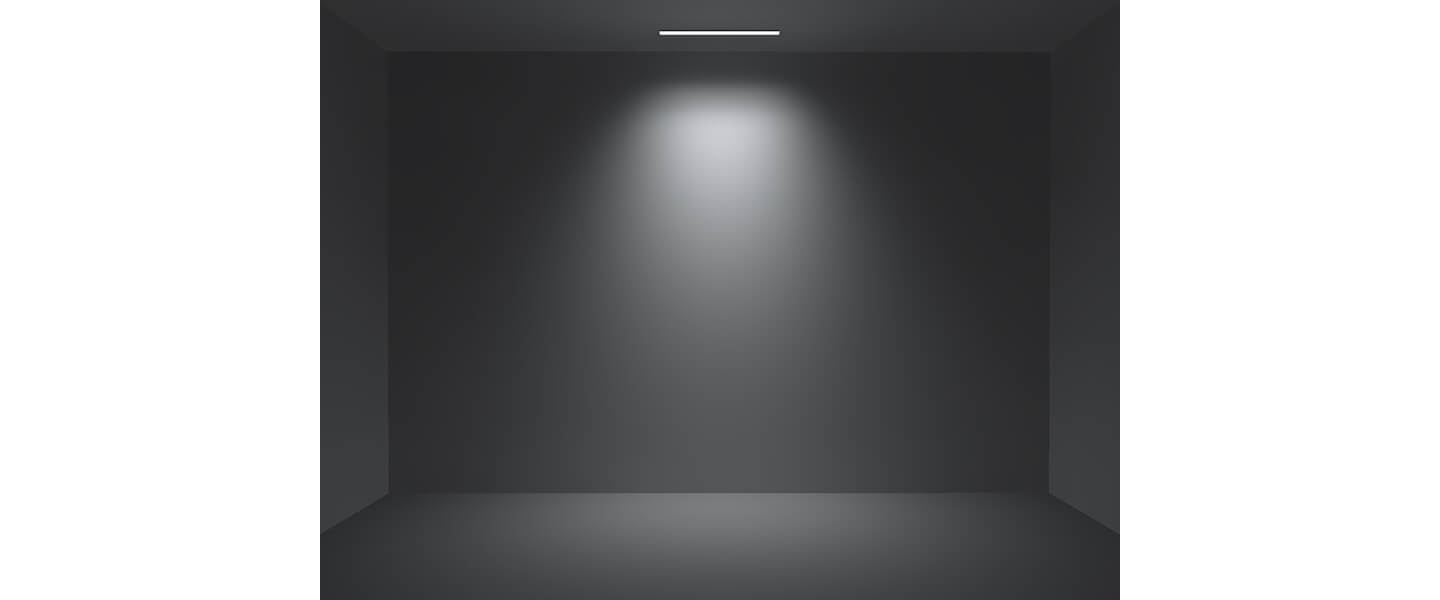

Lighting Effects

Products Specification:
Type:High Power LED Recessed Linear Light
Cut-Out:502 * 55 mm
Beam Angle:23D 37D 48D 15*46D 27*43D
Power:12W 14W 18W 20W
CCT:2700K 3000K 4000K
Weight:0.65kg
Heat-Sink:Aluminum
Surface-Treatment:painting+plating
Line Drawing:
General Features:


Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 14W
  • 18W
  • 20W
Beam Angle
  • Beam Angle
  • 15X46°
  • 23°
  • 27X43°
  • 37°
  • 48°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 2700K
  • 3000K
  • 4000K
Dimming type
  • Dimming type
  • 1-Non Dim
  • 3-0-10V dimming
  • 4-DALI dimming
Finish
  • Finish
  • 02-Black
  • 01-White
Reflector
  • Reflector
  • 3-Mirror
IP Rating
  • IP Rating
  • 20-IP20
Accessory
  • Accessory
  • N/A
  • Model No

  • Source Lumen (LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • manual

  • Favorite

Model No

3721117-01-14239027

3721117-01-14239030

3721117-01-14239040

3721117-01-14379027

3721117-01-14379030

3721117-01-14379040

3721117-01-14489027

3721117-01-14489030

3721117-01-14489040

3721117-01-1415X469027

3721117-01-1415X469030

3721117-01-1415X469040

3721117-01-1427X439027

3721117-01-1427X439030

3721117-01-1427X439040

3721117-01-18239027

3721117-01-18239030

3721117-01-18239040

3721117-01-18379027

3721117-01-18379030

3721117-01-18379040

3721117-01-18489027

3721117-01-18489030

3721117-01-18489040

3721117-01-1815X469027

3721117-01-1815X469030

3721117-01-1815X469040

3721117-01-1827X439027

3721117-01-1827X439030

3721117-01-1827X439040

3721117-01-20239027

3721117-01-20239030

3721117-01-20239040

3721117-01-20379027

3721117-01-20379030

3721117-01-20379040

3721117-01-20489027

3721117-01-20489030

3721117-01-20489040

3721117-01-2015X469027

3721117-01-2015X469030

3721117-01-2015X469040

3721117-01-2027X439027

3721117-01-2027X439030

3721117-01-2027X439040

Luminous Flux (LM)

961LM

1023LM

1147LM

961LM

1023LM

1147LM

961LM

1023LM

1147LM

961LM

1023LM

1147LM

961LM

1023LM

1147LM

1225LM

1294LM

1485LM

1225LM

1294LM

1485LM

1225LM

1294LM

1485LM

1225LM

1294LM

1485LM

1225LM

1294LM

1485LM

1399LM

1646LM

1746LM

1399LM

1646LM

1746LM

1399LM

1646LM

1746LM

1399LM

1646LM

1746LM

1399LM

1646LM

1746LM

Power (W)

14W

14W

14W

14W

14W

14W

14W

14W

14W

14W

14W

14W

14W

14W

14W

18W

18W

18W

18W

18W

18W

18W

18W

18W

18W

18W

18W

18W

18W

18W

20W

20W

20W

20W

20W

20W

20W

20W

20W

20W

20W

20W

20W

20W

20W

Beam Angle

23°

23°

23°

37°

37°

37°

48°

48°

48°

15X46°

15X46°

15X46°

27X43°

27X43°

27X43°

23°

23°

23°

37°

37°

37°

48°

48°

48°

15X46°

15X46°

15X46°

27X43°

27X43°

27X43°

23°

23°

23°

37°

37°

37°

48°

48°

48°

15X46°

15X46°

15X46°

27X43°

27X43°

27X43°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

Specification
IES
manual
Favorite
