MASTER

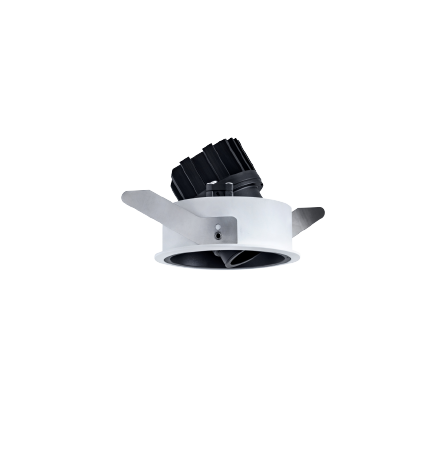

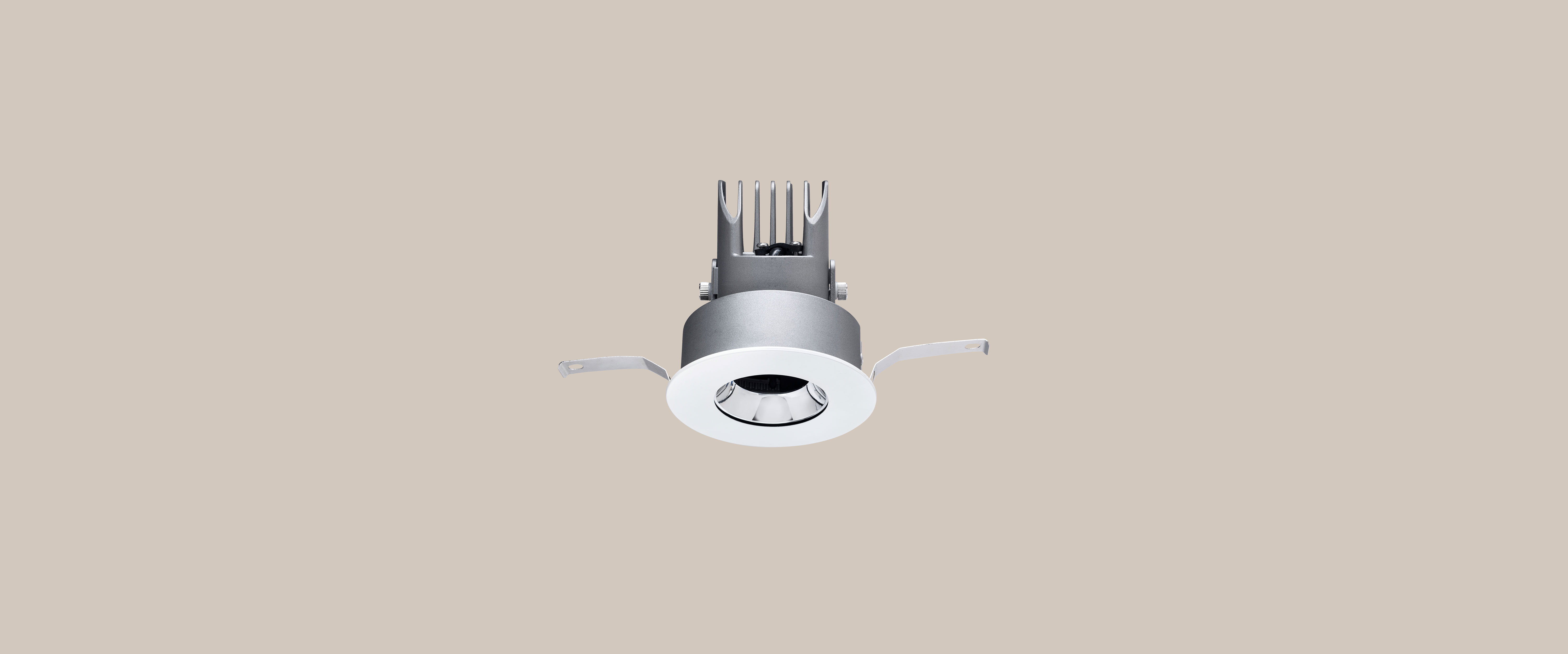

Fixed Downlight Round Pin hole Downlight

MASTER

Inspirations from masters respect to lighting masters.

Master series is flexible and changeful, providing a new lighting solution for indoor space. The compact cube contains varies lamp forms with optional combination, and a variety of optical engines and accessories which can be replaced as wish. Depending on the needs of different space functions, designers can choose power, beam angle, color temperature, or even COB integrated light source or MR16 light source. With silvery combining sounds, all components can be combined into perfect lamps structure, just like the outstanding technology and wisdom of tenon mortise. From square to circle, from narrow trim to trimless, it can be qualified for a variety of indoor space modelling design.

Among them, the square lamps have infinite splicing function with utmost innovation, also be able to add flexible wing to stylist for acquiring unfettered inspiration. Master possesses 30 ° vertically and 355 ° horizontally adjustable angle of mechanical properties, which allows the light beam in space to focus more freely and accurately. Master is equipped with independent R&D, the third generation of optics product, by which the texture, color and flexible performance are perfectly presented, providing more possibility for designers to arouse indoor space spirit and ethos.

Lighting Effects

Products Specification:: Type:Fixed Downlight Round Pin hole Downlight; Cut-Out:ø 85 mm; Dimension:ø93.8mm* H 119mm; Beam Angle:11D 15D 24D 36D 50D; Power:5W 8W 10W 12W 15W 20W 25W; Weight:0.49 kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating; Remarks:IP44 for visible body of fitting after installation，not available for using with honeycomb louver

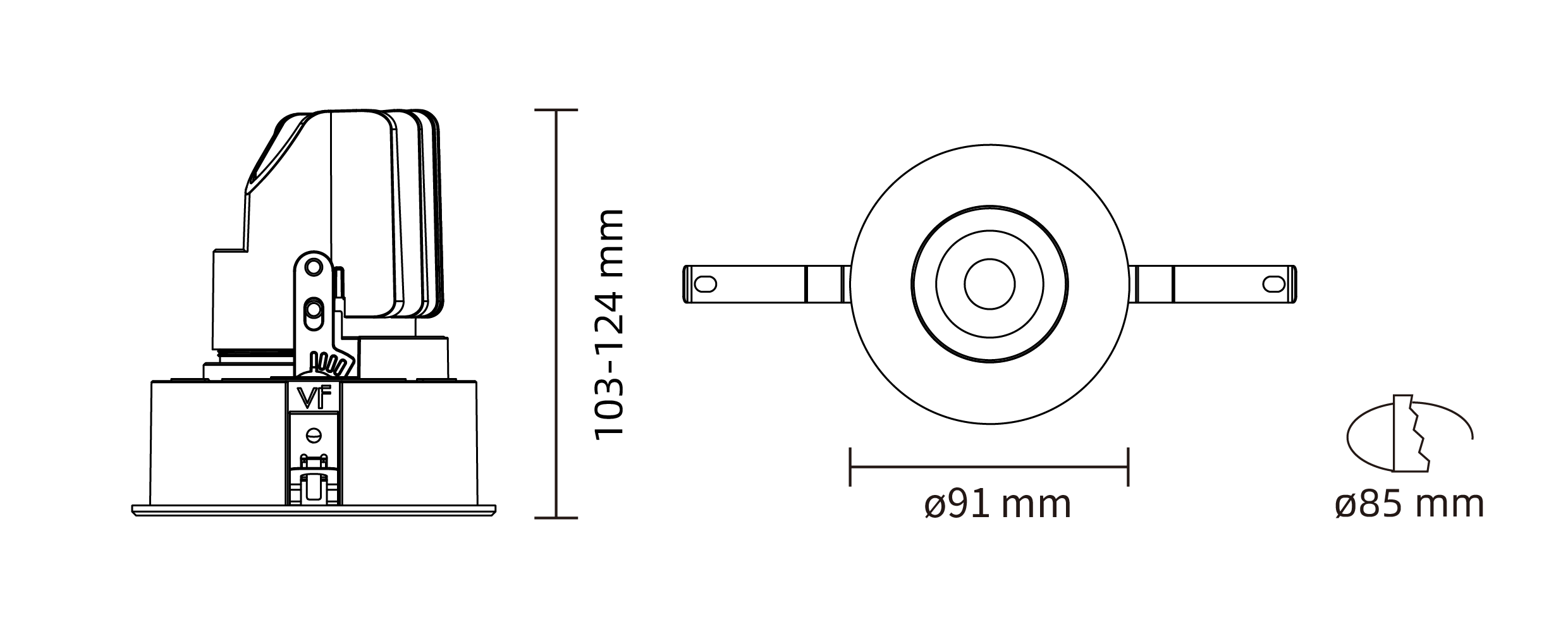

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
5W
8W
10W
12W
15W
20W
25W

Beam Angle

Beam Angle
11°
15°
24°
36°
50°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming

Finish

Finish
01-White
02-Black

Reflector

Reflector
1-White
2-Black
3-Mirror
4-Champagne gold

IP Rating

IP Rating
20-IP20
44-IP44

Accessory

Accessory
N/A

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR00309-05119027; DR00309-05119030; DR00309-05119040; DR00309-05159027; DR00309-05159030; DR00309-05159040; DR00309-05249027; DR00309-05249030; DR00309-05249040; DR00309-05369027; DR00309-05369030; DR00309-05369040; DR00309-05509027; DR00309-05509030; DR00309-05509040; DR00309-08119027; DR00309-08119030; DR00309-08119040; DR00309-08159027; DR00309-08159030; DR00309-08159040; DR00309-08249027; DR00309-08249030; DR00309-08249040; DR00309-08369027; DR00309-08369030; DR00309-08369040; DR00309-08509027; DR00309-08509030; DR00309-08509040; DR00309-10119027; DR00309-10119030; DR00309-10119040; DR00309-10159027; DR00309-10159030; DR00309-10159040; DR00309-10249027; DR00309-10249030; DR00309-10249040; DR00309-10369027; DR00309-10369030; DR00309-10369040; DR00309-10509027; DR00309-10509030; DR00309-10509040; DR00309-12159027; DR00309-12159030; DR00309-12159040; DR00309-12249027; DR00309-12249030; DR00309-12249040; DR00309-12369027; DR00309-12369030; DR00309-12369040; DR00309-12509027; DR00309-12509030; DR00309-12509040; DR00309-15159027; DR00309-15159030; DR00309-15159040; DR00309-15249027; DR00309-15249030; DR00309-15249040; DR00309-15369027; DR00309-15369030; DR00309-15369040; DR00309-15509027; DR00309-15509030; DR00309-15509040; DR00309-20249027; DR00309-20249030; DR00309-20249040; DR00309-20369027; DR00309-20369030; DR00309-20369040; DR00309-20509027; DR00309-20509030; DR00309-20509040; DR00309-25249027; DR00309-25249030; DR00309-25249040; DR00309-25369027; DR00309-25369030; DR00309-25369040; DR00309-25509027; DR00309-25509030; DR00309-25509040

Luminous Flux (LM): 270LM; 284LM; 287LM; 237LM; 250LM; 276LM; 401LM; 422LM; 449LM; 441LM; 464LM; 480LM; 436LM; 459LM; 496LM; 387LM; 407LM; 409LM; 359LM; 378LM; 412LM; 597LM; 628LM; 677LM; 659LM; 694LM; 725LM; 653LM; 688LM; 743LM; 485LM; 511LM; 492LM; 435LM; 458LM; 494LM; 797LM; 839LM; 886LM; 900LM; 947LM; 981LM; 898LM; 945LM; 983LM; 580LM; 610LM; 631LM; 882LM; 929LM; 980LM; 994LM; 1046LM; 1084LM; 993LM; 1045LM; 1088LM; 627LM; 660LM; 640LM; 1034LM; 1088LM; 1144LM; 1170LM; 1232LM; 1274LM; 1162LM; 1223LM; 1279LM; 1425LM; 1500LM; 1577LM; 1610LM; 1694LM; 1740LM; 1595LM; 1679LM; 1737LM; 1669LM; 1757LM; 1868LM; 1872LM; 1971LM; 2071LM; 1857LM; 1955LM; 2033LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W

Beam Angle: 11°; 11°; 11°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°; 11°; 11°; 11°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°; 11°; 11°; 11°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
