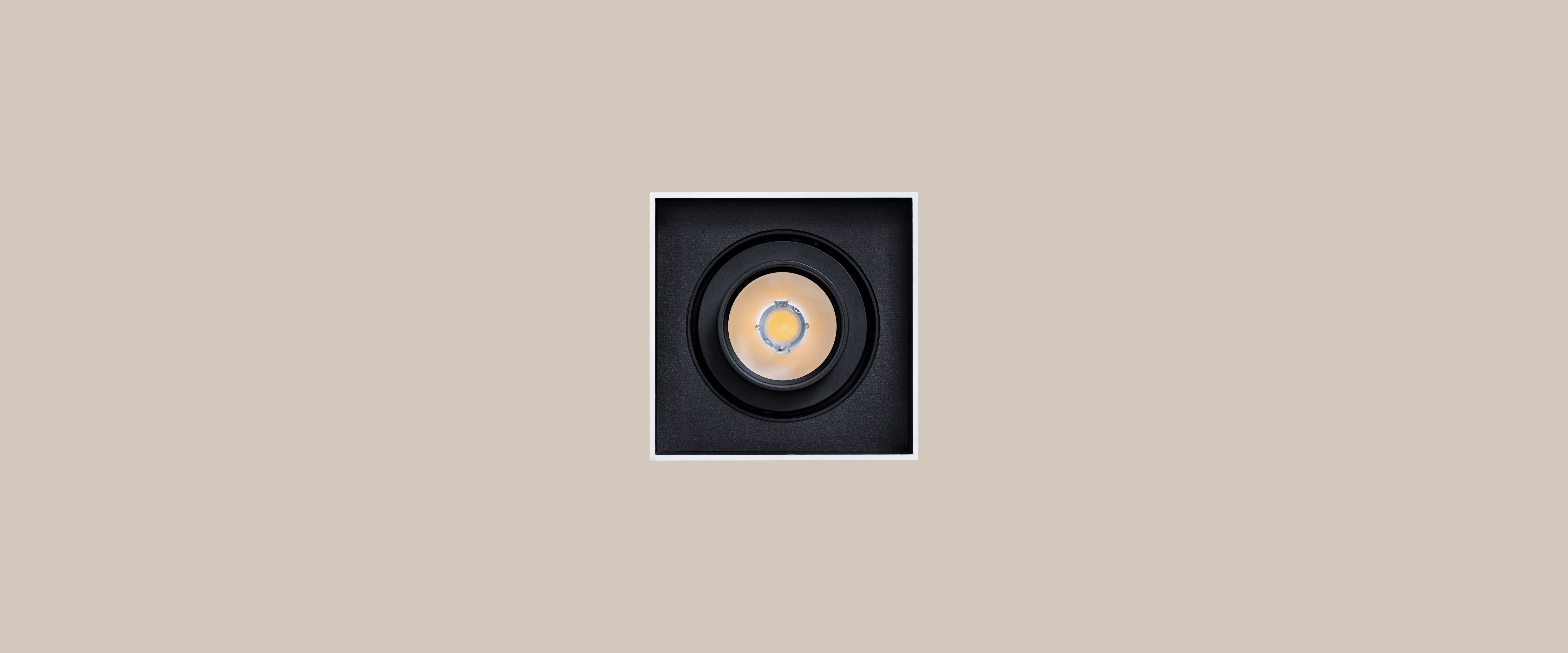

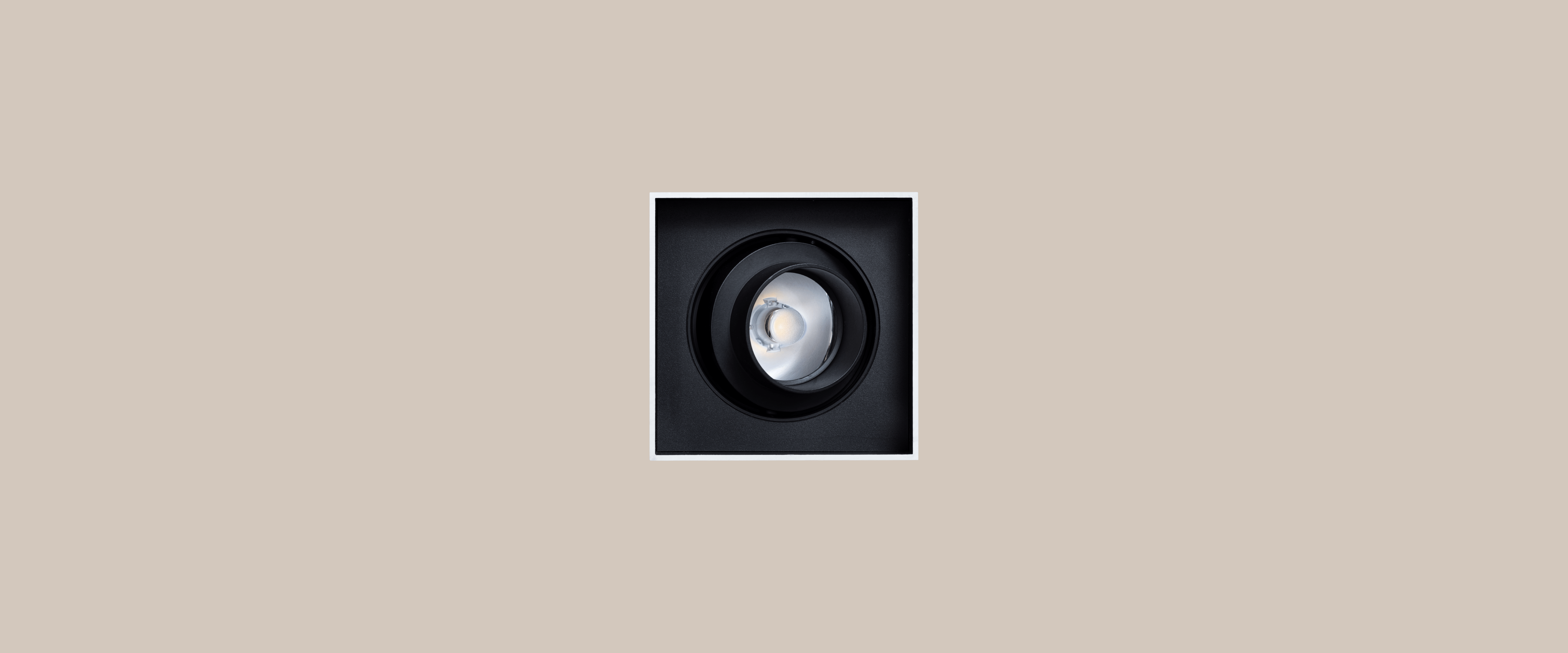

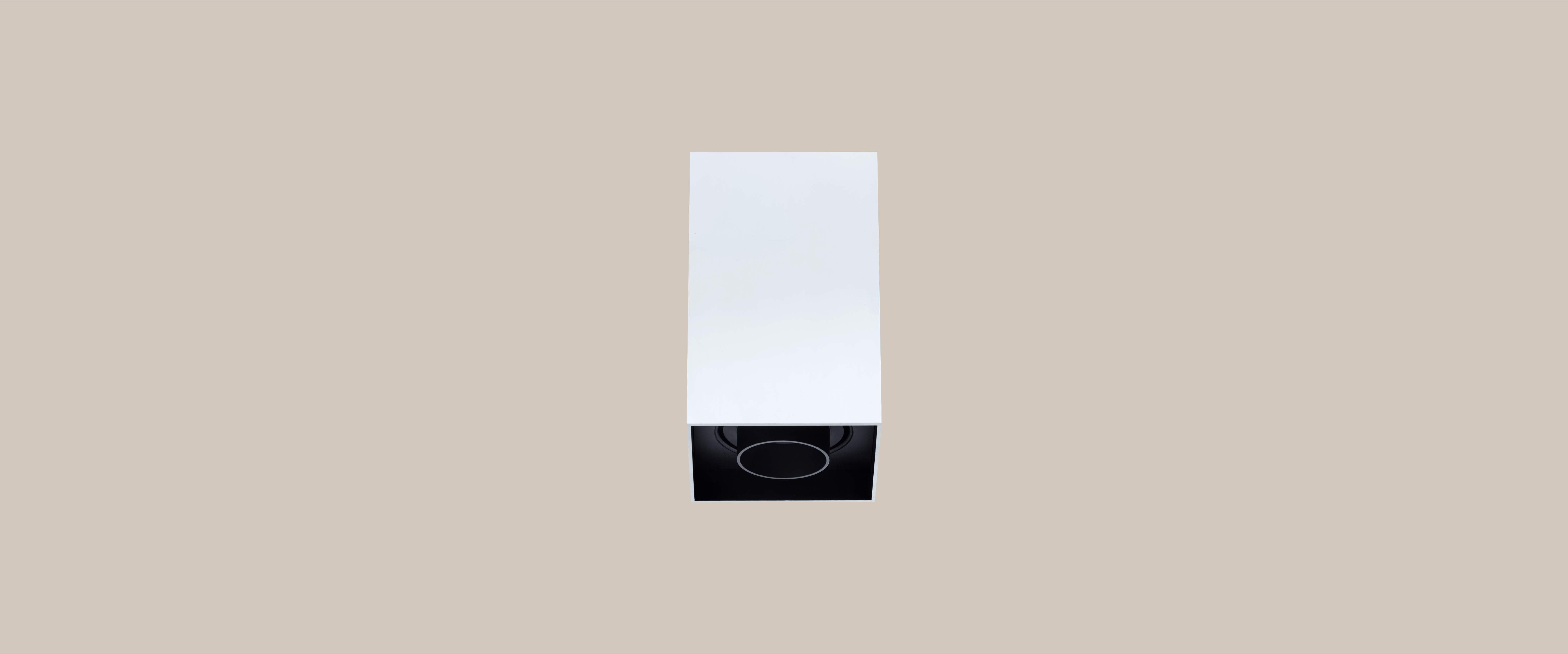

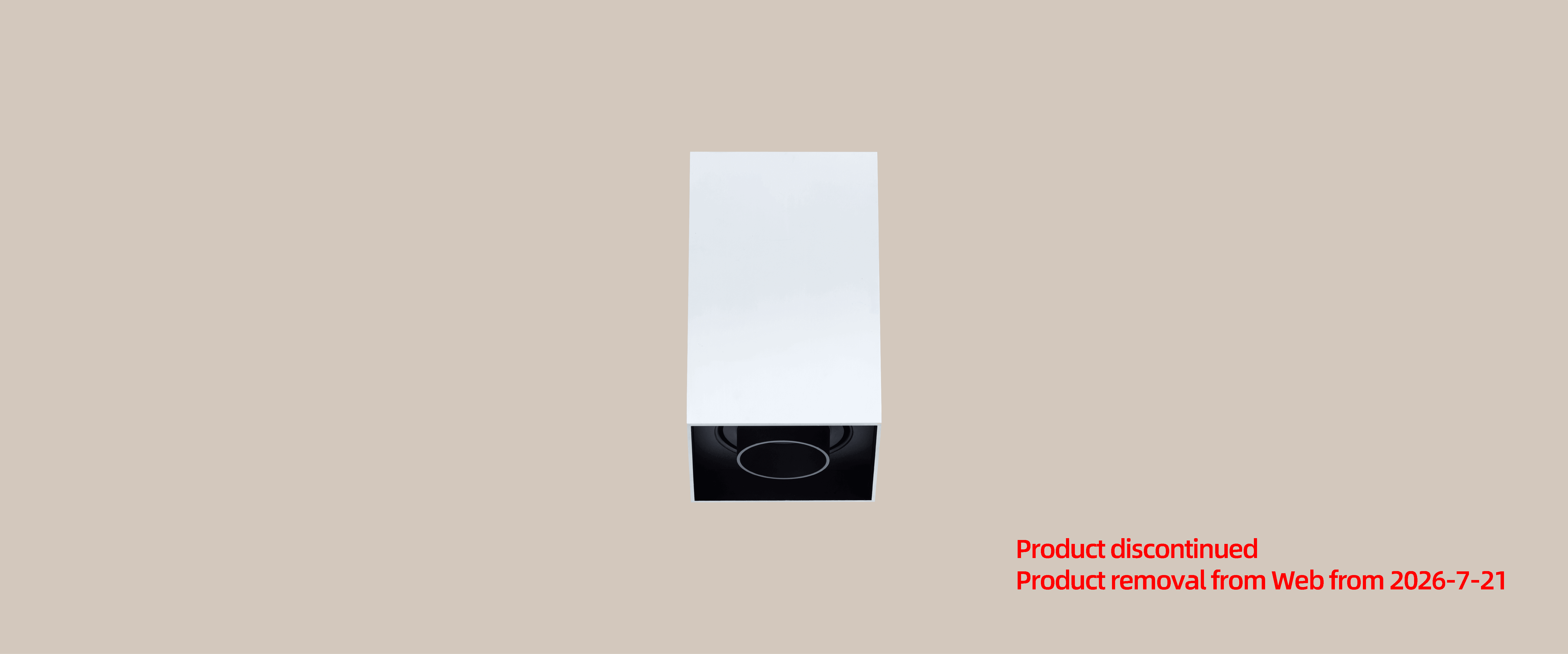

BOX 100

Adjustable Surface-Mounted Square Downlight

BOX 100

Adjustable Surface-Mounted Square Downlight

BOX 100

Adjustable Surface-Mounted Square Downlight

BOX 100

Adjustable Surface-Mounted Square Downlight

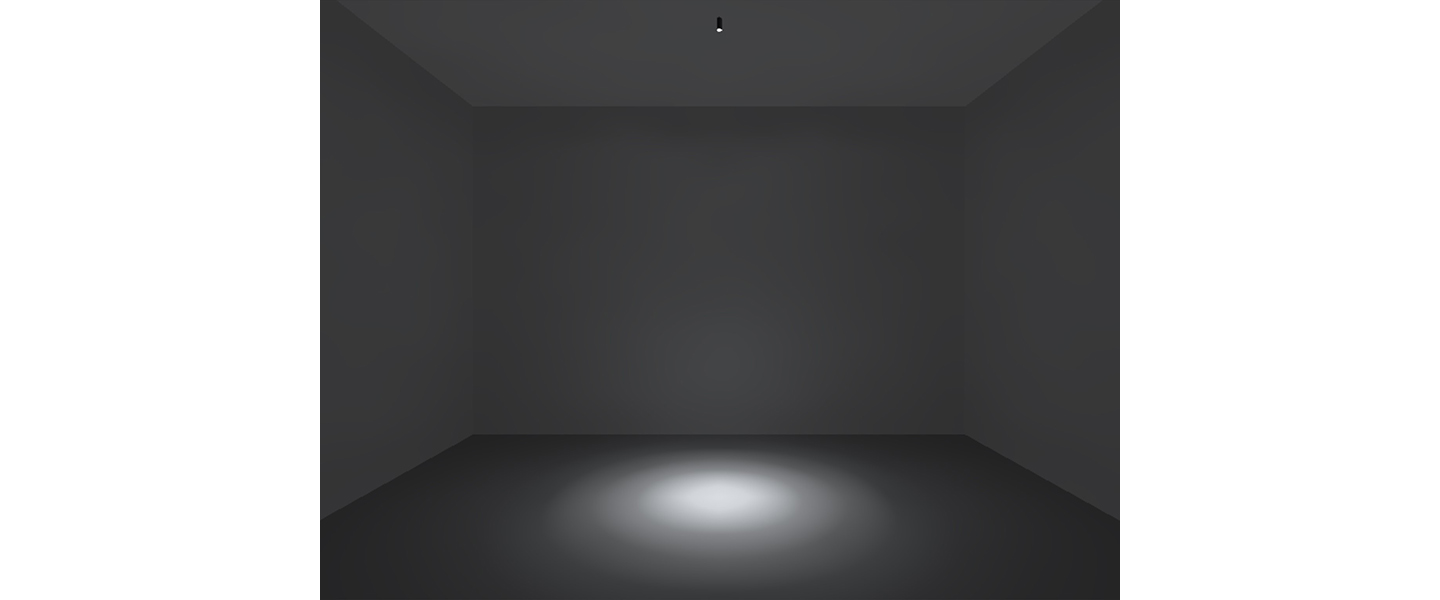

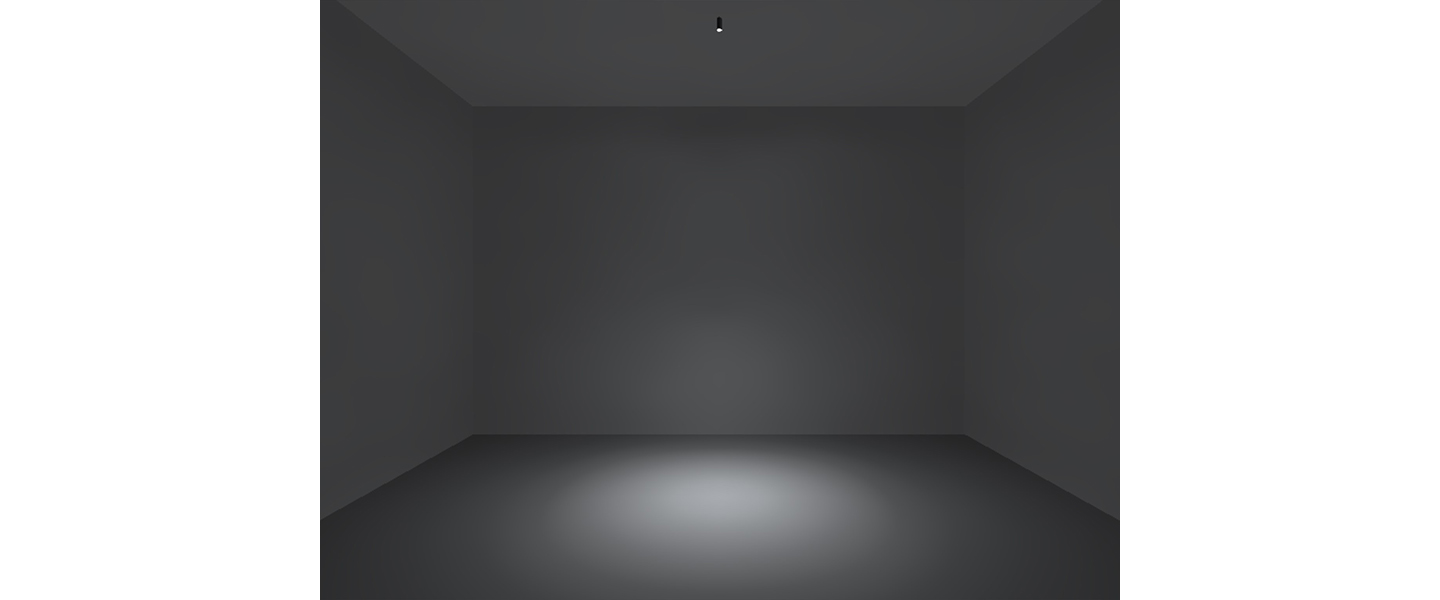

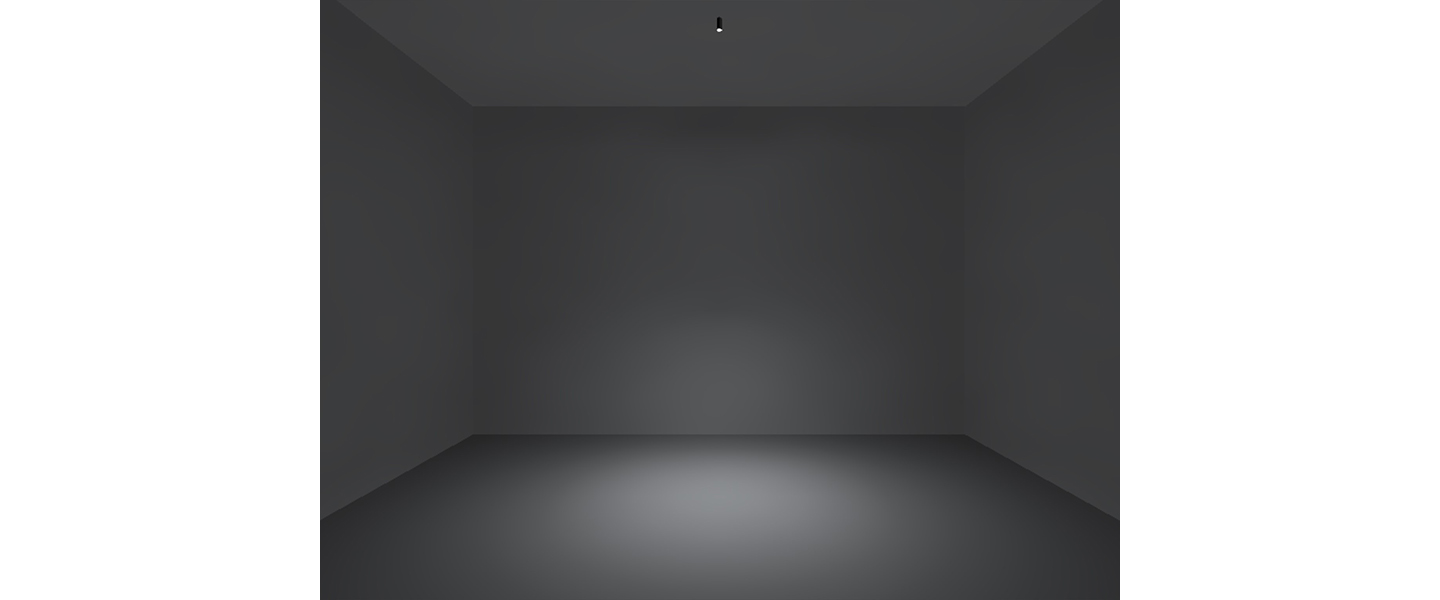

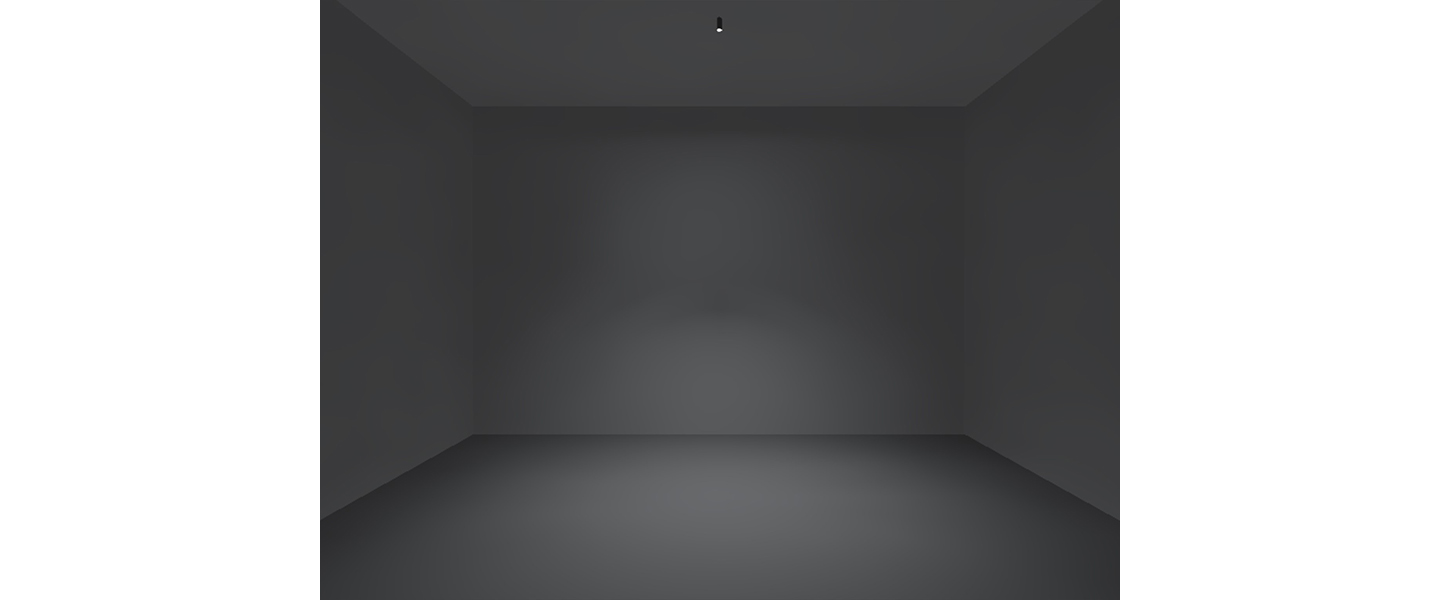

Lighting Effects

Products Specification:
Type:Adjustable Surface-Mounted Square Downlight
Beam Angle:15D 24D 36D 50D
Power:8W 12W 15W
Dimension:100mm *100mm* H160 mm
Weight:0.84 kg
CCT:2700K 3000K 4000K
Heat-Sink:Aluminum
Surface-Treatment:Plating

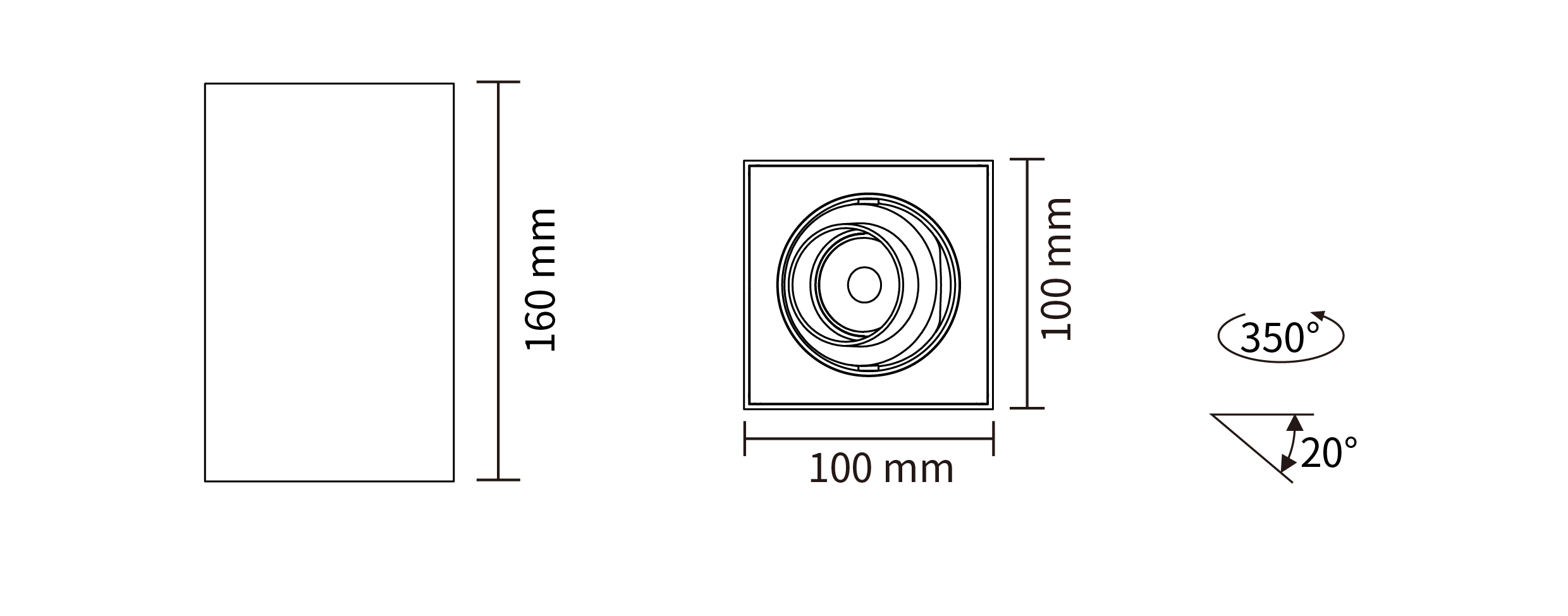

Line Drawing:
General Features:

Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 8W
  • 12W
  • 15W
Beam Angle
  • Beam Angle
  • 15°
  • 24°
  • 36°
  • 50°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 2700K
  • 3000K
  • 4000K
Dimming type
  • Dimming type
  • 1-Non Dim
Finish
  • Finish
  • 01-White
  • 02-Black
Reflector
  • Reflector
  • 2-Black
IP Rating
  • IP Rating
  • 20-IP20
Accessory
  • Accessory
  • 1-Honeycomb louver
  • 4-Linear lens
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • manual

  • Favorite

Model No

DS01002-08159027

DS01002-08159030

DS01002-08159040

DS01002-08249027

DS01002-08249030

DS01002-08249040

DS01002-08369027

DS01002-08369030

DS01002-08369040

DS01002-08509027

DS01002-08509030

DS01002-08509040

DS01002-12159027

DS01002-12159030

DS01002-12159040

DS01002-12249027

DS01002-12249030

DS01002-12249040

DS01002-12369027

DS01002-12369030

DS01002-12369040

DS01002-12509027

DS01002-12509030

DS01002-12509040

DS01002-15159027

DS01002-15159030

DS01002-15159040

DS01002-15249027

DS01002-15249030

DS01002-15249040

DS01002-15369027

DS01002-15369030

DS01002-15369040

DS01002-15509027

DS01002-15509030

DS01002-15509040

Luminous Flux (LM)

495LM

522LM

548LM

518LM

545LM

572LM

574LM

605LM

635LM

515LM

542LM

569LM

715LM

753LM

790LM

734LM

773LM

811LM

807LM

850LM

892LM

772LM

812LM

853LM

791LM

833LM

874LM

911LM

959LM

1006LM

1041LM

1095LM

1150LM

941LM

991LM

1040LM

Power (W)

8W

8W

8W

8W

8W

8W

8W

8W

8W

8W

8W

8W

12W

12W

12W

12W

12W

12W

12W

12W

12W

12W

12W

12W

15W

15W

15W

15W

15W

15W

15W

15W

15W

15W

15W

15W

Beam Angle

15°

15°

15°

24°

24°

24°

36°

36°

36°

50°

50°

50°

15°

15°

15°

24°

24°

24°

36°

36°

36°

50°

50°

50°

15°

15°

15°

24°

24°

24°

36°

36°

36°

50°

50°

50°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

Specification
IES
manual
Favorite
