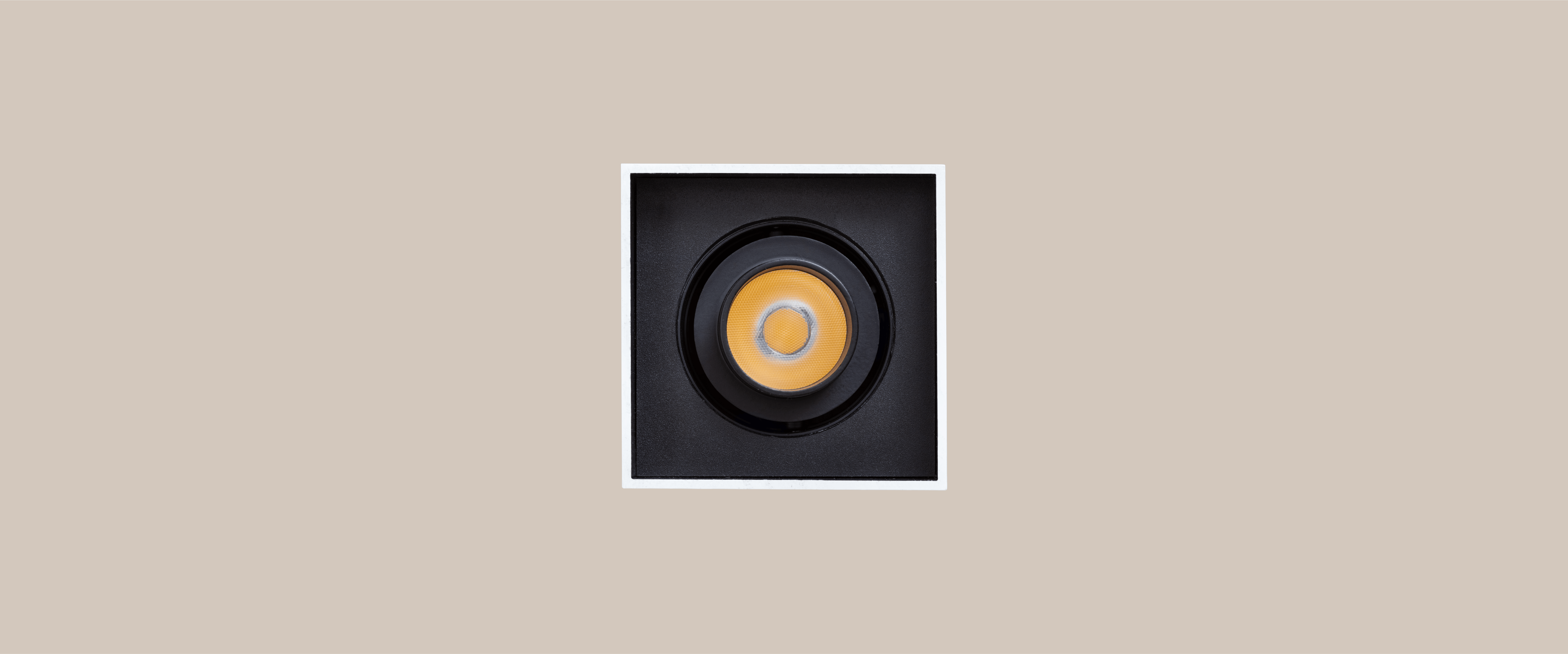

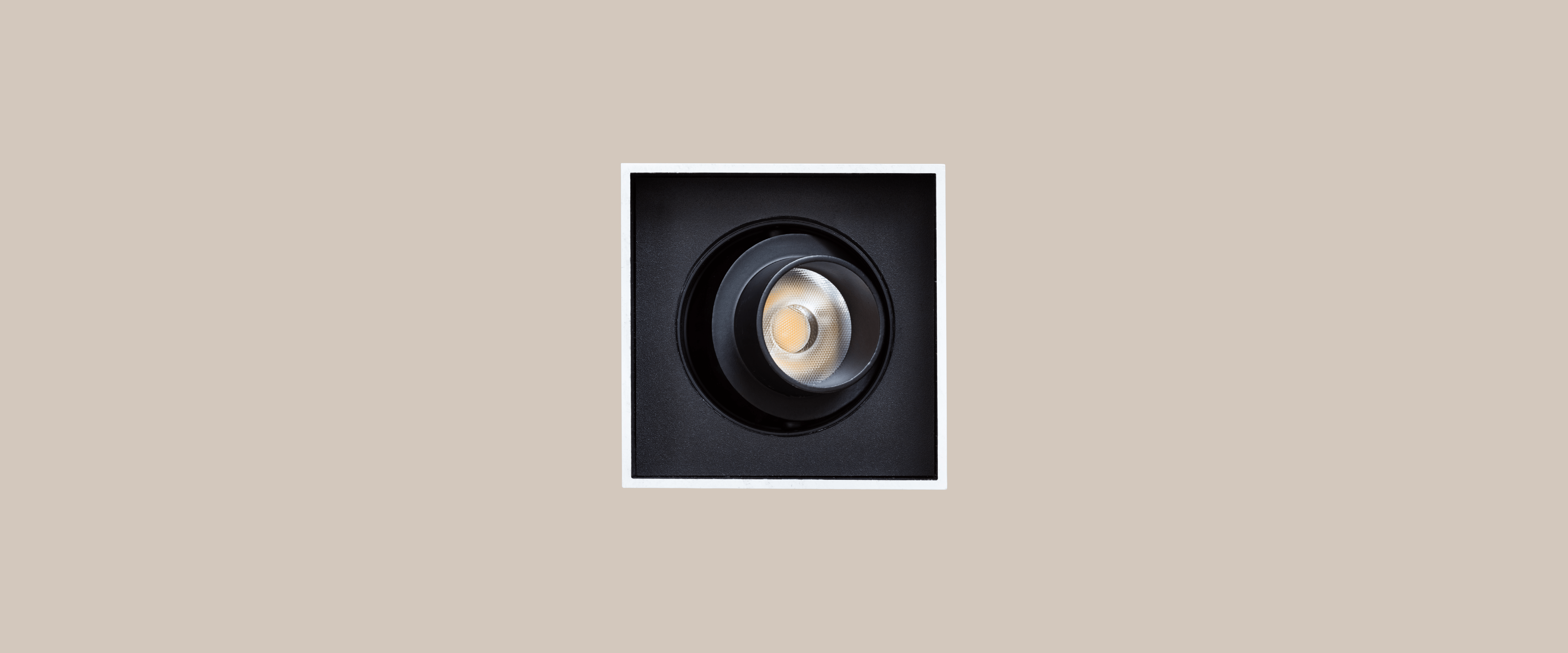

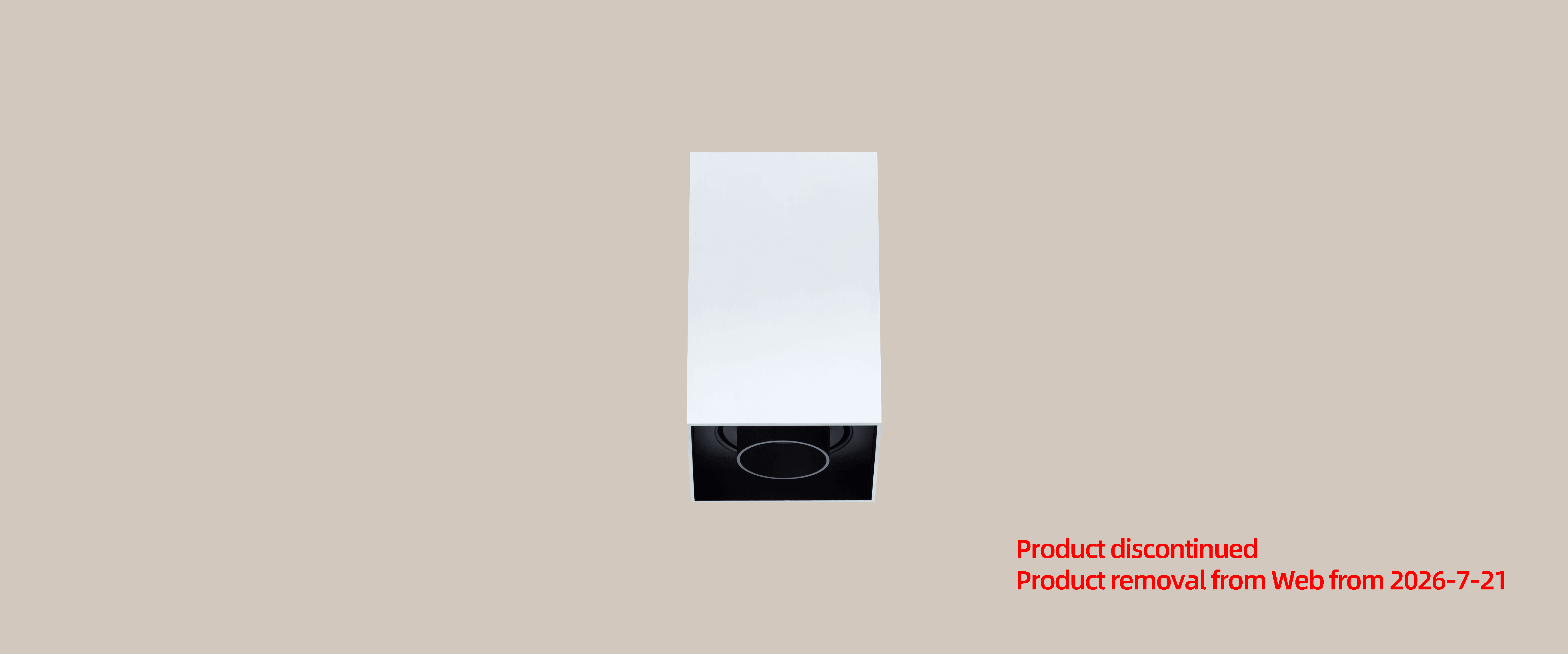

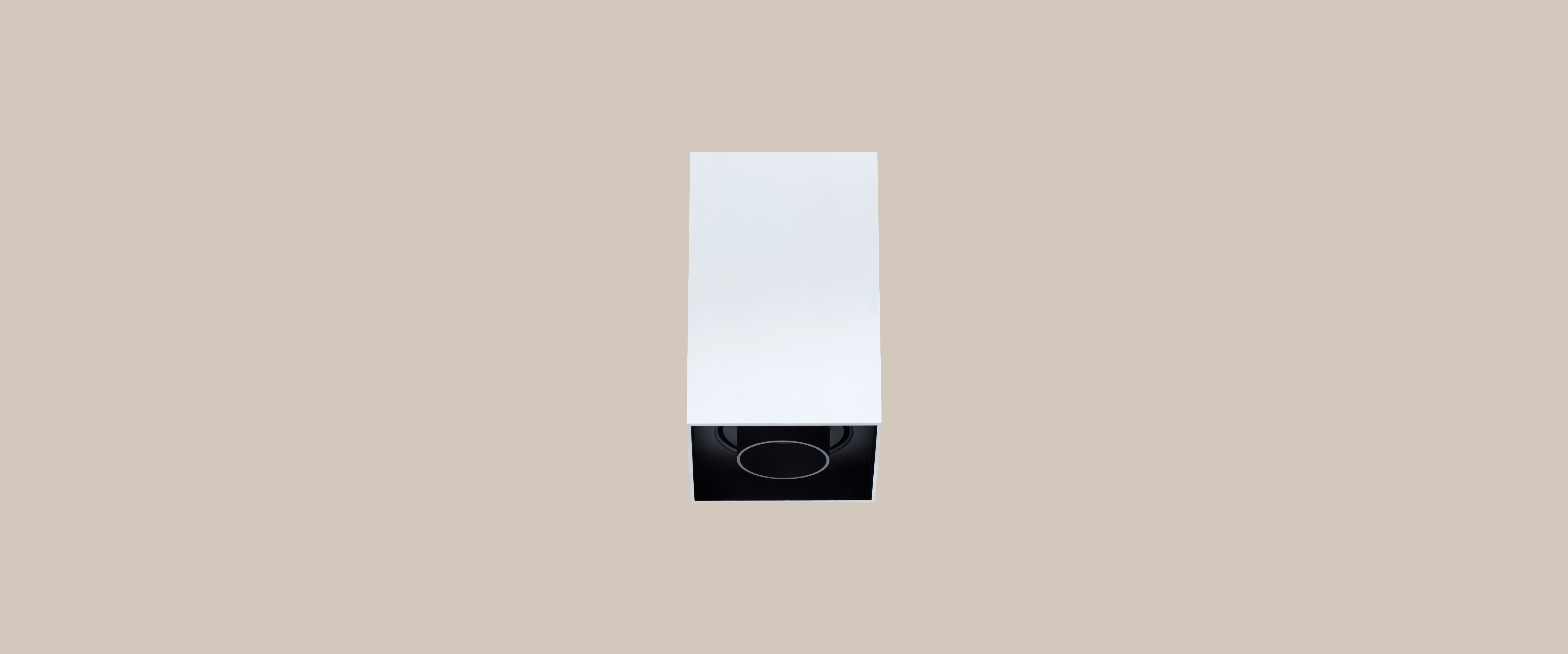

BOX 70

Adjustable Surface-Mounted Square Downlight

BOX 70

Adjustable Surface-Mounted Square Downlight

BOX 70

Adjustable Surface-Mounted Square Downlight

BOX 70

Adjustable Surface-Mounted Square Downlight

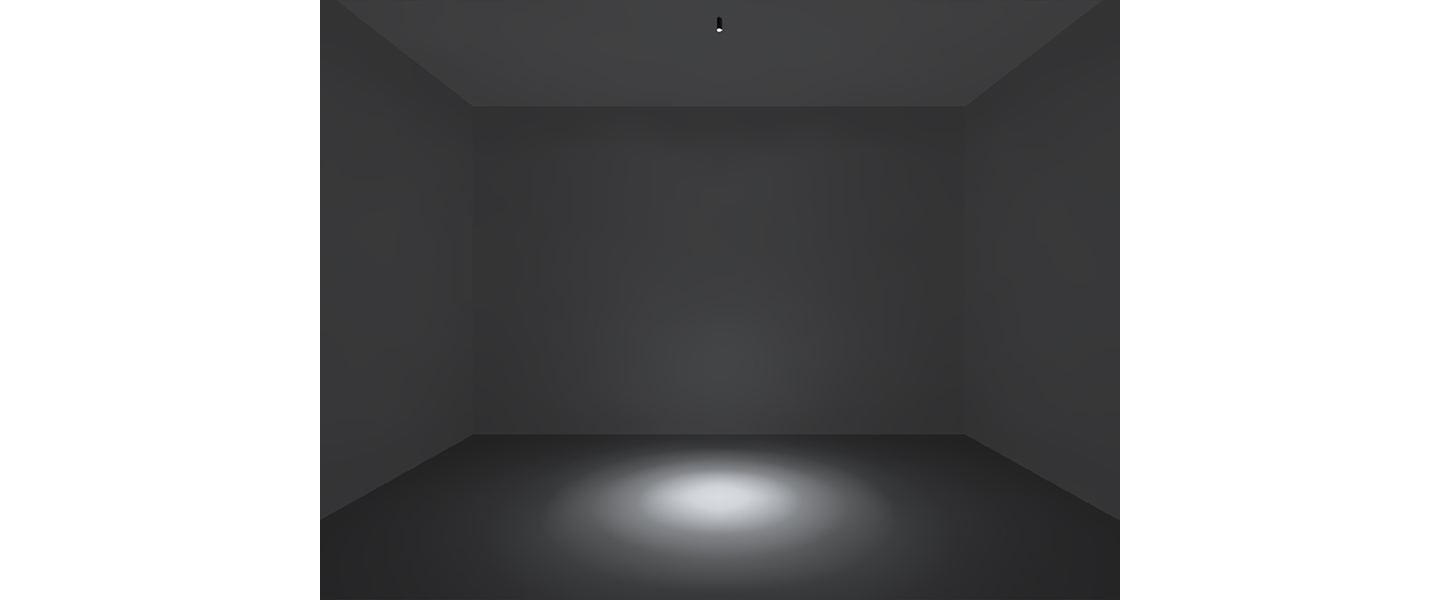

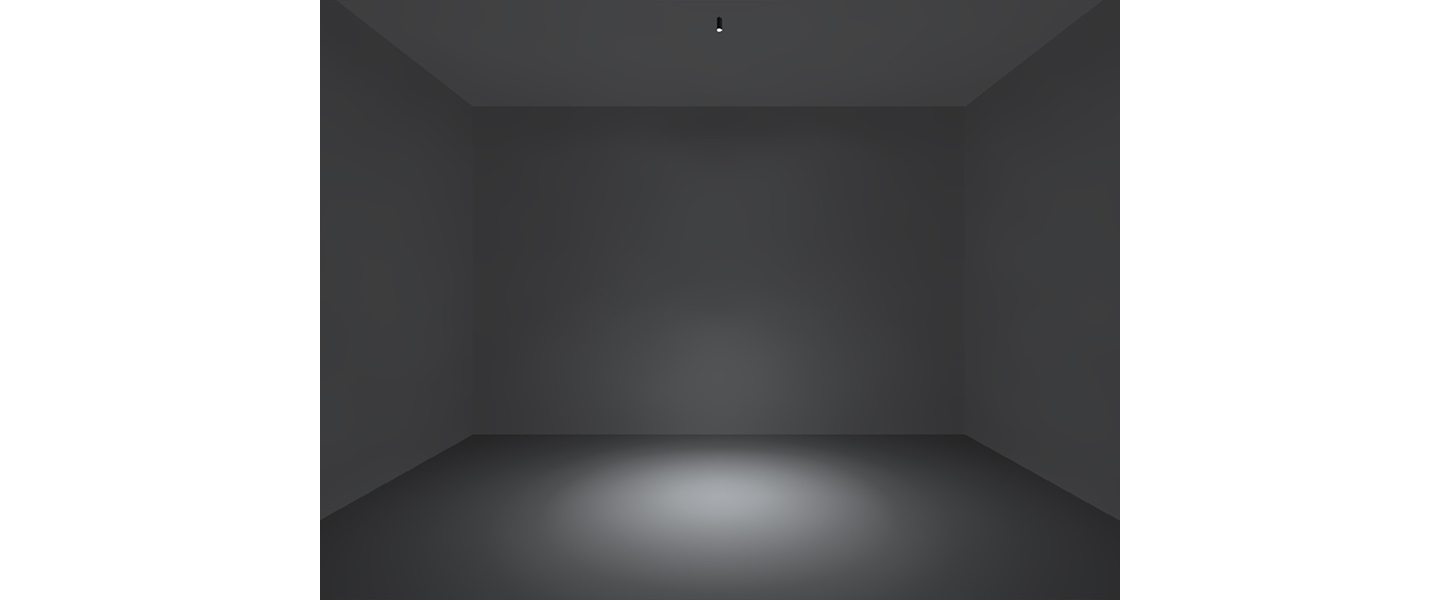

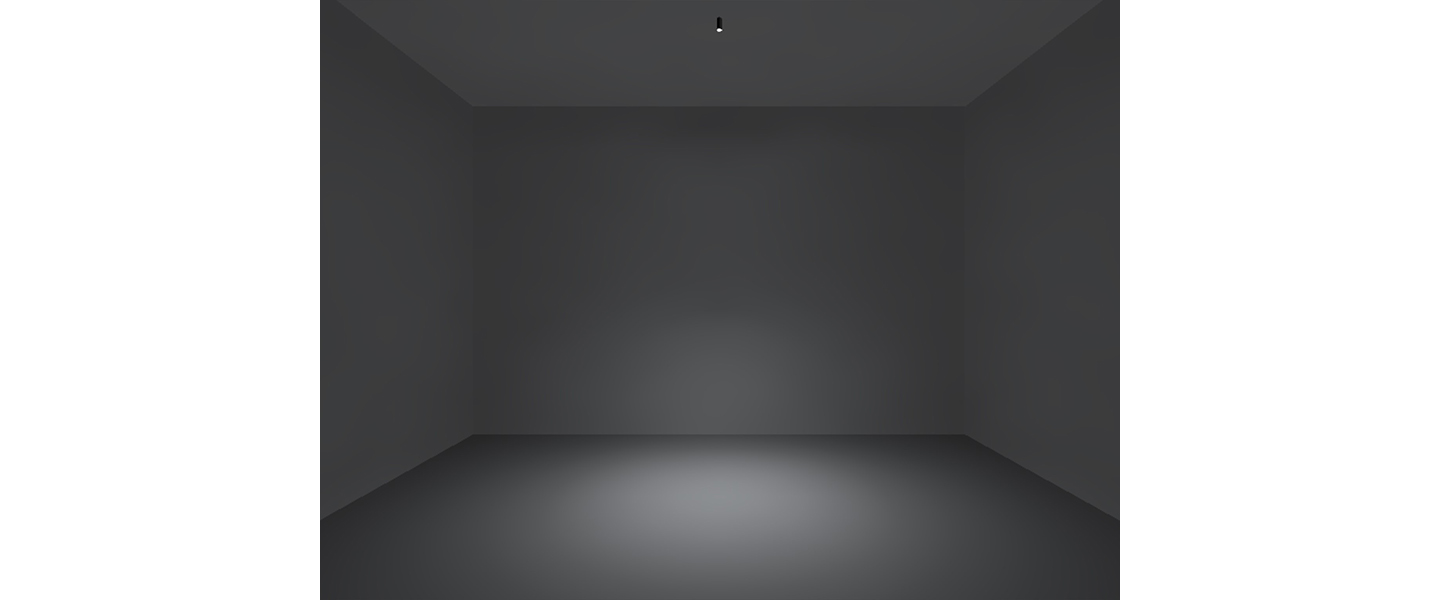

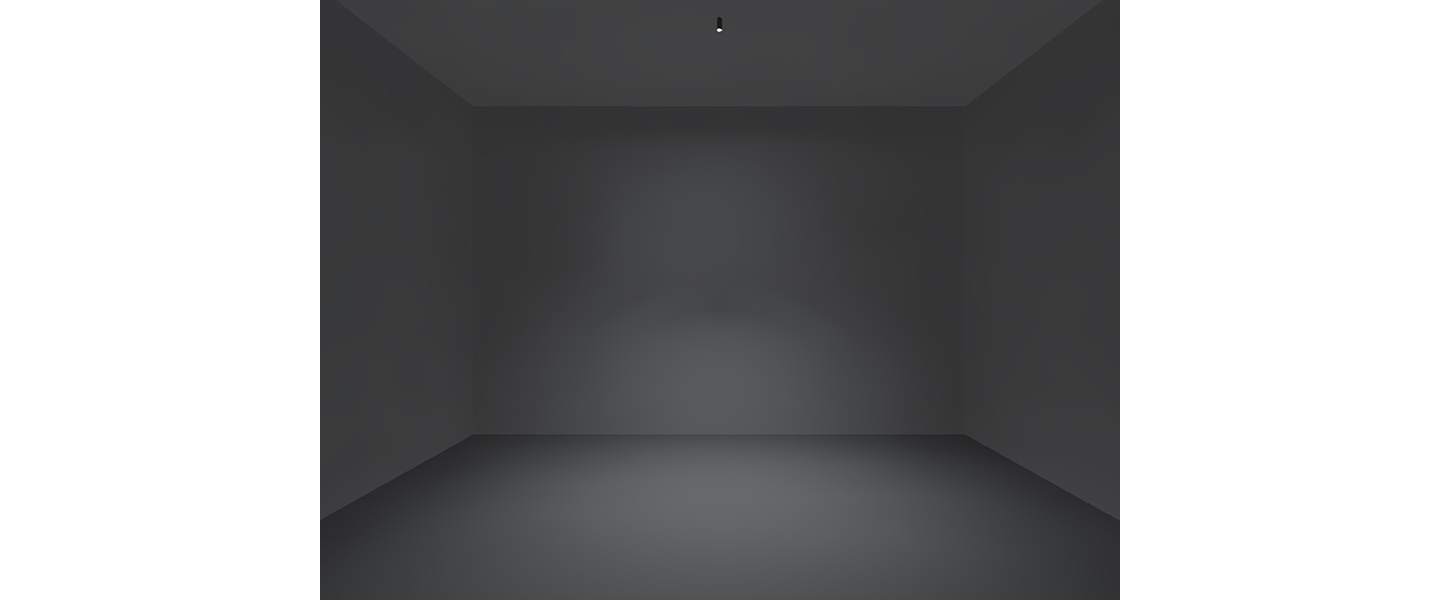

Lighting Effects

Products Specification:: Type:Adjustable Surface-Mounted Square Downlight; Beam Angle:15D 24D 36D 50D; Power:5W 8W; Dimension:70mm *70mm* H120 mm; Weight:0.45 kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:Plating

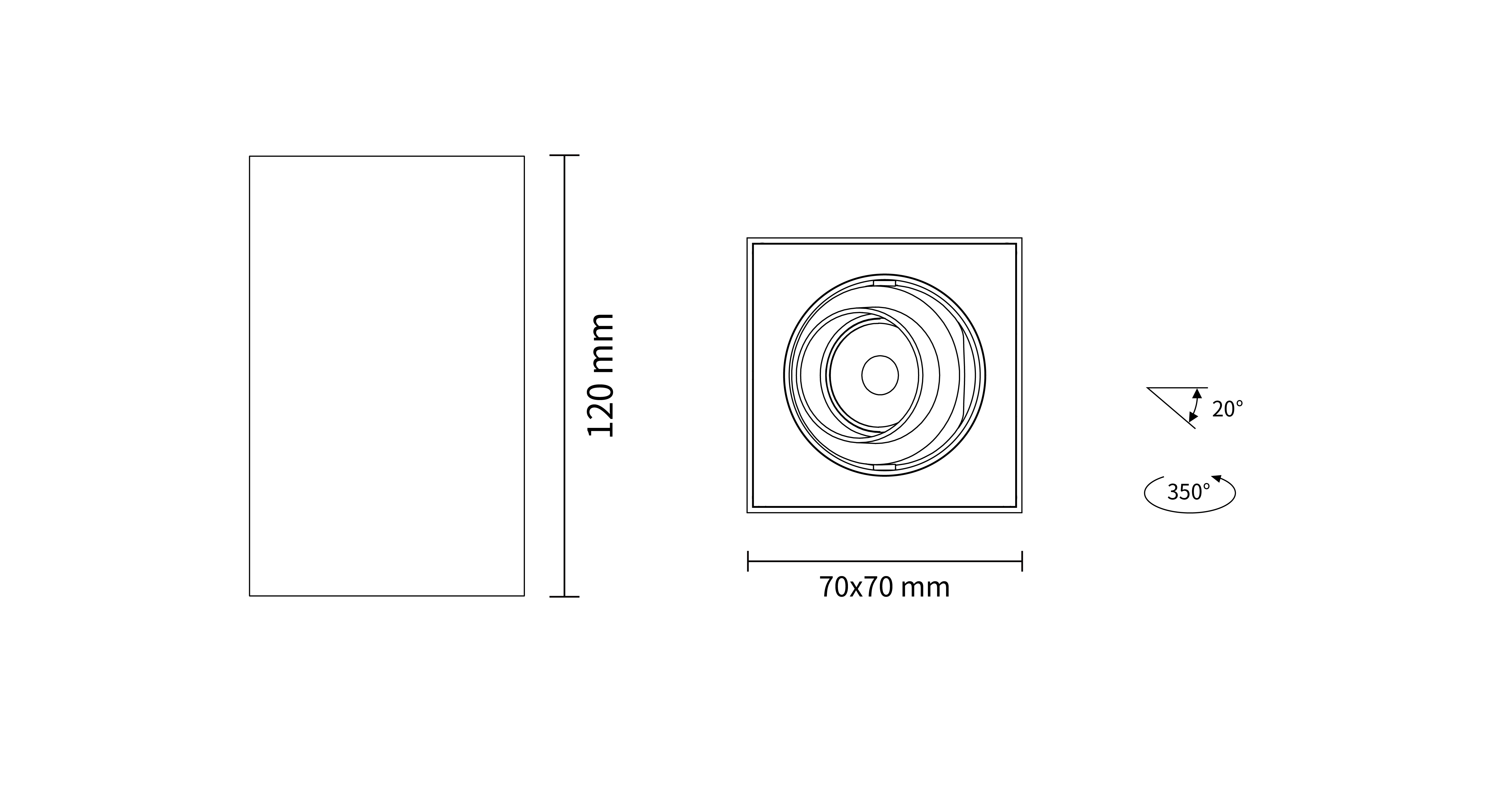

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
5W
8W

Beam Angle

Beam Angle
15°
24°
36°
50°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim

Finish

Finish
01-White
02-Black

Reflector

Reflector
2-Black

IP Rating

IP Rating
20-IP20

Accessory

Accessory
1-Honeycomb louver
4-Linear lens

Model No
Source Lumen (LM)
Power (W)
Beam Angle
CRI
Color
Specification
IES
manual
Favorite

Model No: 105142B1-05159027; 105142B1-05159030; 105142B1-05159040; 105142B1-05249027; 105142B1-05249030; 105142B1-05249040; 105142B1-05369027; 105142B1-05369030; 105142B1-05369040; 105142B1-05509027; 105142B1-05509030; 105142B1-05509040; 105142B1-08159027; 105142B1-08159030; 105142B1-08159040; 105142B1-08249027; 105142B1-08249030; 105142B1-08249040; 105142B1-08369027; 105142B1-08369030; 105142B1-08369040; 105142B1-08509027; 105142B1-08509030; 105142B1-08509040

Luminous Flux (LM): 468LM; 493LM; 517LM; 509LM; 536LM; 563LM; 509LM; 536LM; 563LM; 509LM; 536LM; 563LM; 713LM; 751LM; 788LM; 760LM; 800LM; 840LM; 760LM; 800LM; 840LM; 760LM; 800LM; 840LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W

Beam Angle: 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
