Home Products Indoor GRACE 187 - Adjustable Triple Heads Trimless Recessed Downlight

GRACE 187

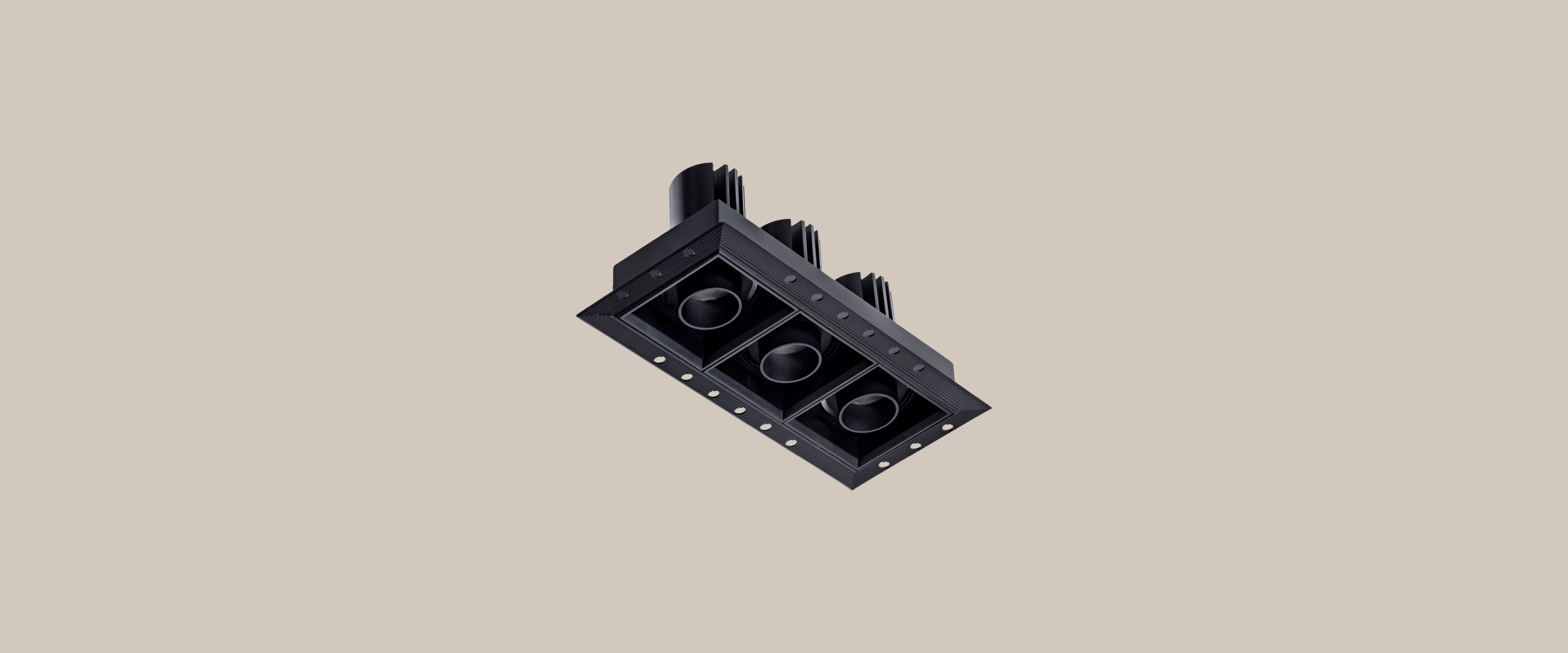

Adjustable Triple Heads Trimless Recessed Downlight

GRACE 187

Adjustable Triple Heads Trimless Recessed Downlight

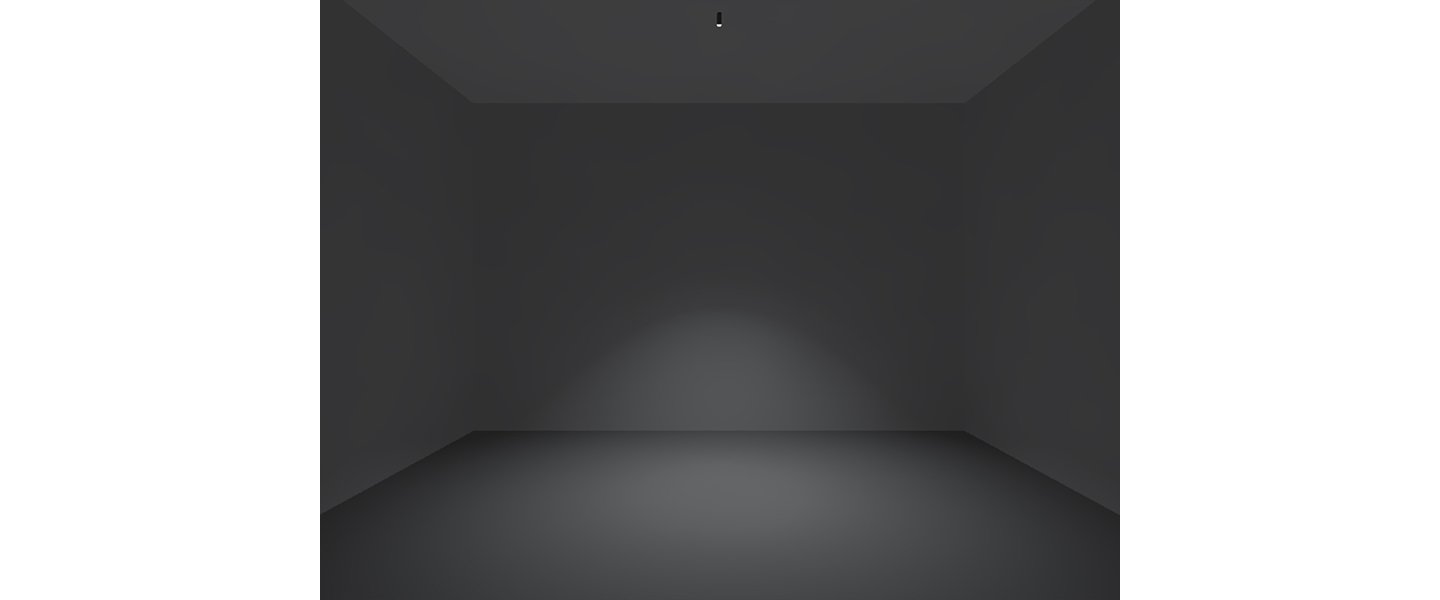

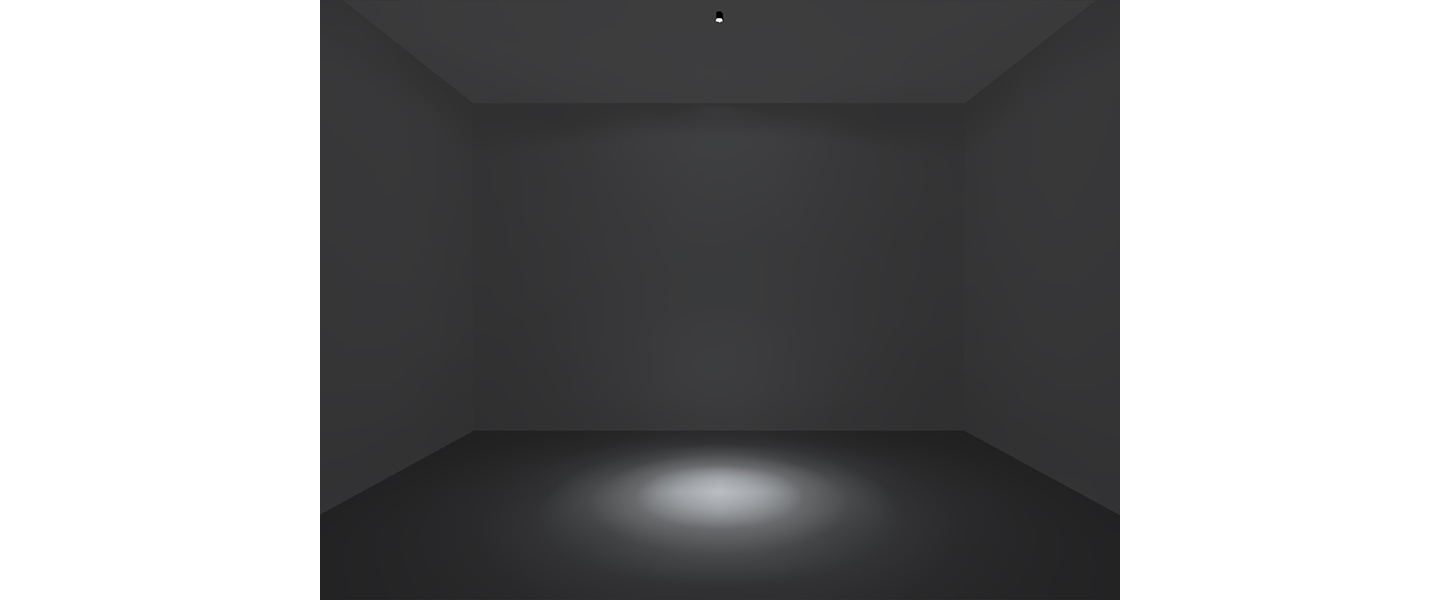

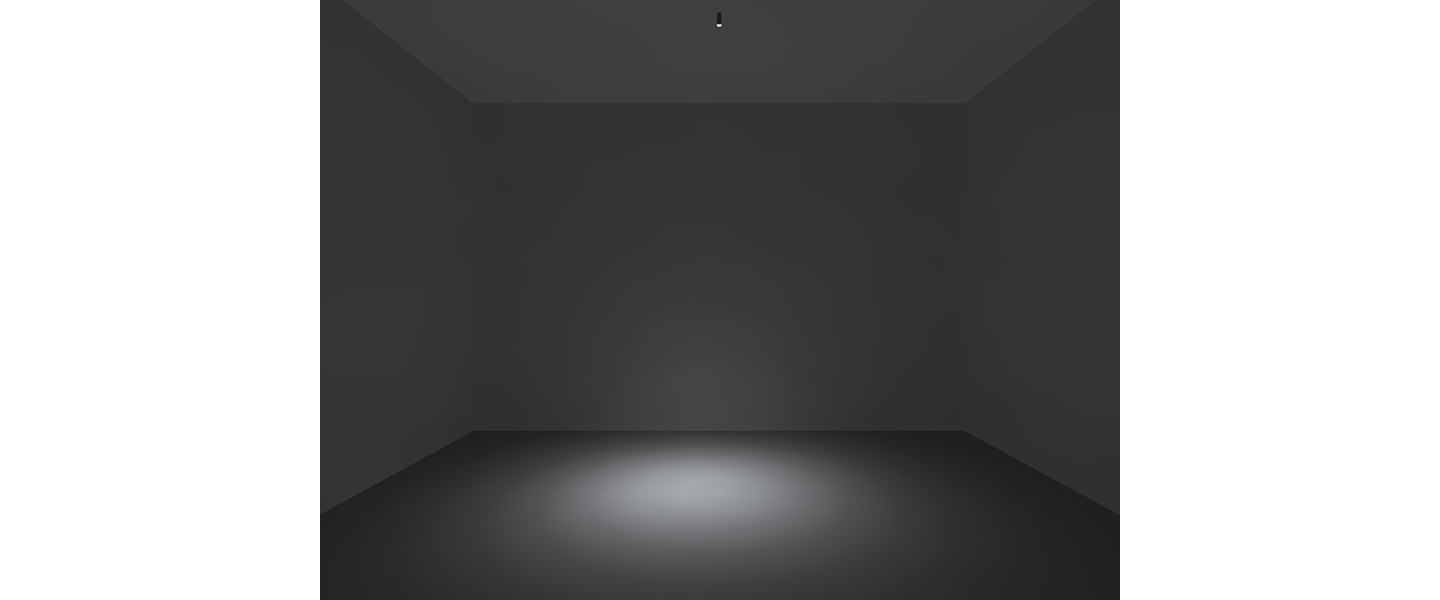

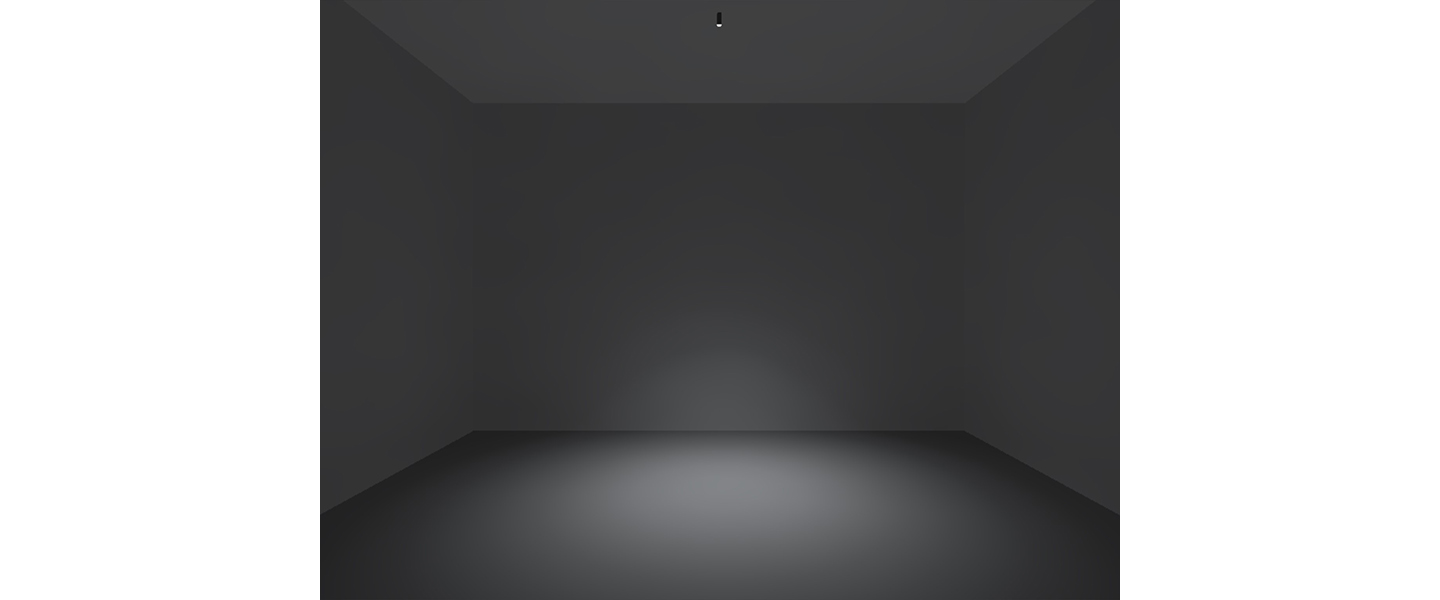

Lighting Effects

Products Specification:: Type:Adjustable Triple Heads Trimless Recessed Downlight; Cut-out:66x187mm; Beam Angle:15D 24D 36D 50D; Power:3x5W 3x7W 3x10W; Weight:0.56kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating

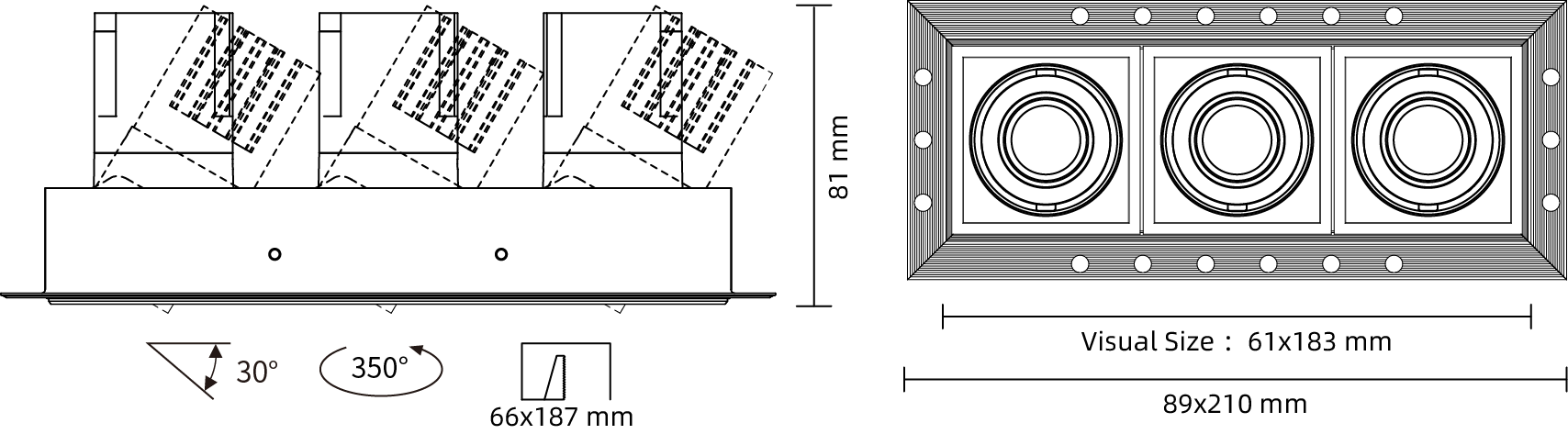

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
3X10W
3X7W
3X5W

Beam Angle

Beam Angle
15°
24°
36°
50°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
02-Black
01-White

Reflector

Reflector
N/A

IP Rating

IP Rating
20-IP20

Accessory

Accessory
1-Honeycomb louver
4-Linear lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR00906-05159027; DR00906-05159030; DR00906-05159040; DR00906-05249027; DR00906-05249030; DR00906-05249040; DR00906-05369027; DR00906-05369030; DR00906-05369040; DR00906-05509027; DR00906-05509030; DR00906-05509040; DR00906-07159027; DR00906-07159030; DR00906-07159040; DR00906-07249027; DR00906-07249030; DR00906-07249040; DR00906-07369027; DR00906-07369030; DR00906-07369040; DR00906-07509027; DR00906-07509030; DR00906-07509040; DR00906-10159027; DR00906-10159030; DR00906-10159040; DR00906-10249027; DR00906-10249030; DR00906-10249040; DR00906-10369027; DR00906-10369030; DR00906-10369040; DR00906-10509027; DR00906-10509030; DR00906-10509040

Luminous Flux (LM): 968LM; 1019LM; 1207LM; 1033LM; 1087LM; 1159LM; 867LM; 913LM; 973LM; 889LM; 936LM; 978LM; 1140LM; 1200LM; 1426LM; 1202LM; 1266LM; 1350LM; 1014LM; 1068LM; 1148LM; 1060LM; 1116LM; 1152LM; 1696LM; 1786LM; 2050LM; 1865LM; 1963LM; 1948LM; 1626LM; 1712LM; 1617LM; 1623LM; 1709LM; 1683LM

Power (W): 3X5W; 3X5W; 3X5W; 3X5W; 3X5W; 3X5W; 3X5W; 3X5W; 3X5W; 3X5W; 3X5W; 3X5W; 3X7W; 3X7W; 3X7W; 3X7W; 3X7W; 3X7W; 3X7W; 3X7W; 3X7W; 3X7W; 3X7W; 3X7W; 3X10W; 3X10W; 3X10W; 3X10W; 3X10W; 3X10W; 3X10W; 3X10W; 3X10W; 3X10W; 3X10W; 3X10W

Beam Angle: 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

manual

Favorite

Application
