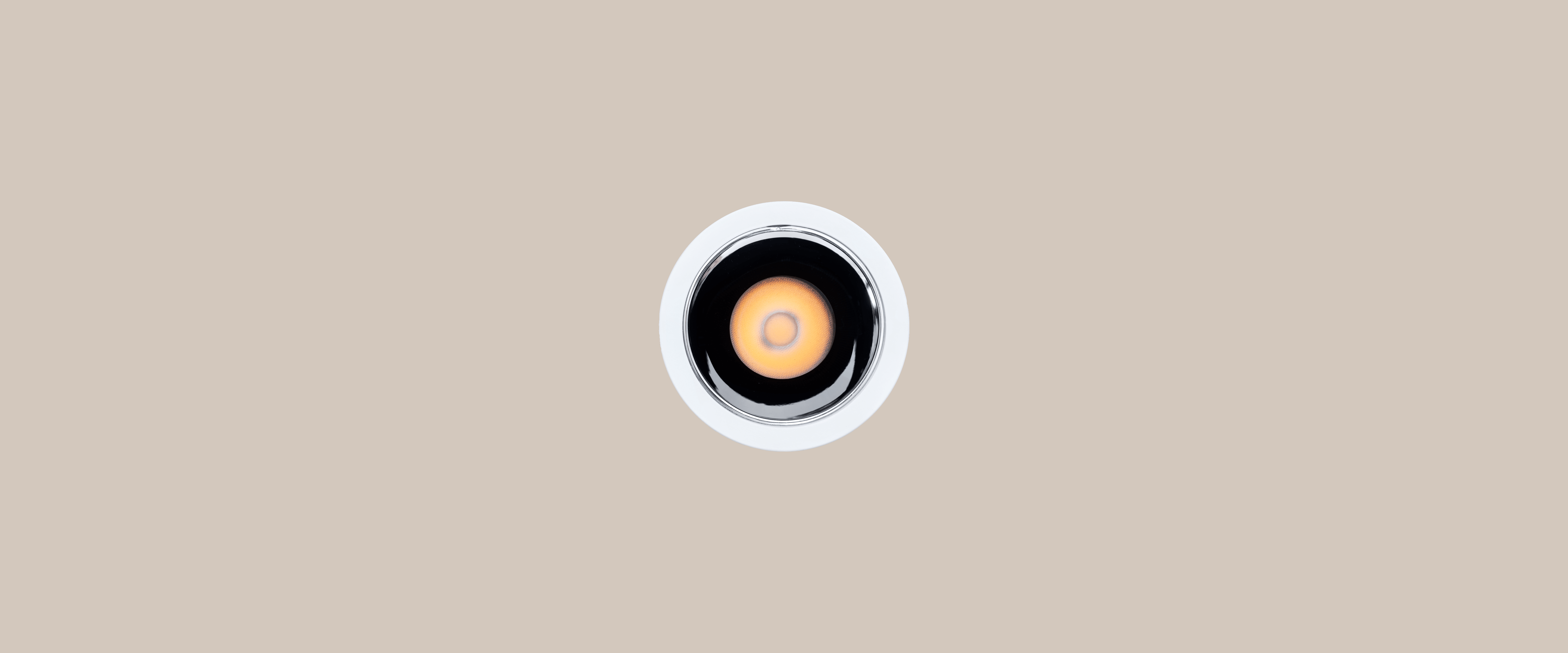

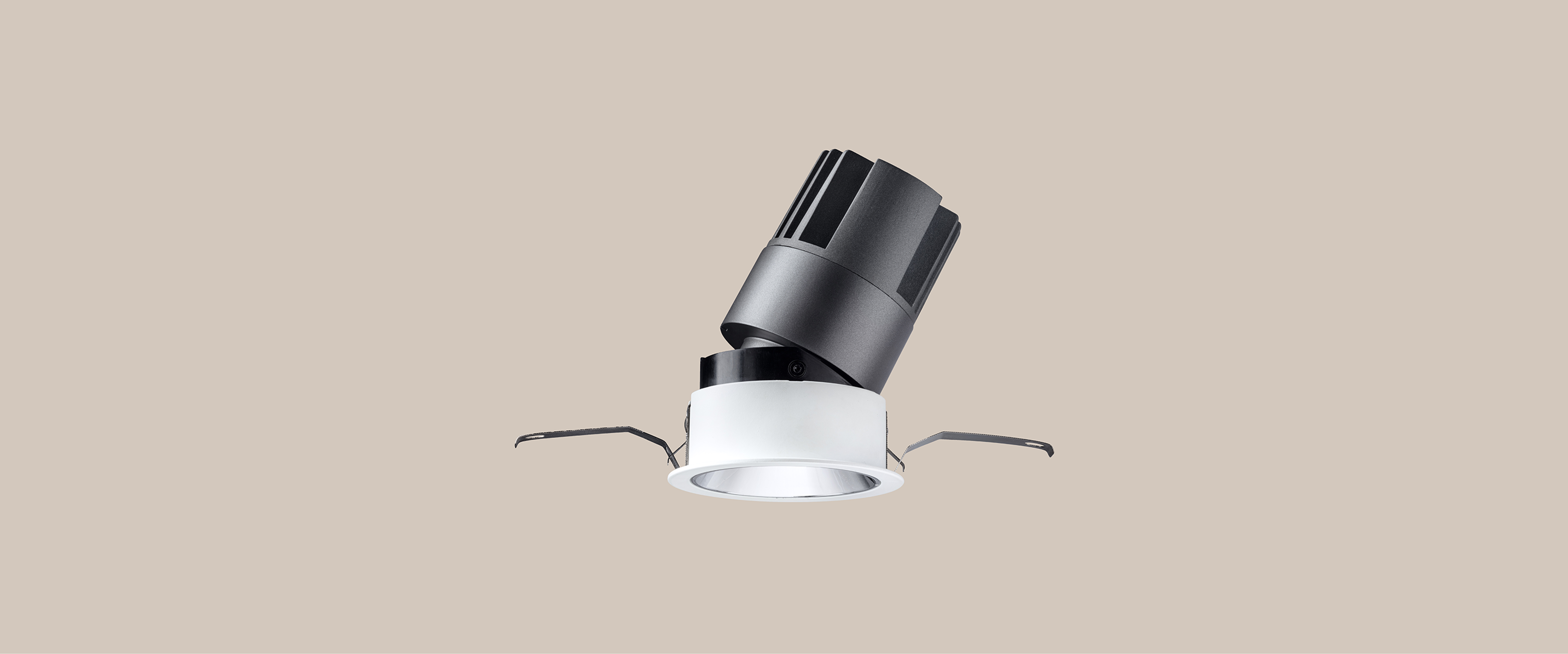

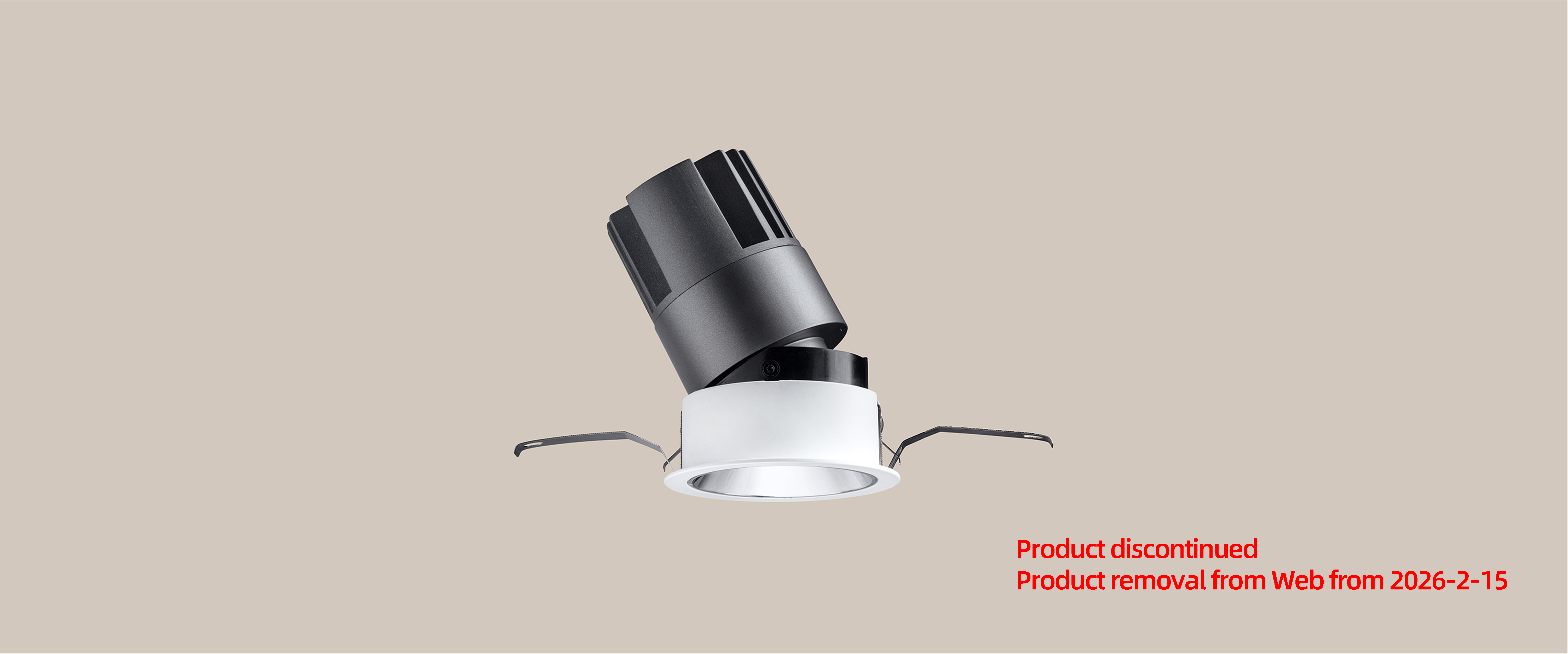

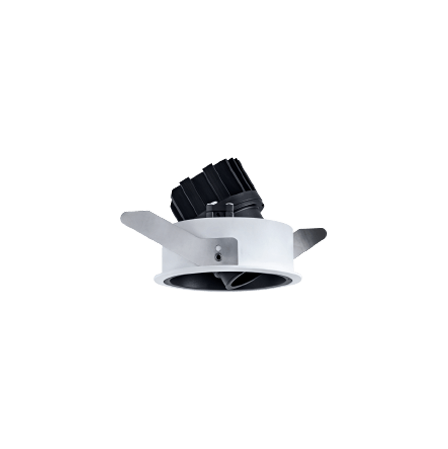

ALPS 75

Adjustable Recessed Downlight

ALPS 75

Wisdom of european and chinese coopration.

ALPS 75

Wisdom of european and chinese coopration.

As a part of space lighting, ambient lighting is a basic lighting, but the requirements are still very high. It need not only high efficiency and the comfortable low glare light, but also to achieve an even and soft high quality output of light under the circumstance of wide grading, which requests strictly to the integral design of lamps. Alps is a joint developed products between VF R&D team and European lighting experts, providing the best choice for ambient lighting.
The rapid installation screw of selfadaption to ceiling thickness protects the structure of ceiling and provides convenience for later maintenance. Alps has achieved good harmony and unity in terms of lamp efficiency, light quality, visual comfort, lighting installation and maintenance, and industrial design. It is a model for the new technology of basic lighting fixtures.

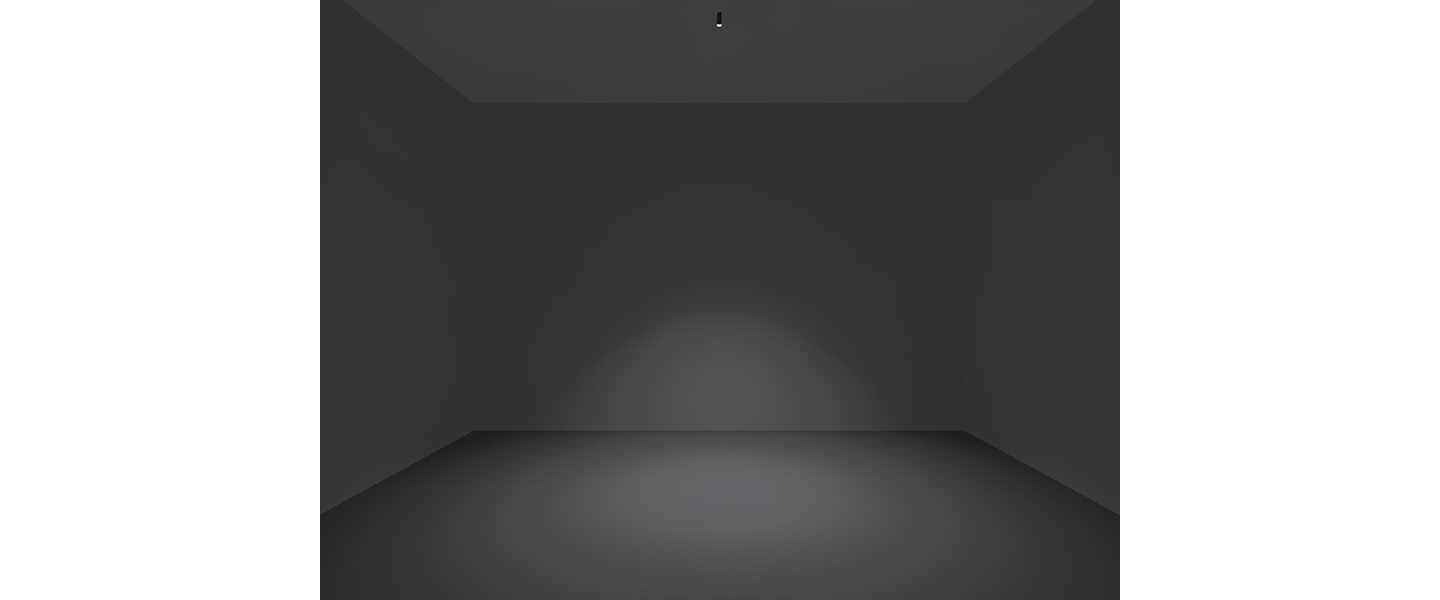

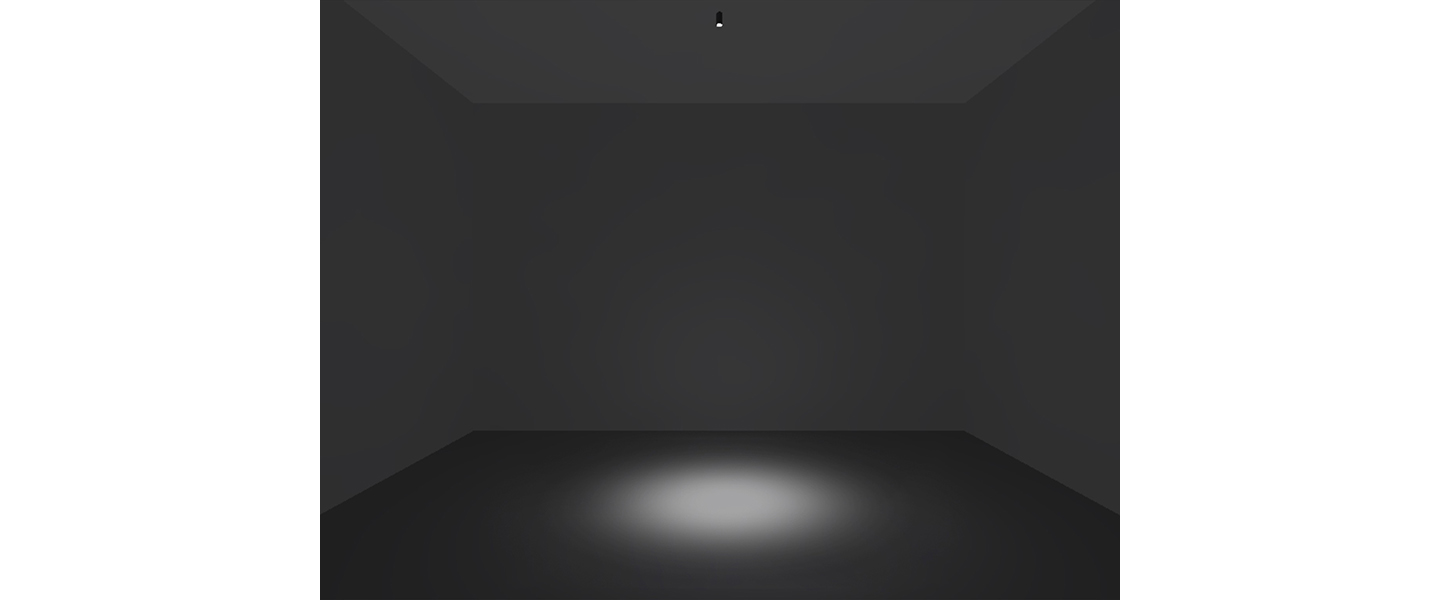

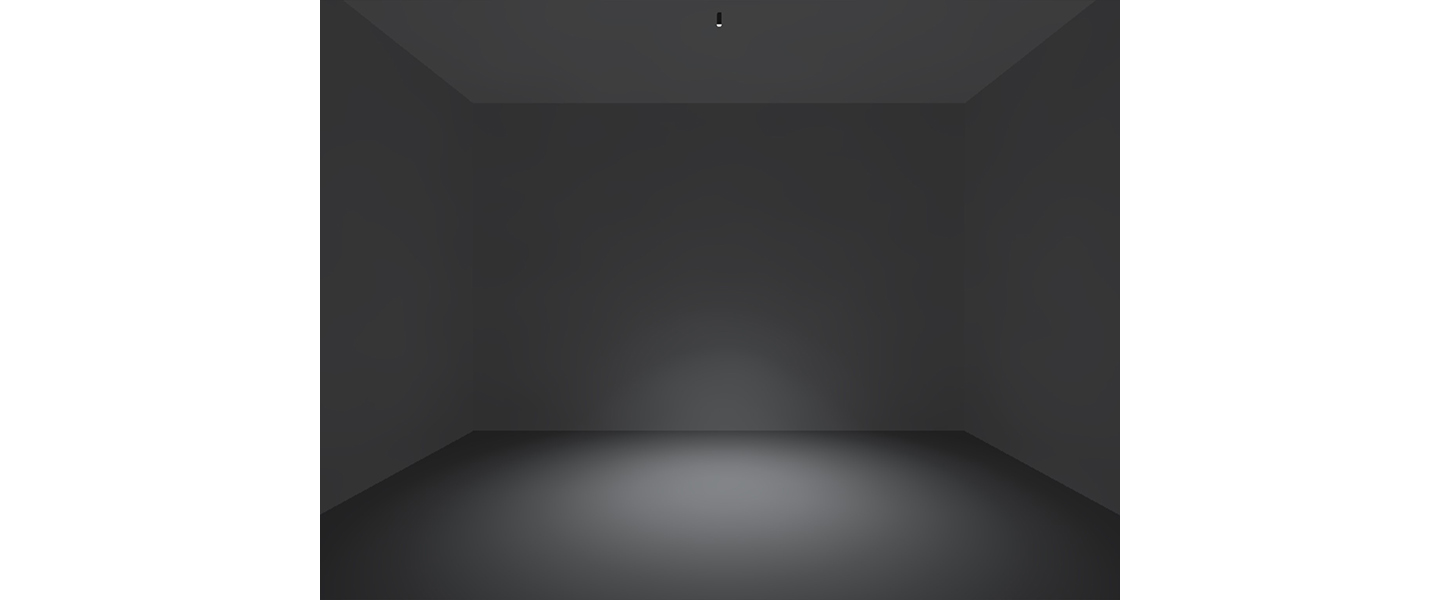

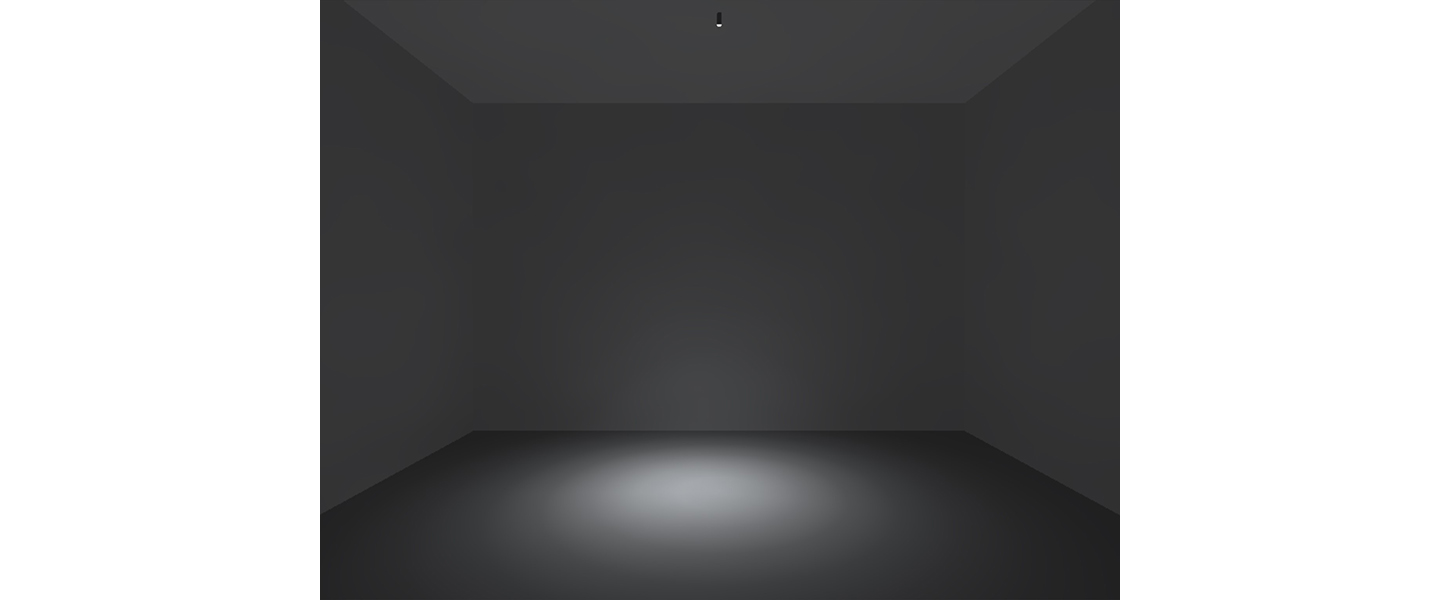

Lighting Effects

Products Specification:
Type:Adjustable Recessed Downlight
Cut-Out:ø 75 mm
Beam Angle:15D 26D 36D 50D
Power:5W 8W 12W 15W 20W
Weight:0.21kg
CCT:2700K 3000K 4000K
Heat-Sink:Aluminum
Surface-Treatment:painting
Line Drawing:
General Features:

Accessories :
Reflector Color:

Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 5 W
  • 8W
  • 10W
  • 12W
  • 15W
  • 20W
Beam Angle
  • Beam Angle
  • 11°
  • 15°
  • 26°
  • 36°
  • 50°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 2700K
  • 3000K
  • 4000K
Dimming type
  • Dimming type
  • 1-Non Dim
  • 2-Phase dimming
  • 3-0-10V dimming
  • 4-DALI dimming
Finish
  • Finish
  • 02-Black
  • 01-White
Reflector
  • Reflector
  • Mirror
  • Black
  • White
  • Black chromium plating
IP Rating
  • IP Rating
  • 20-IP20
Accessory
  • Accessory
  • 1-Honeycomb louver
  • 4-Linear lens
  • 6-Soft lens
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No

DR01102-05119027

DR01102-05119030

DR01102-05119040

DR01102-05159027

DR01102-05159030

DR01102-05159040

DR01102-05269027

DR01102-05269030

DR01102-05269040

DR01102-05369027

DR01102-05369030

DR01102-05369040

DR01102-05509027

DR01102-05509030

DR01102-05509040

DR01102-08119027

DR01102-08119030

DR01102-08119040

DR01102-08159027

DR01102-08159030

DR01102-08159040

DR01102-08269027

DR01102-08269030

DR01102-08269040

DR01102-08369027

DR01102-08369030

DR01102-08369040

DR01102-08509027

DR01102-08509030

DR01102-08509040

DR01102-10119027

DR01102-10119030

DR01102-10119040

DR01102-12119027

DR01102-12119030

DR01102-12119040

DR01102-12159027

DR01102-12159030

DR01102-12159040

DR01102-12269027

DR01102-12269030

DR01102-12269040

DR01102-12369027

DR01102-12369030

DR01102-12369040

DR01102-12509027

DR01102-12509030

DR01102-12509040

DR01102-15119027

DR01102-15119030

DR01102-15119040

DR01102-15159027

DR01102-15159030

DR01102-15159040

DR01102-15269027

DR01102-15269030

DR01102-15269040

DR01102-15369027

DR01102-15369030

DR01102-15369040

DR01102-15509027

DR01102-15509030

DR01102-15509040

DR01102-20159027

DR01102-20159030

DR01102-20159040

DR01102-20269027

DR01102-20269030

DR01102-20269040

DR01102-20369027

DR01102-20369030

DR01102-20369040

DR01102-20509027

DR01102-20509030

DR01102-20509040

Luminous Flux (LM)

213LM

224LM

236LM

324LM

341LM

363LM

359LM

378LM

407LM

377LM

397LM

458LM

379LM

399LM

461LM

318LM

334LM

351LM

408LM

429LM

454LM

515LM

542LM

604LM

556LM

586LM

681LM

561LM

590LM

685LM

391LM

411LM

432LM

444LM

467LM

490LM

631LM

664LM

728LM

827LM

871LM

898LM

882LM

929LM

968LM

879LM

925LM

980LM

497LM

523LM

549LM

760LM

800LM

815LM

957LM

1007LM

1060LM

1048LM

1104LM

1179LM

1037LM

1092LM

1164LM

1164LM

1058LM

1066LM

1294LM

1362LM

1423LM

1437LM

1513LM

1575LM

1415LM

1490LM

1596LM

Power (W)

5 W

5 W

5 W

5 W

5 W

5 W

5 W

5 W

5 W

5 W

5 W

5 W

5 W

5 W

5 W

8W

8W

8W

8W

8W

8W

8W

8W

8W

8W

8W

8W

8W

8W

8W

10W

10W

10W

12W

12W

12W

12W

12W

12W

12W

12W

12W

12W

12W

12W

12W

12W

12W

15W

15W

15W

15W

15W

15W

15W

15W

15W

15W

15W

15W

15W

15W

15W

20W

20W

20W

20W

20W

20W

20W

20W

20W

20W

20W

20W

Beam Angle

11°

11°

11°

15°

15°

15°

26°

26°

26°

36°

36°

36°

50°

50°

50°

11°

11°

11°

15°

15°

15°

26°

26°

26°

36°

36°

36°

50°

50°

50°

11°

11°

11°

11°

11°

11°

15°

15°

15°

26°

26°

26°

36°

36°

36°

50°

50°

50°

11°

11°

11°

15°

15°

15°

26°

26°

26°

36°

36°

36°

50°

50°

50°

15°

15°

15°

26°

26°

26°

36°

36°

36°

50°

50°

50°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

Specification
IES
DWG
manual
Favorite

Application
