Home Products Indoor GRACE 127 - Adjustable Double Heads Trimless Recessed Downlight

GRACE 127

Adjustable Double Heads Trimless Recessed Downlight

GRACE 127

Adjustable Double Heads Trimless Recessed Downlight

Lighting Effects

Products Specification:: Type:Adjustable Double Heads Trimless Recessed Downlight; Cut-Out:66x127mm; Beam Angle:15D 24D 36D 50D; Power:2x5W 2x7W 2x10W; Weight:0.38kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating

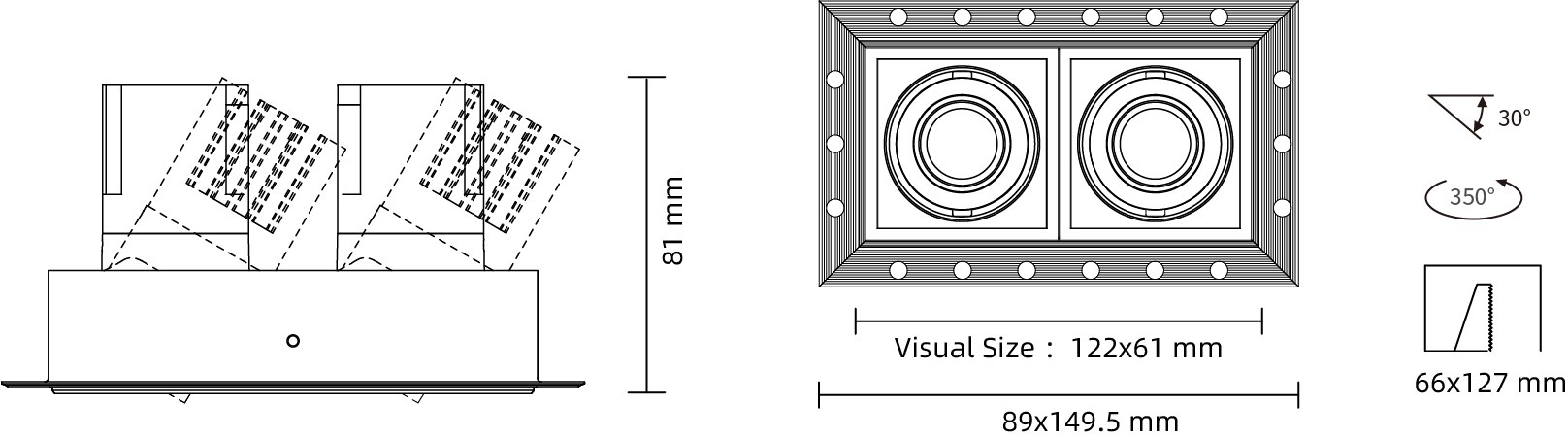

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)

Beam Angle

Beam Angle

CRI

CRI

Color

Color

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
02-Black
01-White

Reflector

Reflector
N/A

IP Rating

IP Rating
20-IP20

Accessory

Accessory
1-Honeycomb louver
4-Linear lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR00905-05159027; DR00905-05159030; DR00905-05159040; DR00905-05249027; DR00905-05249030; DR00905-05249040; DR00905-05369027; DR00905-05369030; DR00905-05369040; DR00905-05509027; DR00905-05509030; DR00905-05509040; DR00905-07159027; DR00905-07159030; DR00905-07159040; DR00905-07249027; DR00905-07249030; DR00905-07249040; DR00905-07369027; DR00905-07369030; DR00905-07369040; DR00905-07509027; DR00905-07509030; DR00905-07509040; DR00905-10159027; DR00905-10159030; DR00905-10159040; DR00905-10249027; DR00905-10249030; DR00905-10249040; DR00905-10369027; DR00905-10369030; DR00905-10369040; DR00905-10509027; DR00905-10509030; DR00905-10509040

Luminous Flux (LM): 645LM; 679LM; 804LM; 688LM; 725LM; 773LM; 578LM; 609LM; 649LM; 592LM; 624LM; 652LM; 760LM; 800LM; 951LM; 801LM; 844LM; 900LM; 676LM; 712LM; 765LM; 706LM; 744LM; 768LM; 1131LM; 1190LM; 1367LM; 1243LM; 1309LM; 1298LM; 1084LM; 1141LM; 1078LM; 1082LM; 1139LM; 1122LM

Power (W): 2X5W; 2X5W; 2X5W; 2X5W; 2X5W; 2X5W; 2X5W; 2X5W; 2X5W; 2X5W; 2X5W; 2X5W; 2X7W; 2X7W; 2X7W; 2X7W; 2X7W; 2X7W; 2X7W; 2X7W; 2X7W; 2X7W; 2X7W; 2X7W; 2X10W; 2X10W; 2X10W; 2X10W; 2X10W; 2X10W; 2X10W; 2X10W; 2X10W; 2X10W; 2X10W; 2X10W

Beam Angle: 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

manual

Favorite
