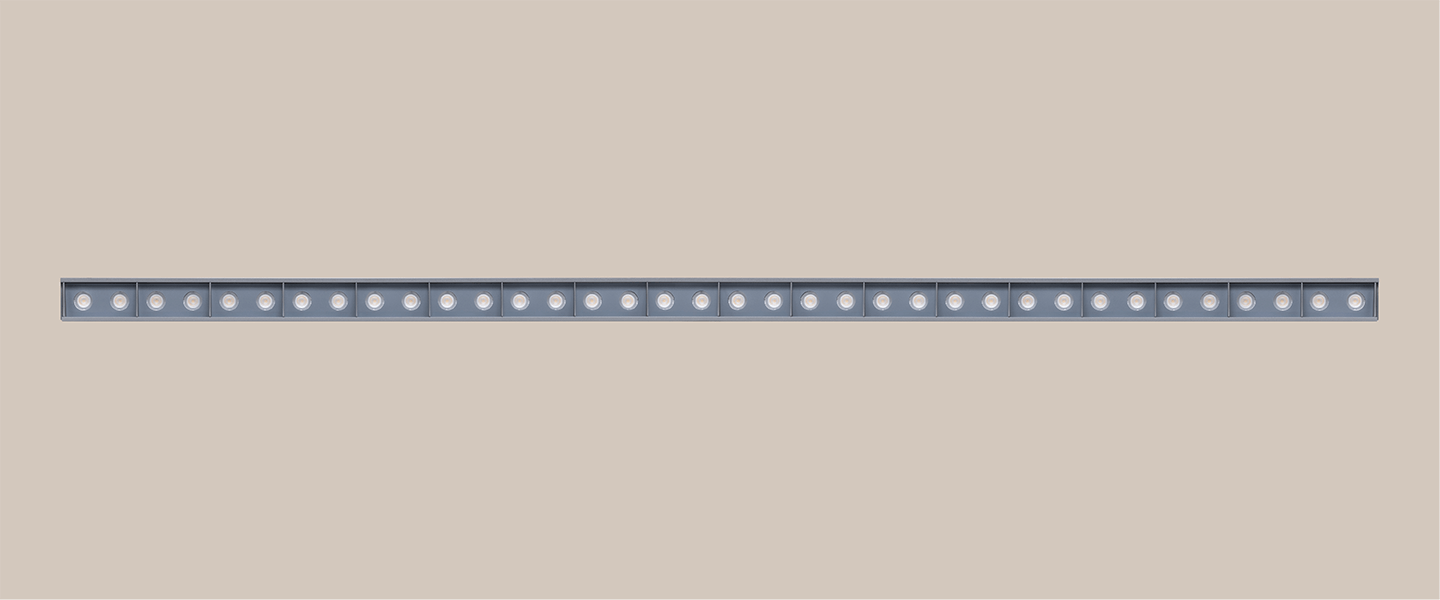

ARCUS 30
Wall Washer
ARCUS 30

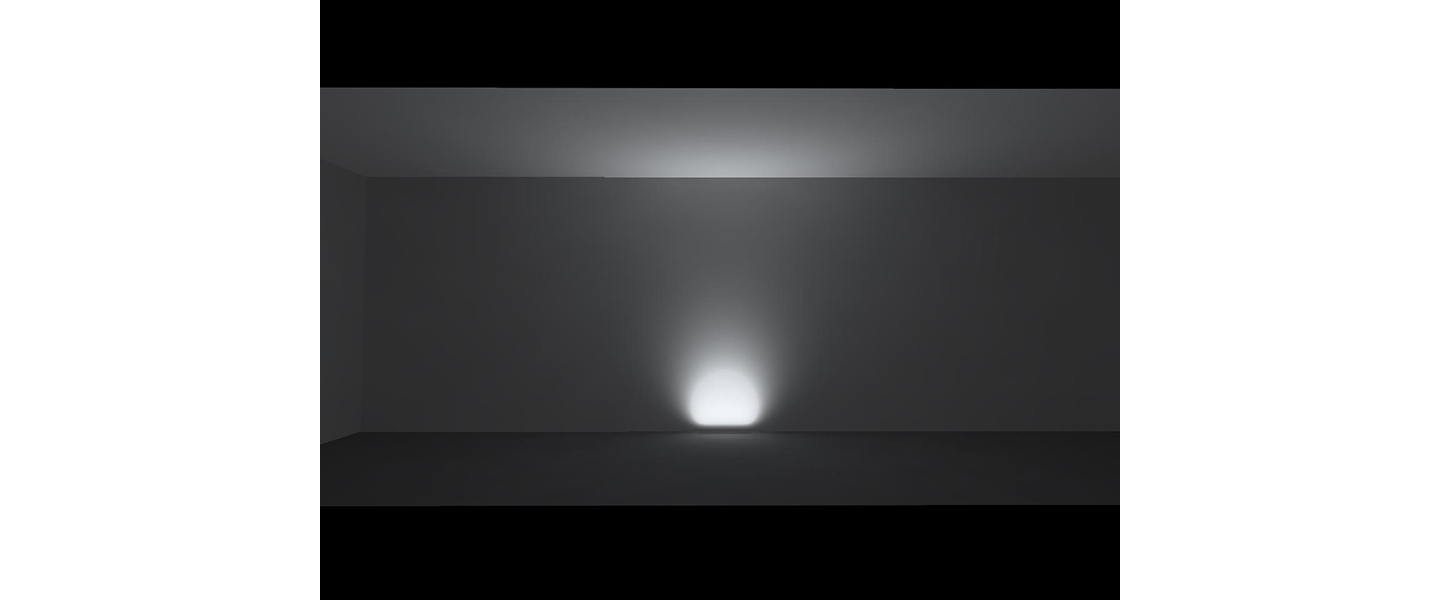

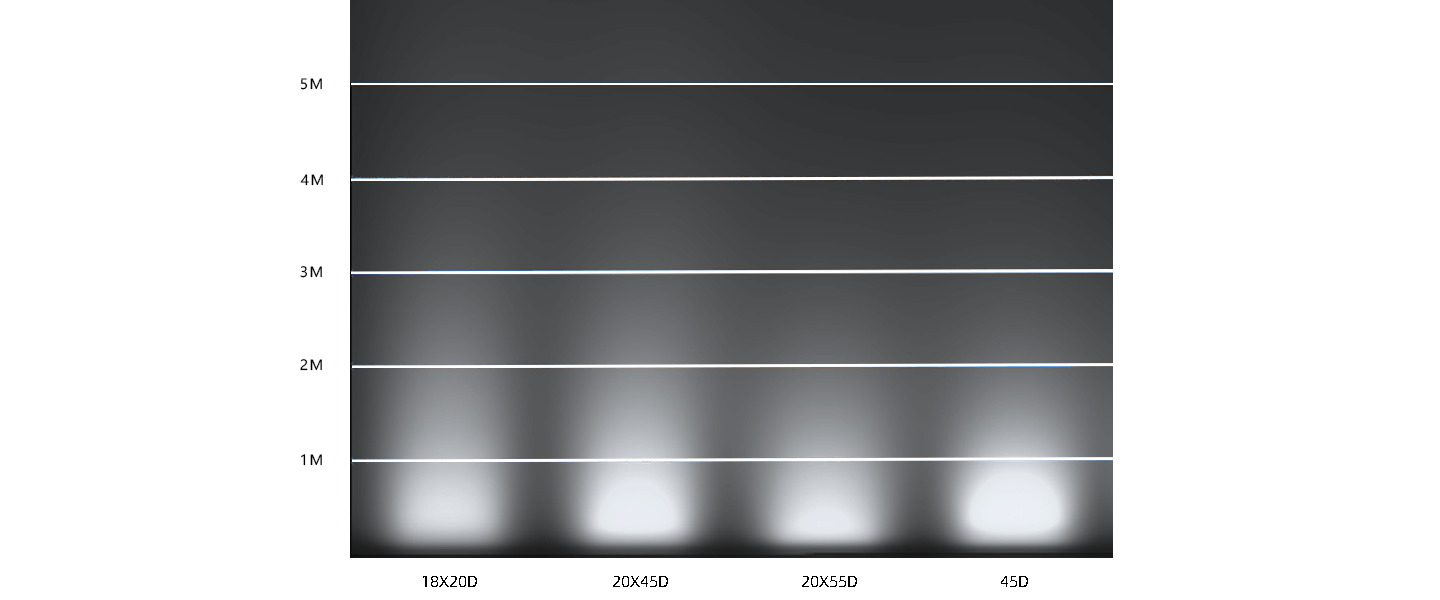

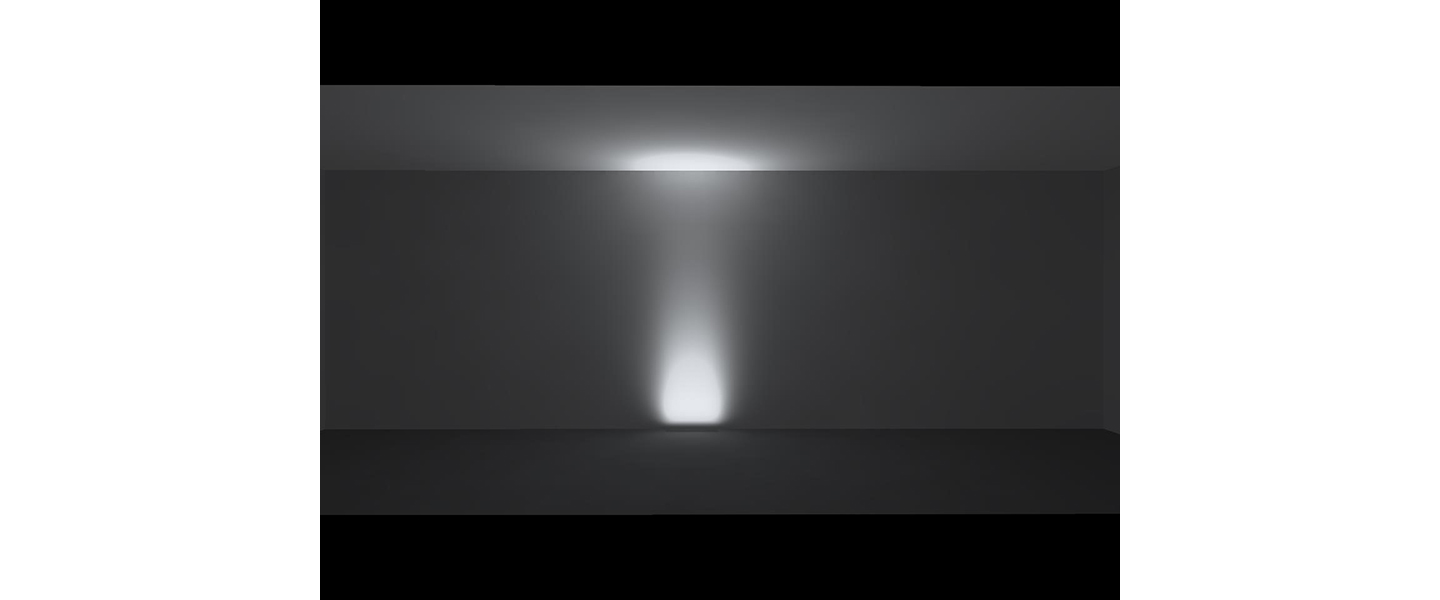

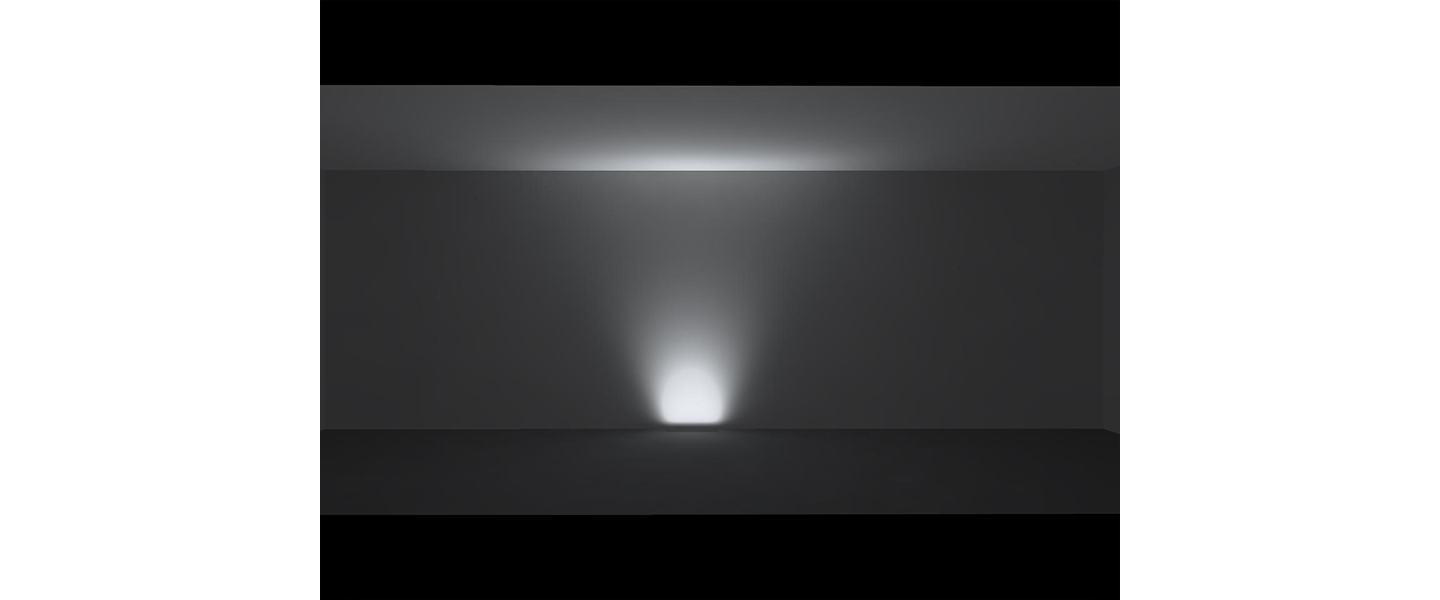

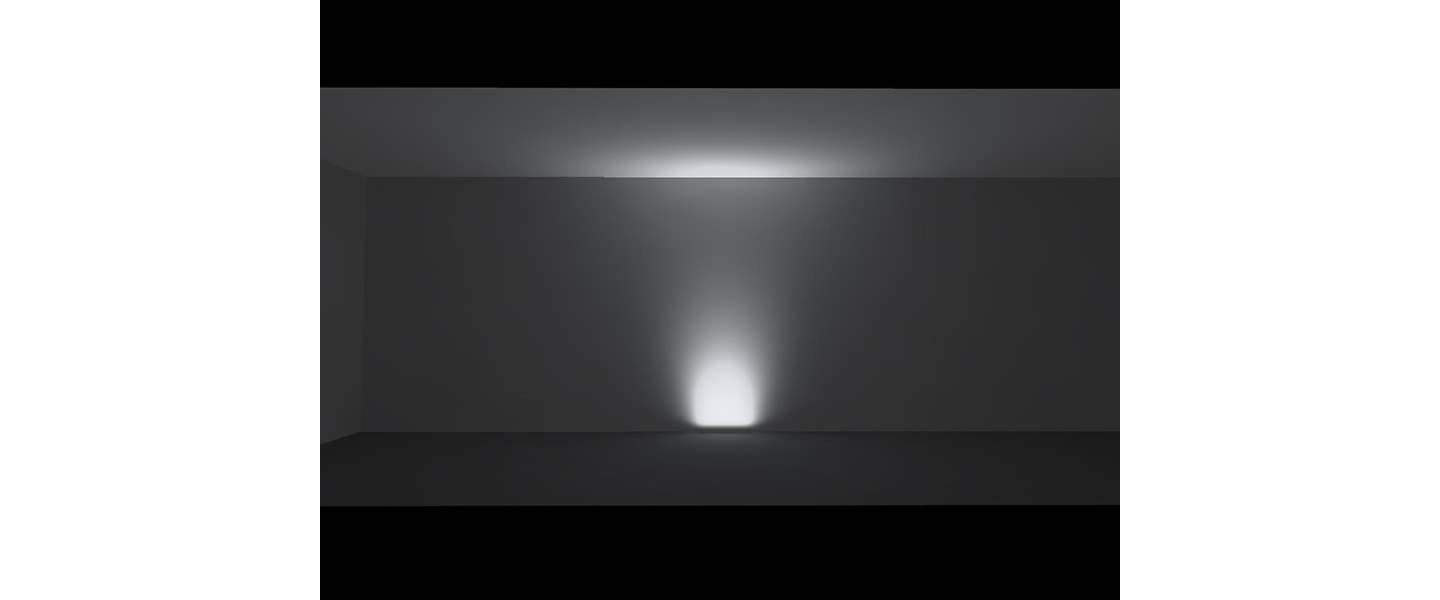

Lighting Effects
- Products Specification:
- Type:Wall Washer
- Beam Angle:45D 18x20D 20x45D 20X55D
- Power:12W 18W
- Dimension:1000*30*60mm
- Weight:1.59kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:powder coating

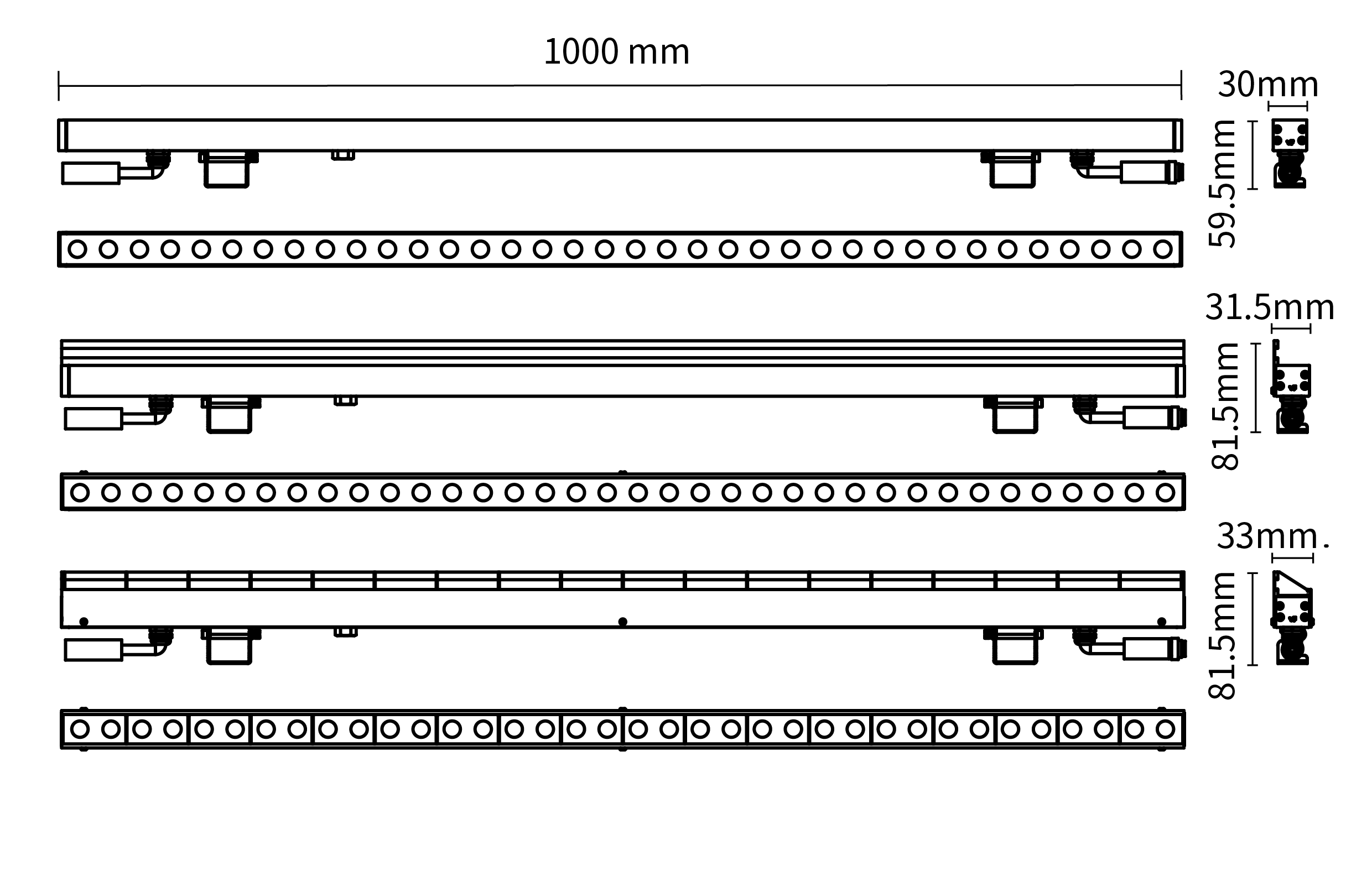

- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 12W
- 18W
Beam Angle- Beam Angle
- 18°X20°
- 20°X45°
- 20°X55°
- 45°
CRI- CRI
- >80
Color- Color
- 2700K
- 3000K
- 4000K
Control- Control
- ON/OFF/DALI/DMX512
Dimming type- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
Finish- Finish
- 03-Grey
Reflector- Reflector
- N/A
IP Rating- IP Rating
- 66-IP66
Accessory- Accessory
- E-glare
- C-Grid
- Power(W)
- 12W
- 18W
- Beam Angle
- 18°X20°
- 20°X45°
- 20°X55°
- 45°
- CRI
- >80
- Color
- 2700K
- 3000K
- 4000K
- Control
- ON/OFF/DALI/DMX512
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
- Finish
- 03-Grey
- Reflector
- N/A
- IP Rating
- 66-IP66
- Accessory
- E-glare
- C-Grid
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
BL00101-12458027
BL00101-12458030
BL00101-12458040
BL00101-1218208027
BL00101-1218208030
BL00101-1218208040
BL00101-1220458027
BL00101-1220458030
BL00101-1220458040
BL00101-1220558027
BL00101-1220558030
BL00101-1220558040
BL00101-12458027
BL00101-12458030
BL00101-12458040
BL00101-1218208027
BL00101-1218208030
BL00101-1218208040
BL00101-1220458027
BL00101-1220458030
BL00101-1220458040
BL00101-1220558027
BL00101-1220558030
BL00101-1220558040
- Luminous Flux (LM)
1397LM
1355LM
1474LM
1364LM
1323LM
1431LM
1347LM
1306LM
1433LM
1241LM
1204LM
1286LM
1987LM
1927LM
2048LM
1962LM
1903LM
2019LM
1902LM
1845LM
1957LM
1760LM
1707LM
1813LM
- Power (W)
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
18W
18W
18W
18W
18W
18W
18W
18W
18W
18W
18W
18W
- Beam Angle
45°
45°
45°
18°X20°
18°X20°
18°X20°
20°X45°
20°X45°
20°X45°
20°X55°
20°X55°
20°X55°
45°
45°
45°
18°X20°
18°X20°
18°X20°
20°X45°
20°X45°
20°X45°
20°X55°
20°X55°
20°X55°
- CRI
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Control
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
