POYO 85

Adjustable Recessed Downlight

POYO 85

Looking forward to being shining like the jade is waiting for carving

POYO 85

Looking forward to being shining like the jade is waiting for carving

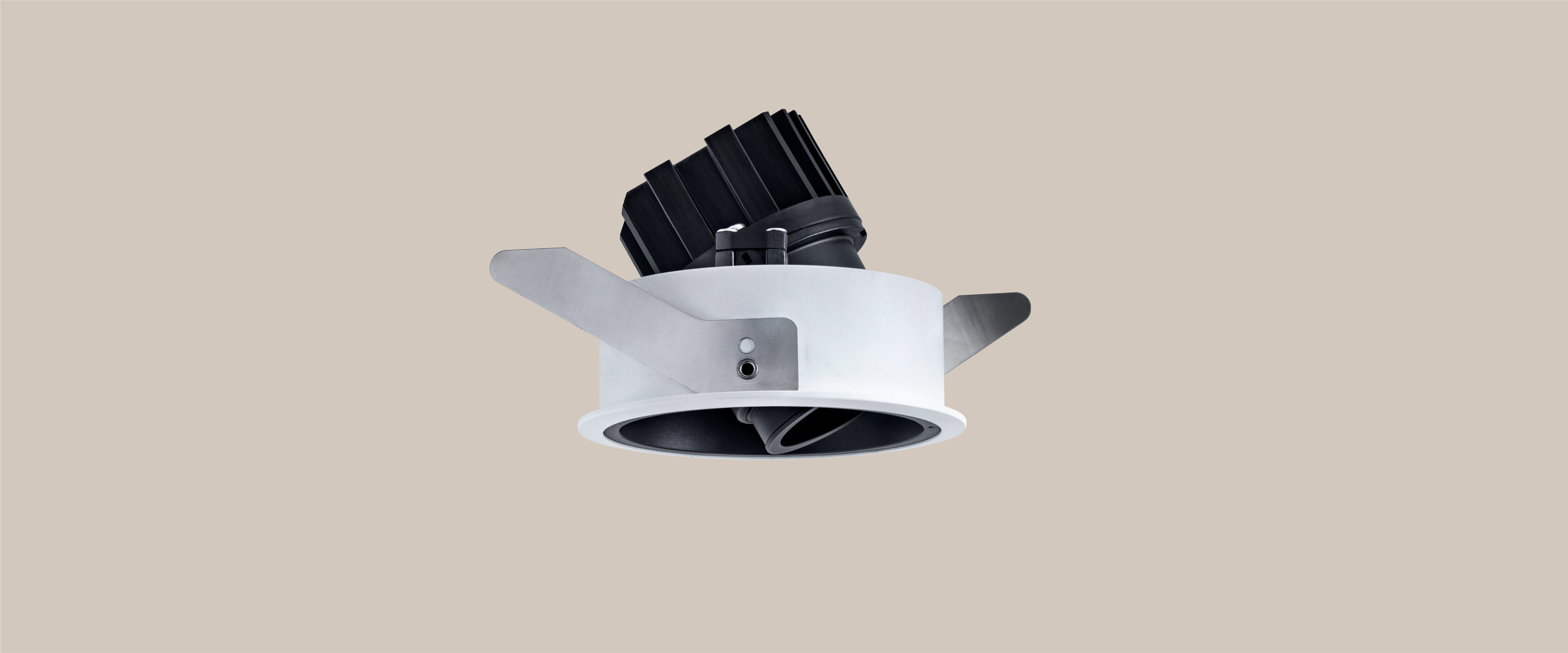

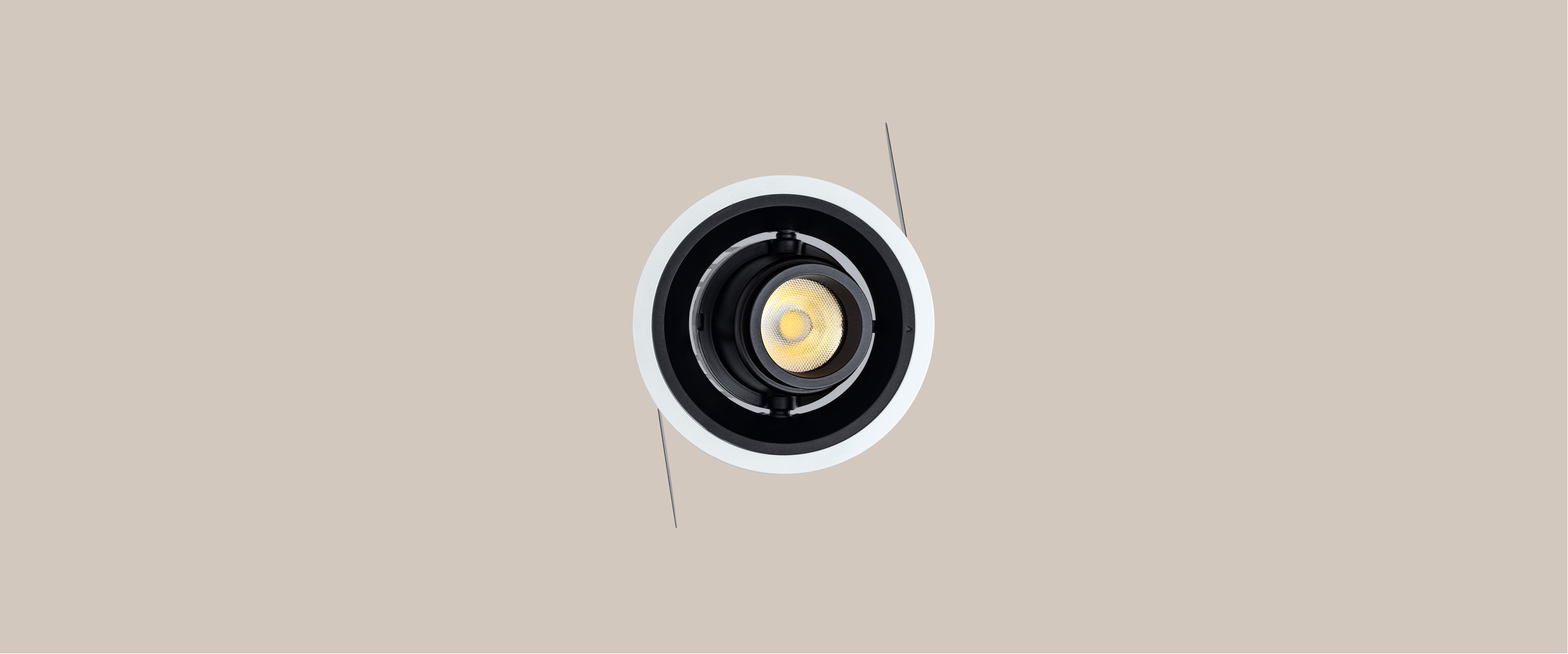

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of 350 degrees

and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

Lighting Effects

Products Specification:: Type:Adjustable Recessed Downlight; Cut-Out:ø 85 mm; Power:5W 8W 10W 12W; Beam Angle:15D 27D 37D 58D; Weight:0.4kg; CCT:2700K 3000K 4000K; Heat-Sink:Forging Aaluminium; Surface-Treatment:powder coating

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
5W
8W
10W
12W

Beam Angle

Beam Angle
15°
27°
37°
58°

CRI

CRI
Ra>90
Ra>80

Color

Color
2700K
3000K
4000K

Control

Control

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
92-Outdoor white
93-Outdoor black

Reflector

Reflector
2-Black

IP Rating

IP Rating
65-IP65

Accessory

Accessory
1-Honeycomb louver

Model No
Source Lumen (LM)
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
manual
Favorite

Model No: DR00802-05159027; DR00802-05159030; DR00802-05159040; DR00802-05279027; DR00802-05279030; DR00802-05279040; DR00802-05379027; DR00802-05379030; DR00802-05379040; DR00802-05589027; DR00802-05589030; DR00802-05589040; DR00802-08159027; DR00802-08159030; DR00802-08159040; DR00802-08279027; DR00802-08279030; DR00802-08279040; DR00802-08379027; DR00802-08379030; DR00802-08379040; DR00802-08589027; DR00802-08589030; DR00802-08589040; DR00802-10159027; DR00802-10159030; DR00802-10159040; DR00802-10279027; DR00802-10279030; DR00802-10279040; DR00802-10379027; DR00802-10379030; DR00802-10379040; DR00802-10589027; DR00802-10589030; DR00802-10589040; DR00802-12279027; DR00802-12279030; DR00802-12279040; DR00802-12379027; DR00802-12379030; DR00802-12379040; DR00802-12589027; DR00802-12589030; DR00802-12589040

Luminous Flux (LM): 482LM; 508LM; 518LM; 482LM; 508LM; 518LM; 482LM; 508LM; 518LM; 482LM; 508LM; 518LM; 845LM; 890LM; 907LM; 845LM; 890LM; 907LM; 845LM; 890LM; 907LM; 845LM; 890LM; 907LM; 1007LM; 1060LM; 1080LM; 1007LM; 1060LM; 1080LM; 1007LM; 1060LM; 1080LM; 1007LM; 1060LM; 1080LM; 1230LM; 1295LM; 1314LM; 1230LM; 1295LM; 1314LM; 1230LM; 1295LM; 1314LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W; 12W

Beam Angle: 15°; 15°; 15°; 27°; 27°; 27°; 37°; 37°; 37°; 58°; 58°; 58°; 15°; 15°; 15°; 27°; 27°; 27°; 37°; 37°; 37°; 58°; 58°; 58°; 15°; 15°; 15°; 27°; 27°; 27°; 37°; 37°; 37°; 58°; 58°; 58°; 27°; 27°; 27°; 37°; 37°; 37°; 58°; 58°; 58°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>80

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
