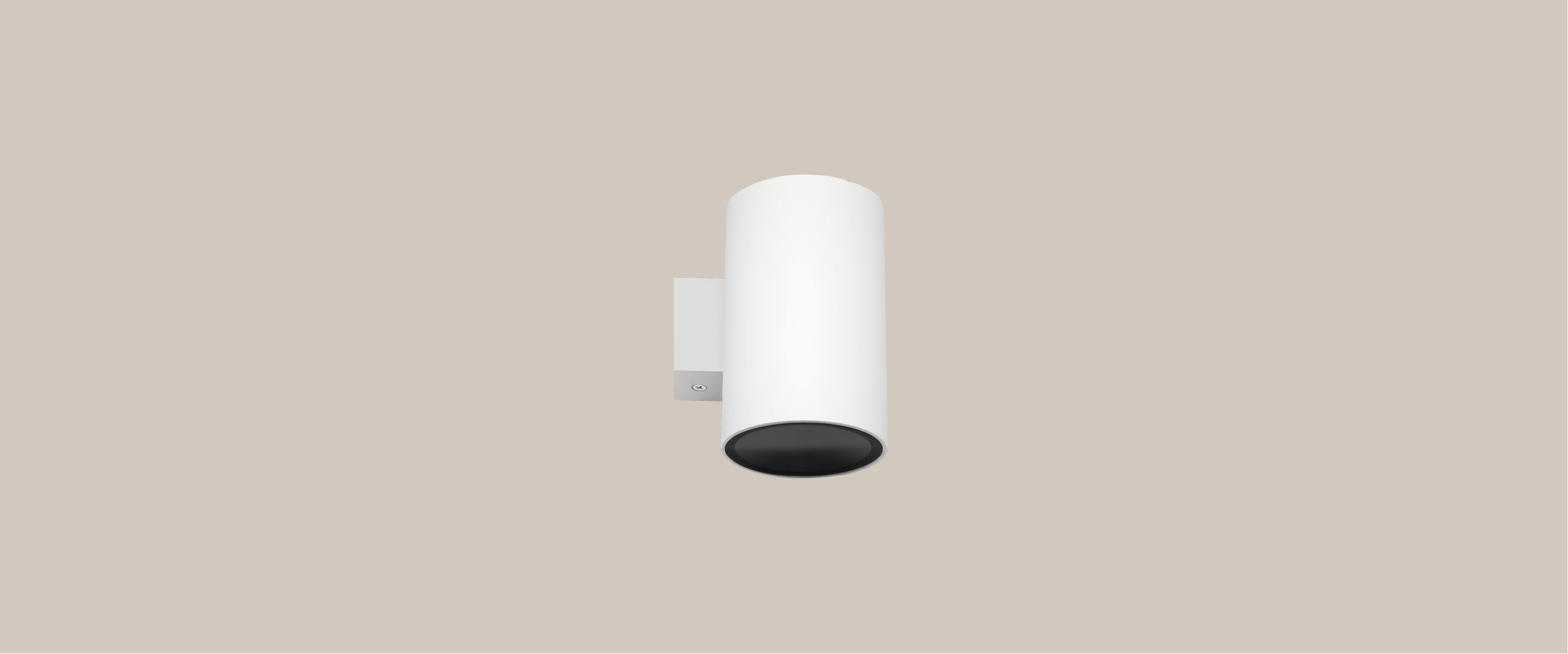

POYO 80

Wall Mounted

POYO 80

Looking forward to being shining, like the jade is waiting for carving.

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of 350 degrees

and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

Lighting Effects

Products Specification:: Type:Wall Mounted; Beam Angle:23D 32D 40D 50D; Power:5W 8W 10W 15W; CCT:2700K 3000K 4000K; Heat-Sink:Forging Aaluminium; Surface-Treatment:powder coating; Weight:0.85 kg; Remark:Available for Up lighting

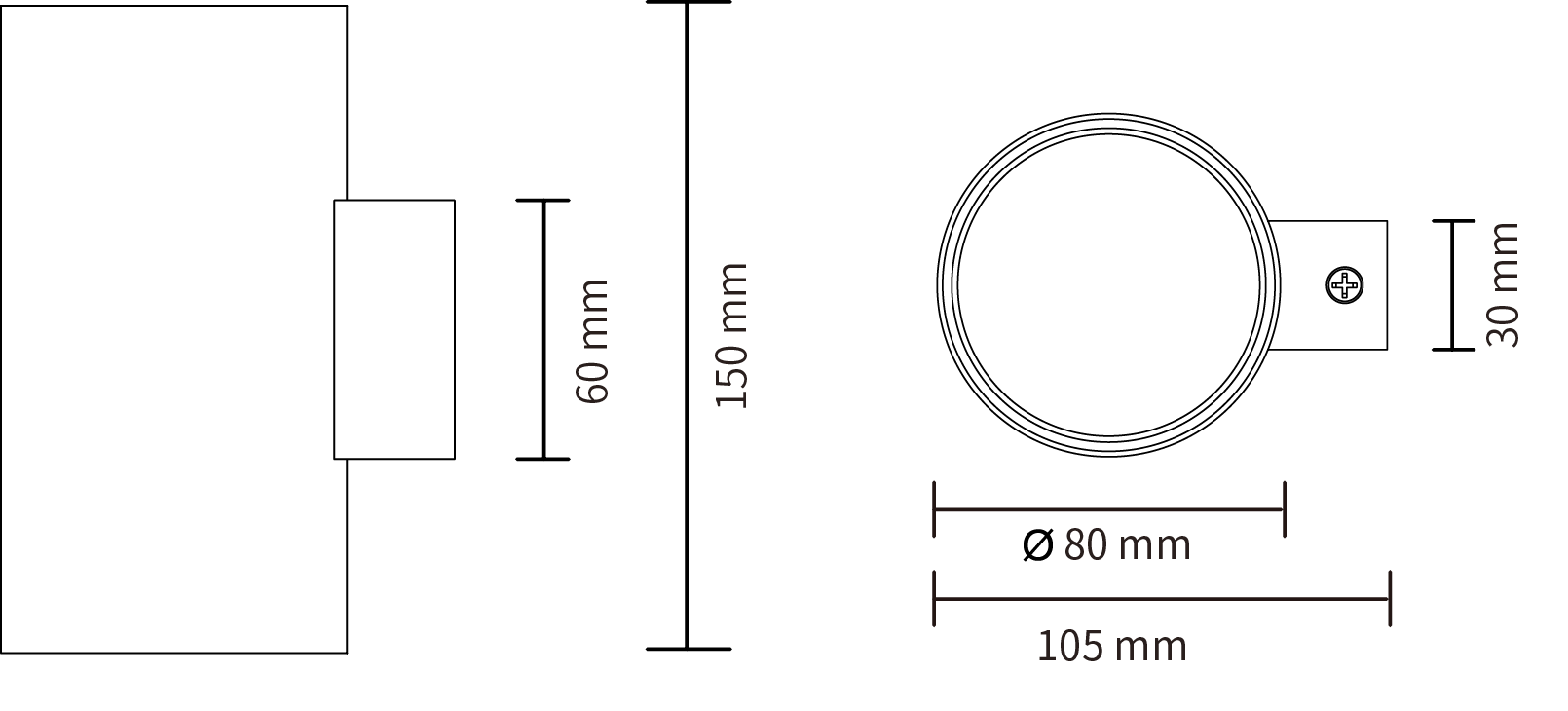

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
5W
8W
10W
15W

Beam Angle

Beam Angle
27°
35°
40°
50°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Control

Control

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
92-Outdoor white
94-Outdoor grey

Reflector

Reflector
2-Black

IP Rating

IP Rating
65-IP65

Accessory

Accessory
N/A

Model No
Source Lumen (LM)
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
manual
Favorite

Model No: DW00801-05279027; DW00801-05279030; DW00801-05279040; DW00801-05359027; DW00801-05359030; DW00801-05359040; DW00801-05409027; DW00801-05409030; DW00801-05409040; DW00801-05509027; DW00801-05509030; DW00801-05509040; DW00801-08279027; DW00801-08279030; DW00801-08279040; DW00801-08359027; DW00801-08359030; DW00801-08359040; DW00801-08409027; DW00801-08409030; DW00801-08409040; DW00801-08509027; DW00801-08509030; DW00801-08509040; DW00801-10279027; DW00801-10279030; DW00801-10279040; DW00801-10359027; DW00801-10359030; DW00801-10359040; DW00801-10409027; DW00801-10409030; DW00801-10409040; DW00801-10509027; DW00801-10509030; DW00801-10509040; DW00801-15279027; DW00801-15279030; DW00801-15279040; DW00801-15359027; DW00801-15359030; DW00801-15359040; DW00801-15409027; DW00801-15409030; DW00801-15409040; DW00801-15509027; DW00801-15509030; DW00801-15509040

Luminous Flux (LM): 482LM; 508LM; 518LM; 482LM; 508LM; 518LM; 482LM; 508LM; 518LM; 482LM; 508LM; 518LM; 845LM; 890LM; 907LM; 845LM; 890LM; 907LM; 845LM; 890LM; 907LM; 845LM; 890LM; 907LM; 1007LM; 1060LM; 1080LM; 1007LM; 1060LM; 1080LM; 1007LM; 1060LM; 1080LM; 1007LM; 1060LM; 1080LM; 1434LM; 1510LM; 1534LM; 1434LM; 1510LM; 1534LM; 1434LM; 1510LM; 1534LM; 1434LM; 1510LM; 1534LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W

Beam Angle: 27°; 27°; 27°; 35°; 35°; 35°; 40°; 40°; 40°; 50°; 50°; 50°; 27°; 27°; 27°; 35°; 35°; 35°; 40°; 40°; 40°; 50°; 50°; 50°; 27°; 27°; 27°; 35°; 35°; 35°; 40°; 40°; 40°; 50°; 50°; 50°; 27°; 27°; 27°; 35°; 35°; 35°; 40°; 40°; 40°; 50°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
