POYO 115

Pendant Mirror Downlight

POYO 115

Looking forward to being shining like the jade is waiting for carving

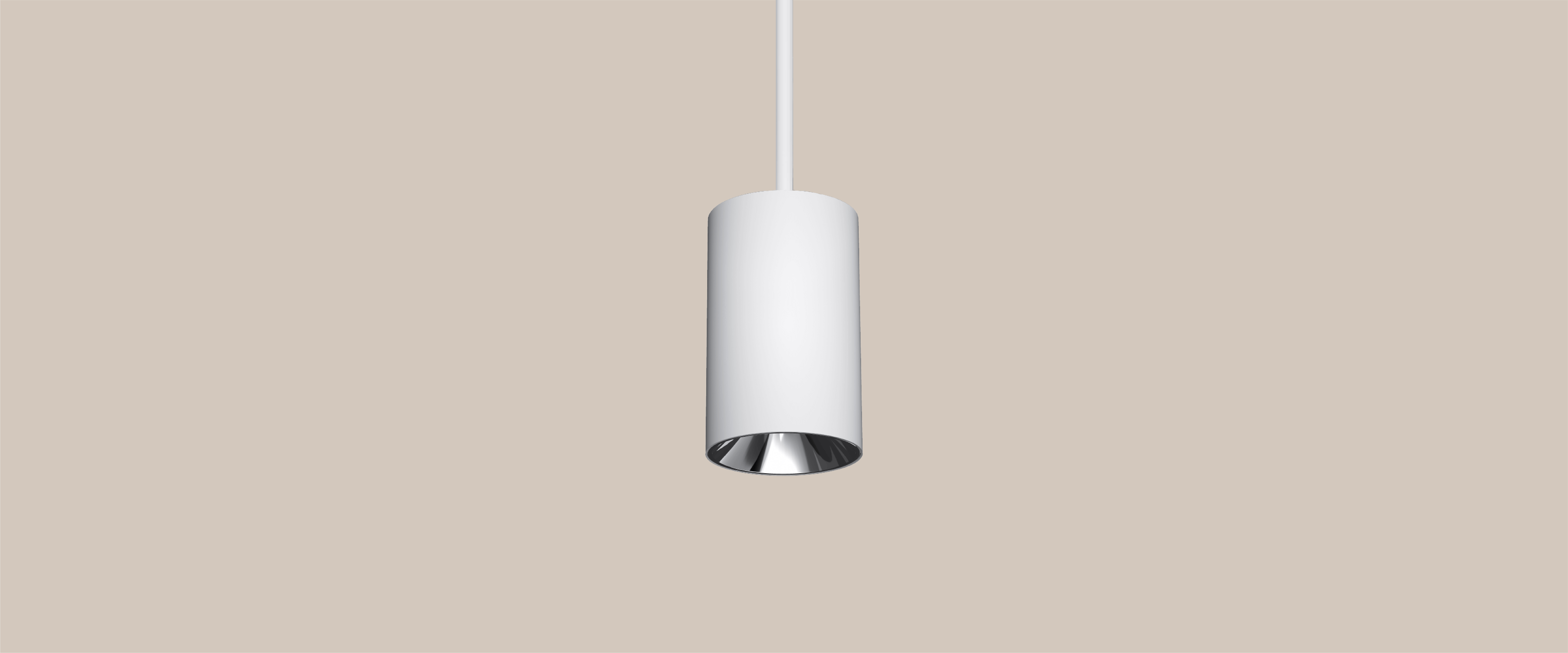

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of 350 degrees

and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

Lighting Effects

Products Specification:: Type:Pendant Mirror Downlight; Beam Angle:18D 24D 32D 50D; Power:15W 20W 25W; CCT:2700K 3000K 4000K

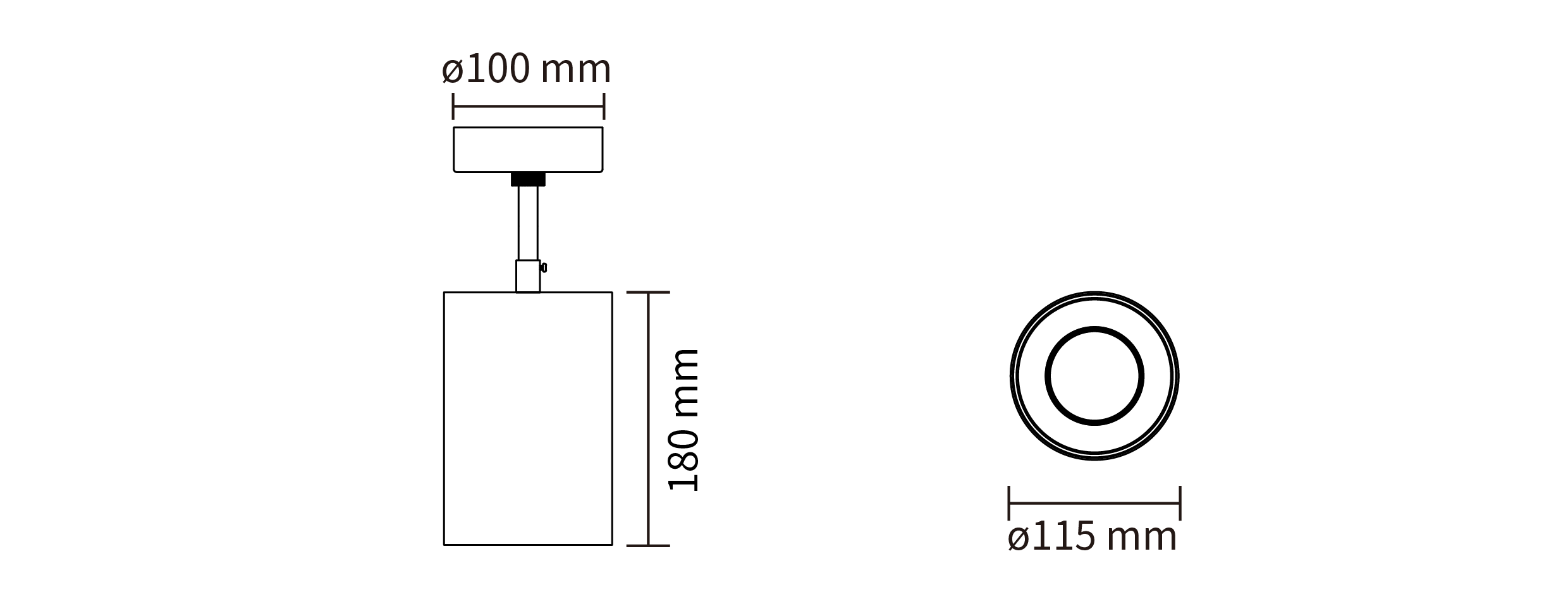

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
25 W
20 W
15 W

Beam Angle

Beam Angle
50°
32°
24°
18°

CRI

CRI
Ra>80

Color

Color
4000 K
3000 K
2700 K

Control

Control
DALI/0/1-10V/Triac

Model No
Luminous Flux (LM)
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
Favorite

Model No: 861D1C1-25508040; 861D1C1-25508030; 861D1C1-25508027; 861D1C1-25328040; 861D1C1-25328030; 861D1C1-25328027; 861D1C1-25248040; 861D1C1-25248030; 861D1C1-25248027; 861D1C1-25188040; 861D1C1-25188030; 861D1C1-25188027; 861D1C1-20508040; 861D1C1-20508030; 861D1C1-20508027; 861D1C1-20328040; 861D1C1-20328030; 861D1C1-20328027; 861D1C1-20248040; 861D1C1-20248030; 861D1C1-20248027; 861D1C1-20188040; 861D1C1-20188030; 861D1C1-20188027; 861D1C1-15508040; 861D1C1-15508030; 861D1C1-15508027; 861D1C1-15328040; 861D1C1-15328030; 861D1C1-15328027; 861D1C1-15248040; 861D1C1-15248030; 861D1C1-15248027; 861D1C1-15188040; 861D1C1-15188030; 861D1C1-15188027

Luminous Flux (LM): 2880 LM; 2743 LM; 2605 LM; 2880 LM; 2743 LM; 2605 LM; 2880 LM; 2743 LM; 2605 LM; 2880 LM; 2743 LM; 2605 LM; 2493 LM; 2375 LM; 2256 LM; 2493 LM; 2375 LM; 2256 LM; 2493 LM; 2375 LM; 2256 LM; 2493 LM; 2375 LM; 2256 LM; 1780 LM; 1696 LM; 1611 LM; 1780 LM; 1696 LM; 1611 LM; 1780 LM; 1696 LM; 1611 LM; 1780 LM; 1696 LM; 1611 LM

Power (W): 25 W; 25 W; 25 W; 25 W; 25 W; 25 W; 25 W; 25 W; 25 W; 25 W; 25 W; 25 W; 20 W; 20 W; 20 W; 20 W; 20 W; 20 W; 20 W; 20 W; 20 W; 20 W; 20 W; 20 W; 15 W; 15 W; 15 W; 15 W; 15 W; 15 W; 15 W; 15 W; 15 W; 15 W; 15 W; 15 W

Beam Angle: 50°; 50°; 50°; 32°; 32°; 32°; 24°; 24°; 24°; 18°; 18°; 18°; 50°; 50°; 50°; 32°; 32°; 32°; 24°; 24°; 24°; 18°; 18°; 18°; 50°; 50°; 50°; 32°; 32°; 32°; 24°; 24°; 24°; 18°; 18°; 18°

CRI: Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80; Ra>80

Color: 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K; 4000 K; 3000 K; 2700 K

Control: DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac; DALI/0/1-10V/Triac
