Home Products Indoor M-BOX 150 - Adjustable Surface-mounted Square Downlight

M-BOX 150

Adjustable Surface-mounted Square Downlight

M-BOX 150

M-BOX 150

M-BOX 150

M-BOX 150

Lighting Effects

Products Specification:: Type:Adjustable Surface-mounted Square Downlight; Power:20W 25W; Beam Angle:18° 28° 38° 52°; Weight:2kg; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:Painting/Powder coating

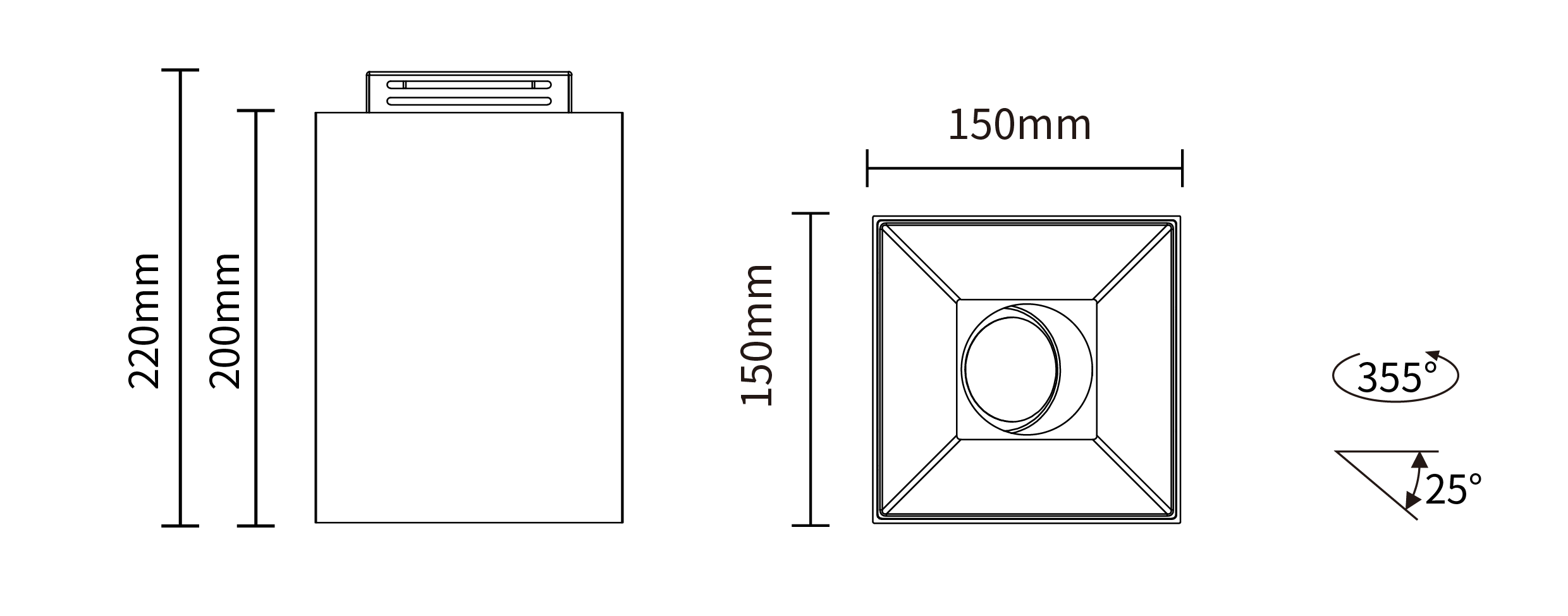

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
20W
25W

Beam Angle

Beam Angle
18°
28°
38°
52°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Black
Madrid Grey
Rose Gold

Reflector

Reflector
Mirror
Black
White
Madrid Grey
Red Golden

IP Rating

IP Rating
20-IP20

Accessory

Accessory
Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DS02706-20189027; DS02706-20189030; DS02706-20189040; DS02706-20289027; DS02706-20289030; DS02706-20289040; DS02706-20389027; DS02706-20389030; DS02706-20389040; DS02706-20529027; DS02706-20529030; DS02706-20529040; DS02706-25189027; DS02706-25189030; DS02706-25189040; DS02706-25289027; DS02706-25289030; DS02706-25289040; DS02706-25389027; DS02706-25389030; DS02706-25389040; DS02706-25529027; DS02706-25529030; DS02706-25529040

Luminous Flux (LM): 1611LM; 1696LM; 1850LM; 1783LM; 1877LM; 1996LM; 1798LM; 1893LM; 2098LM; 1643LM; 1729LM; 1830LM; 1844LM; 1941LM; 2093LM; 2052LM; 2160LM; 2319LM; 2076LM; 2186LM; 2427LM; 1892LM; 1992LM; 2128LM

Power (W): 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W

Beam Angle: 18°; 18°; 18°; 28°; 28°; 28°; 38°; 38°; 38°; 52°; 52°; 52°; 18°; 18°; 18°; 28°; 28°; 28°; 38°; 38°; 38°; 52°; 52°; 52°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

DWG

manual

Favorite

Application
