M-BOX 70
Adjustable Surface-mounted Square Downlight
M-BOX 70
M-BOX 70
M-BOX 70
M-BOX 70
Lighting Effects
- Products Specification:
- Type:Adjustable Surface-mounted Square Downlight
- Power:5W 8W
- Beam Angle:18° 28° 38° 48°
- Weight:0.38kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:Painting/Powder coating

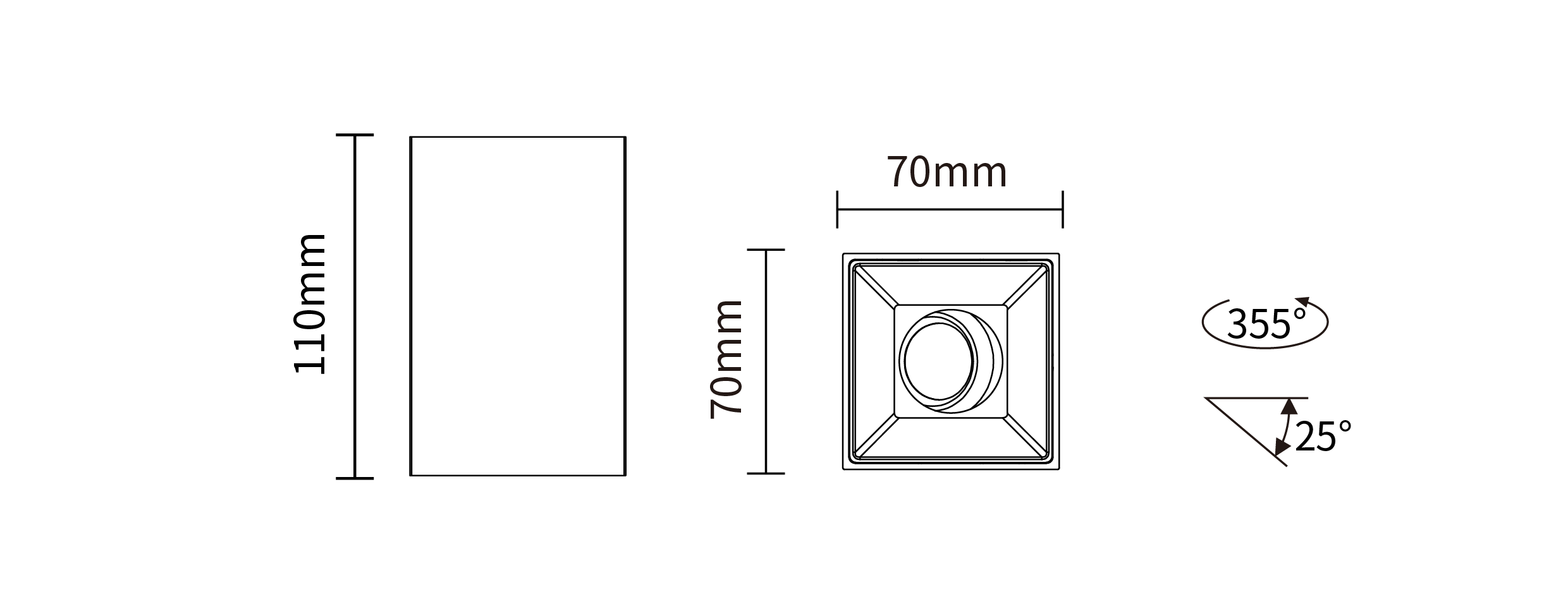

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 5W
- 8W
- Beam Angle
- 18°
- 28°
- 38°
- 48°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- White
- Black
- Madrid Grey
- Rose Gold
- Reflector
- Mirror
- Black
- White
- Madrid Grey
- Red Golden
- IP Rating
- 20-IP20
- Accessory
- Honeycomb louver
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DS02702-05189027
DS02702-05189030
DS02702-05189040
DS02702-05289027
DS02702-05289030
DS02702-05289040
DS02702-05389027
DS02702-05389030
DS02702-05389040
DS02702-05489027
DS02702-05489030
DS02702-05489040
DS02702-08189027
DS02702-08189030
DS02702-08189040
DS02702-08289027
DS02702-08289030
DS02702-08289040
DS02702-08389027
DS02702-08389030
DS02702-08389040
DS02702-08489027
DS02702-08489030
DS02702-08489040
- Luminous Flux (LM)
367LM
387LM
398LM
412LM
434LM
455LM
362LM
381LM
387LM
339LM
357LM
376LM
557LM
587LM
590LM
646LM
680LM
714LM
576LM
606LM
617LM
539LM
567LM
599LM
- Power (W)
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
- Beam Angle
18°
18°
18°
28°
28°
28°
38°
38°
38°
48°
48°
48°
18°
18°
18°
28°
28°
28°
38°
38°
38°
48°
48°
48°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
