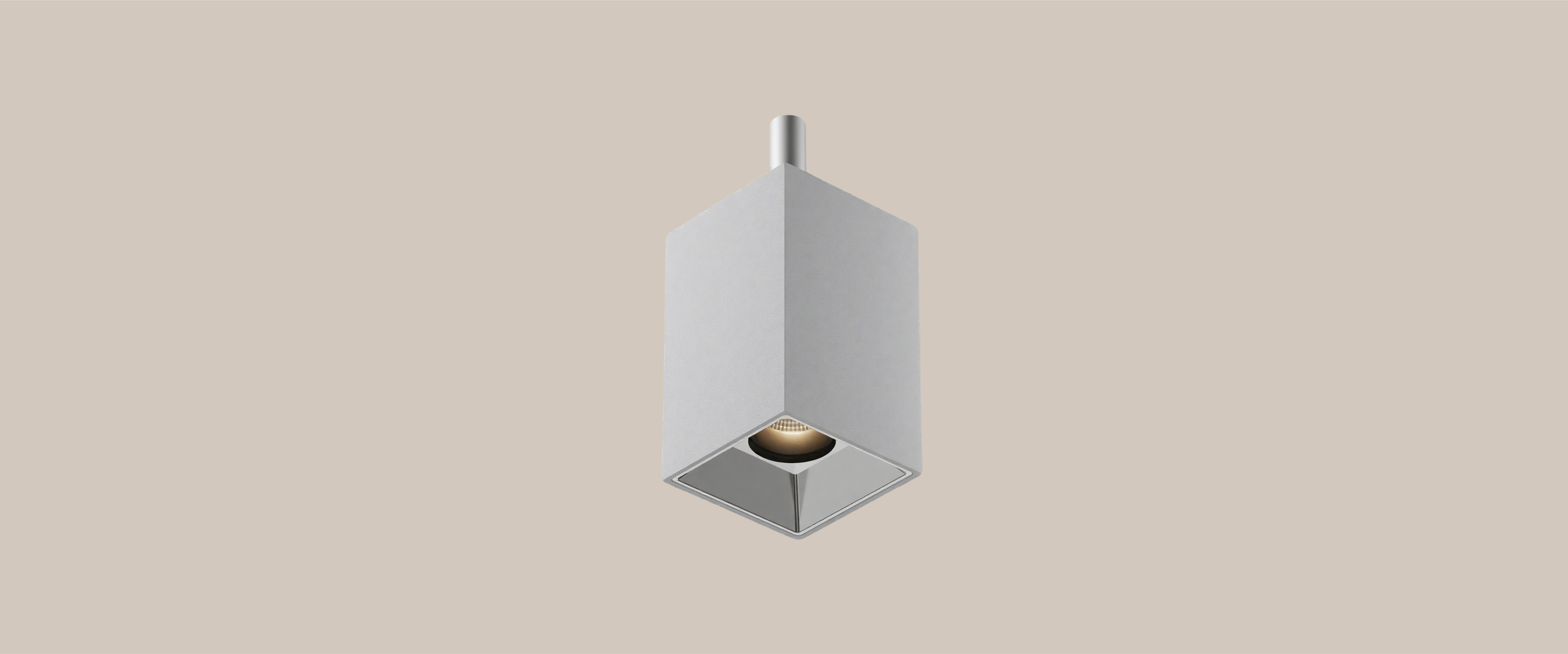

M-BOX 150
Pendant Square Downlight
M-BOX 150
Lighting Effects
- Products Specification:
- Type:Pendant Square Downlight
- Power:30W 36W
- Beam Angle:18° 28° 38° 52°
- Weight:2.1kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:Painting/Powder coating

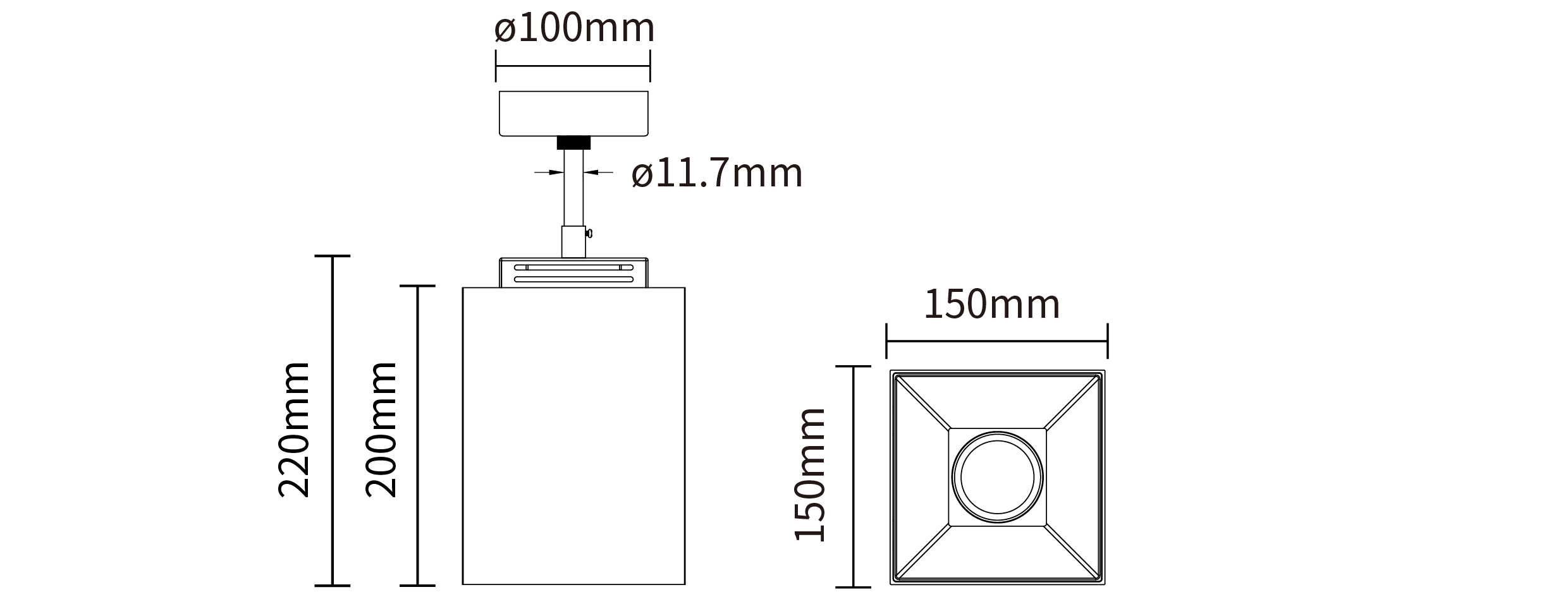

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 30W
- 36W
- Beam Angle
- 18°
- 28°
- 38°
- 52°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- White
- Black
- Madrid Grey
- Rose Gold
- Reflector
- Mirror
- Black
- White
- Madrid Grey
- Red Golden
- IP Rating
- 20-IP20
- Accessory
- Honeycomb louver
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DP02705-30189027
DP02705-30189030
DP02705-30189040
DP02705-30289027
DP02705-30289030
DP02705-30289040
DP02705-30389027
DP02705-30389030
DP02705-30389040
DP02705-30529027
DP02705-30529030
DP02705-30529040
DP02705-36189027
DP02705-36189030
DP02705-36189040
DP02705-36289027
DP02705-36289030
DP02705-36289040
DP02705-36389027
DP02705-36389030
DP02705-36389040
DP02705-36529027
DP02705-36529030
DP02705-36529040
- Luminous Flux (LM)
2135LM
2247LM
2384LM
2427LM
2555LM
2711LM
2452LM
2581LM
2847LM
2209LM
2326LM
2501LM
2596LM
2733LM
2790LM
2918LM
3072LM
3368LM
2962LM
3117LM
3448LM
2718LM
2861LM
3088LM
- Power (W)
30W
30W
30W
30W
30W
30W
30W
30W
30W
30W
30W
30W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
- Beam Angle
18°
18°
18°
28°
28°
28°
38°
38°
38°
52°
52°
52°
18°
18°
18°
28°
28°
28°
38°
38°
38°
52°
52°
52°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
